Model # AZ91H09D3CW1 Official GE room air conditioner
Here are the diagrams and repair parts for Official GE AZ91H09D3CW1 room air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
AZ91H09D3CW1 Room Air Conditioner
#10

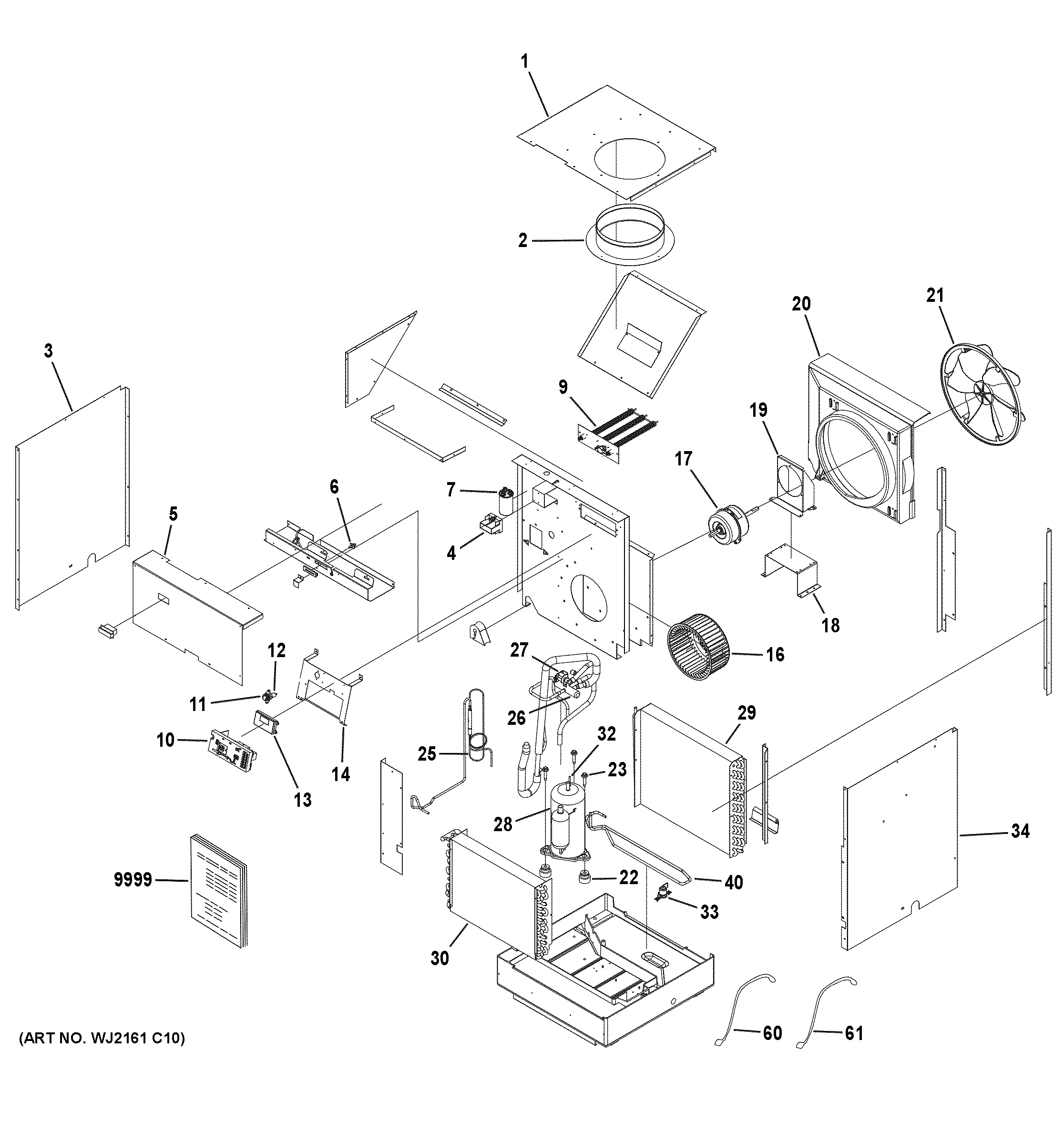

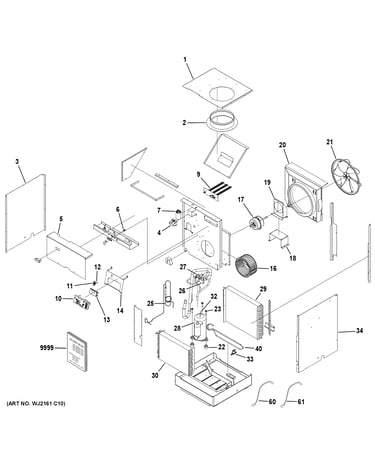

Vertical zoneline diagram
Main board
Part #WP26X21993
$380.35
In Stock
#17
Vertical zoneline diagram
Fan motor
Part #WP94X21943
$180.10
In Stock
#1
Vertical zoneline diagram
Top cover and insulation
Part #WP43X21960
$130.92
In Stock
#19
Vertical zoneline diagram
Motor mount
Part #WP01X21952
$25.80
In Stock
#18
Vertical zoneline diagram
Motor riser
Part #WP01X21953
$34.67
In Stock
#13
Vertical zoneline diagram
Display board and jumper
Part #WP26X21942
$83.76
In Stock
#61
Vertical zoneline diagram
Outdoor coil temp sensor
Part #WP26X27655
$37.51
In Stock
#9
Vertical zoneline diagram
Heater assembly
Part #WP27X21962
$151.52
In Stock
#28
Vertical zoneline diagram
Compressor and electricals
Part #WP98X21938
$614.08
In Stock
#29
Vertical zoneline diagram
Outdoor coil
Part #WP87X21954
$719.78
In Stock
