Model # 32-326 Official Delta boring machine

Here are the diagrams and repair parts for Official Delta 32-326 boring machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 210 parts  |
Screw 901-02-010-0559
#454

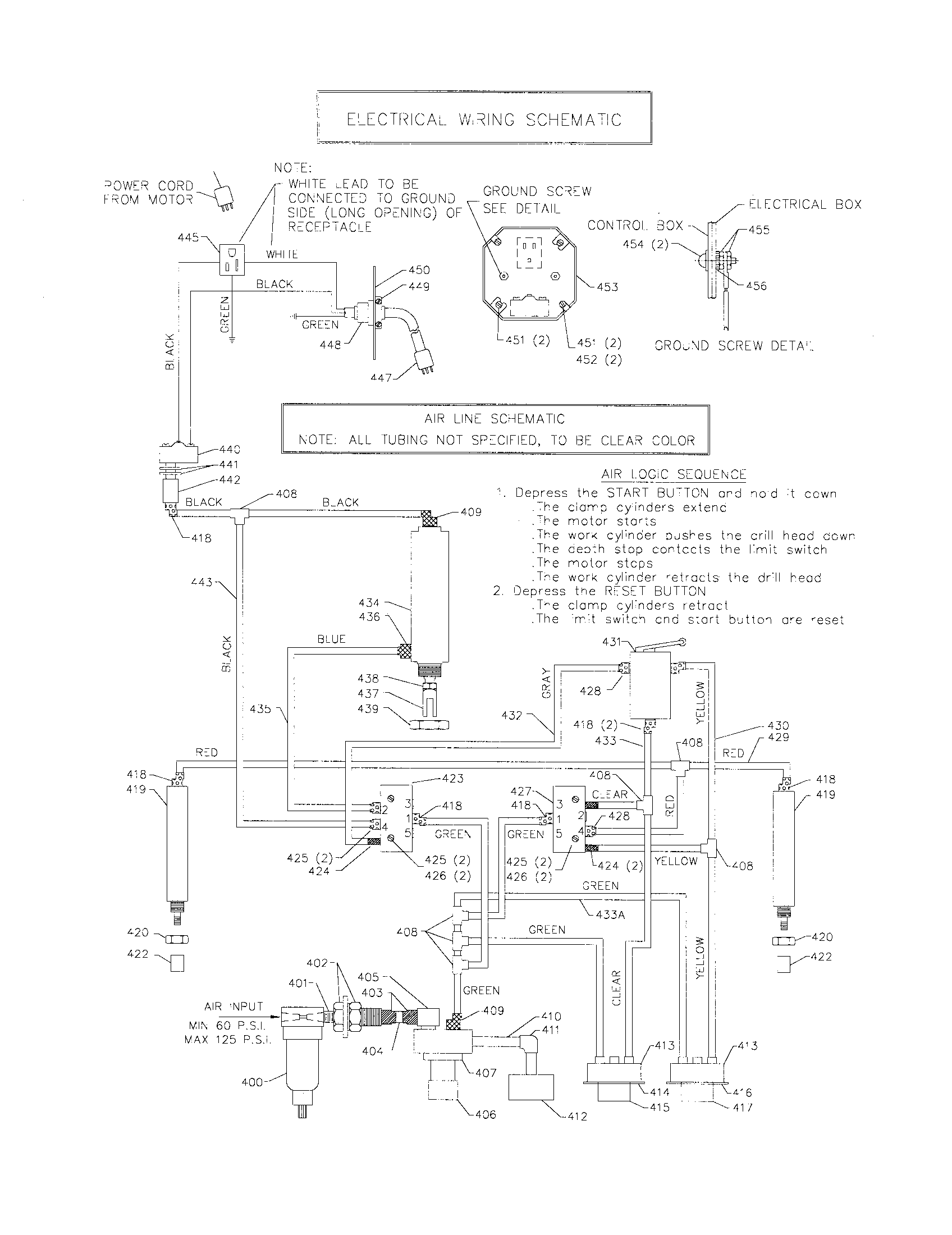

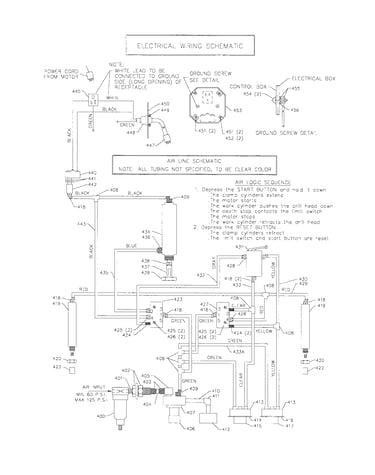

Wiring schematic diagram

Screw

Part #901-02-010-0559

The manufacturer no longer makes this part, and there's no substitute part

Foot 427-99-048-0001
#212

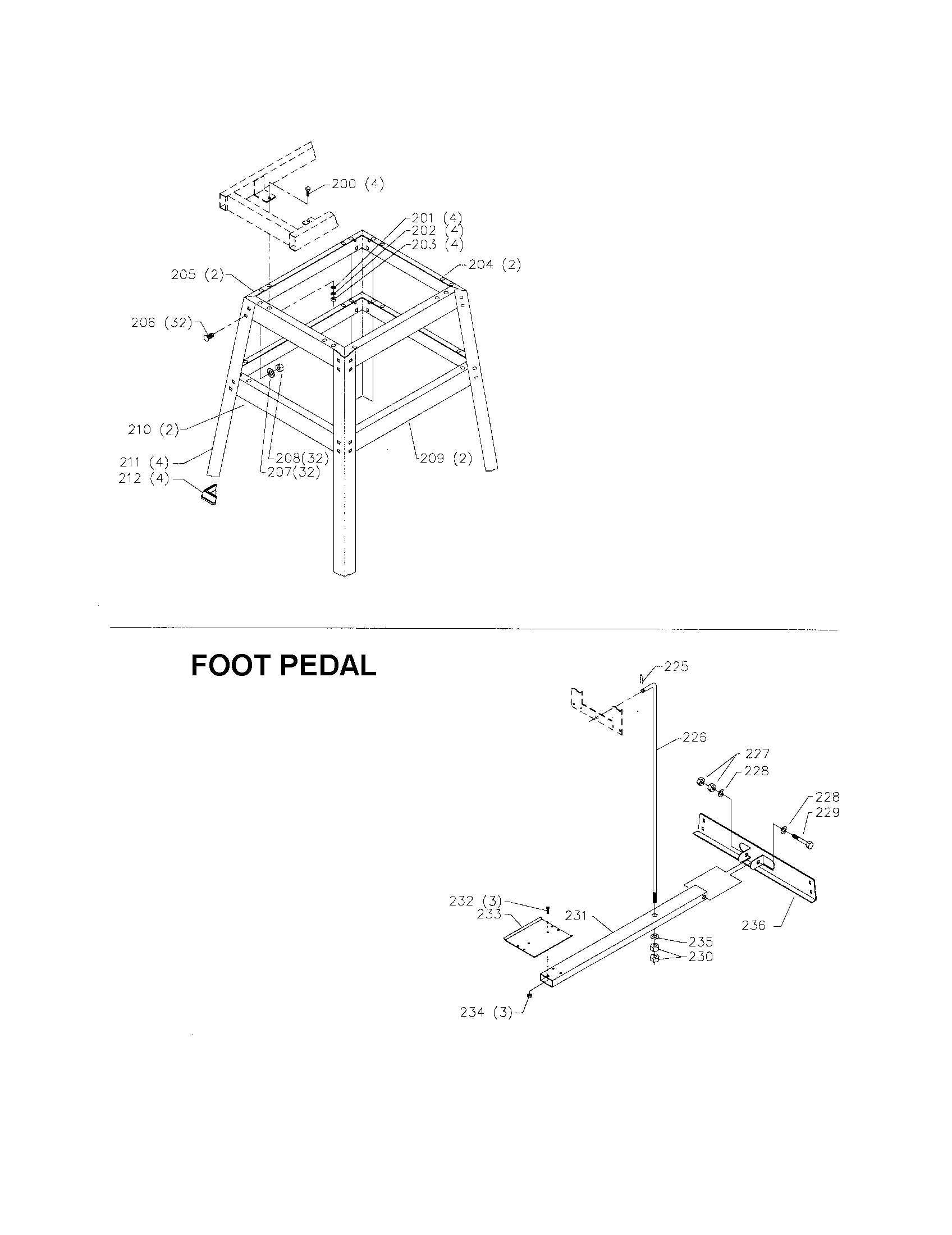

Stand/foot pedal diagram

Foot

Part #427-99-048-0001

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 901-11-020-0834
#130

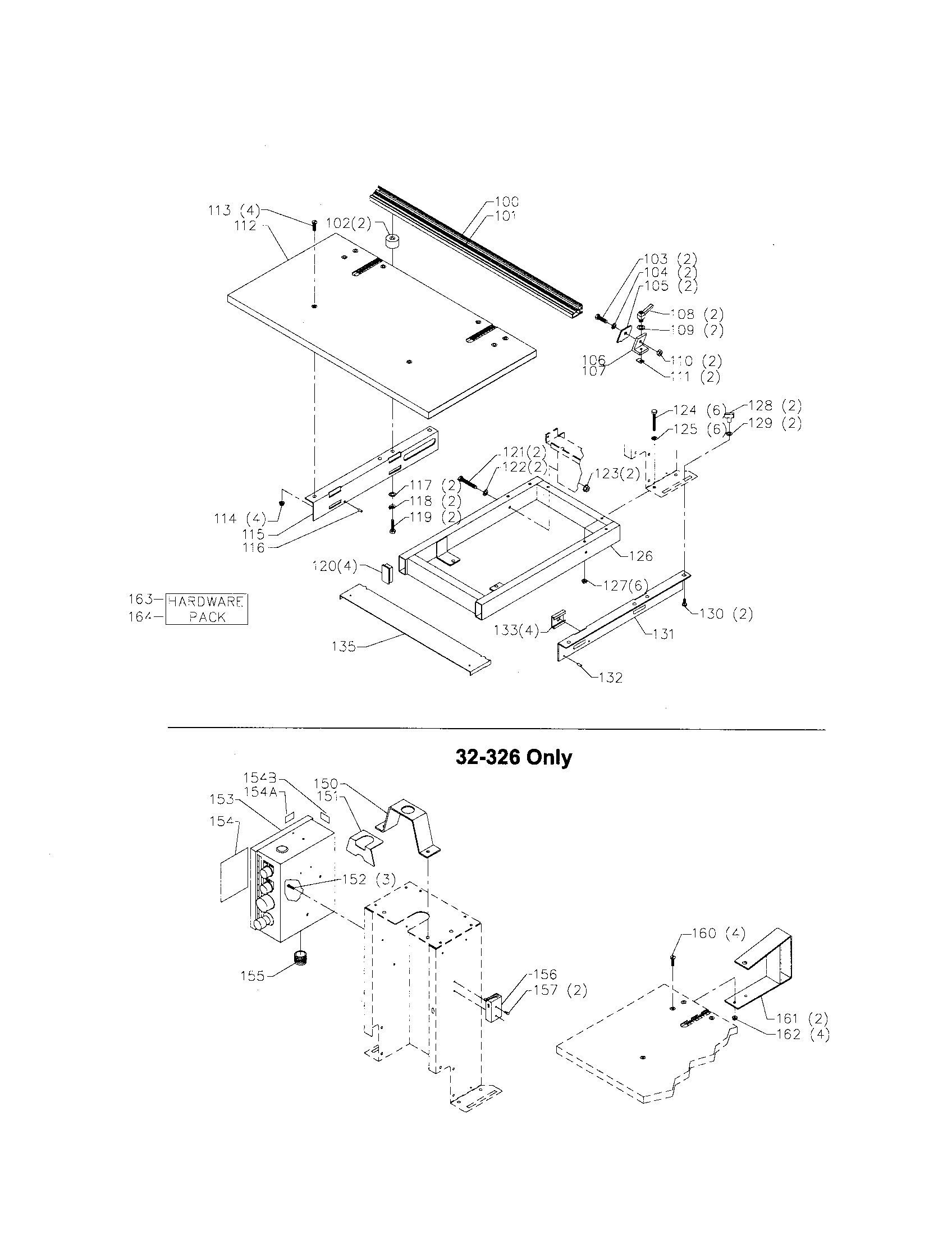

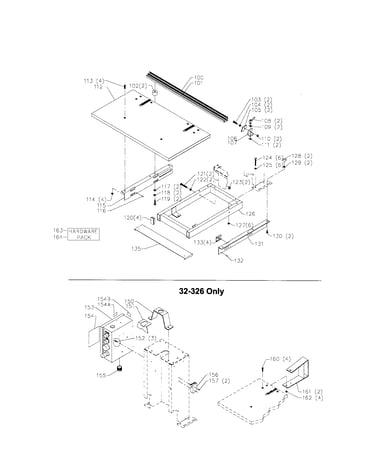

Base and fence assembly diagram

Carriage bolt

Part #901-11-020-0834

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover-right (s/n's Beginning With 01j And Below) 449-01-031-0005
#29A

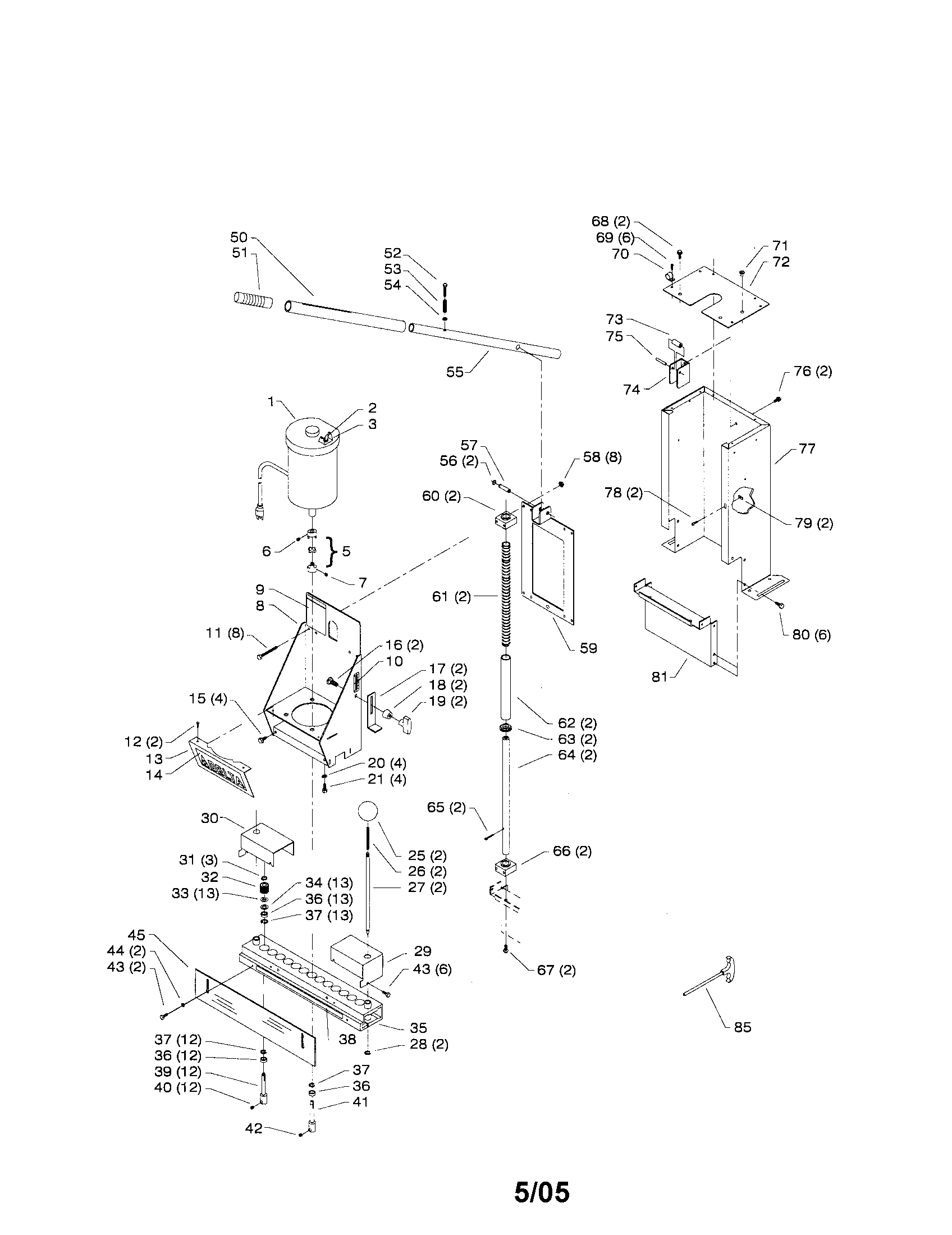

Motor/tower housing diagram

Gear cover-right (s/n's beginning with 01j and below)

Part #449-01-031-0005

The manufacturer no longer makes this part, and there's no substitute part

Knob 424-12-060-0005
Knob

Part #424-12-060-0005

The manufacturer no longer makes this part, and there's no substitute part

Table/fence Support-left (incl Key 116) (s/n's Beginning With 01j And Below) 449-01-389-0005
#115A

Base and fence assembly diagram

Table/fence support-left (incl key 116) (s/n's beginning with 01j and below)

Part #449-01-389-0005

The manufacturer no longer makes this part, and there's no substitute part

Leg 427-99-066-0045
#211

Stand/foot pedal diagram

Leg

Part #427-99-066-0045

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 904-15-103-1701
#37

Motor/tower housing diagram

Retainer ring

Part #904-15-103-1701

The manufacturer no longer makes this part, and there's no substitute part

10-24 X 1/4" Hex Soc Set Screw 901-04-150-0236
#6

Motor/tower housing diagram

10-24 x 1/4" hex soc set screw

Part #901-04-150-0236

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover-left (s/n's Beginning With 01k And Above) 449-01-031-0008
#30

Motor/tower housing diagram

Gear cover-left (s/n's beginning with 01k and above)

Part #449-01-031-0008

The manufacturer no longer makes this part, and there's no substitute part
