Model # 21K3 Official Bissell upright vacuum

Here are the diagrams and repair parts for Official Bissell 21K3 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Power Rocker 2031035
#12

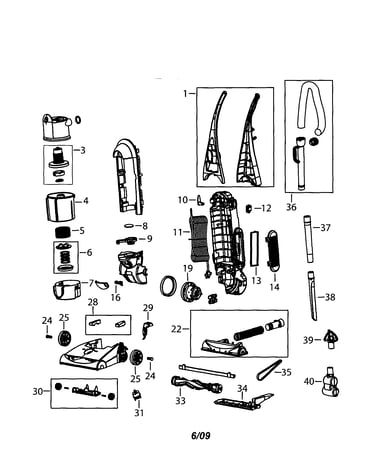

Cleanview helix diagram

Power rocker

Part #2031035

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 2032463
#29

Cleanview helix diagram

Vacuum handle release pedal

Part #2032463

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle Case And Hose 2032457
#22

Cleanview helix diagram

Vacuum nozzle case and hose

Part #2032457

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hepa Filter 32076
#13

Cleanview helix diagram

Vacuum hepa filter

Part #32076

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 2031464
#6

Cleanview helix diagram

Vacuum filter

Part #2031464

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 2032461
#25

Cleanview helix diagram

Vacuum wheel

Part #2032461

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 2032451
#1A

Cleanview helix diagram

Handle assembly

Part #2032451

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 2032449
#33A

Cleanview helix diagram

Vacuum beater bar

Part #2032449

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 2031198
#10

Cleanview helix diagram

Cord hook

Part #2031198

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate 2032467
#34A

Cleanview helix diagram

Vacuum base plate

Part #2032467

The manufacturer no longer makes this part, and there's no substitute part
