Model # ZGU384NSM4SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU384NSM4SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Cooktop Control Transformer (replaces Wb27t10856) WB27X21609
#320

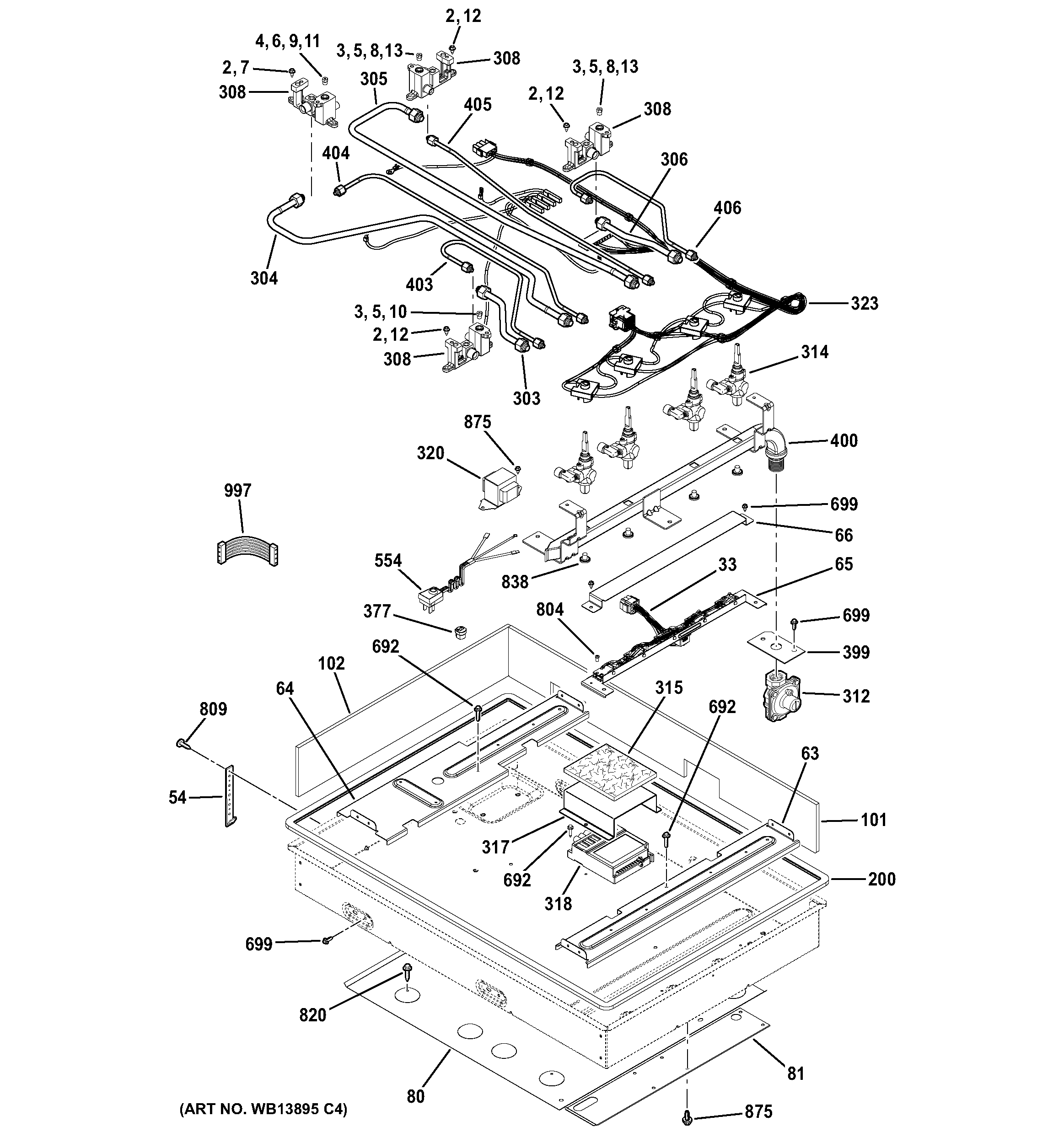

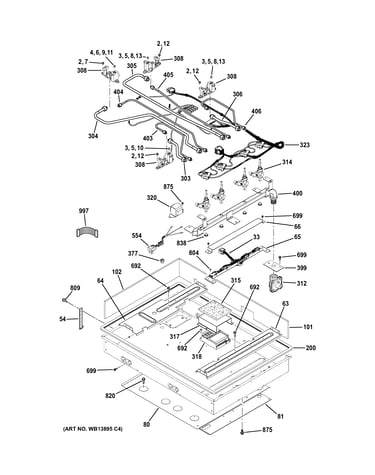

Gas & burner parts diagram

Cooktop control transformer (replaces wb27t10856)

Part #WB27X21609

$122.51 |
9% OFF Phone Price : $134.51
In Stock
Screw WH02X0930
#875

Gas & burner parts diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Cap WB13T10067
#329

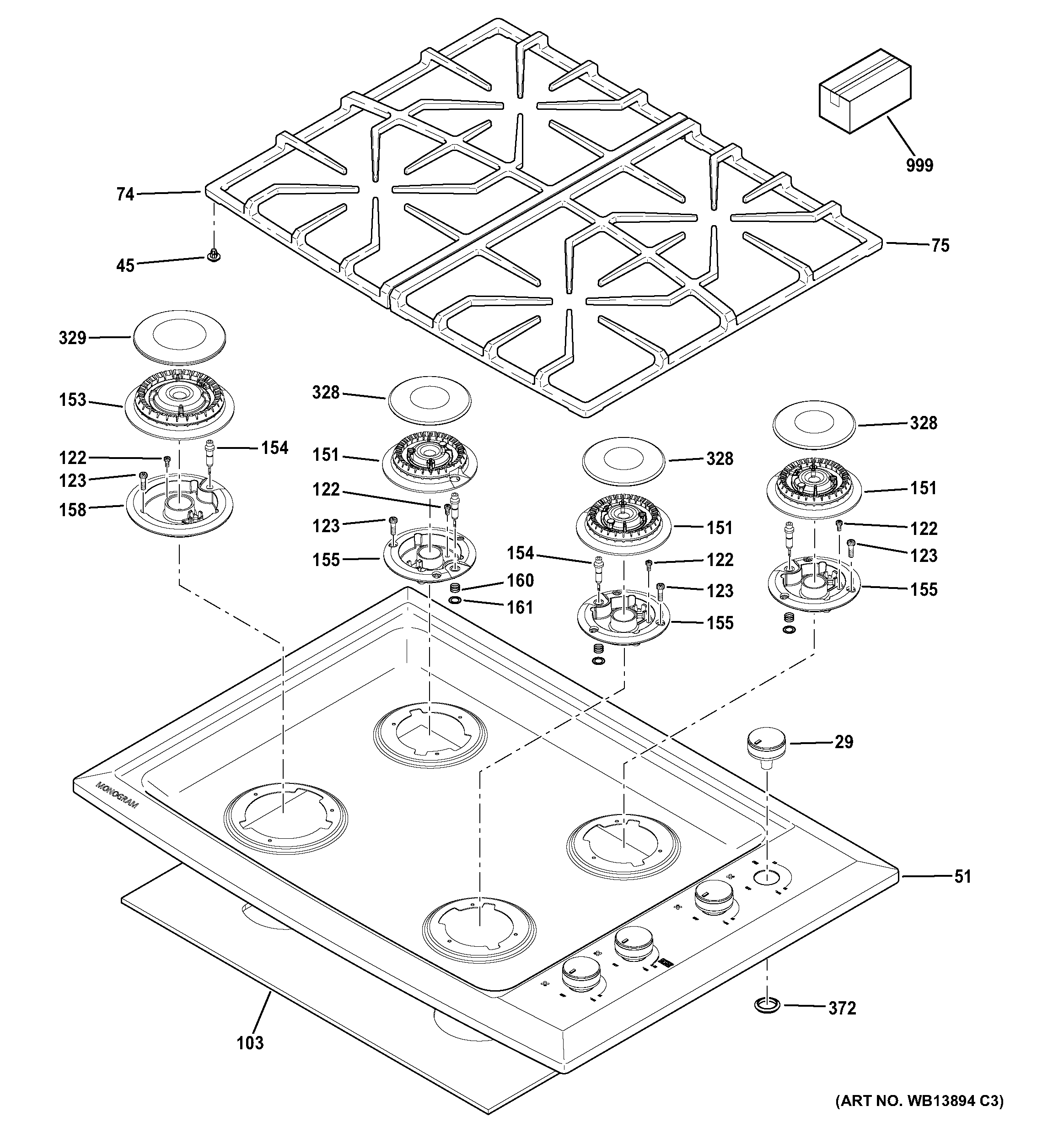

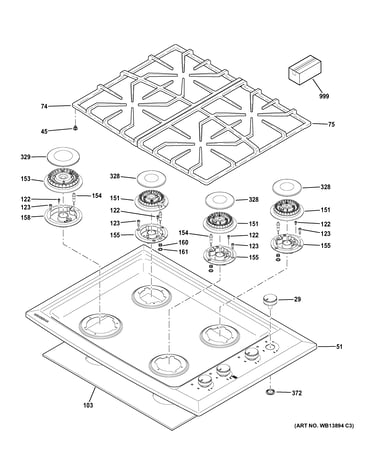

Control panel & cooktop diagram

Range surface burner cap

Part #WB13T10067

$61.29 |
9% OFF Phone Price : $67.29
In Stock
Range Surface Burner Base WB28T10114
#308

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69 |
8% OFF Phone Price : $75.69
In Stock
Range Surface Burner Igniter Clip WB02T10323
#161

Control panel & cooktop diagram

Range surface burner igniter clip

Part #WB02T10323

$8.11
In Stock
Cooktop Burner Knob WB03X24360
#29

Control panel & cooktop diagram

Cooktop burner knob

Part #WB03X24360

$52.59 |
10% OFF Phone Price : $58.59
In Stock
Range Surface Burner Igniter Spring WB09T10011
#160

Control panel & cooktop diagram

Range surface burner igniter spring

Part #WB09T10011

This item is not returnable
$8.11
In Stock
Range Surface Burner Base Screw WB01T10092
#122

Control panel & cooktop diagram

Range surface burner base screw

Part #WB01T10092

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
#809

Gas & burner parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Orifice WB28T10118
#2

Gas & burner parts diagram

Range surface burner orifice

Part #WB28T10118

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
