Model # 517473021 Official Sears lightweight bicycle

Here are the diagrams and repair parts for Official Sears 517473021 lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Seat Tube Shim 3062
#37

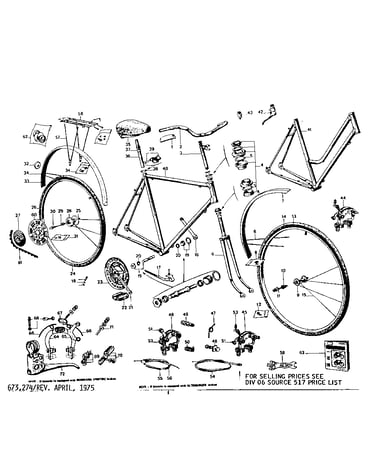

Unit parts diagram

Seat tube shim

Part #3062

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel Compl (less Tire) 22784
#24

Unit parts diagram

Rear wheel compl (less tire)

Part #22784

The manufacturer no longer makes this part, and there's no substitute part

Cable Adjusting Barrel 2981-0400-1
#7

Shimano rear derailleur diagram

Cable adjusting barrel

Part #2981-0400-1

The manufacturer no longer makes this part, and there's no substitute part

Tightening Bolt For Seat 929832
#39

Unit parts diagram

Tightening bolt for seat

Part #929832

The manufacturer no longer makes this part, and there's no substitute part

Chainguard (for Ladies And Men) 6845
#23

Unit parts diagram

Chainguard (for ladies and men)

Part #6845

The manufacturer no longer makes this part, and there's no substitute part

Blocking Collar 0 1" 1/10 4062
#38

Unit parts diagram

Blocking collar 0 1" 1/10

Part #4062

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle Nut Set (consist Of Nut And Washer (2 Of Each) 1523932
#31

Unit parts diagram

Rear axle nut set (consist of nut and washer (2 of each)

Part #1523932

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Screw-complete 9472-0000065
#68

Unit parts diagram

Adjusting screw-complete

Part #9472-0000065

The manufacturer no longer makes this part, and there's no substitute part

Sprocket Remover Tool 50789

#NI

All parts diagram

Sprocket remover tool

Part #50789

The manufacturer no longer makes this part, and there's no substitute part

Ball-bearing (2 Required) 487
#20

Unit parts diagram

Ball-bearing (2 required)

Part #487

The manufacturer no longer makes this part, and there's no substitute part
