Model # 502474462 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474462 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

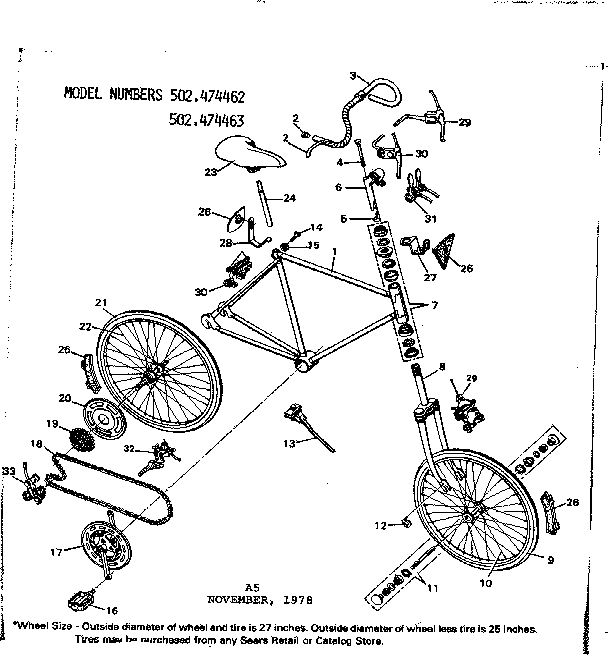

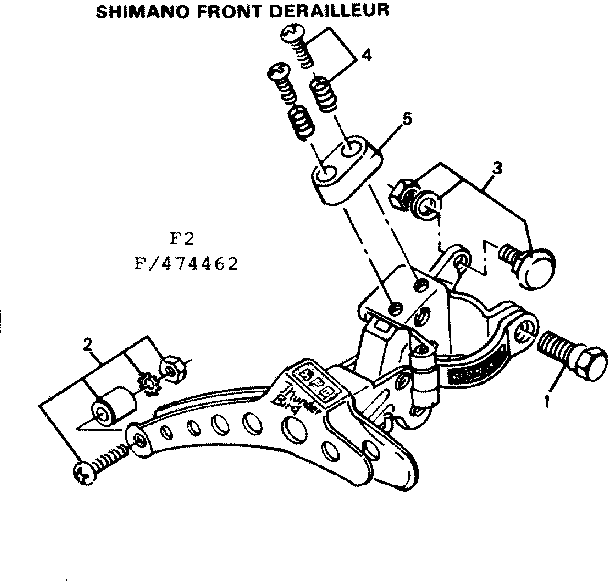

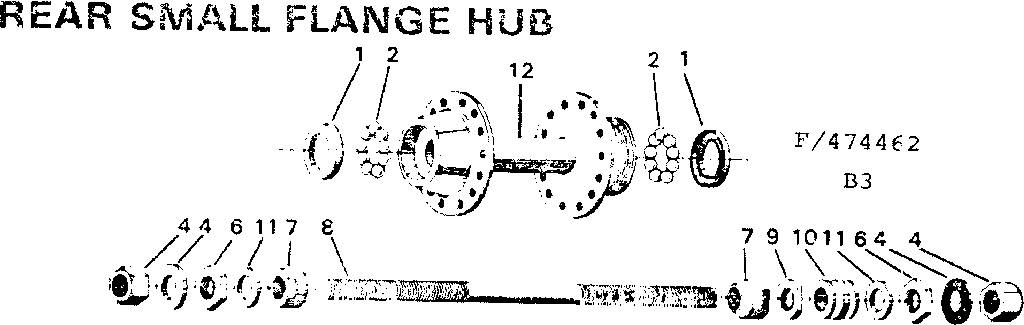

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Eagle Ii 302809
Eagle ii

Part #302809

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#12

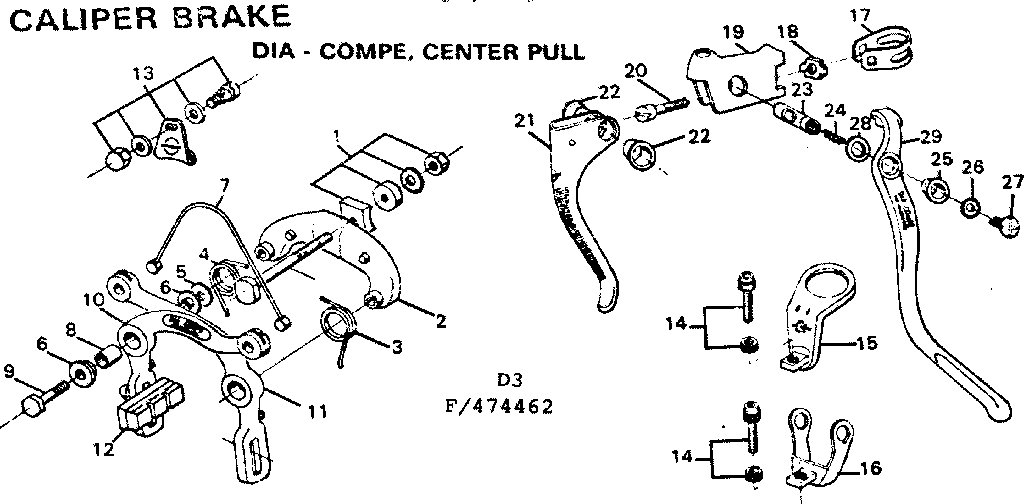

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Adapter Screw 300934
#8

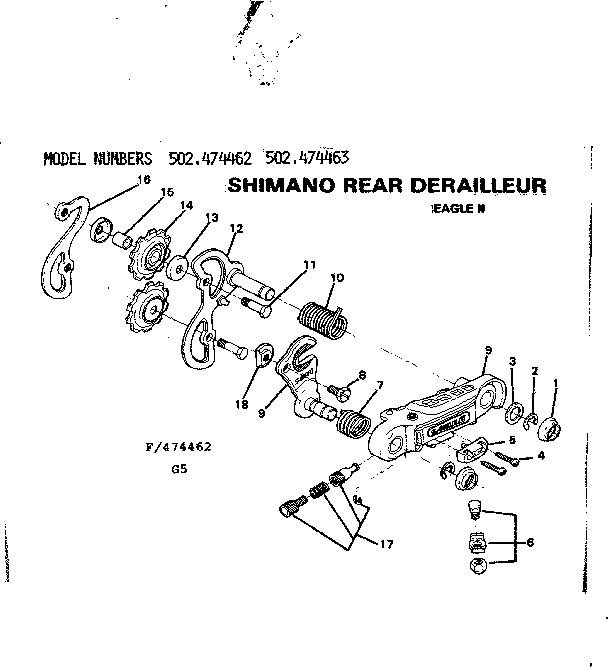

Shimano rear derailleur diagram

Adapter screw

Part #300934

The manufacturer no longer makes this part, and there's no substitute part

Chain Wheel 300635
#1

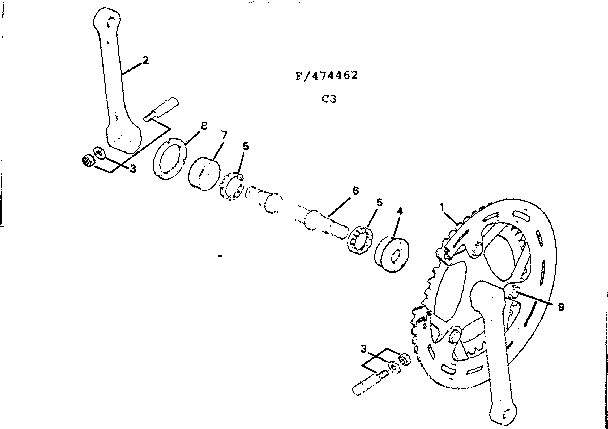

Double chain wheel diagram

Chain wheel

Part #300635

The manufacturer no longer makes this part, and there's no substitute part

Pres Plate A 300969
#3

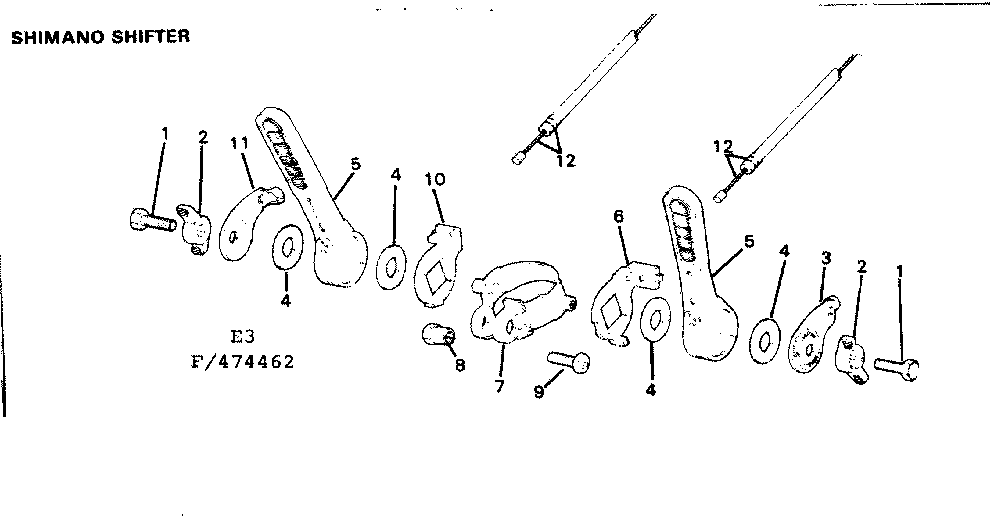

Shimano shifter diagram

Pres plate a

Part #300969

The manufacturer no longer makes this part, and there's no substitute part

Washer 304273
#28

Caliper brake diagram

Washer

Part #304273

The manufacturer no longer makes this part, and there's no substitute part

Spacer 302795
#4

Shimano shifter diagram

Spacer

Part #302795

The manufacturer no longer makes this part, and there's no substitute part

Plate 300937
#12

Shimano rear derailleur diagram

Plate

Part #300937

The manufacturer no longer makes this part, and there's no substitute part

Cable (white) 308705

#NI

All parts diagram

Cable (white)

Part #308705

The manufacturer no longer makes this part, and there's no substitute part

Bushing 300519
#15

Shimano rear derailleur diagram

Bushing

Part #300519

The manufacturer no longer makes this part, and there's no substitute part
