GE
Electric Wall Oven

Model # JT952SF3SS Official GE electric oven

Here are the diagrams and repair parts for Official GE JT952SF3SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

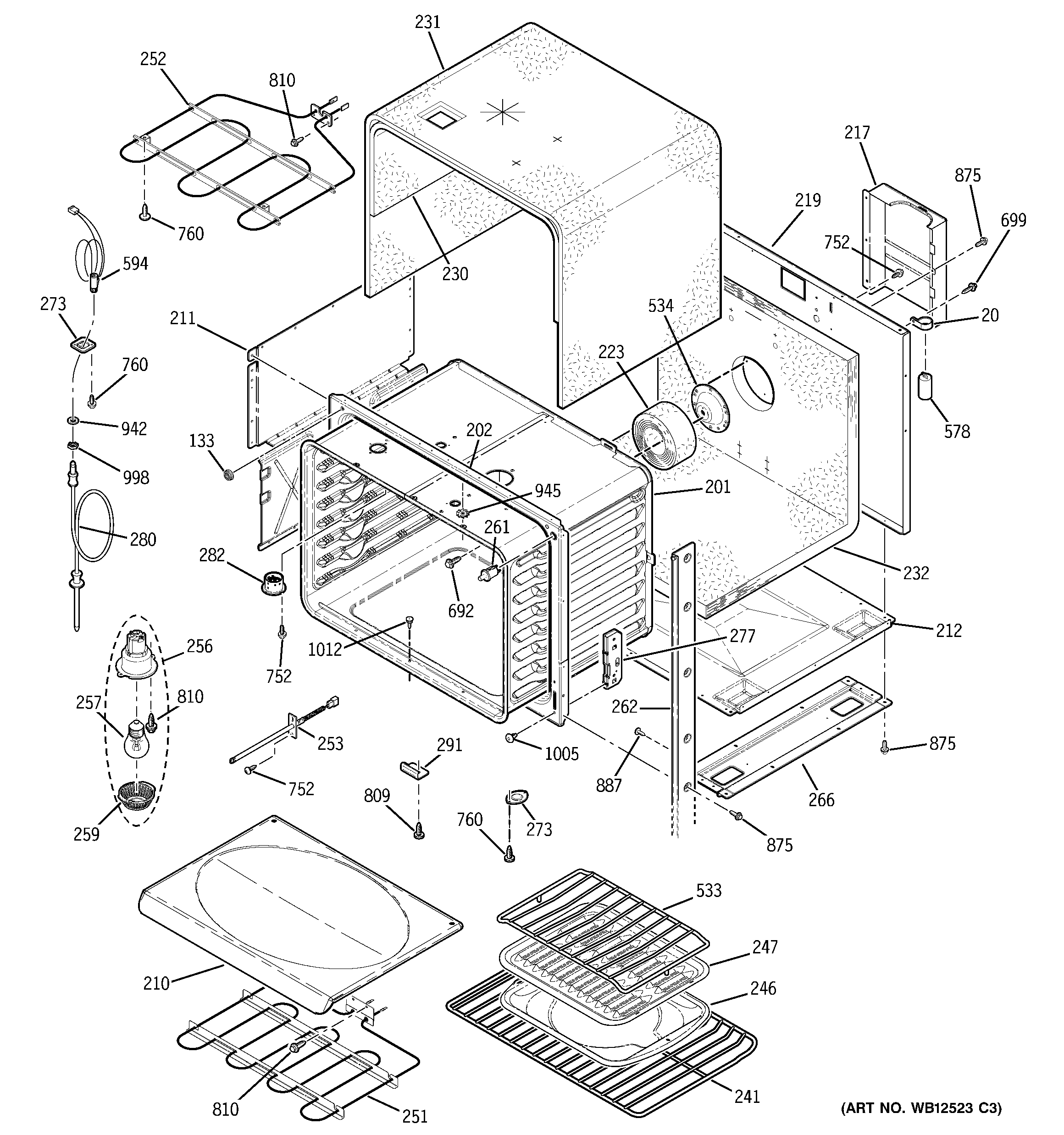

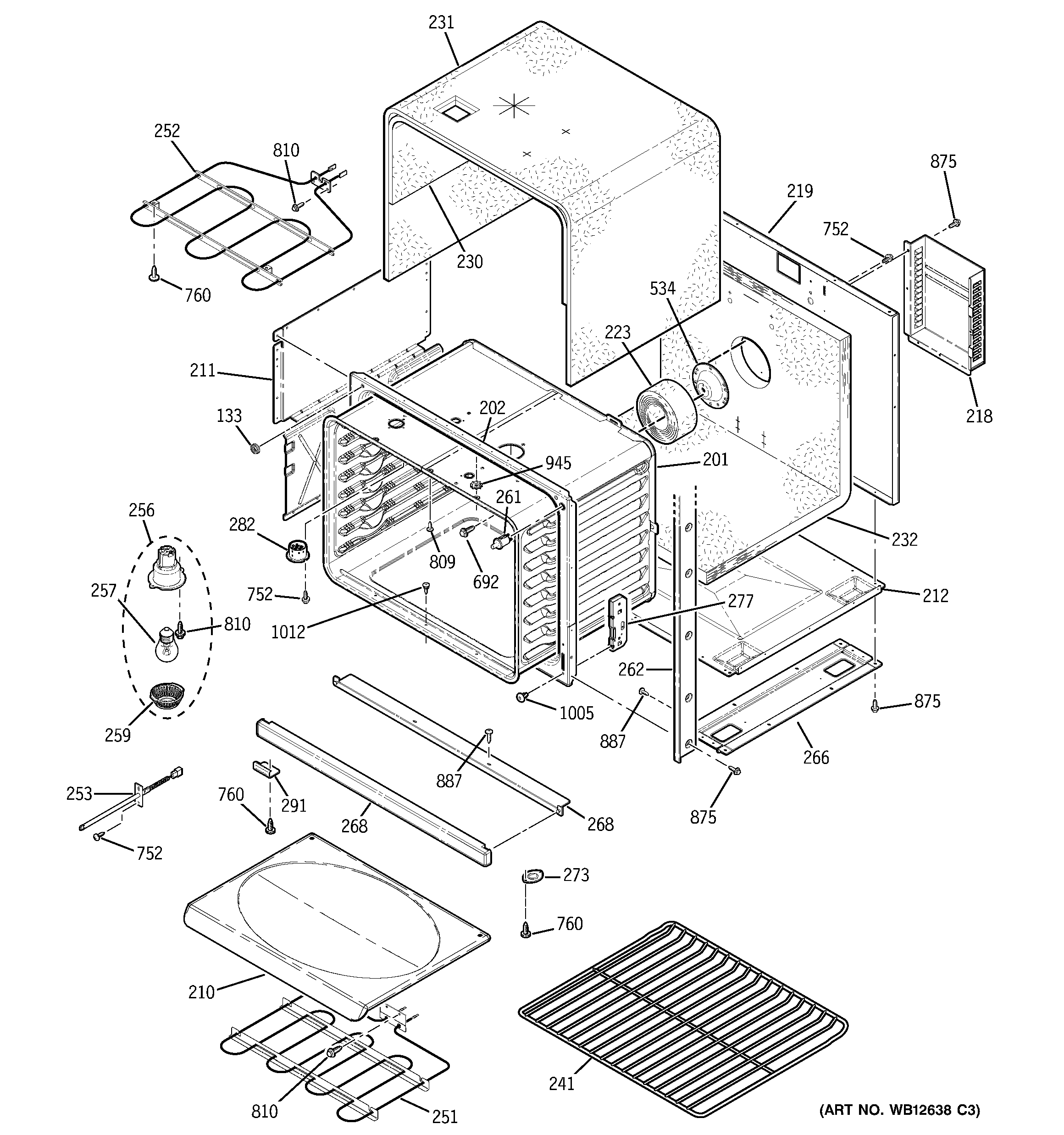

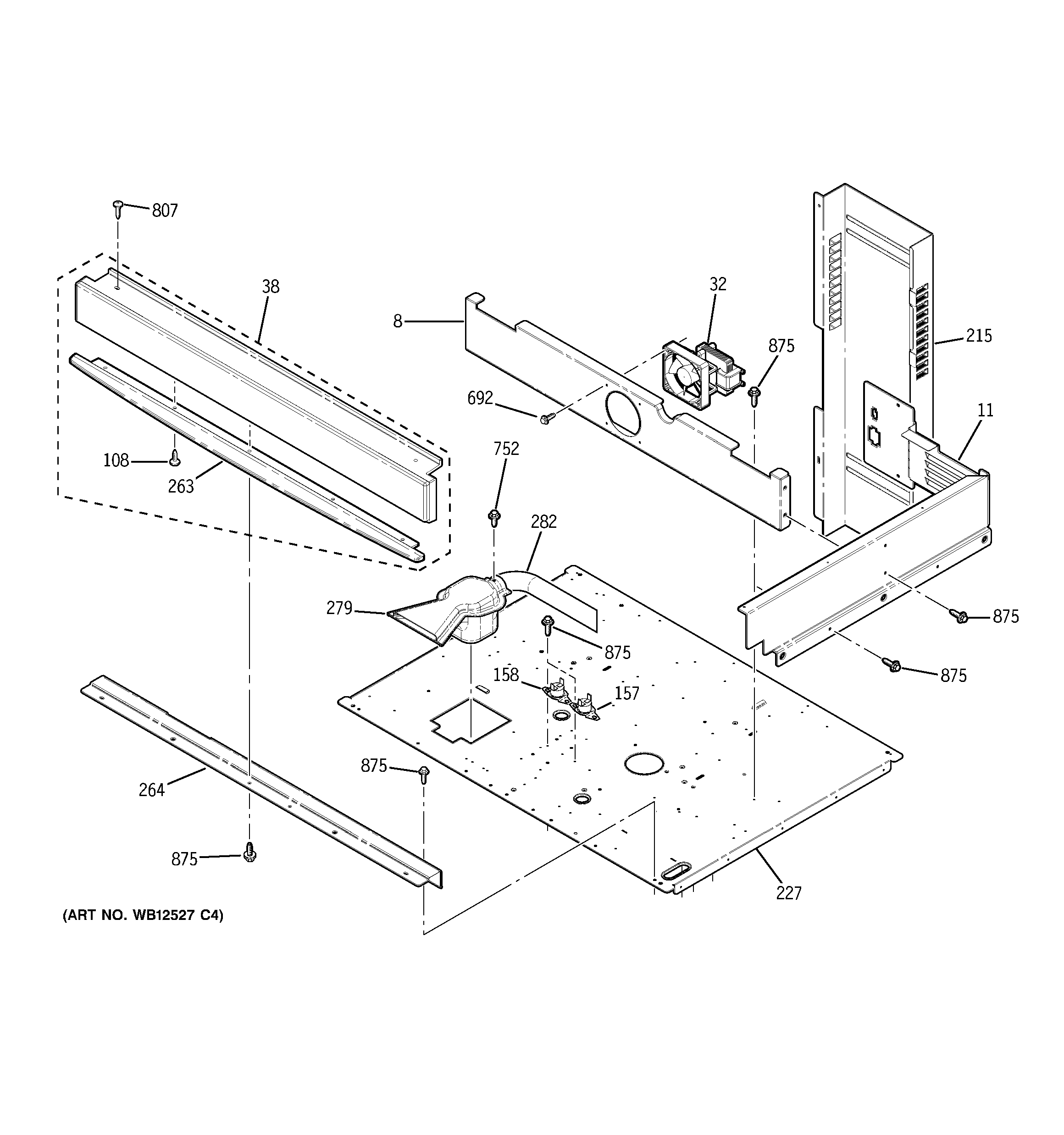

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Oven Lamp WB08T10022
Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB23T10015
Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Bake Element (replaces Wb44t10055) WB44T10021
Range bake element (replaces wb44t10055)

Part #WB44T10021

BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
G.e. Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

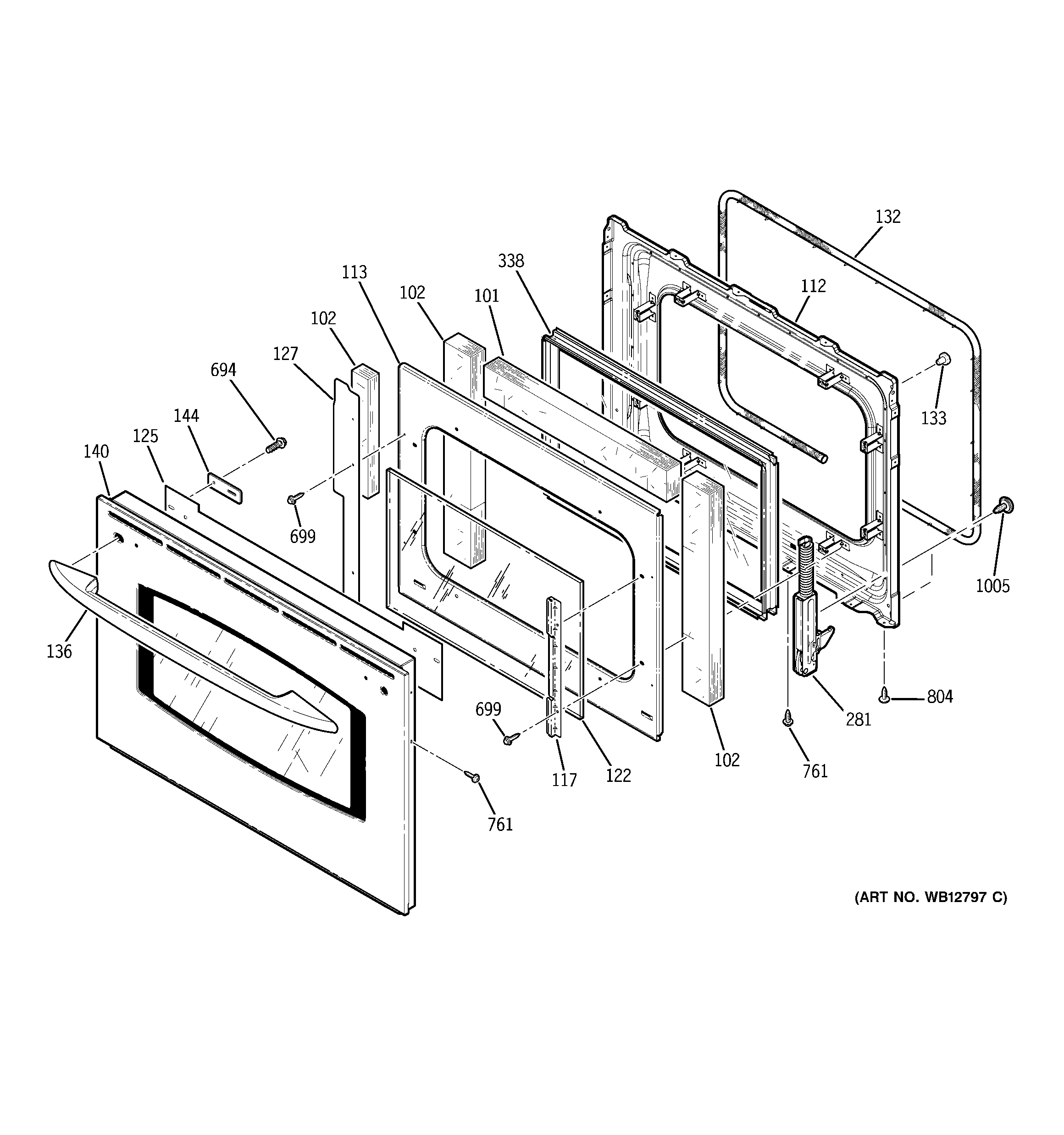

Door diagram

G.e. range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Range Bake Element WB44T10055
Range bake element

Part #WB44T10055

Replaced by #WB44T10021

?
Manufacturer substitution
This part replaces WB44T10055. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

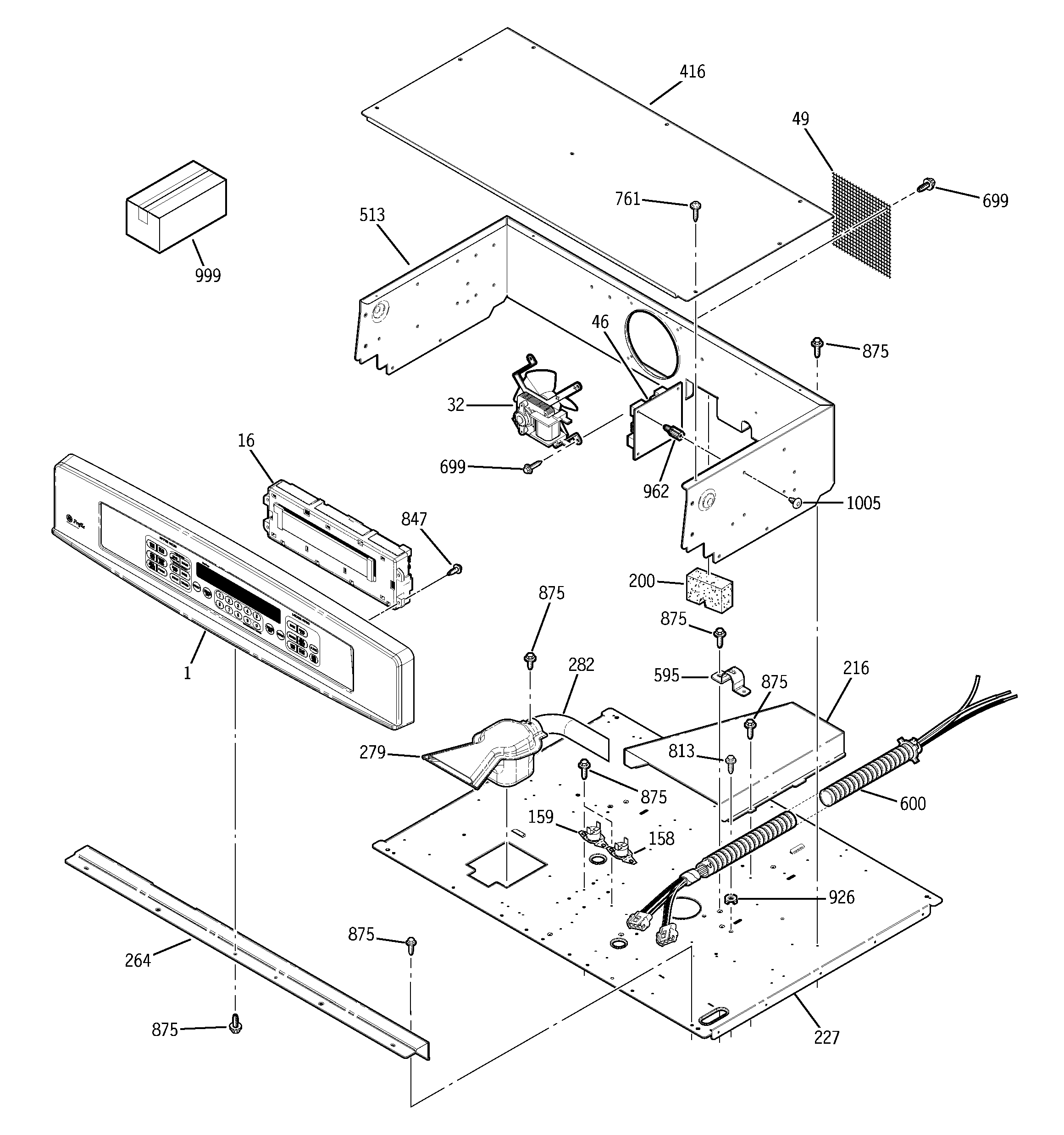

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Convection Element (replaces Wb44t10020) WB44T10053
#298

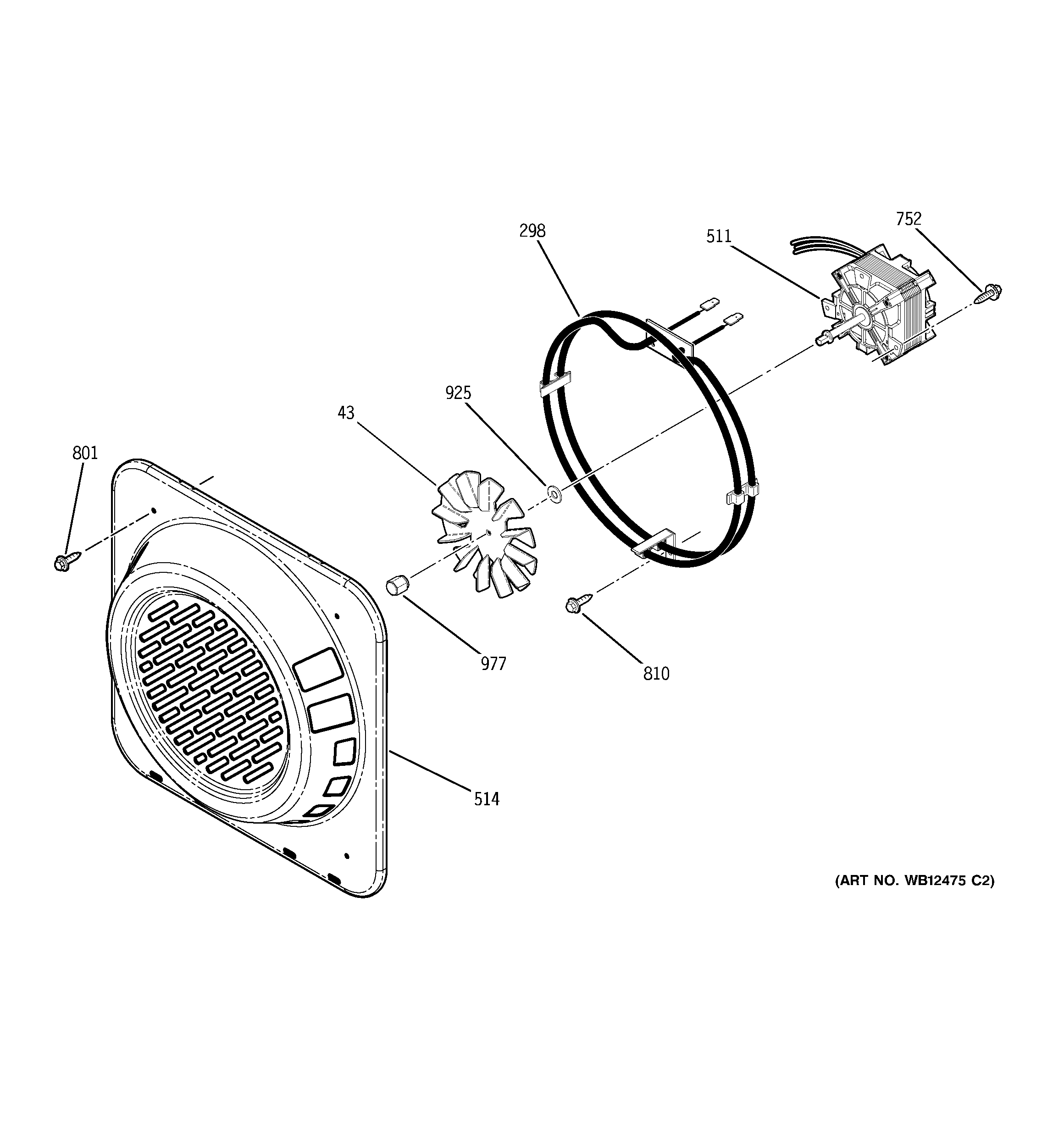

Convection fan diagram

Range convection element (replaces wb44t10020)

Part #WB44T10053

$57.06 |
10% OFF Phone Price : $63.06
In Stock
Conversion Element WB44T10020
#298

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Complete Fan Blade WB02T10142
#43

Convection fan diagram

Complete fan blade

Part #WB02T10142

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10142. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
