Craftsman
Front-Engine Lawn Tractor

Model # 91725380 Official Craftsman ss-15 tractor

Here are the diagrams and repair parts for Official Craftsman 91725380 ss-15 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

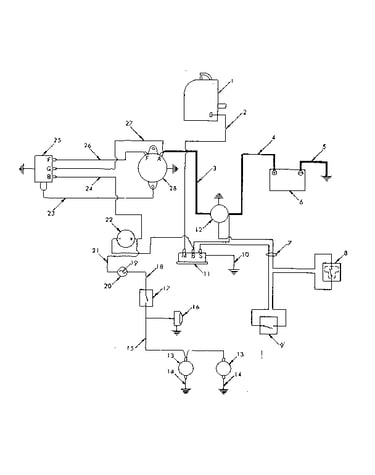

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 276 parts  |
Ret Spring 4939M
#35

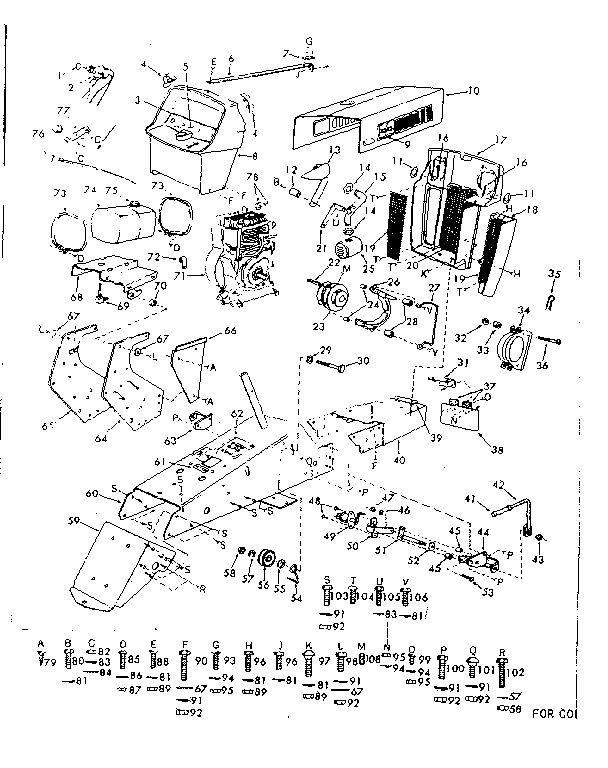

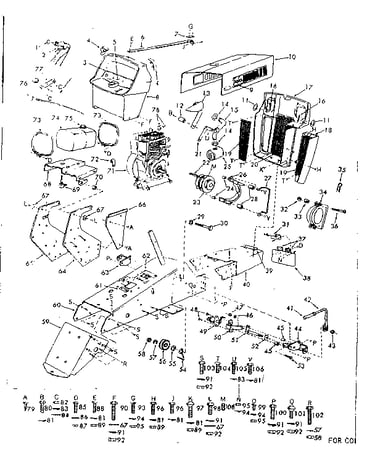

Engine diagram

Ret spring

Part #4939M

Replaced by #532003146

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
E-ring 5000P
E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock

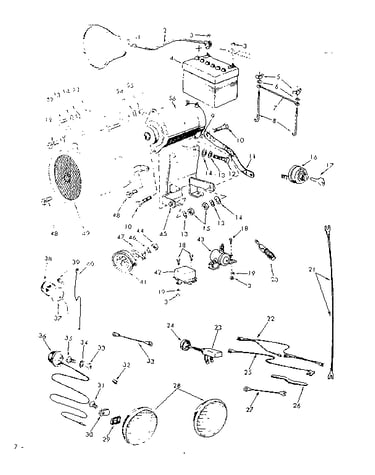

Battery 96042X
Battery

Part #96042X

The manufacturer no longer makes this part, and there's no substitute part

Front Tire 2169R
#20

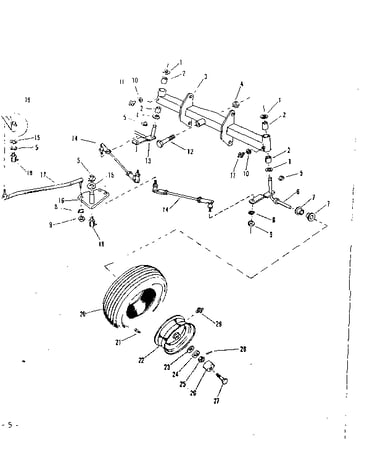

Front axle assembly diagram

Front tire

Part #2169R

Replaced by #532122075

?
Manufacturer substitution
This part replaces 2169R. Substitute parts can look different from the original.
BEST SELLER
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Flange Bearing 9040H
#7

Front axle assembly diagram

Flange bearing

Part #9040H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Flat Washer 1528P
#1

Front axle assembly diagram

Flat washer

Part #1528P

Replaced by #819272016

?
Manufacturer substitution
This part replaces 1528P. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Front Wheel 2168R
#22

Front axle assembly diagram

Front wheel

Part #2168R

Replaced by #532148736

?
Manufacturer substitution
This part replaces 2168R. Substitute parts can look different from the original.
$122.29 |
9% OFF Phone Price : $134.29
In Stock
Flat Idler 6635H
Flat idler

Part #6635H

Replaced by #583772001

?
Manufacturer substitution
This part replaces 6635H. Substitute parts can look different from the original.
This item is not returnable
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Disc Wheel 7226H
#28

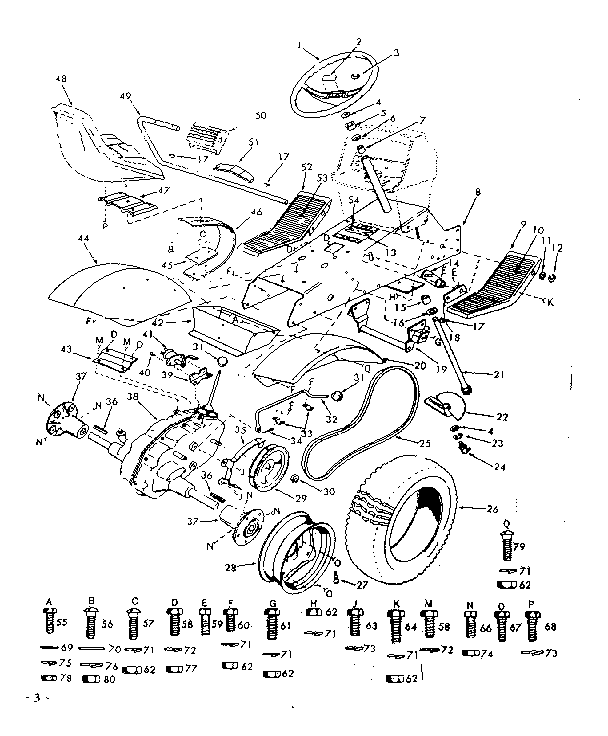

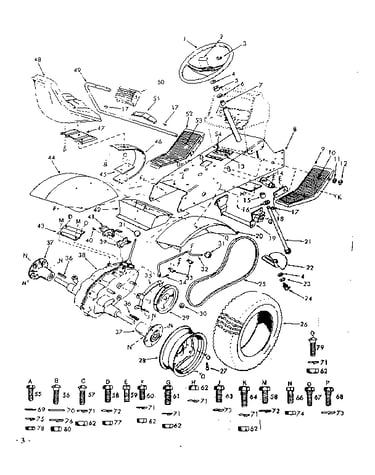

Drive assembly diagram

Disc wheel

Part #7226H

Replaced by #532106277

?
Manufacturer substitution
This part replaces 7226H. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Gripco Nut 1685H
#59

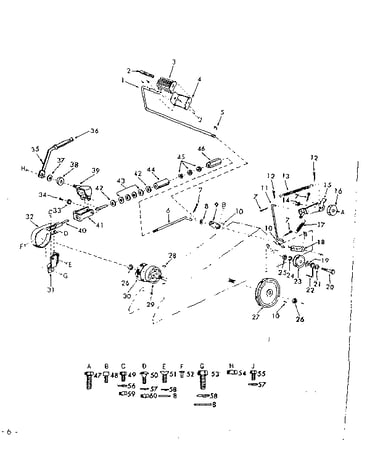

Idler & braking assembly diagram

Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part
