Model # 217586260 Official Craftsman 9.9-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586260 9.9-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

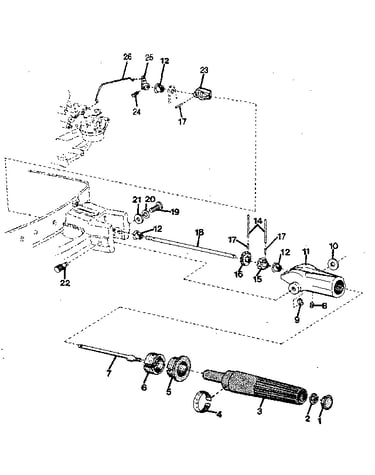

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 305 parts |

#13

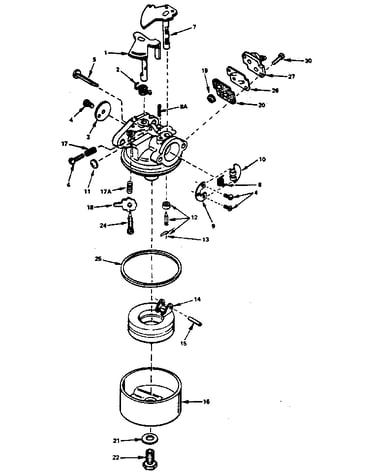

Carburetor nos. 632063a diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

#8A

Carburetor nos. 632063a diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

#62

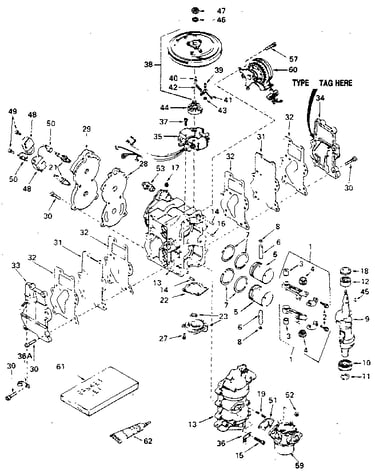

Engine type 384b (9.9 hp) diagram

Sealer

Part #510304A

The manufacturer no longer makes this part, and there's no substitute part

#41

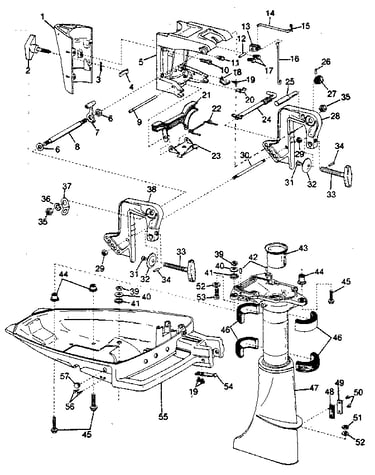

Column assembly diagram

Boat motor washer

Part #5631

The manufacturer no longer makes this part, and there's no substitute part

#23

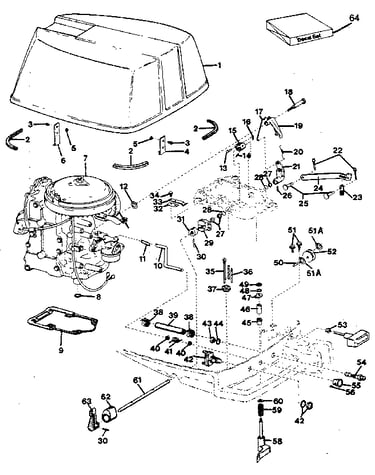

Power head assembly diagram

Part #76118

The manufacturer no longer makes this part, and there's no substitute part

#60

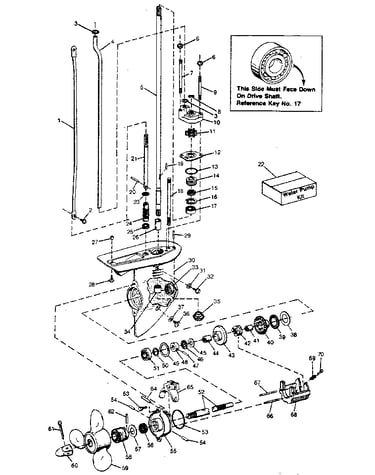

Gear housing assembly diagram

Eska proplr nut

Part #56220

The manufacturer no longer makes this part, and there's no substitute part

#48

Column assembly diagram

Tecumseh gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

#54

Power head assembly diagram

Boat motor fuel line coupler

Part #26508

The manufacturer no longer makes this part, and there's no substitute part

#17

Gear housing assembly diagram

Tecumseh ball bearing

Part #26290

The manufacturer no longer makes this part, and there's no substitute part

#53

Power head assembly diagram

Tecumseh bushing

Part #26243

The manufacturer no longer makes this part, and there's no substitute part
