Model # JKP16GT1BB Official GE electric wall oven
Here are the diagrams and repair parts for Official GE JKP16GT1BB electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

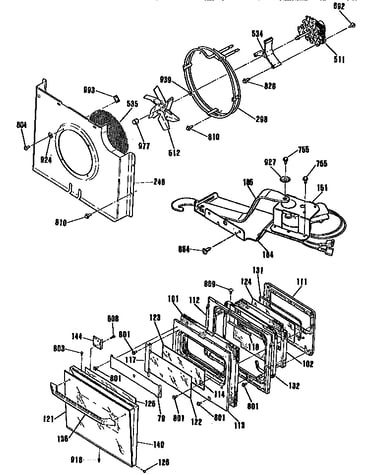

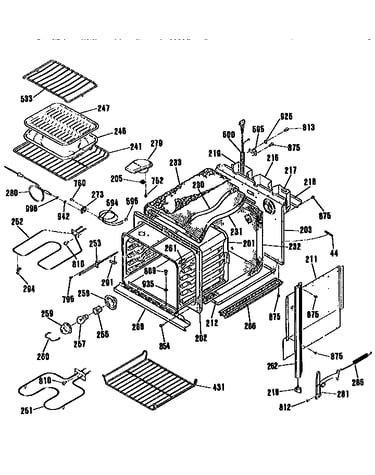

SELECT DIAGRAM
Browse Parts forJKP16GT1BB Wall Ovens
#253

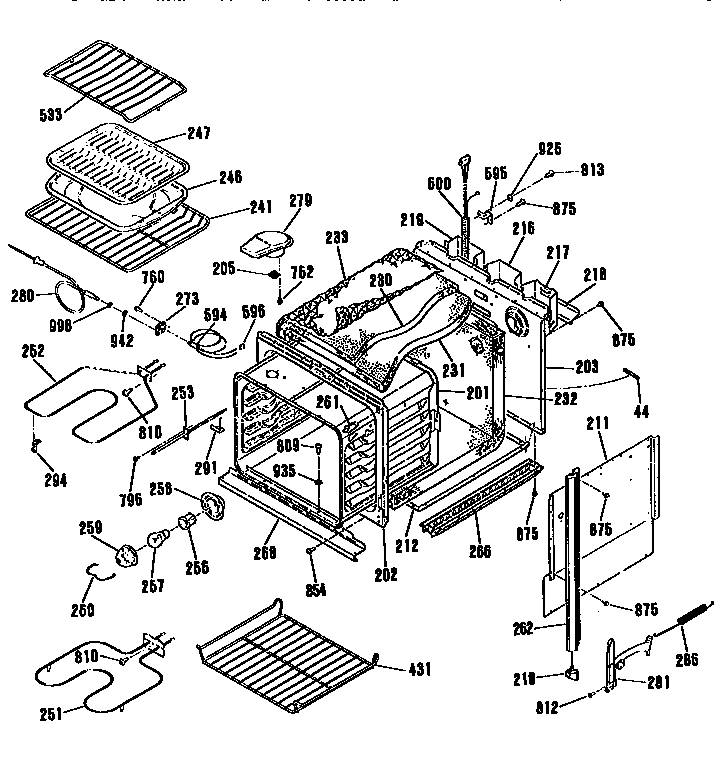

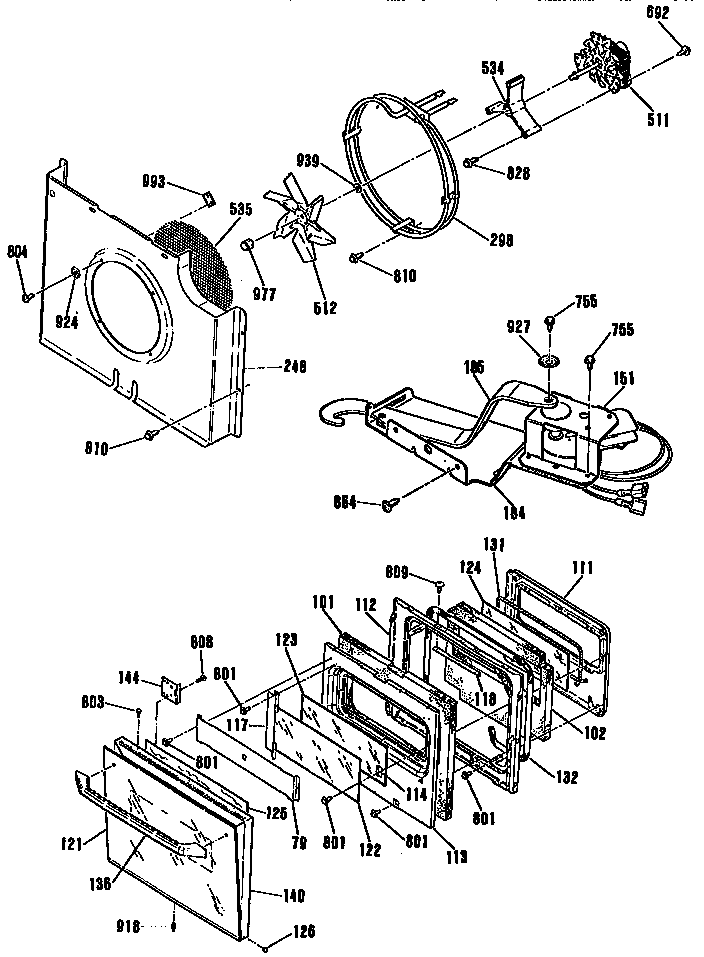

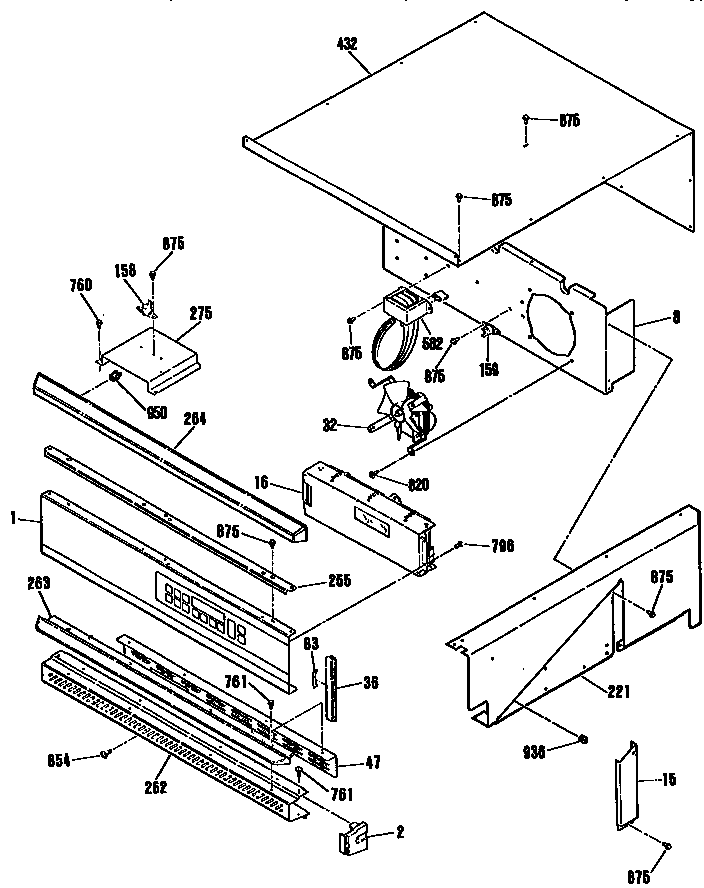

All parts diagram
SensorasmPart #WB20X0106
Replaced by #WB21X5301
?Manufacturer substitutionThis part replaces WB20X0106. Substitute parts can look different from the original.$103.13 |10% OFF Phone Price : $115.13In Stock#252
All parts diagram
G.e. range broil elementPart #WB44K5009
$67.45 |8% OFF Phone Price : $73.45In Stock#280
All parts diagram
Range oven meat probe sensorPart #WB20X5050
The manufacturer no longer makes this part, and there's no substitute part
#151
All parts diagram
Lock motorPart #WB26K5030
Replaced by #WB49T10020
?Manufacturer substitutionThis part replaces WB26K5030. Substitute parts can look different from the original.$128.41 |9% OFF Phone Price : $140.41In Stock#158
All parts diagram
Wall oven cooling fan limit switchPart #WB24K5033
$46.82 |11% OFF Phone Price : $52.82In Stock#131
All parts diagram
SealPart #WB02X9168
Replaced by #WB2X9168
?Manufacturer substitutionThis part replaces WB02X9168. Substitute parts can look different from the original.This item is not returnable$15.76 |11% OFF Phone Price : $17.76In Stock#512
All parts diagram
Fan bladePart #WB26K5040
Replaced by #WB2X8351
?Manufacturer substitutionThis part replaces WB26K5040. Substitute parts can look different from the original.This item is not returnable$22.72 |21% OFF Phone Price : $28.72In Stock#875
All parts diagram
ScrewPart #WH02X0930
Replaced by #WH2X930
?Manufacturer substitutionThis part replaces WH02X0930. Substitute parts can look different from the original.This item is not returnable$7.95 |11% OFF Phone Price : $8.95In Stock#809
All parts diagram
ScrewPart #WB01X1137
Replaced by #WB1X1137
?Manufacturer substitutionThis part replaces WB01X1137. Substitute parts can look different from the original.$7.95 |11% OFF Phone Price : $8.95In Stock#246
All parts diagram
Broiler panPart #WB48M0003
Replaced by #WB48X10056
?Manufacturer substitutionThis part replaces WB48M0003. Substitute parts can look different from the original.$31.87 |16% OFF Phone Price : $37.87In Stock
