Model # WVU57UC0FS0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool WVU57UC0FS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Range Hood Light Assembly W10862081
#4

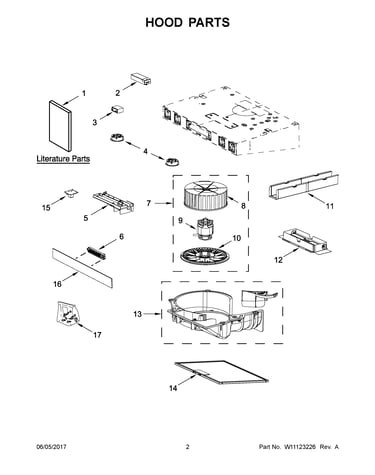

Hood parts diagram

Range hood light assembly

Part #W10862081

$70.09 |
8% OFF Phone Price : $76.09
In Stock
Hardware W11099760
#17

Hood parts diagram

Hardware

Part #W11099760

$27.91
In Stock
Casing-asm W11099741
#13

Hood parts diagram

Casing-asm

Part #W11099741

$178.11
In Stock
Blower Wheel W11099714
#8

Hood parts diagram

Blower wheel

Part #W11099714

$56.79 |
10% OFF Phone Price : $62.79
In Stock
Range Hood Round Vent Damper, 7-in W10355451
#NI

Hood parts diagram

Range hood round vent damper, 7-in

Part #W10355451

$28.60
In Stock
Range Hood 36-in Hood Charcoal Filter Kit W10905735
#NI

Hood parts diagram

Range hood 36-in hood charcoal filter kit

Part #W10905735

$65.79 |
8% OFF Phone Price : $71.79
In Stock
Capacitor W11099801
#3

Hood parts diagram

Capacitor

Part #W11099801

$40.44
In Stock
Box-termal W11099746
#11

Hood parts diagram

Box-termal

Part #W11099746

$33.11
In Stock
Glass W11099807
#16A

Hood parts diagram

Glass

Part #W11099807

$235.55
In Stock
Fan Motor W11099800
#9

Hood parts diagram

Fan motor

Part #W11099800

$314.44
In Stock
