Here are the diagrams and repair parts for Official Maytag MVW18MNAWW0 commercial washer, as well as links to manuals and error code tables, if available.

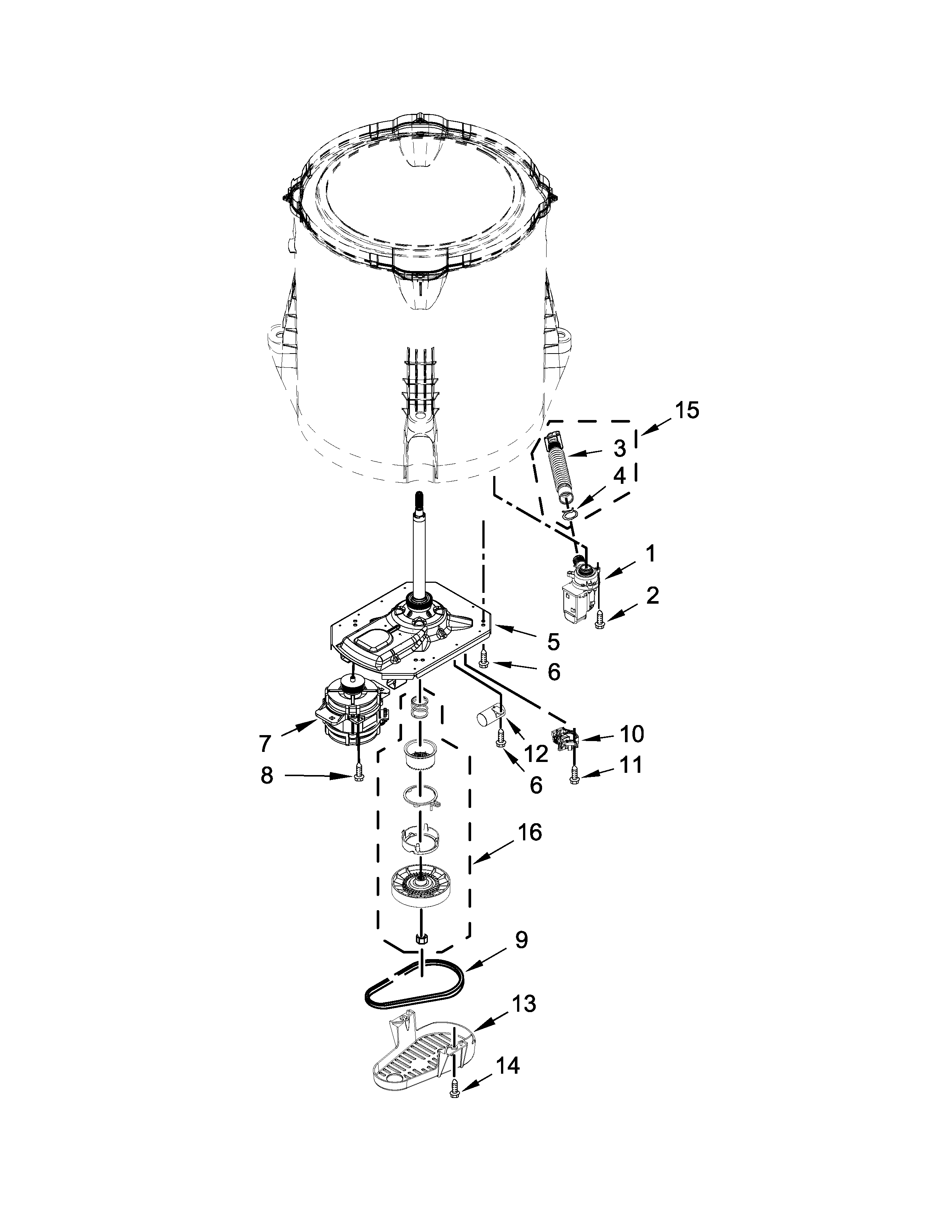

Gearcase, motor and pump parts diagram
Part #W10721967
Gearcase, motor and pump parts diagram
Part #W10006384
Replaced by #WPW10006384
Optional parts (not included) diagram
Part #W10135699
Get free shipping with Automatic Reorder
Gearcase, motor and pump parts diagram
Part #W10625046
Replaced by #W11395618

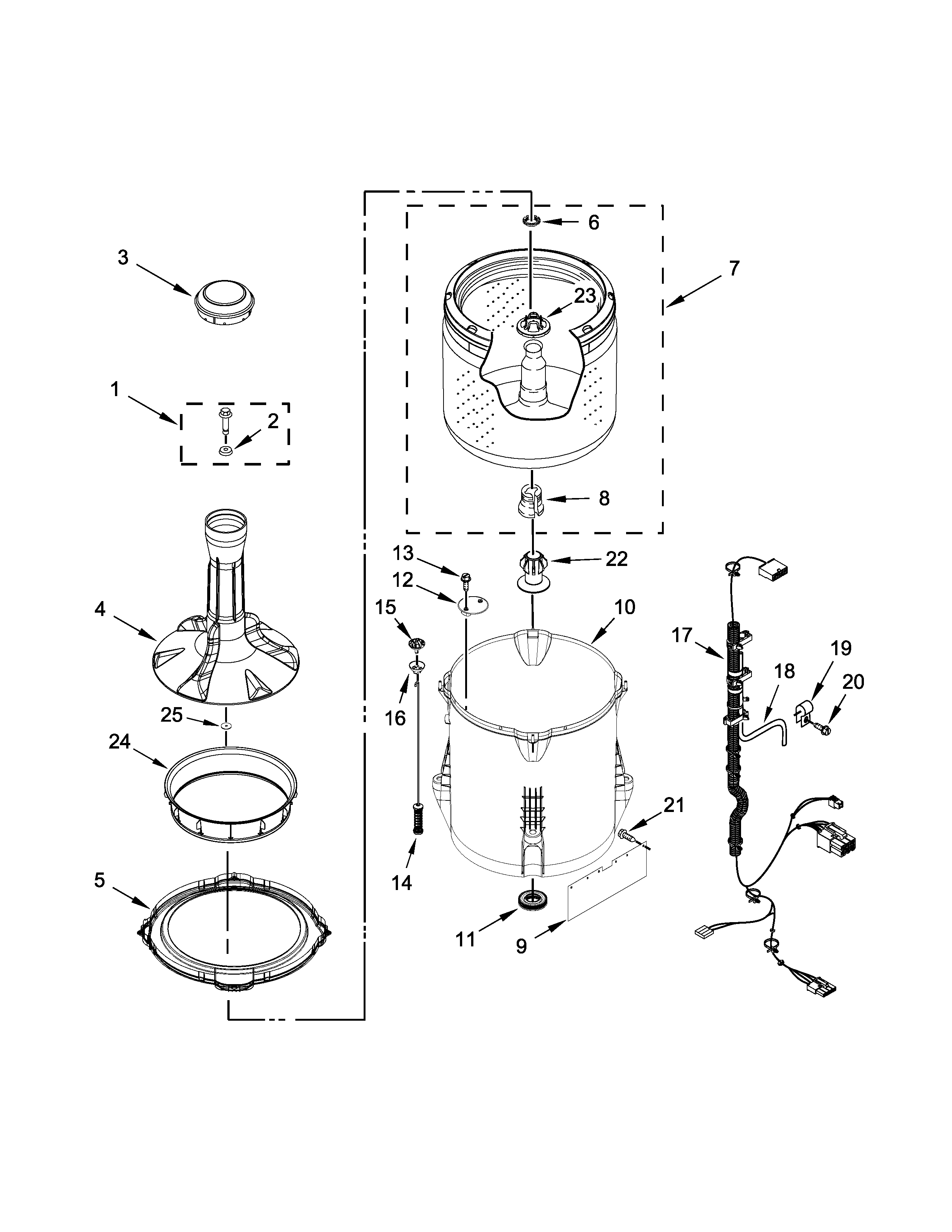

Basket and tub parts diagram
Part #21366
Replaced by #WP21366
Gearcase, motor and pump parts diagram
Part #W10276397
Replaced by #WPW10276397

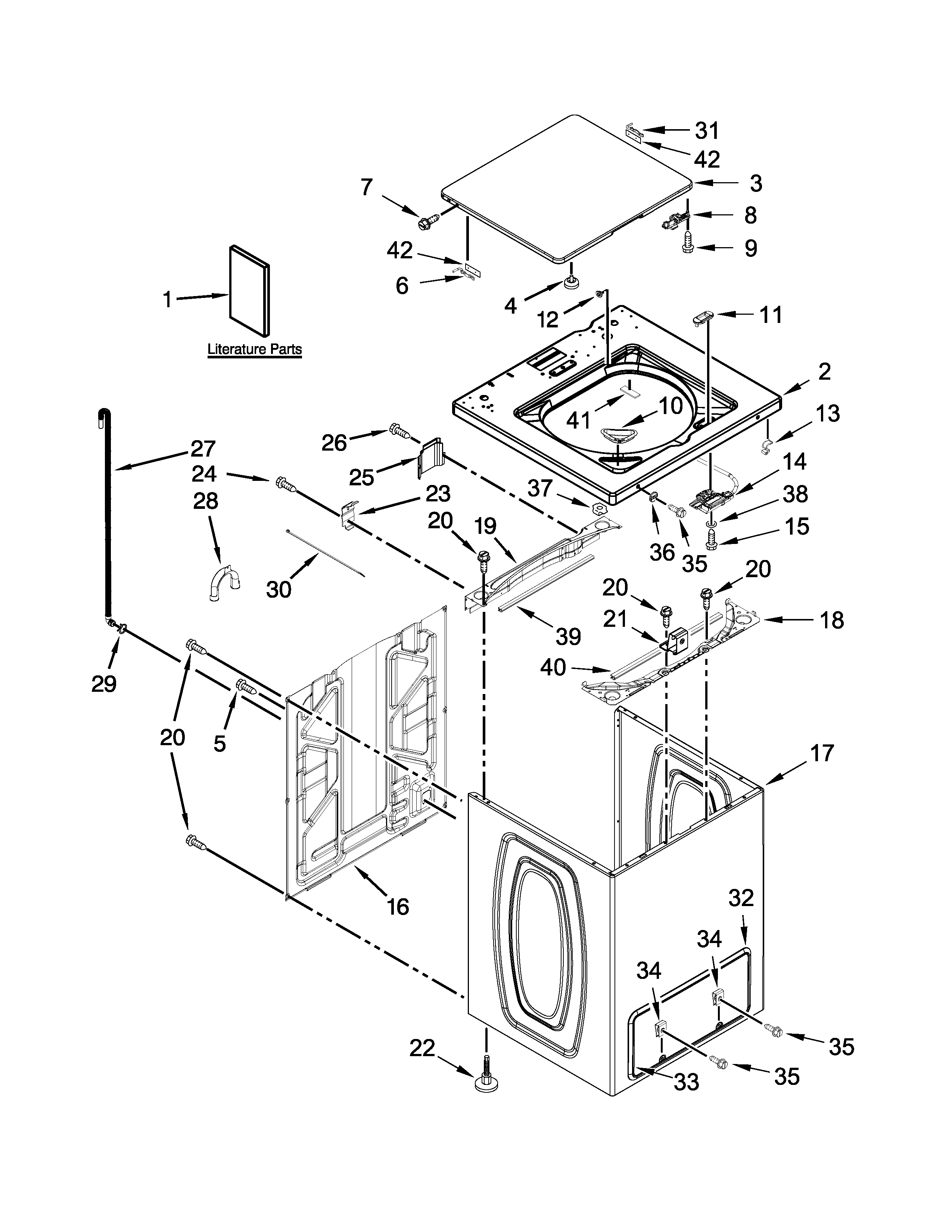

Top and cabinet parts diagram
Part #W10221546
Replaced by #W11244231
Basket and tub parts diagram
Part #W10531633
Replaced by #WP353244

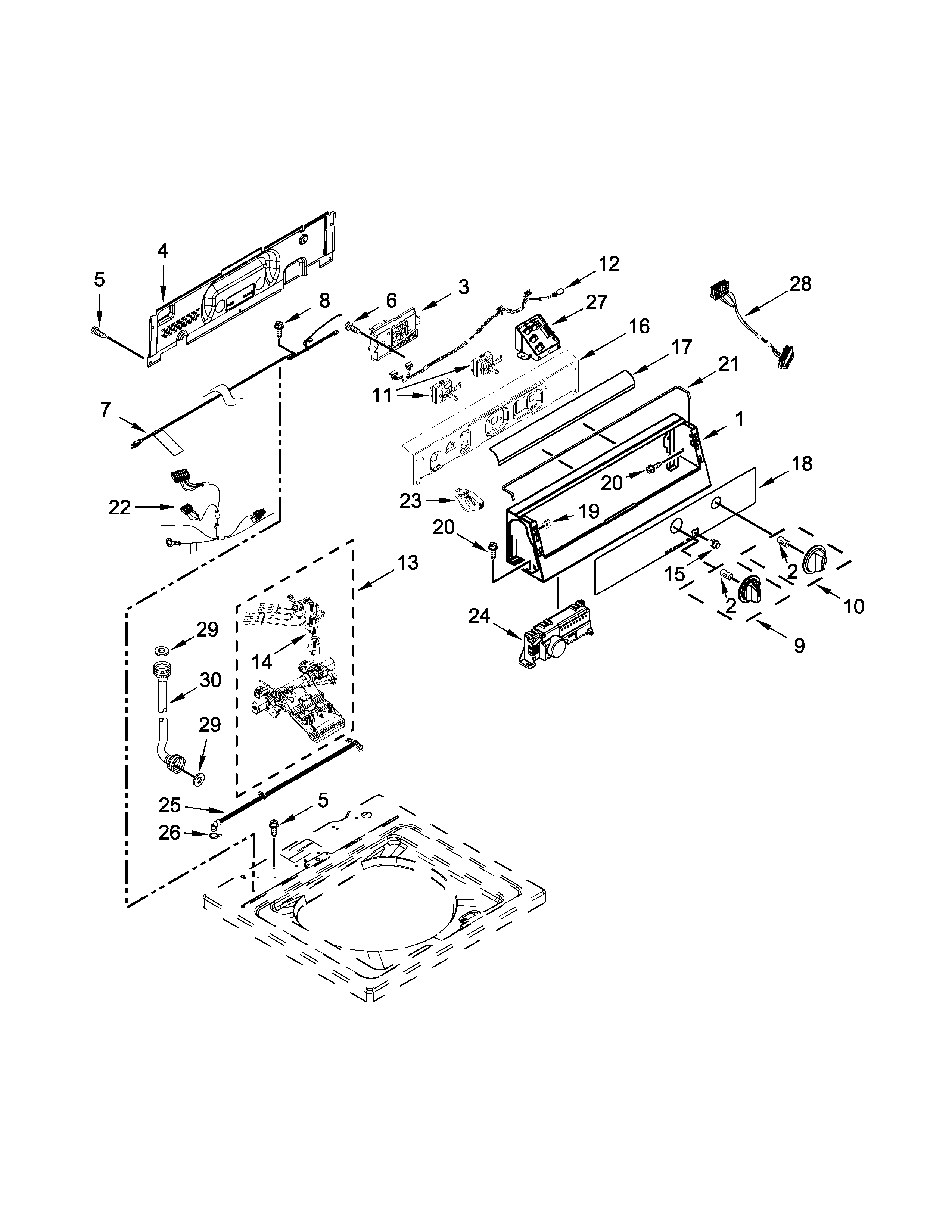

Controls and water inlet parts diagram
Part #W10117298
Replaced by #WP596669
Top and cabinet parts diagram
Part #W10240513
Replaced by #WPW10240513
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
