Walk-Behind Mower

Model # 917251012 Official Craftsman 36" rotary mower deck

Here are the diagrams and repair parts for Official Craftsman 917251012 36" rotary mower deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Gripco Nut 7810H
#80

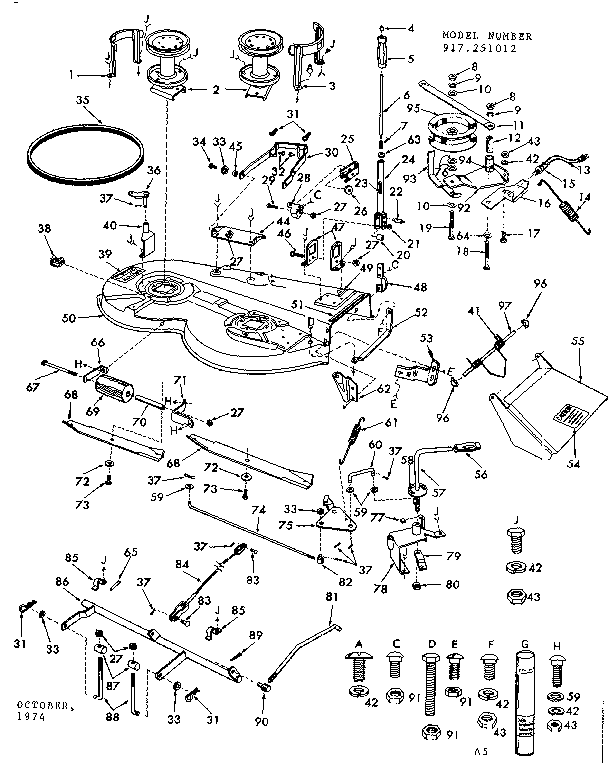

Replacement parts diagram

Gripco nut

Part #7810H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#94

Replacement parts diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Plungr Cvr 3252R
#4

Replacement parts diagram

Plungr cvr

Part #3252R

Replaced by #532071673

?
Manufacturer substitution
This part replaces 3252R. Substitute parts can look different from the original.
$8.54
In Stock
Hitch Pin, 2-pack 4939M
#31

Replacement parts diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
V-belt 3541R
#35

Replacement parts diagram

V-belt

Part #3541R

Replaced by #583774401

?
Manufacturer substitution
This part replaces 3541R. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$53.31
In Stock
Bolt 16P
Bolt

Part #16P

The manufacturer no longer makes this part, and there's no substitute part

Nut 5846R
#96

Replacement parts diagram

Nut

Part #5846R

Replaced by #532110452

?
Manufacturer substitution
This part replaces 5846R. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Nut Retainer 3254R
#38

Replacement parts diagram

Nut retainer

Part #3254R

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 7877M
#65

Replacement parts diagram

Roll pin

Part #7877M

The manufacturer no longer makes this part, and there's no substitute part

Spring 3244R
#7

Replacement parts diagram

Spring

Part #3244R

The manufacturer no longer makes this part, and there's no substitute part
