Model # 8505247080 Official Kenmore range hood
Here are the diagrams and repair parts for Official Kenmore 8505247080 range hood, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for8505247080 Range Hood
- #37C

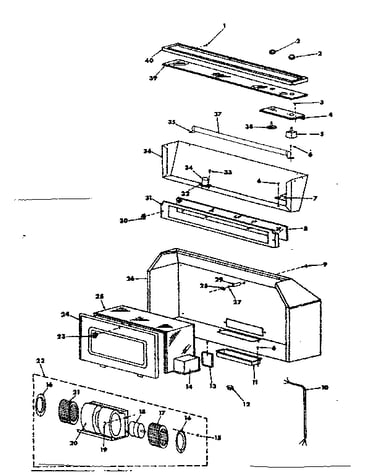

Range hood diagram
Fluorescent lampPart #17088
Replaced by #WP95292
?Manufacturer substitutionThis part replaces 17088. Substitute parts can look different from the original.$63.98In Stock - #1E
Range hood diagram
ScrewPart #GM141526
The manufacturer no longer makes this part, and there's no substitute part
- #36A
Range hood diagram
Lamp boxPart #17820
The manufacturer no longer makes this part, and there's no substitute part
- #1
Range hood diagram
ScrewPart #17055
The manufacturer no longer makes this part, and there's no substitute part
- #31D
Range hood diagram
Lens holderPart #17656
The manufacturer no longer makes this part, and there's no substitute part
- #29
Range hood diagram
SpacerPart #6858
The manufacturer no longer makes this part, and there's no substitute part
- #30
Range hood diagram
Thumb nutPart #6936
The manufacturer no longer makes this part, and there's no substitute part
- #10
Range hood diagram
ConduitPart #17800
The manufacturer no longer makes this part, and there's no substitute part
- #31E
Range hood diagram
Lens holderPart #17840
The manufacturer no longer makes this part, and there's no substitute part
- #31M
Range hood diagram
Lens holderPart #17651
The manufacturer no longer makes this part, and there's no substitute part
