Gas Walk-Behind Mower

Model # 917377620 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377620 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

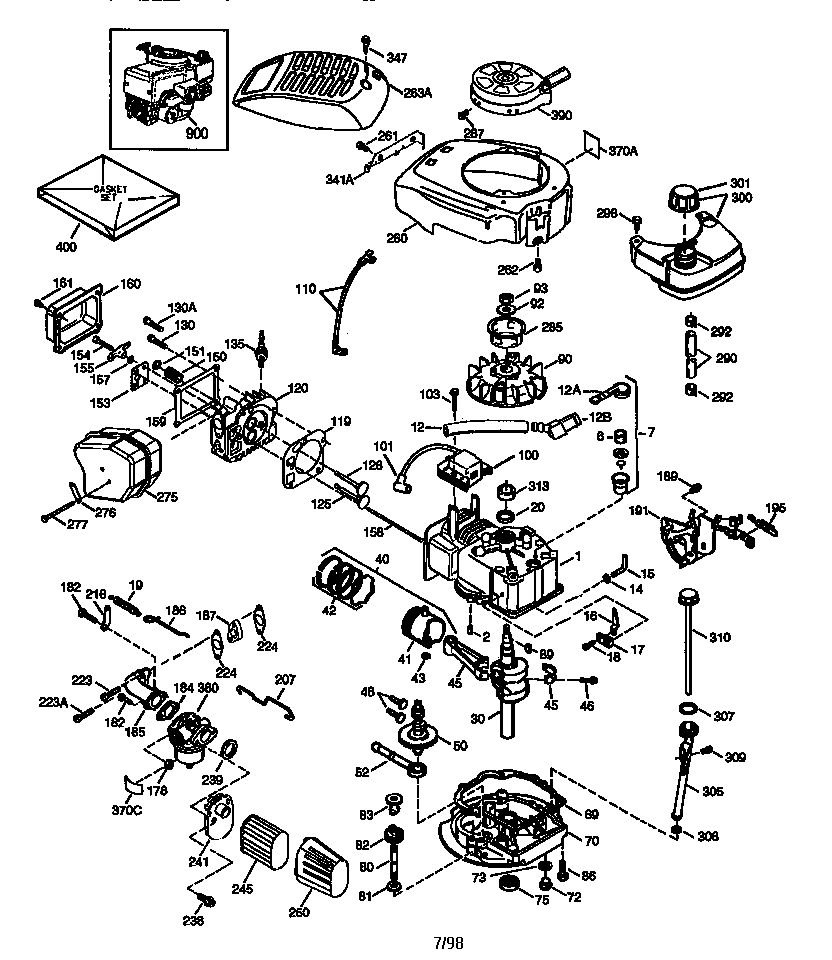

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Husqvarna Lawn Mower 21-in Deck Mulching Blade (replaces 187183, 33273, 33364, 532159267) 159267
#31

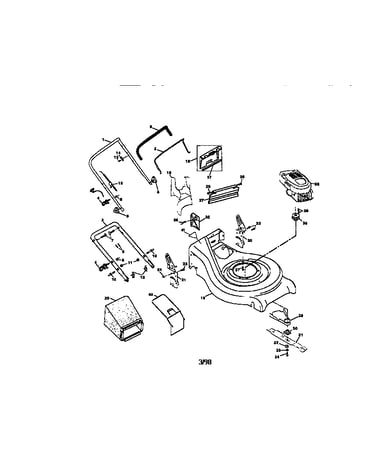

Main frame diagram

Husqvarna lawn mower 21-in deck mulching blade (replaces 187183, 33273, 33364, 532159267)

Part #159267

BEST SELLER

Get free shipping with Automatic Reorder

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn Mower Blade Adapter 851514
#30

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#28

Main frame diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wheel 9x2 Re 150342
#32

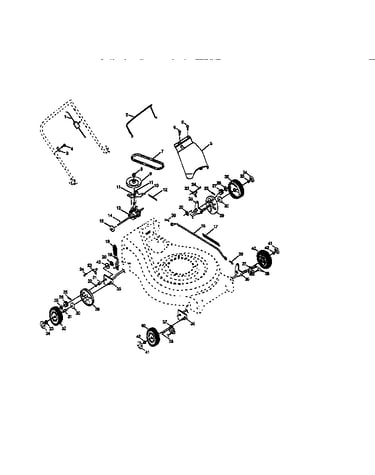

Wheel assembly diagram

Wheel 9x2 re

Part #150342

Replaced by #532193139

?
Manufacturer substitution
This part replaces 150342. Substitute parts can look different from the original.
$54.98 |
10% OFF Phone Price : $60.98
In Stock
Rope Guide 153638
#4

Main frame diagram

Rope guide

Part #153638

Replaced by #586122501

?
Manufacturer substitution
This part replaces 153638. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Wheel assembly diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Lawn Mower Ground Drive Belt 160816
#7

Wheel assembly diagram

Lawn mower ground drive belt

Part #160816

Replaced by #532160816

?
Manufacturer substitution
This part replaces 160816. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$23.98
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#32

Main frame diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Nut Lck 5/16 73990500
#11

Main frame diagram

Nut lck 5/16

Part #73990500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73990500. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Upstop Bracket 850733X004
#14

Main frame diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
