Model # K210A42SS Official Broan range hood

Here are the diagrams and repair parts for Official Broan K210A42SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

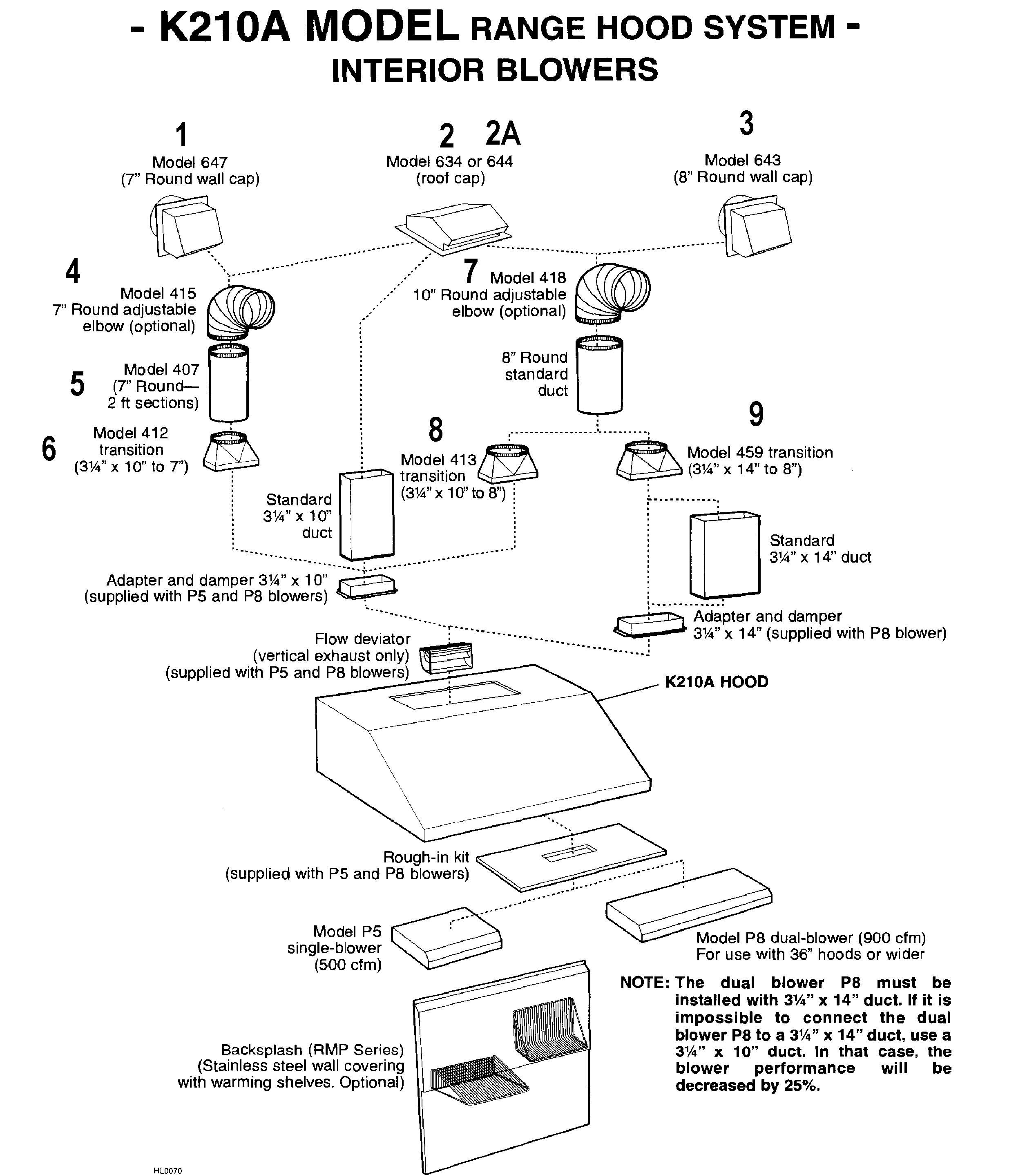

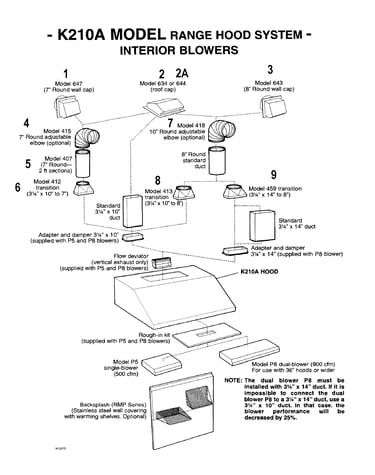

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Range Hood Electronic Control Board V03255
#4

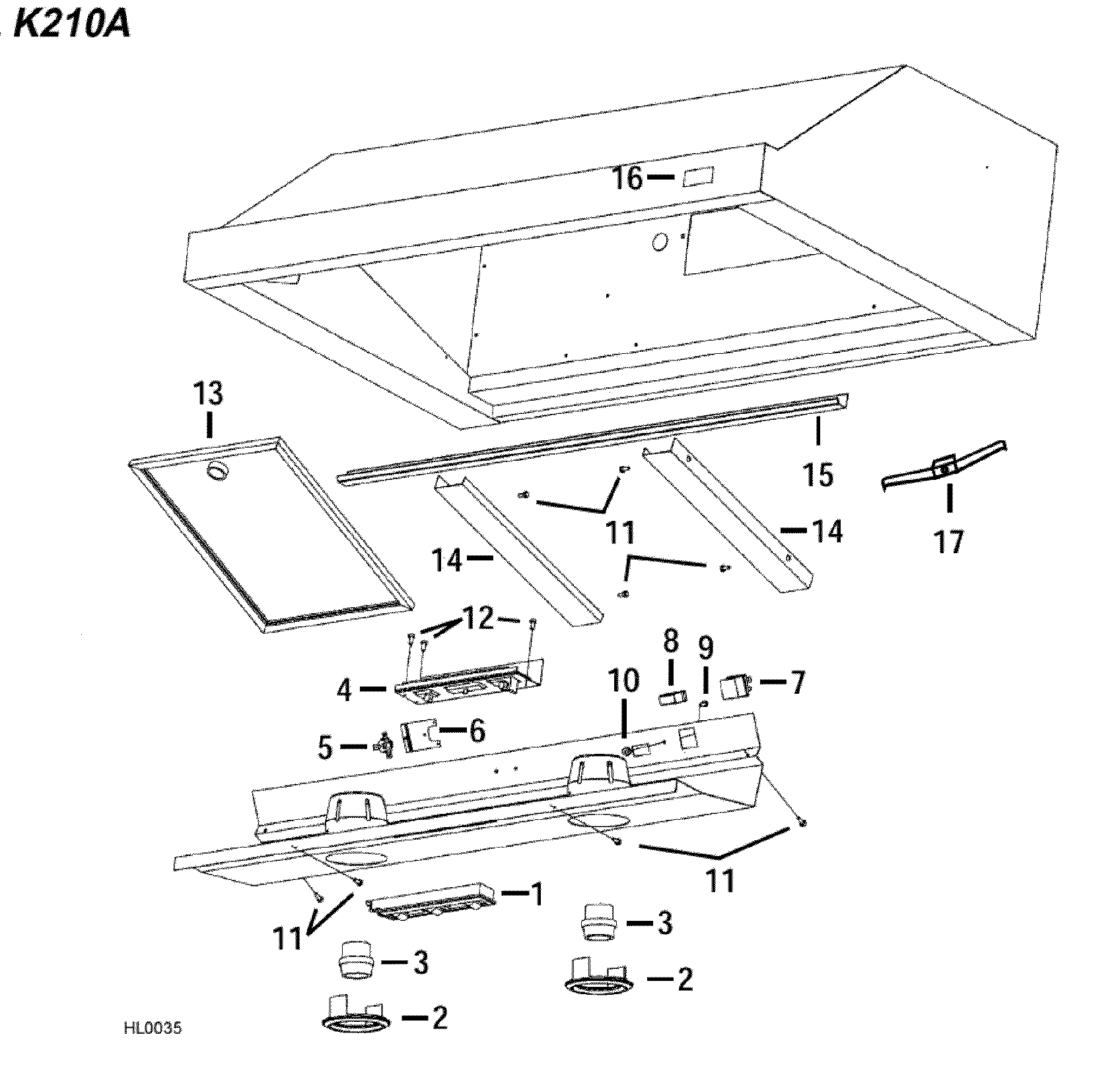

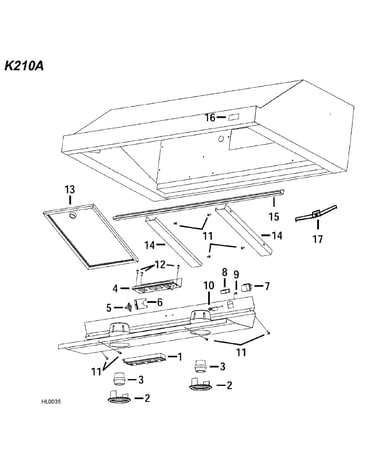

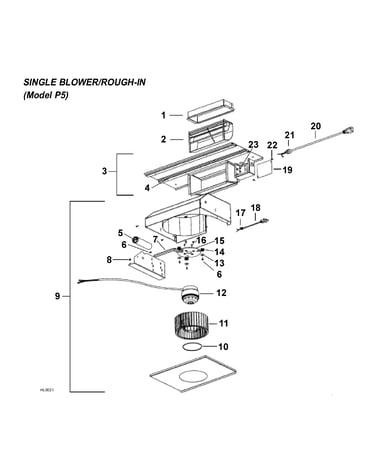

Range asy diagram

Range hood electronic control board

Part #V03255

Replaced by #SV03255

?
Manufacturer substitution
This part replaces V03255. Substitute parts can look different from the original.
BEST SELLER
$156.41 |
7% OFF Phone Price : $168.41
Back Order
Switch Assembly V12970
#1A

Range asy diagram

Switch assembly

Part #V12970

Replaced by #SV12969

?
Manufacturer substitution
This part replaces V12970. Substitute parts can look different from the original.
$124.84 |
9% OFF Phone Price : $136.84
In Stock
Range Hood Switch Kit (black) V12969
#1

Range asy diagram

Range hood switch kit (black)

Part #V12969

Replaced by #SV12969

?
Manufacturer substitution
This part replaces V12969. Substitute parts can look different from the original.
$124.84 |
9% OFF Phone Price : $136.84
In Stock
Range Hood Filter Latch V03686
#17

Range asy diagram

Range hood filter latch

Part #V03686

This item is not returnable
$4.90
In Stock

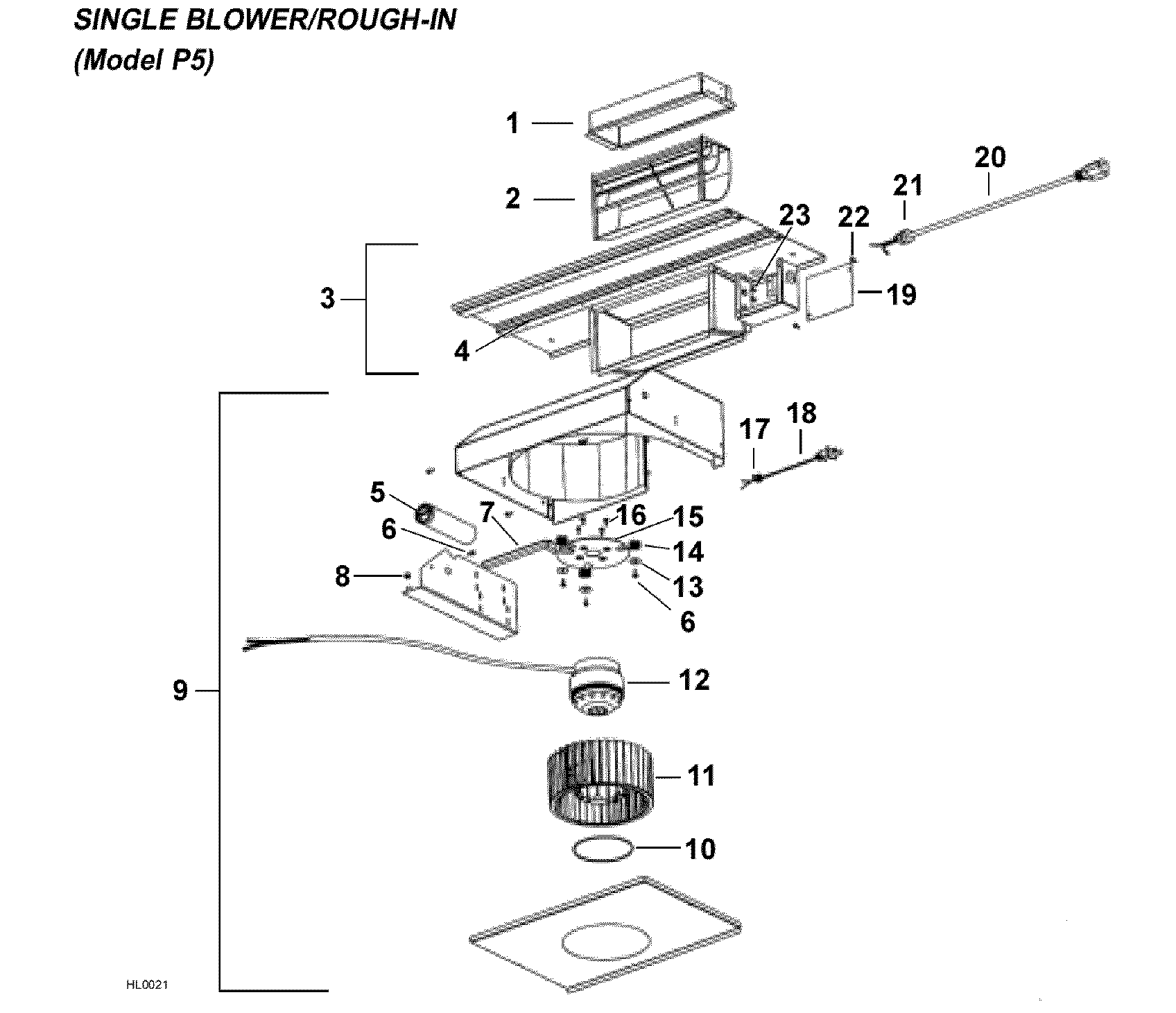

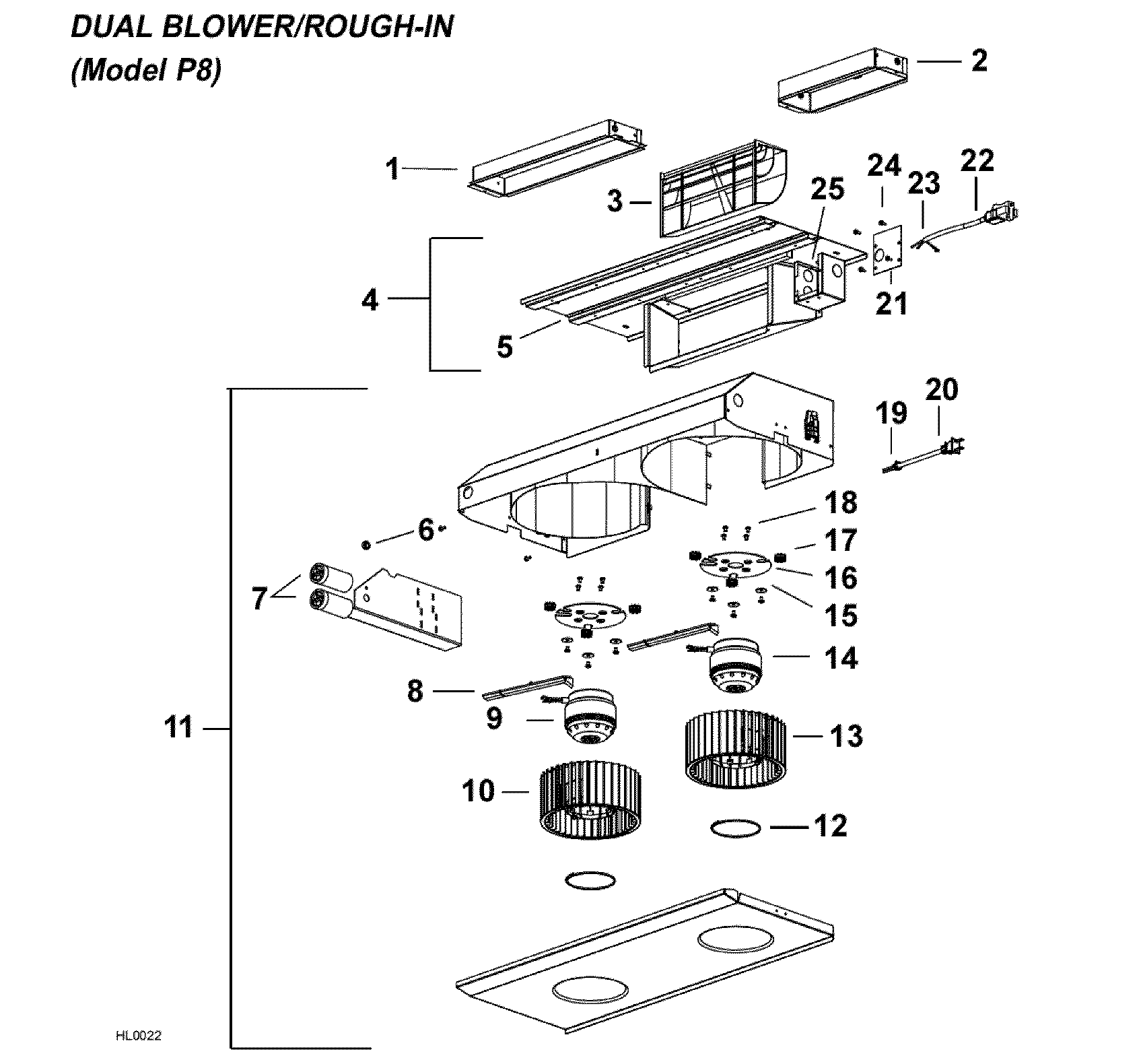

Range Hood Blower Motor V01766
Range hood blower motor

Part #V01766

The manufacturer no longer makes this part, and there's no substitute part

Capacitor V02160
Capacitor

Part #V02160

Replaced by #SV02160

?
Manufacturer substitution
This part replaces V02160. Substitute parts can look different from the original.
$37.76
In Stock
Wall Cap 441
#2

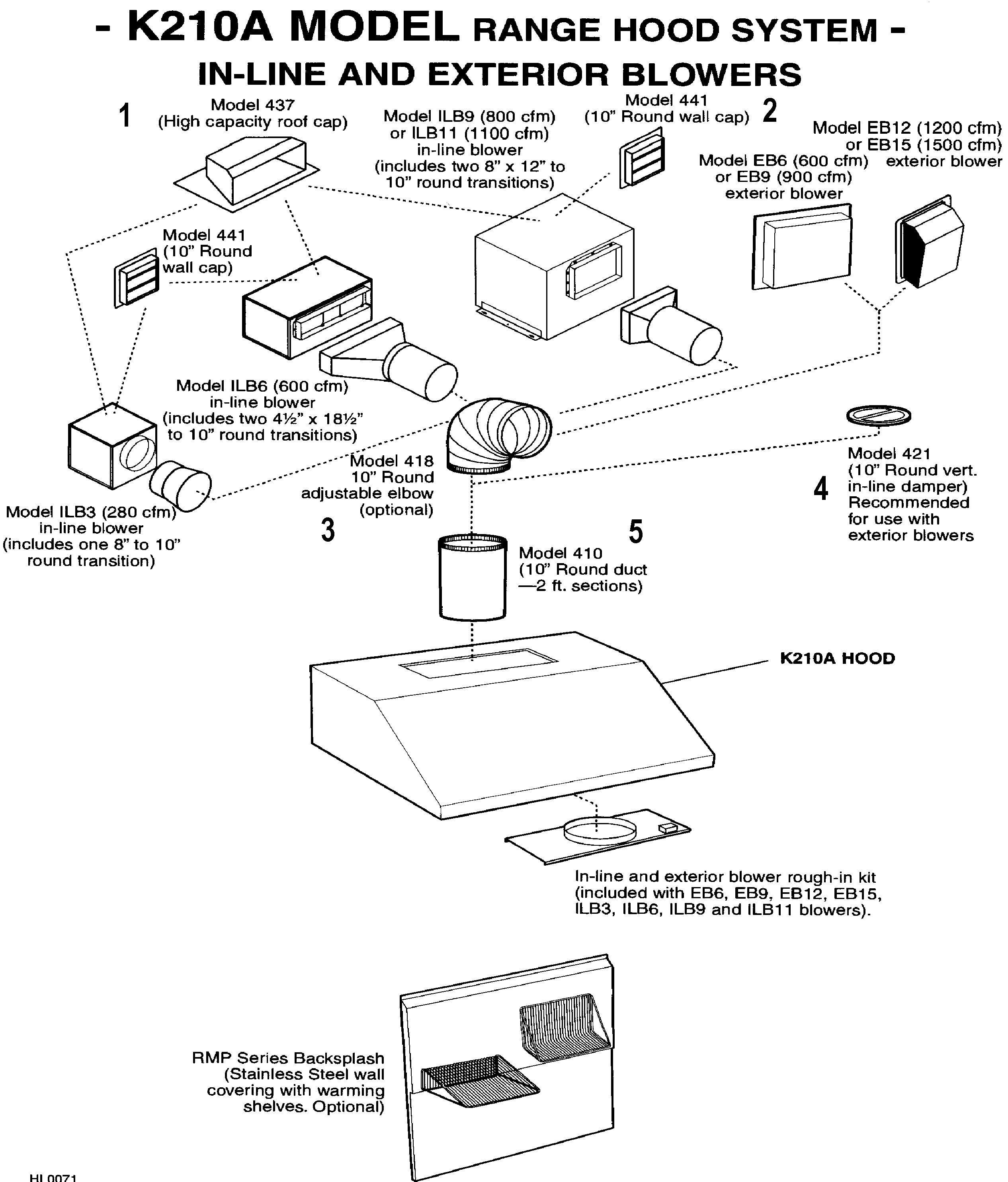

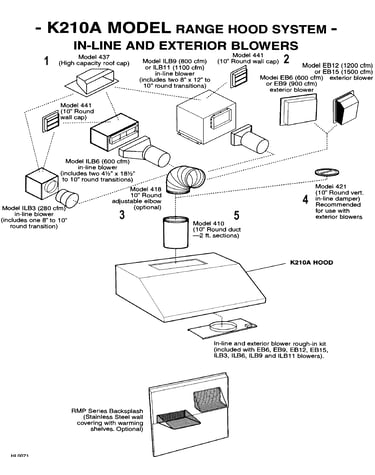

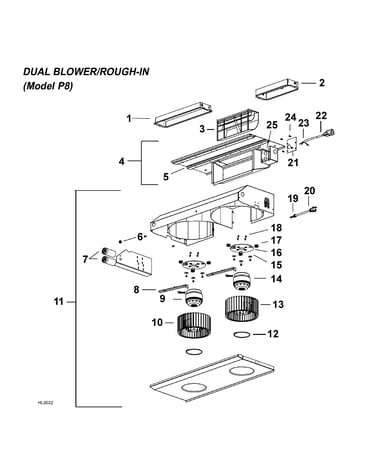

Exterior blowers diagram

Wall cap

Part #441

$122.42
In Stock
Range Hood Roof Cap 437
#1

Exterior blowers diagram

Range hood roof cap

Part #437

$254.30
In Stock
Elbow 418
Elbow

Part #418

$51.10
In Stock
Damper 421
#4

Exterior blowers diagram

Damper

Part #421

$55.94
In Stock
