Model # 155845400 Official Kenmore prefabricated built-in fireplace

Here are the diagrams and repair parts for Official Kenmore 155845400 prefabricated built-in fireplace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Screen K17900
#28

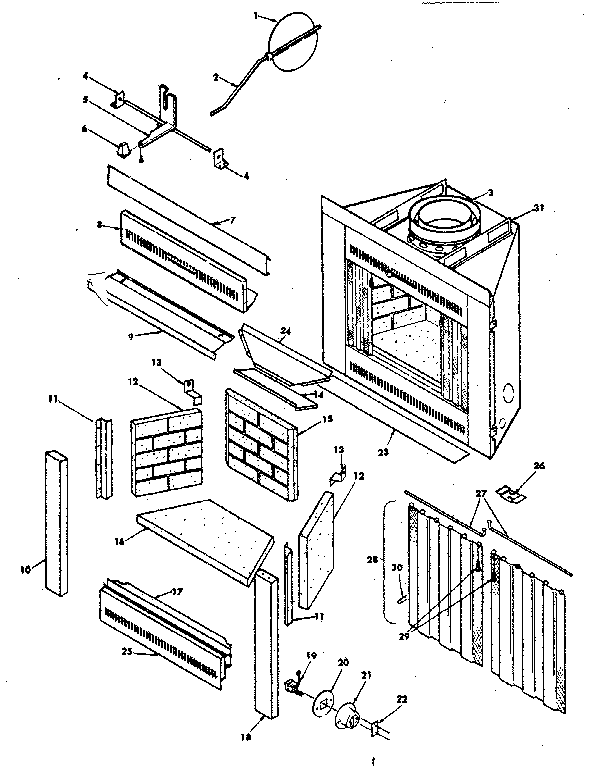

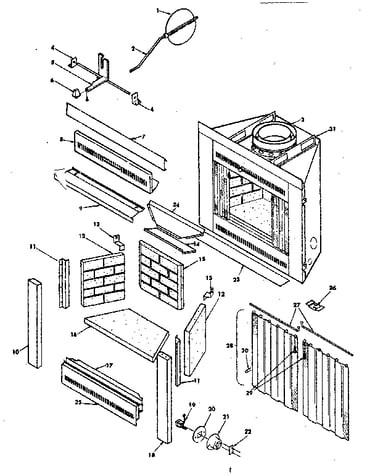

Replacement parts diagram

Screen

Part #K17900

The manufacturer no longer makes this part, and there's no substitute part

Grate 42-84028
#110

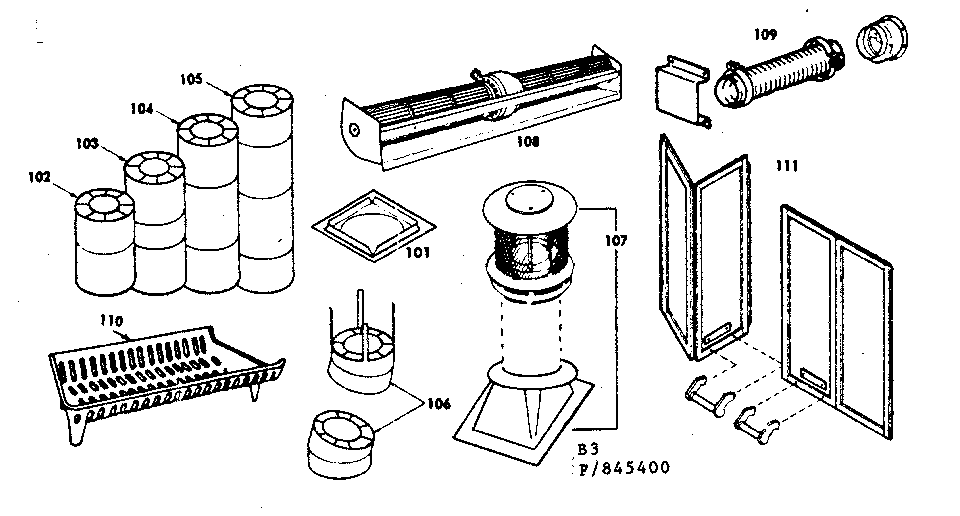

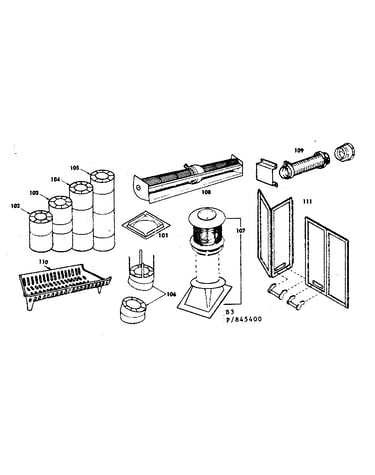

Chimney and optional equipment diagram

Grate

Part #42-84028

The manufacturer no longer makes this part, and there's no substitute part

Deflector T20376
#24

Replacement parts diagram

Deflector

Part #T20376

The manufacturer no longer makes this part, and there's no substitute part

Chimney 8CA12
#107A

Chimney and optional equipment diagram

Chimney

Part #8CA12

The manufacturer no longer makes this part, and there's no substitute part

Damper Y13452
#1

Replacement parts diagram

Damper

Part #Y13452

The manufacturer no longer makes this part, and there's no substitute part

Wall Elbow 8E30
#106

Chimney and optional equipment diagram

Wall elbow

Part #8E30

The manufacturer no longer makes this part, and there's no substitute part

Frame T20315
#25

Replacement parts diagram

Frame

Part #T20315

The manufacturer no longer makes this part, and there's no substitute part

Outlet Box T19901
#21

Replacement parts diagram

Outlet box

Part #T19901

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 642-9084

#NI

All parts diagram

Owner's manual

Part #642-9084

The manufacturer no longer makes this part, and there's no substitute part

Spacer T20356
#31

Replacement parts diagram

Spacer

Part #T20356

The manufacturer no longer makes this part, and there's no substitute part
