Model # WA50K8600AV/AA-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WA50K8600AV-AA-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

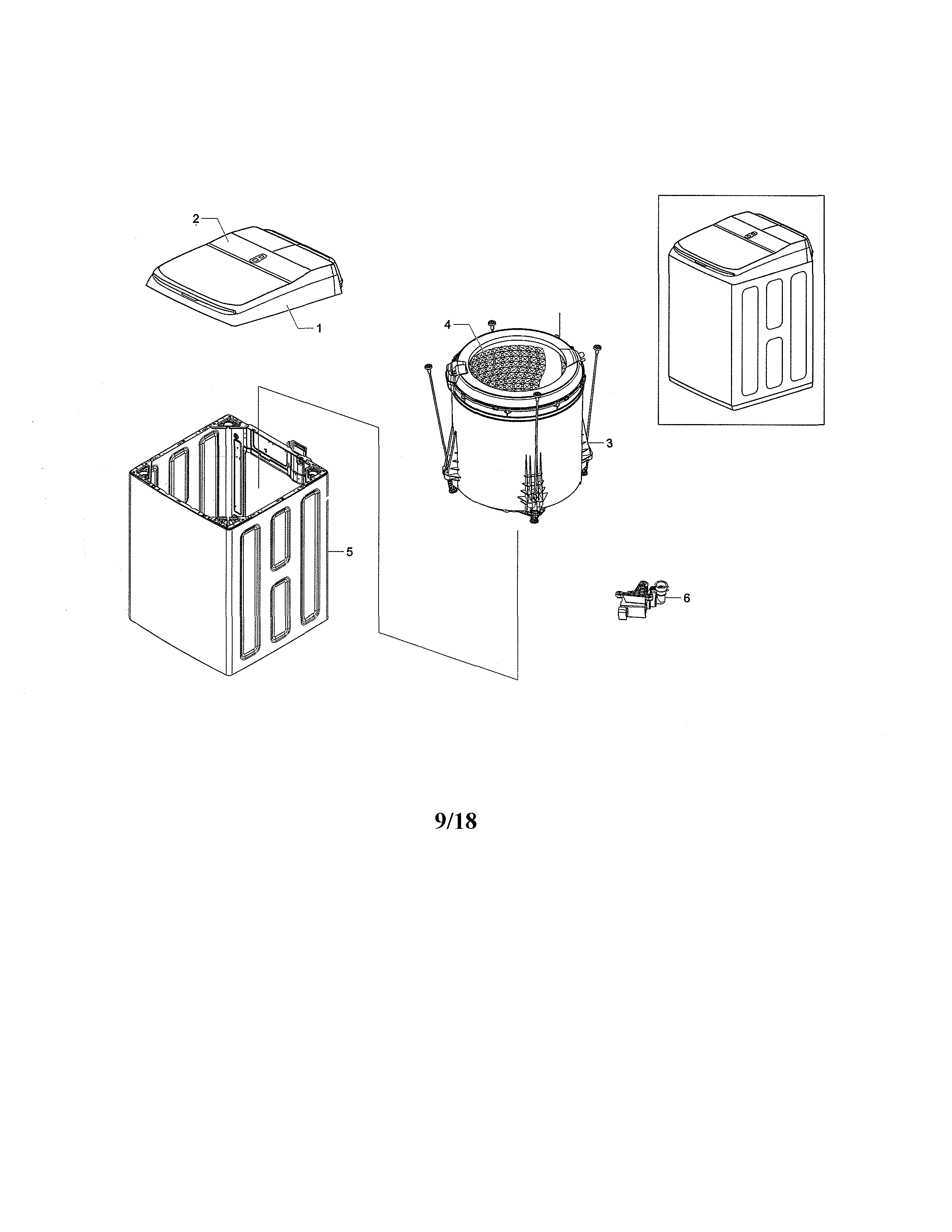

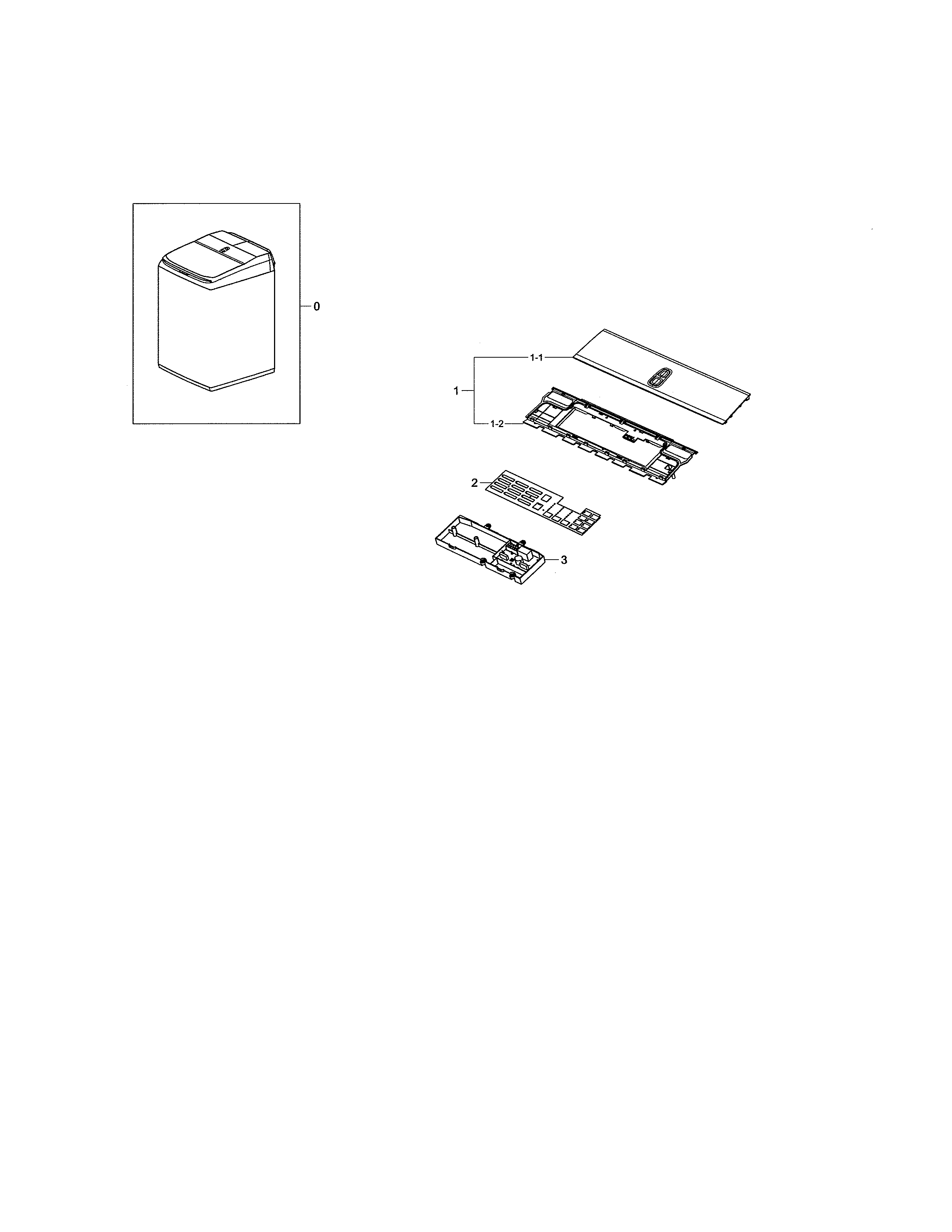

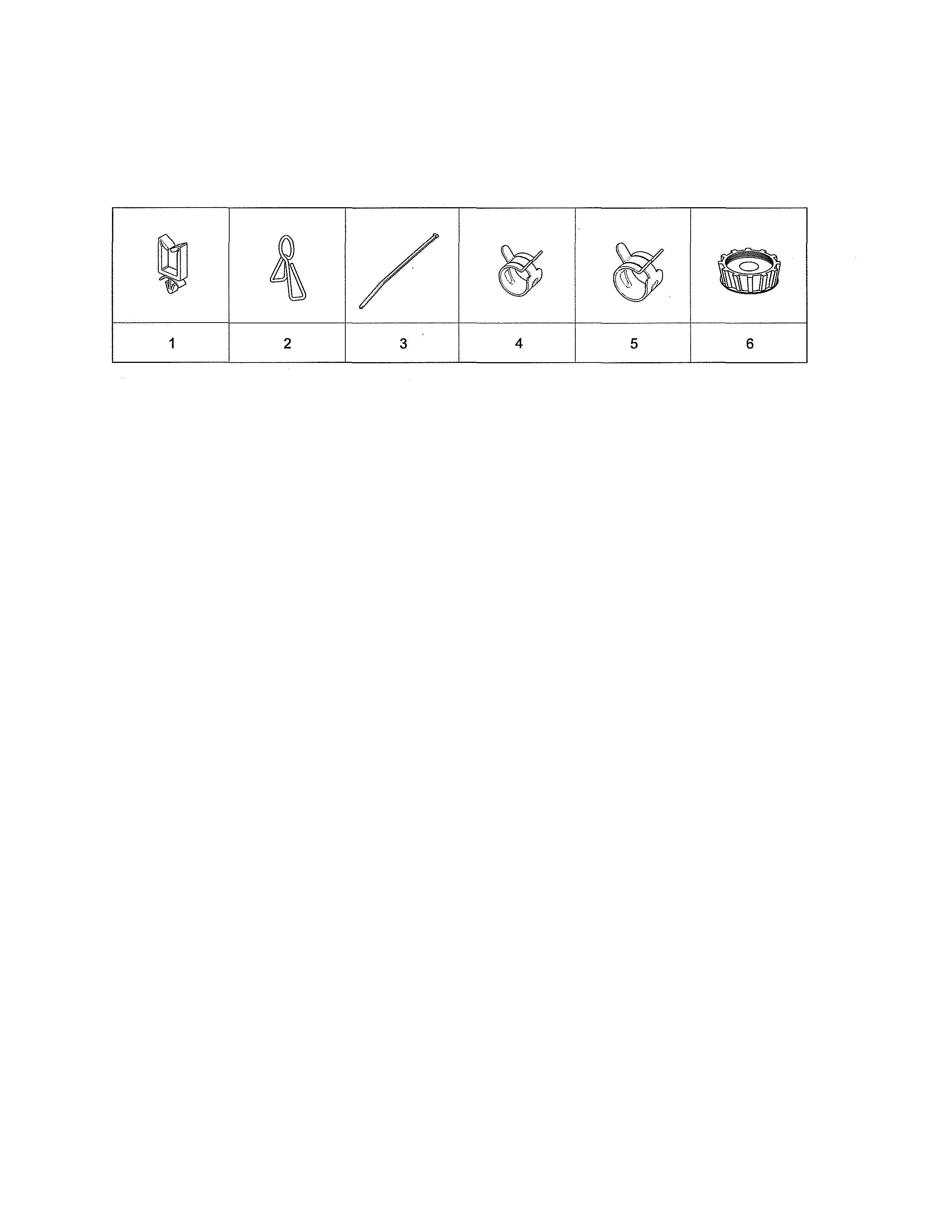

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Washer Drain Pump Assembly DC97-19289B
Washer drain pump assembly

Part #DC97-19289B

Replaced by #DC97-19289F

?
Manufacturer substitution
This part replaces DC97-19289B. Substitute parts can look different from the original.
BEST SELLER
$70.54 |
8% OFF Phone Price : $76.54
In Stock
Washer Drain Pump Motor DC31-00178D
#5-2

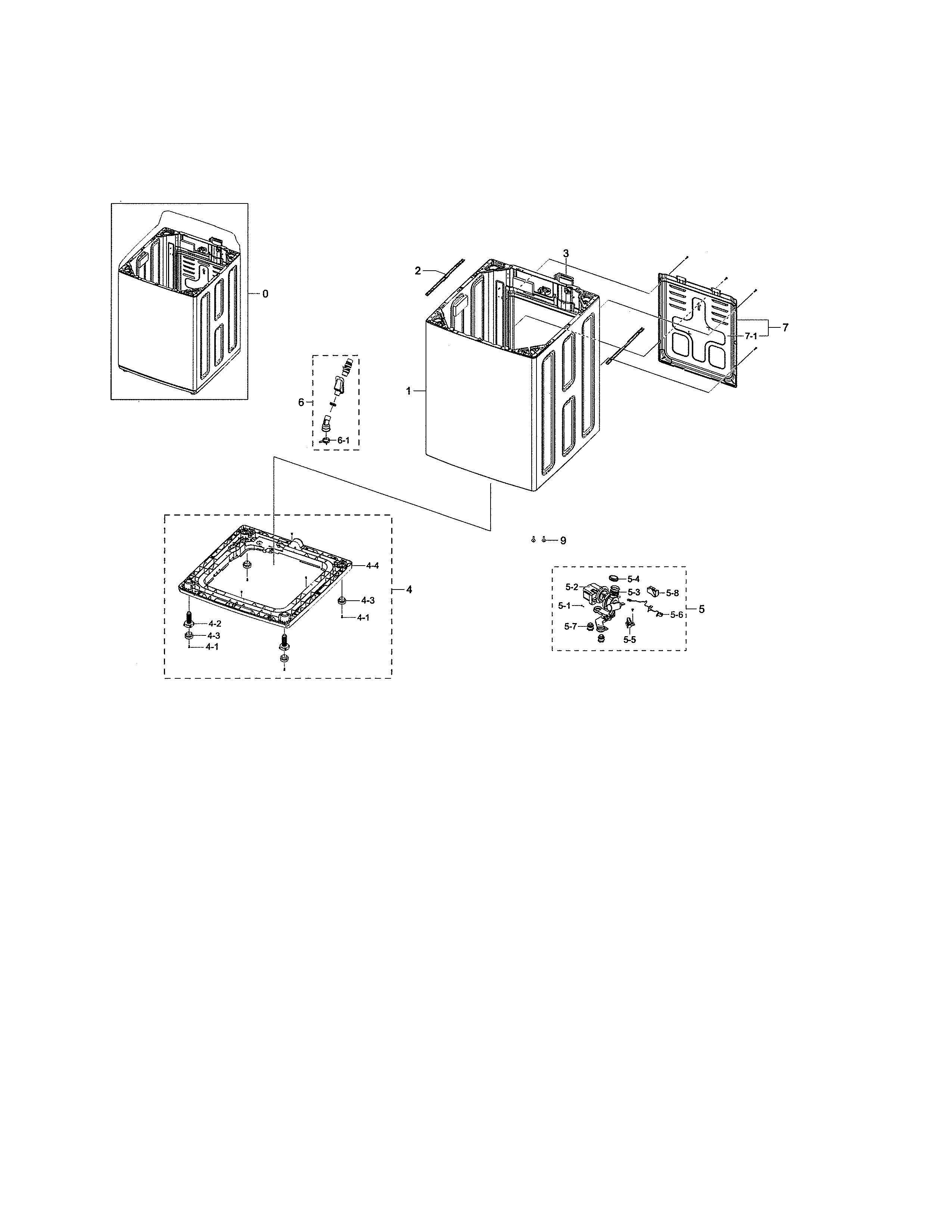

Frame diagram

Washer drain pump motor

Part #DC31-00178D

Replaced by #DC31-00187A

?
Manufacturer substitution
This part replaces DC31-00178D. Substitute parts can look different from the original.
BEST SELLER
$129.67 |
8% OFF Phone Price : $141.67
In Stock
Washer Water Inlet Valve DC97-15459G
#1-19

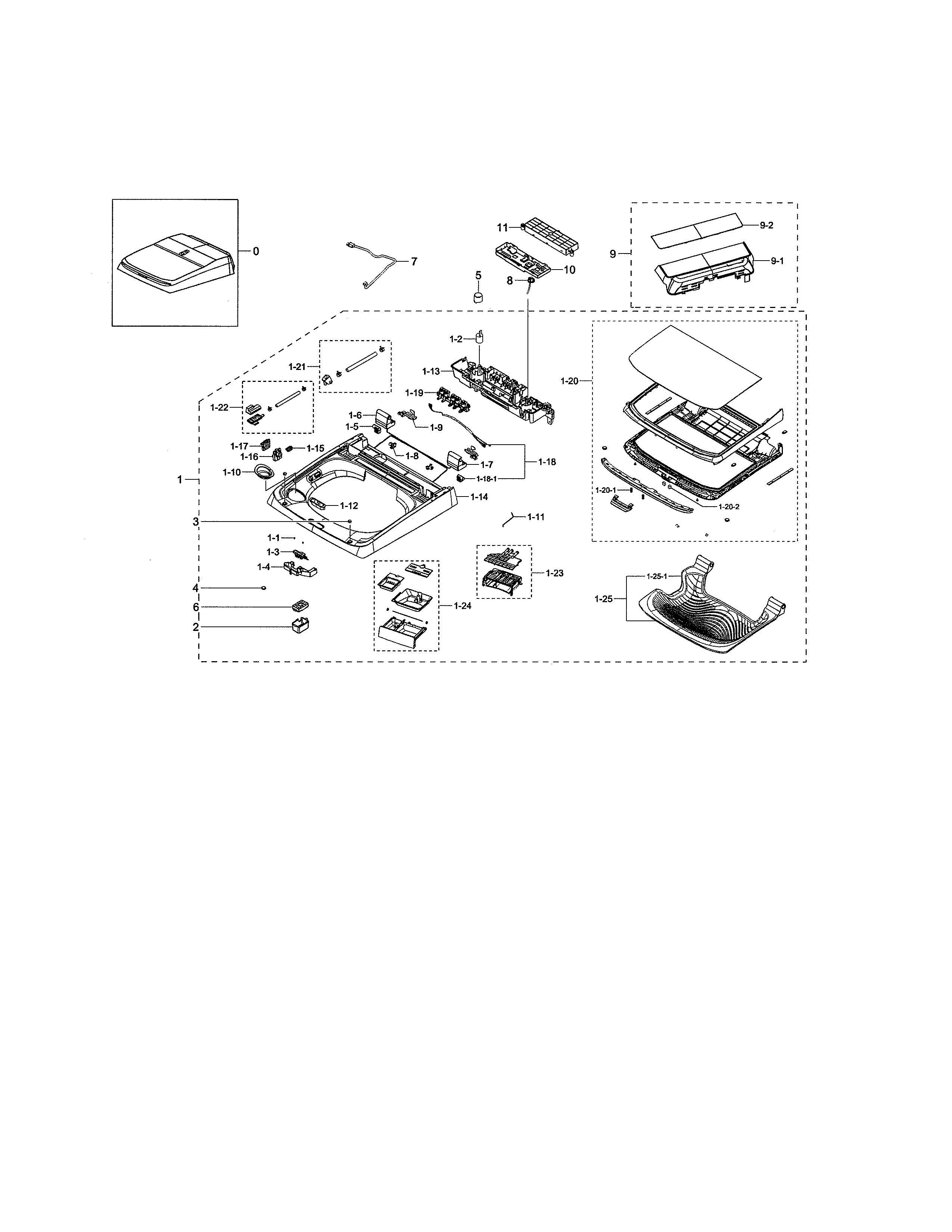

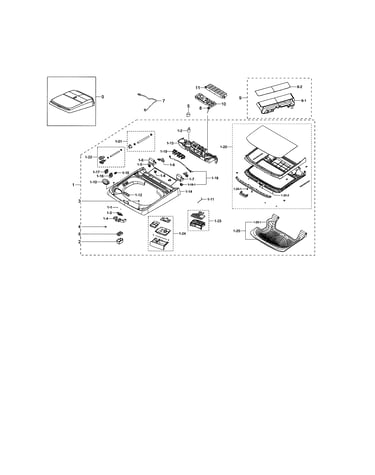

Top cover diagram

Washer water inlet valve

Part #DC97-15459G

BEST SELLER
$104.41 |
10% OFF Phone Price : $116.41
In Stock
Washer Drain Hose DC97-18682C
#6

Frame diagram

Washer drain hose

Part #DC97-18682C

Replaced by #DC97-18682D

?
Manufacturer substitution
This part replaces DC97-18682C. Substitute parts can look different from the original.
BEST SELLER
$105.27 |
10% OFF Phone Price : $117.27
In Stock
Washer Damper DC97-18610A
#1-7

Tub diagram

Washer damper

Part #DC97-18610A

BEST SELLER
$55.64 |
10% OFF Phone Price : $61.64
In Stock
Washer Tub-to-pump Hose DC97-17345B
#1-10

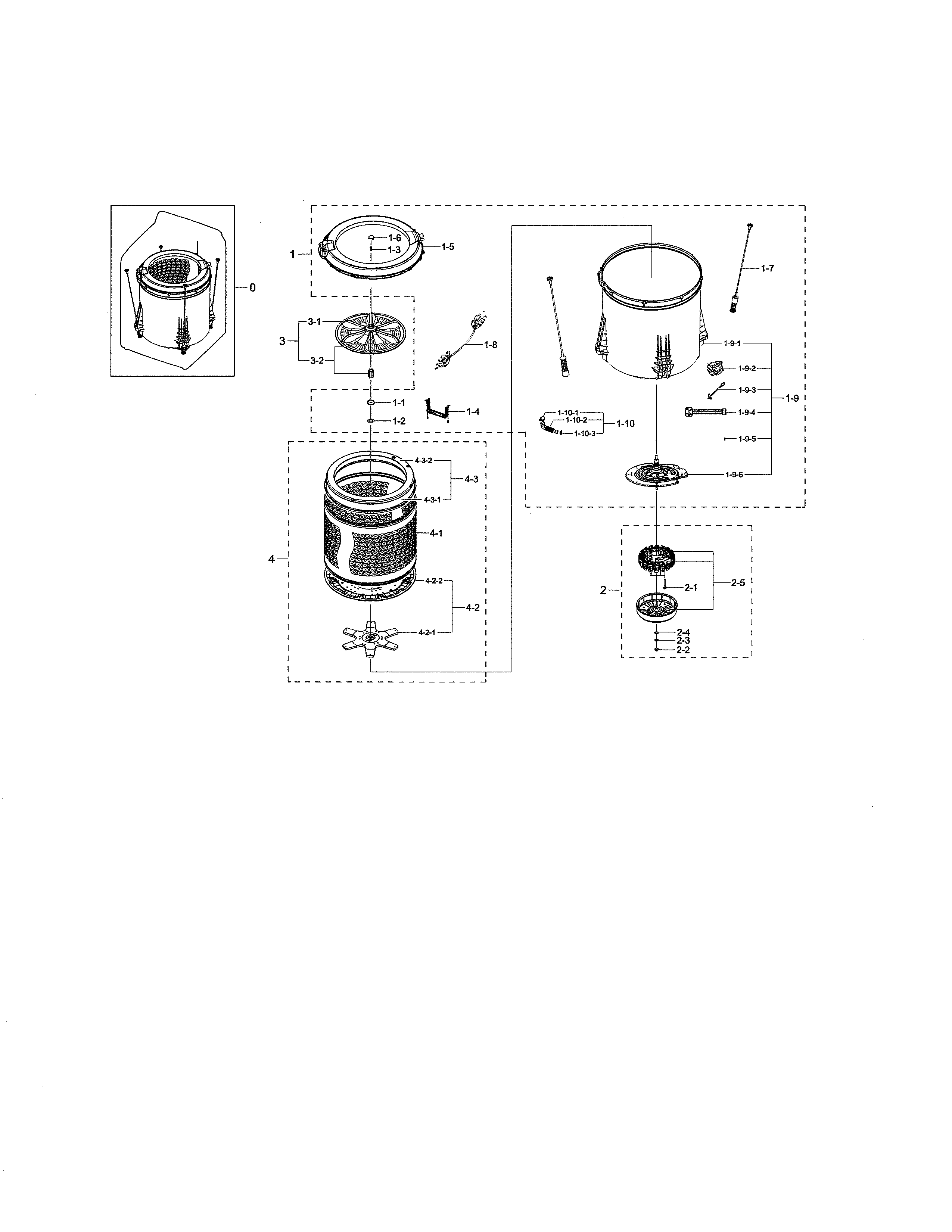

Tub diagram

Washer tub-to-pump hose

Part #DC97-17345B

BEST SELLER
$89.36 |
6% OFF Phone Price : $95.36
In Stock
Washer Clutch DC97-18439A
#1-9-6

Tub diagram

Washer clutch

Part #DC97-18439A

BEST SELLER
$211.93 |
5% OFF Phone Price : $223.93
In Stock
Washer Thermistor (replaces Dc90-10128h) DC90-10128N
#1-9-3

Tub diagram

Washer thermistor (replaces dc90-10128h)

Part #DC90-10128N

BEST SELLER
$43.26 |
12% OFF Phone Price : $49.26
In Stock
Washing Machine Washer 6031-002240
#1-2

Tub diagram

Washing machine washer

Part #6031-002240

BEST SELLER
This item is not returnable
$27.08
In Stock
Washer Electronic Control Board DC92-01625U
#11

Top cover diagram

Washer electronic control board

Part #DC92-01625U

BEST SELLER
This item is not returnable
$240.41 |
5% OFF Phone Price : $252.41
In Stock
