Model # 4KBDS250S0 Official KitchenAid garbage disposal
Here are the diagrams and repair parts for Official KitchenAid 4KBDS250S0 garbage disposal, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 63 parts |
#34

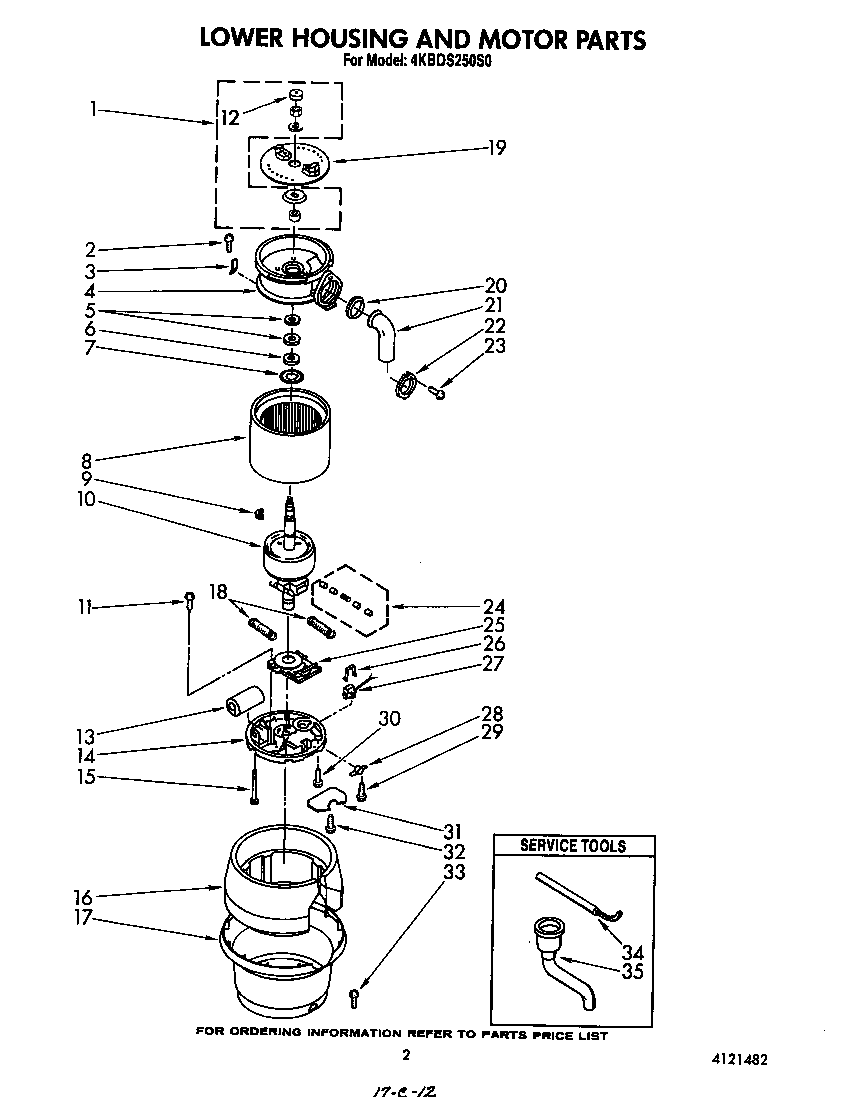

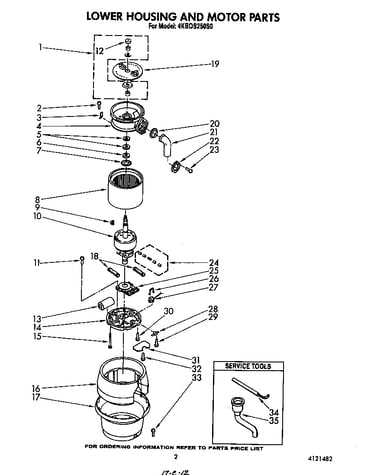

Lower housing and motor diagram
Wrench
Part #4211435
Replaced by #WP8174310
?
Manufacturer substitution
This part replaces 4211435. Substitute parts can look different from the original.
This item is not returnable
$17.59 |
10% OFF Phone Price : $19.59
In Stock
#7

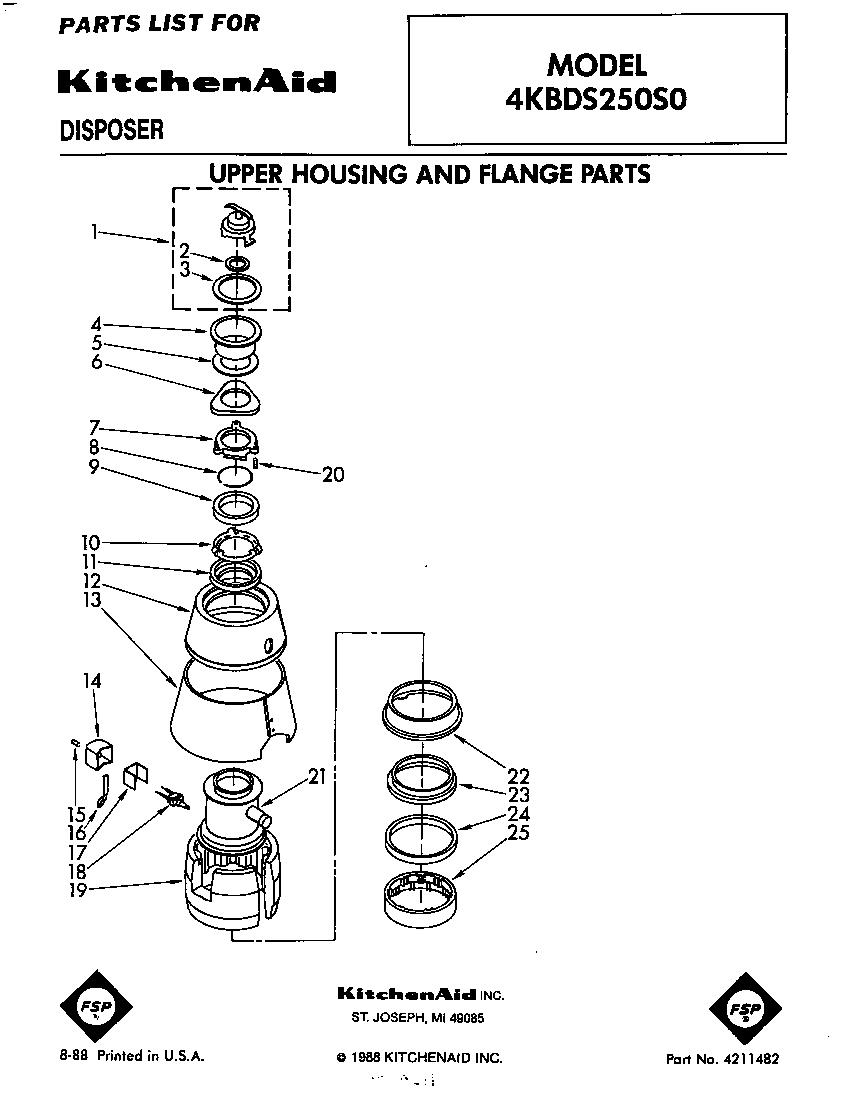

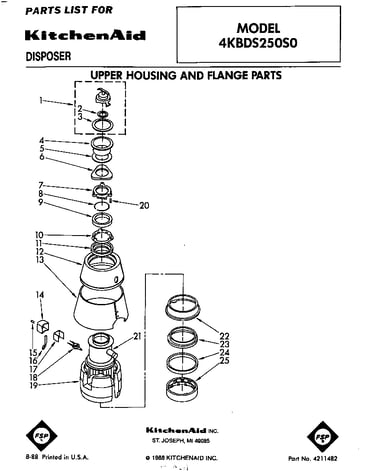

Upper housing and flange diagram
Whirlpool garbage disposal mounting flange
Part #4211304
$55.09
In Stock
#6
Upper housing and flange diagram
Whirlpool flange
Part #4211303
$50.87
In Stock
#8
Upper housing and flange diagram
Whirlpool ring
Part #4211306
This item is not returnable
$7.49
In Stock
#4
Upper housing and flange diagram
Flange
Part #4211301
$46.27
In Stock
#9
Upper housing and flange diagram
Gasket
Part #4211411
$9.98
In Stock
#35
Lower housing and motor diagram
Whirlpool adapter
Part #4211396
$240.89
In Stock
#2
Upper housing and flange diagram
Gasket
Part #4211355
This item is not returnable
$5.89
In Stock
#20
Upper housing and flange diagram
Whirlpool garbage disposal mounting flange screw
Part #4211305
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#12
Lower housing and motor diagram
Plug
Part #4211341
Replaced by #4211578
?
Manufacturer substitution
This part replaces 4211341. Substitute parts can look different from the original.
$43.24
In Stock
