Broan
Range Hood

Model # WS136BC Official Broan range hood

Here are the diagrams and repair parts for Official Broan WS136BC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Range Hood Light Socket R111630
#18

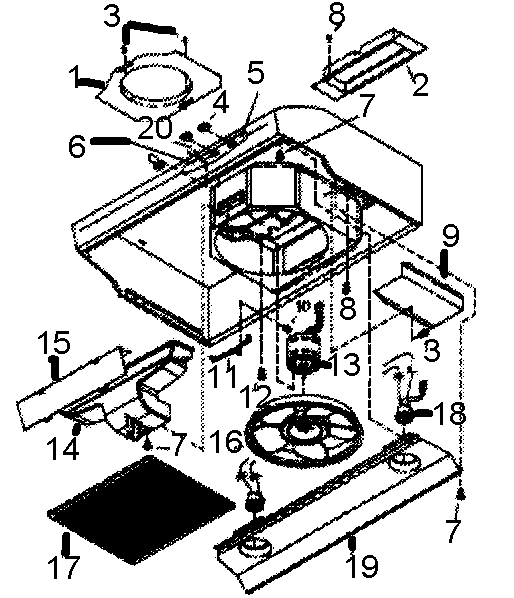

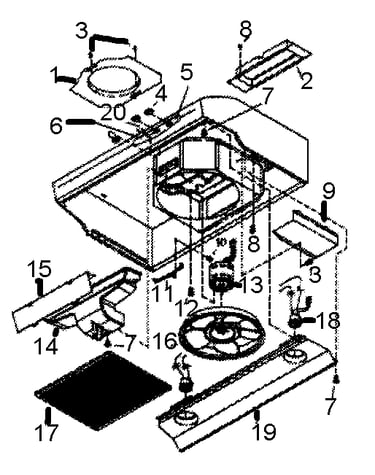

Range hood diagram

Range hood light socket

Part #R111630

Replaced by #SR111630

?
Manufacturer substitution
This part replaces R111630. Substitute parts can look different from the original.
BEST SELLER
$40.32 |
13% OFF Phone Price : $46.32
In Stock
Spring R169016
#11

Range hood diagram

Spring

Part #R169016

Replaced by #SR169016

?
Manufacturer substitution
This part replaces R169016. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Fan Blade R531075
#16

Range hood diagram

Range hood fan blade

Part #R531075

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Vent Damper R740013
#2

Range hood diagram

Range hood vent damper

Part #R740013

Replaced by #SR740013

?
Manufacturer substitution
This part replaces R740013. Substitute parts can look different from the original.
$31.19 |
16% OFF Phone Price : $37.19
In Stock
Range Hood Vent Duct, 6-in 406
#NI

Range hood diagram

Range hood vent duct, 6-in

Part #406

$21.44
In Stock
Range Hood Charcoal Filter Kit, 2-pack (replaces 50192) 99010309
#17A

Range hood diagram

Range hood charcoal filter kit, 2-pack (replaces 50192)

Part #99010309

$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Hood Screw R602017
#3

Range hood diagram

Range hood screw

Part #R602017

This item is not returnable
$4.88
In Stock
Instruction Manual 626976D
#NI

Range hood diagram

Instruction manual

Part #626976D

This item is not returnable
$2.16
In Stock
Range Hood Vent Duct, 7-in 407
#NI

Range hood diagram

Range hood vent duct, 7-in

Part #407

$25.88
In Stock
Range Hood Indicator Light R169004
#20

Range hood diagram

Range hood indicator light

Part #R169004

Replaced by #SR169004

?
Manufacturer substitution
This part replaces R169004. Substitute parts can look different from the original.
$24.11 |
20% OFF Phone Price : $30.11
In Stock
