Model # LT-55154 Official Mitsubishi lcd television

Here are the diagrams and repair parts for Official Mitsubishi LT-55154 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

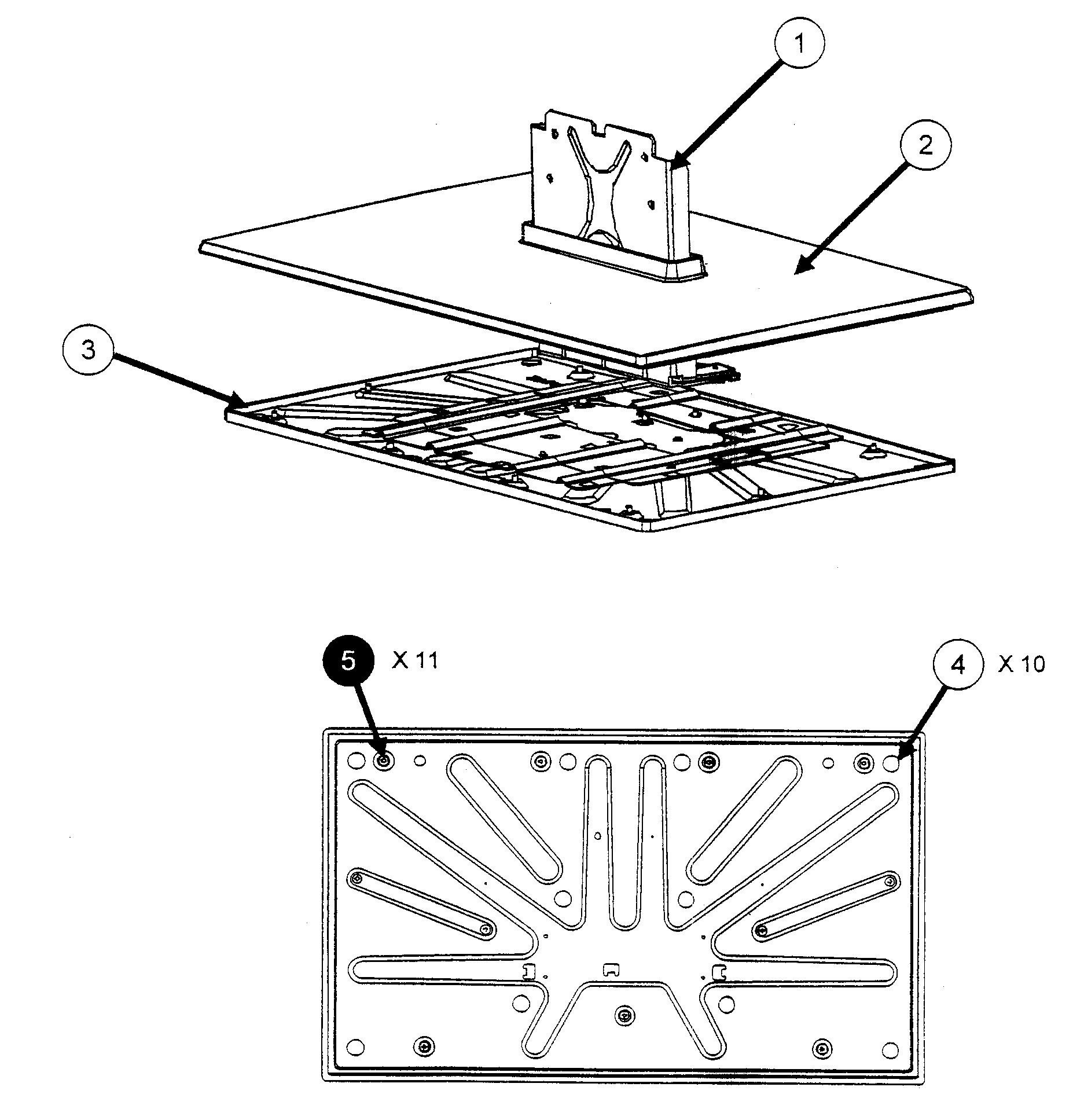

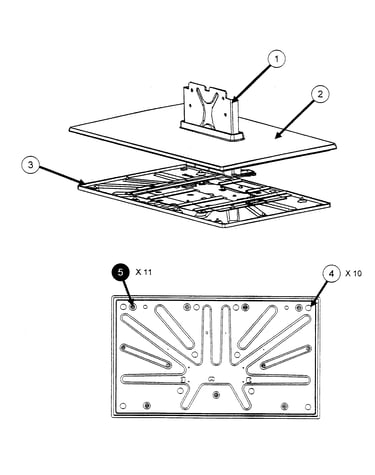

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Mitsubishi Spkr Box F 752A016010
#NI

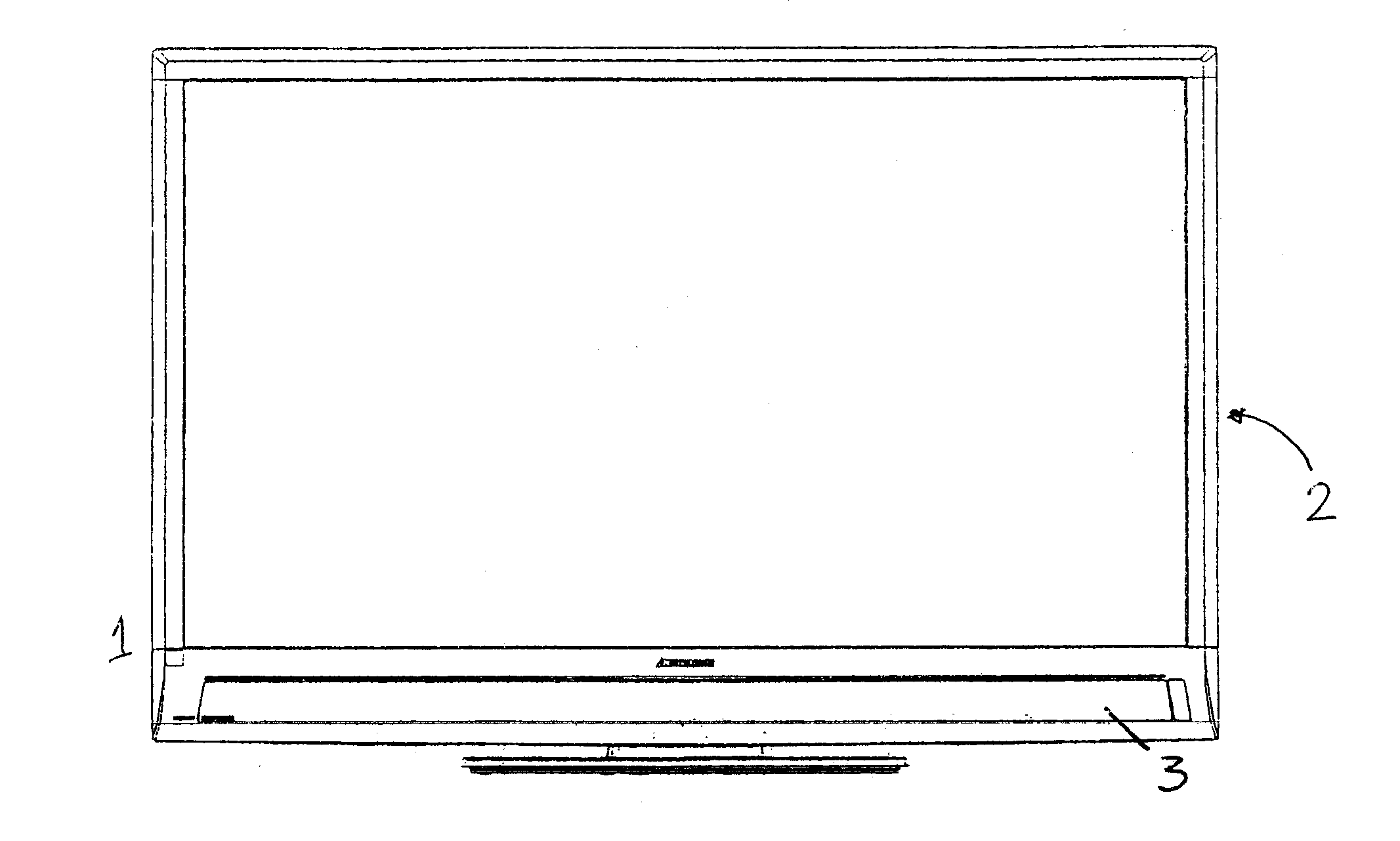

Cabinet parts diagram

Mitsubishi spkr box f

Part #752A016010

The manufacturer no longer makes this part, and there's no substitute part

Transformer 339P012010
#NI

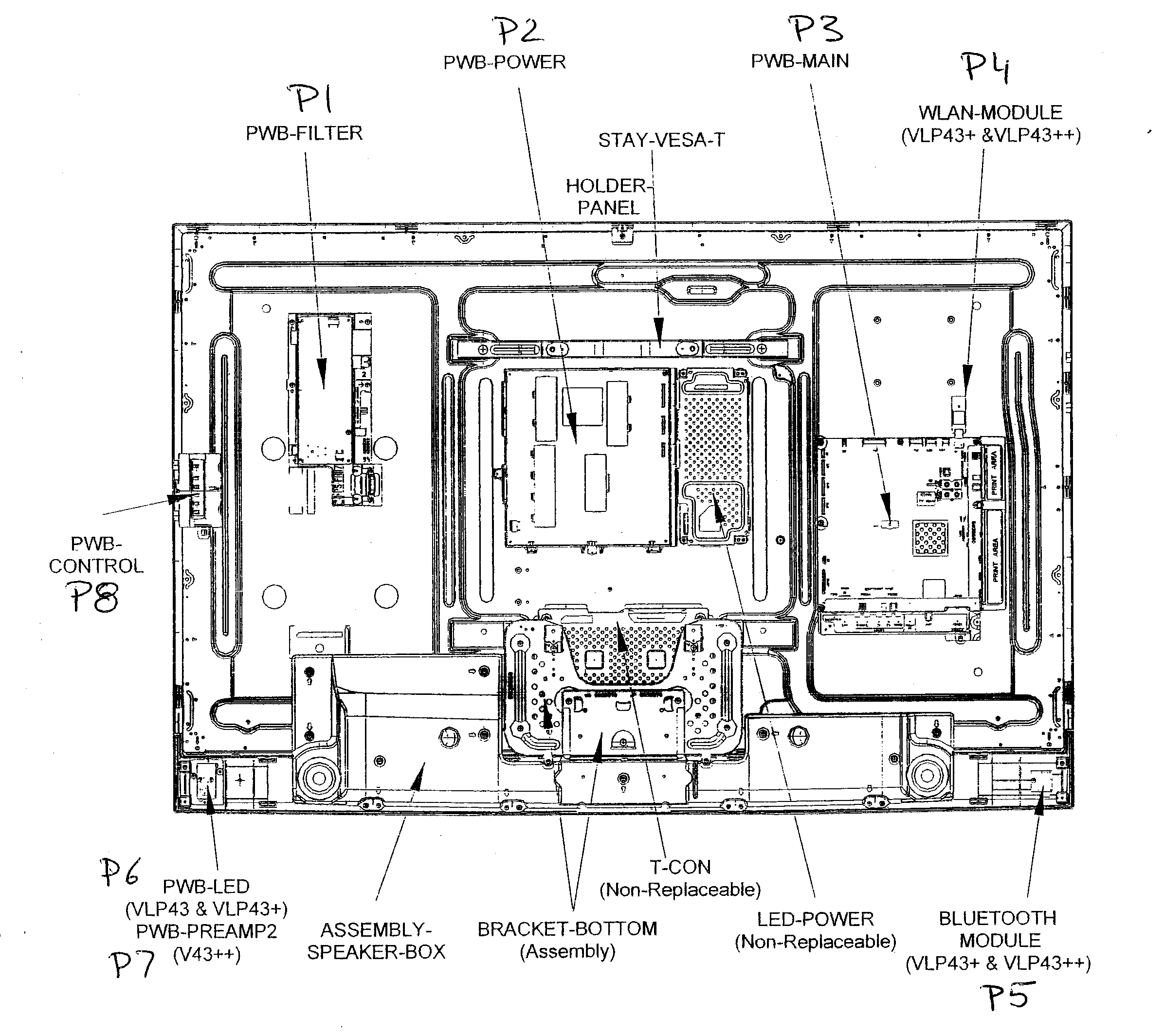

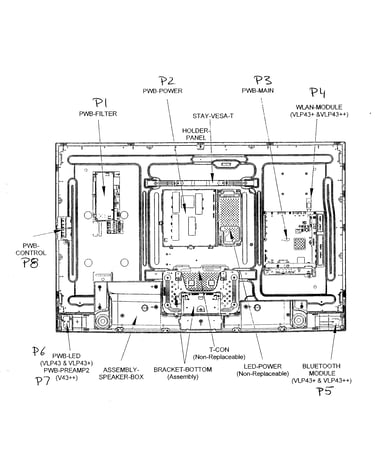

Lcd panel diagram

Transformer

Part #339P012010

The manufacturer no longer makes this part, and there's no substitute part

Guide Stand 852B206010
#NI

Lcd panel diagram

Guide stand

Part #852B206010

The manufacturer no longer makes this part, and there's no substitute part

Ic Nt5tu12 276P744020
#NI

Lcd panel diagram

Ic nt5tu12

Part #276P744020

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer 350P881010
#NI

Lcd panel diagram

Power transformer

Part #350P881010

The manufacturer no longer makes this part, and there's no substitute part

Spkr Box R 752A017010
#NI

Cabinet parts diagram

Spkr box r

Part #752A017010

The manufacturer no longer makes this part, and there's no substitute part

Di Fchs20a 262P198010
#NI

Lcd panel diagram

Di fchs20a

Part #262P198010

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 480P091010
#NI

Cabinet parts diagram

Television speaker

Part #480P091010

The manufacturer no longer makes this part, and there's no substitute part

Coli Chock 351P376020
#NI

Lcd panel diagram

Coli chock

Part #351P376020

The manufacturer no longer makes this part, and there's no substitute part

Line Filter 351P381010
#NI

Lcd panel diagram

Line filter

Part #351P381010

The manufacturer no longer makes this part, and there's no substitute part
