KitchenAid
Electric Cooktop

Model # KECC568MWW00 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KECC568MWW00 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Polish 3191048
#NI

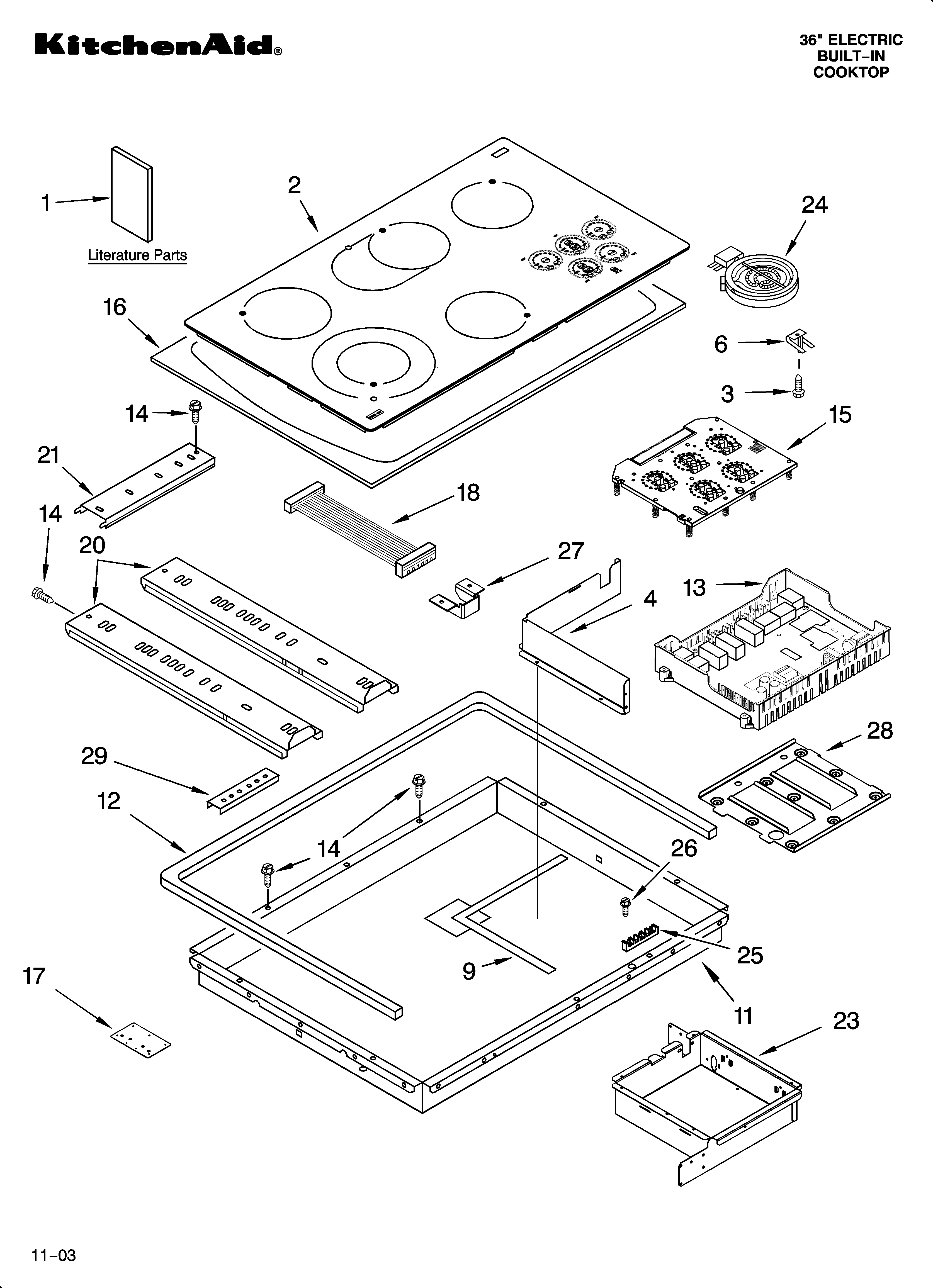

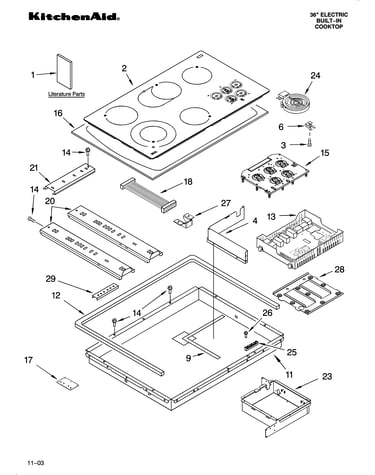

Cooktop parts, miscellaneous parts diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Screw 3196537
#14

Cooktop parts, miscellaneous parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Screw 3196160
Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Surface Element 8285468
#24B

Cooktop parts, miscellaneous parts diagram

Surface element

Part #8285468

Replaced by #W10823693

?
Manufacturer substitution
This part replaces 8285468. Substitute parts can look different from the original.
$142.35 |
8% OFF Phone Price : $154.35
In Stock
Mounting Bracket 4455917
#29

Cooktop parts, miscellaneous parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Surface Element 8285233
#24

Cooktop parts, miscellaneous parts diagram

Surface element

Part #8285233

Replaced by #WP8285845

?
Manufacturer substitution
This part replaces 8285233. Substitute parts can look different from the original.
$148.51 |
7% OFF Phone Price : $160.51
In Stock
Terminal Block 4449868
#25

Cooktop parts, miscellaneous parts diagram

Terminal block

Part #4449868

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 4449868. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop parts, miscellaneous parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Cooktop Element, Left Rear And Right Front 8285230
#24A

Cooktop parts, miscellaneous parts diagram

Cooktop element, left rear and right front

Part #8285230

Replaced by #WP8285230

?
Manufacturer substitution
This part replaces 8285230. Substitute parts can look different from the original.
$119.51 |
9% OFF Phone Price : $131.51
In Stock
Range Screw 3196163
#26

Cooktop parts, miscellaneous parts diagram

Range screw

Part #3196163

Replaced by #WP3196163

?
Manufacturer substitution
This part replaces 3196163. Substitute parts can look different from the original.
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
