Model # 1753192283 Official Kenmore upright vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 1753192283 upright vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1753192283 Vacuum Cleaners
#20

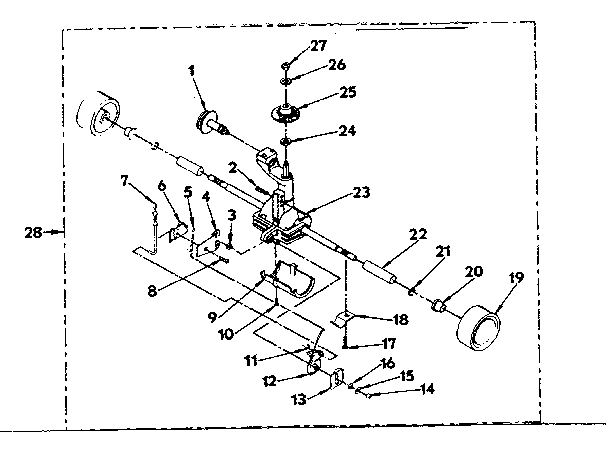

Wheel and axel assembly diagram
Bearing
Part #644186-002
The manufacturer no longer makes this part, and there's no substitute part
Retainer plate
Part #643015-000
The manufacturer no longer makes this part, and there's no substitute part
#7
Wheel and axel assembly diagram
Intrlk rd as
Part #644272-001
The manufacturer no longer makes this part, and there's no substitute part
#31

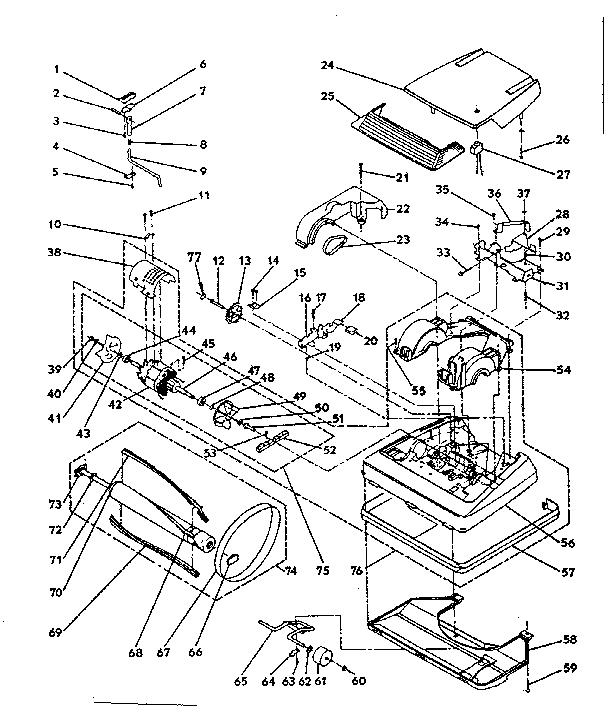

Nozzle and motor assembly diagram
Handle plate
Part #644202-003
The manufacturer no longer makes this part, and there's no substitute part
#11
Nozzle and motor assembly diagram
Screw
Part #644338-001
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #644294-001
The manufacturer no longer makes this part, and there's no substitute part
#26
Wheel and axel assembly diagram
Washer
Part #706382-338
The manufacturer no longer makes this part, and there's no substitute part
#67
Nozzle and motor assembly diagram
Belt
Part #20-5270
The manufacturer no longer makes this part, and there's no substitute part
#20
Nozzle and motor assembly diagram
Pedal boot
Part #641892-056
The manufacturer no longer makes this part, and there's no substitute part
#23

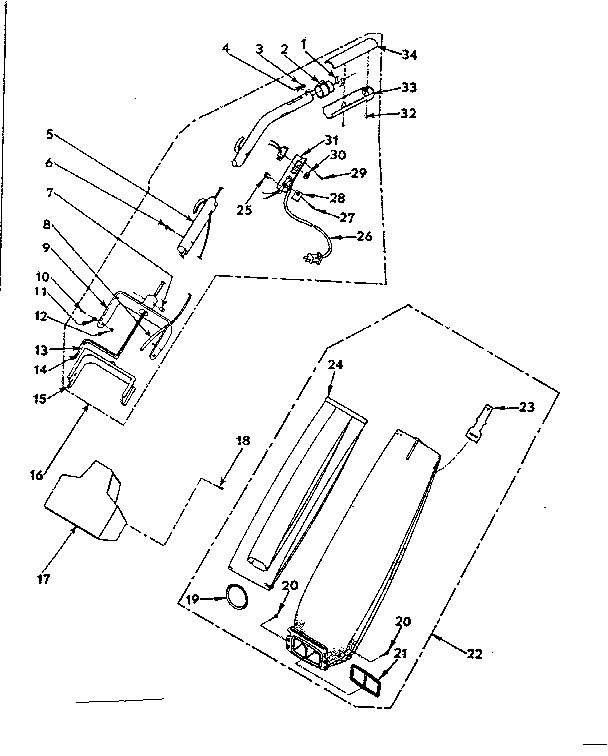

Handle and bag housing diagram
Strap
Part #644753-002
The manufacturer no longer makes this part, and there's no substitute part
