Jenn-Air
Gas Cooktop

Model # JGC8645ADS Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGC8645ADS gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

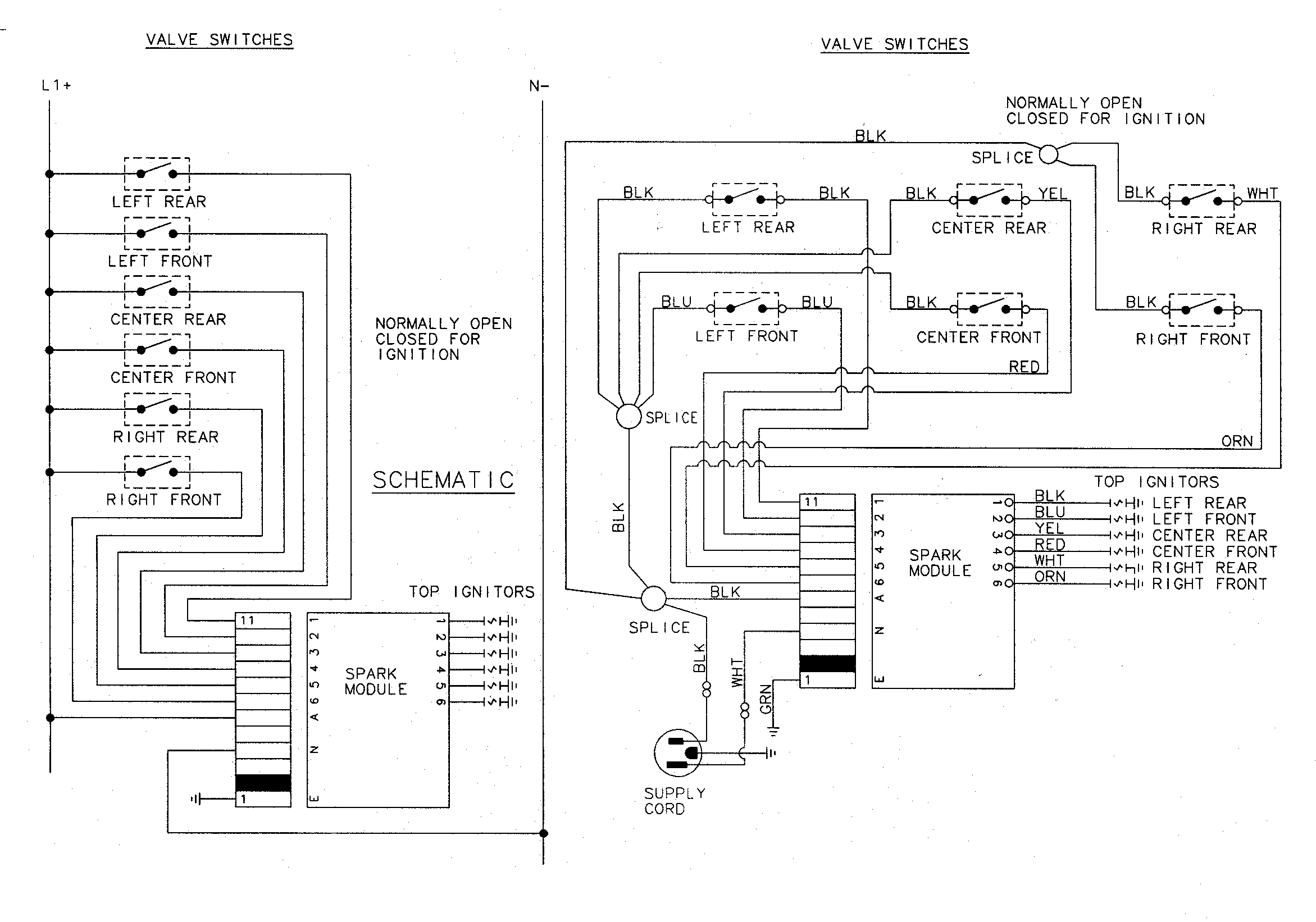

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Cooktop Igniter Switch 74005953
#23

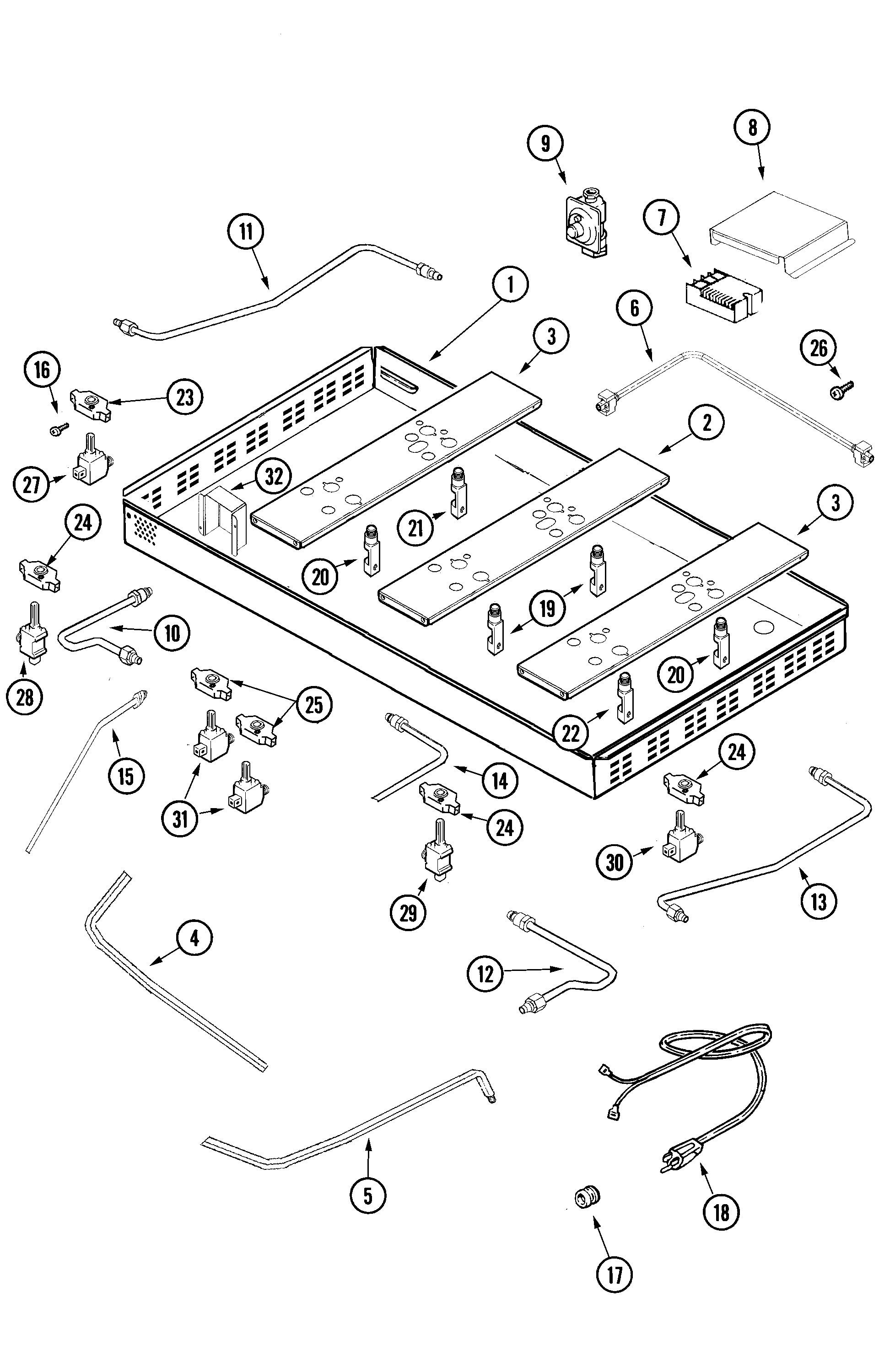

Body diagram

Cooktop igniter switch

Part #74005953

$53.20
In Stock
Cooktop Burner Knob 74005939
#13

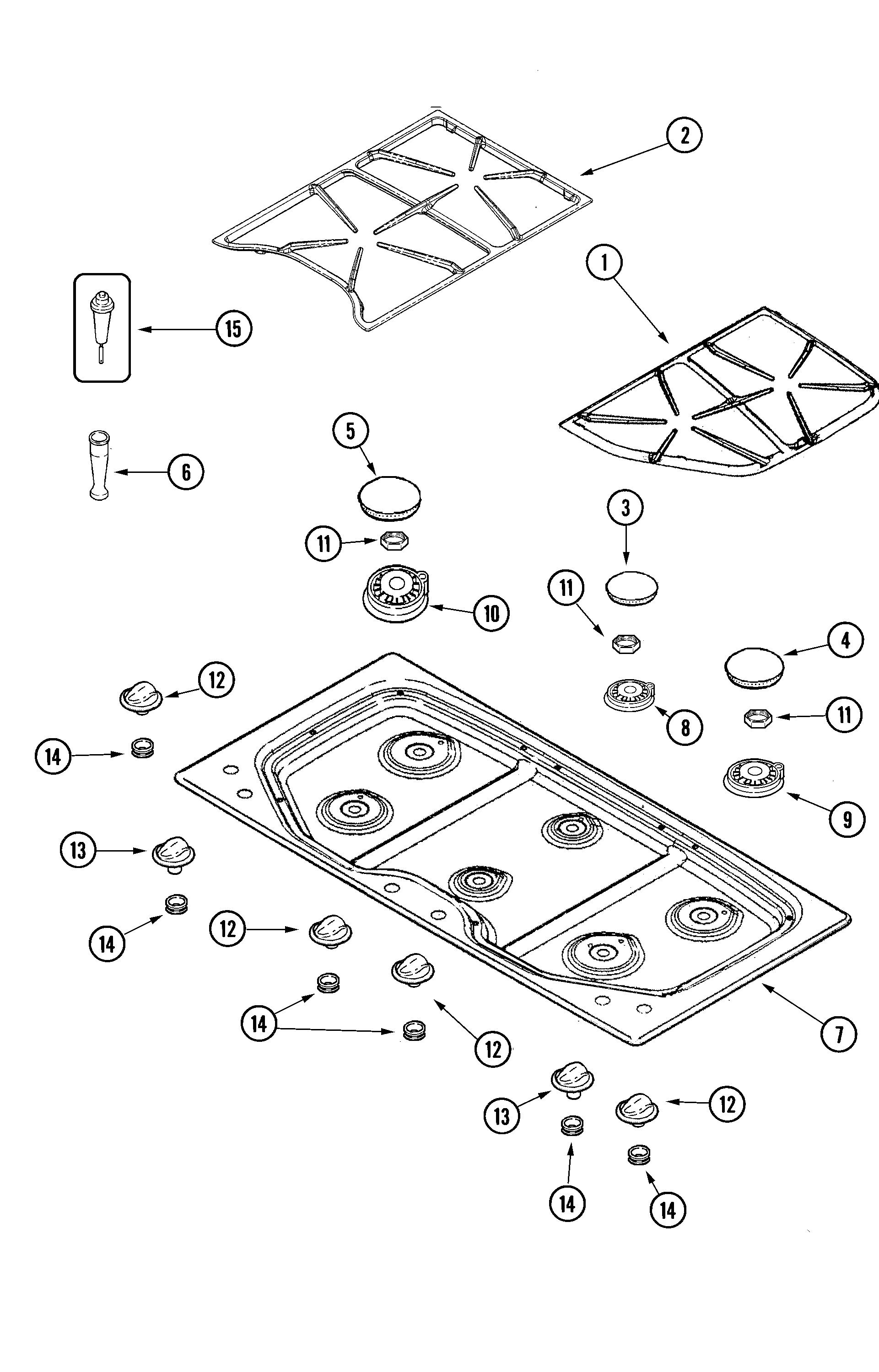

Top assembly diagram

Cooktop burner knob

Part #74005939

Replaced by #WP74005939

?
Manufacturer substitution
This part replaces 74005939. Substitute parts can look different from the original.
This item is not returnable
$17.88 |
10% OFF Phone Price : $19.88
In Stock
Power Cord 74005927
#18

Body diagram

Power cord

Part #74005927

Replaced by #3188867

?
Manufacturer substitution
This part replaces 74005927. Substitute parts can look different from the original.
$76.51
In Stock
Cook Guide 74005475
#18

Top assembly diagram

Cook guide

Part #74005475

$9.18
In Stock
Holder Orifice 71002723
#22

Body diagram

Holder orifice

Part #71002723

$53.79 |
10% OFF Phone Price : $59.79
In Stock
Burner Base 74005955
#8

Top assembly diagram

Burner base

Part #74005955

Replaced by #WP7540P028-60

?
Manufacturer substitution
This part replaces 74005955. Substitute parts can look different from the original.
$41.64
In Stock
Screw 706197
#1B

Body diagram

Screw

Part #706197

Replaced by #WP3400202

?
Manufacturer substitution
This part replaces 706197. Substitute parts can look different from the original.
This item is not returnable
$6.15
In Stock
Venturi 71002747
#6

Top assembly diagram

Venturi

Part #71002747

Replaced by #WP7538P003-60

?
Manufacturer substitution
This part replaces 71002747. Substitute parts can look different from the original.
$47.39 |
11% OFF Phone Price : $53.39
In Stock
Cooktop Igniter Switch 74005954
#24

Body diagram

Cooktop igniter switch

Part #74005954

Replaced by #WP74005954

?
Manufacturer substitution
This part replaces 74005954. Substitute parts can look different from the original.
$54.01 |
10% OFF Phone Price : $60.01
In Stock
Pressure Regulator 704545
#9

Body diagram

Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$107.45 |
10% OFF Phone Price : $119.45
In Stock
