GE
Side-By-Side Refrigerator

Model # ZIS36NTE Official GE side-by-side refrigerator

Here are the diagrams and repair parts for Official GE ZIS36NTE side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

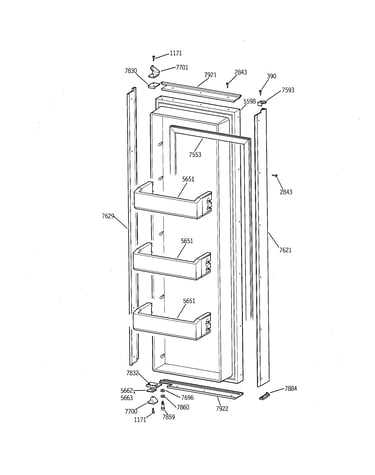

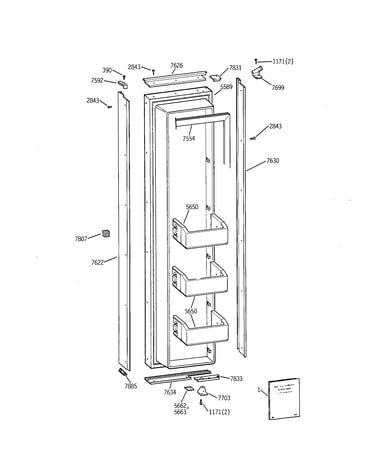

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Refrigerator Ice Maker Kit WR30X0259
#1313

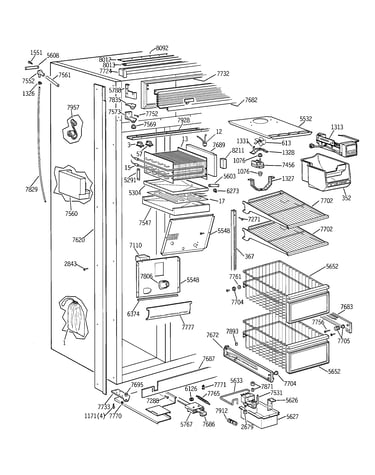

Freezer section diagram

Refrigerator ice maker kit

Part #WR30X0259

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0259. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Dryer Assembly WR86X0083
#403

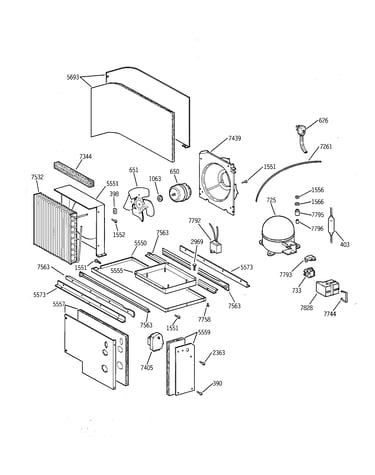

Unit parts diagram

Dryer assembly

Part #WR86X0083

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0083. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Union Nut WR02X8545
#7912

Freezer section diagram

Union nut

Part #WR02X8545

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X8545. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Drain Pan WR17X3038
#5304

Freezer section diagram

Refrigerator drain pan

Part #WR17X3038

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR17X3038. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Heater Trough WR51X0321
#17

Freezer section diagram

Heater trough

Part #WR51X0321

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR51X0321. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Light 200w Switch WR23X0411
Light 200w switch

Part #WR23X0411

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0411. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Fan Blade WR60X0123
#613

Freezer section diagram

Refrigerator fan blade

Part #WR60X0123

Replaced by #WR60X123

?
Manufacturer substitution
This part replaces WR60X0123. Substitute parts can look different from the original.
$65.59 |
8% OFF Phone Price : $71.59
In Stock
Refrigerator Relay WR07X0194
#733

Unit parts diagram

Refrigerator relay

Part #WR07X0194

Replaced by #WR07X26748

?
Manufacturer substitution
This part replaces WR07X0194. Substitute parts can look different from the original.
This item is not returnable
$13.37 |
13% OFF Phone Price : $15.37
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Damper WR09X0513
#7914

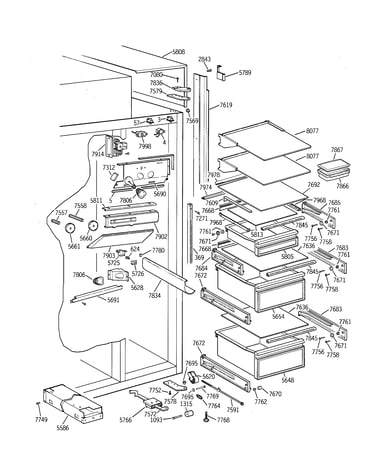

Fresh food section diagram

Damper

Part #WR09X0513

Replaced by #WR9X513

?
Manufacturer substitution
This part replaces WR09X0513. Substitute parts can look different from the original.
$283.93 |
$12.00 OFF Phone Price : $295.93
