Whirlpool
Electric Cooktop

Model # RC8900XAQ1 Official Whirlpool cooktop

Here are the diagrams and repair parts for Official Whirlpool RC8900XAQ1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

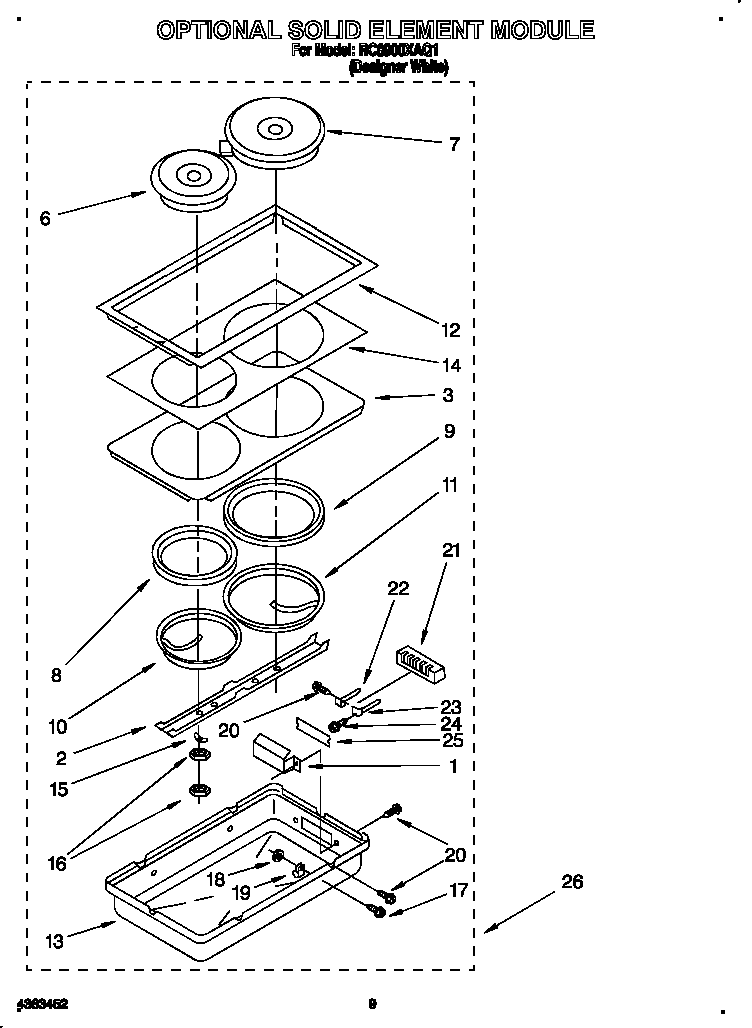

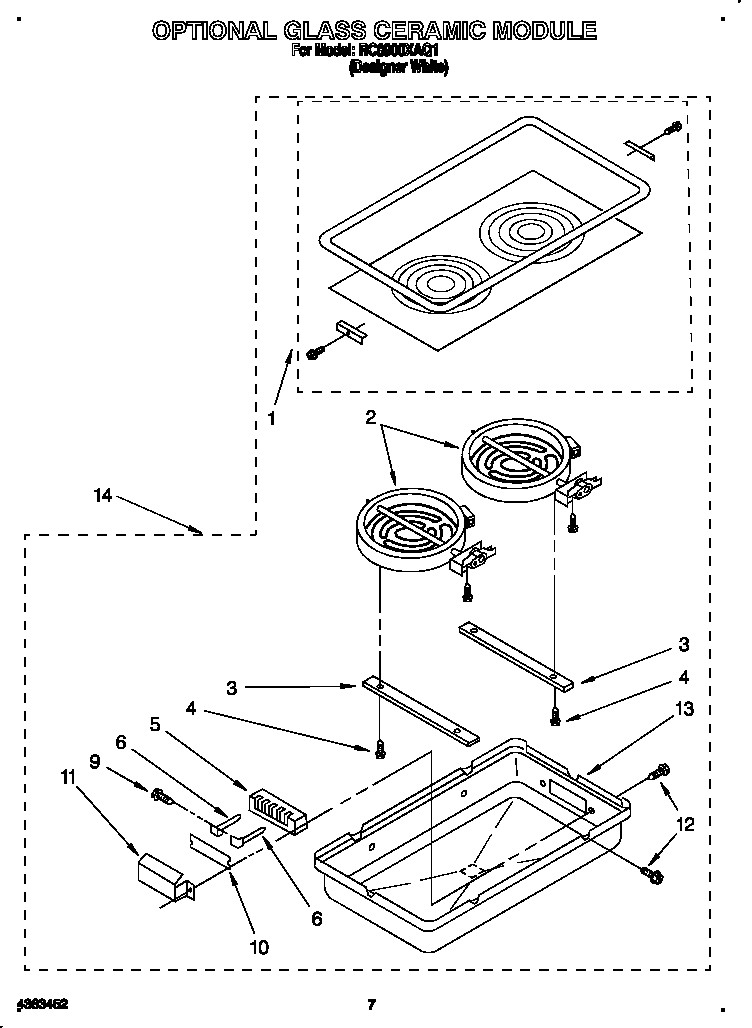

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Receptacle Element 4363088
#9

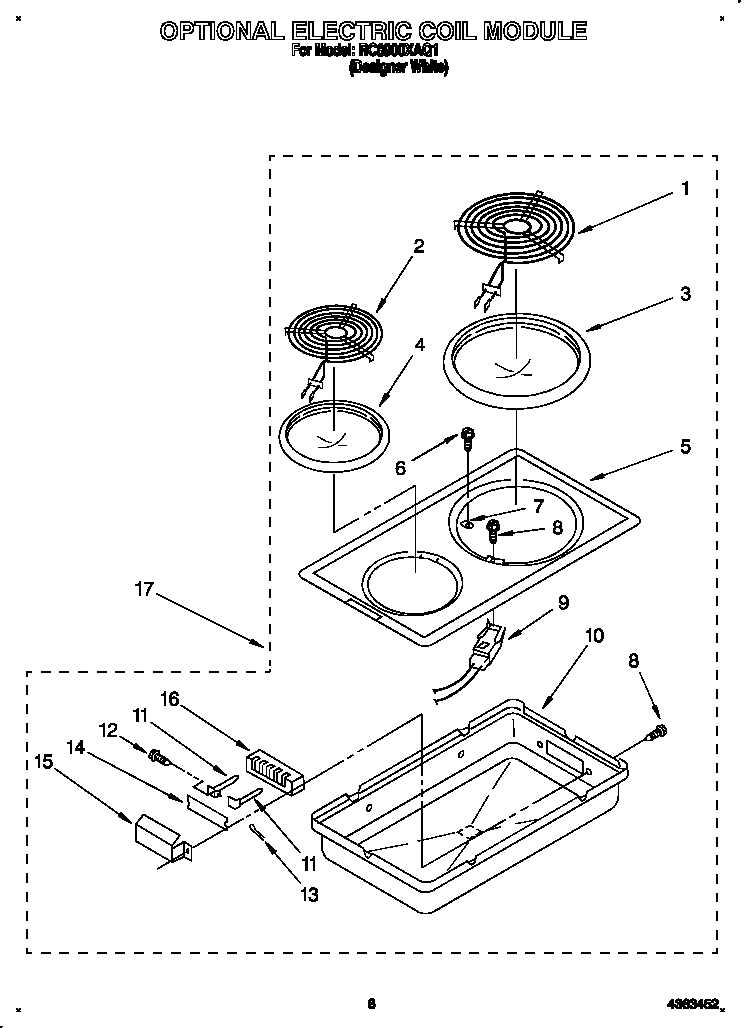

Electric coil module (optional) diagram

Receptacle element

Part #4363088

Replaced by #330031

?
Manufacturer substitution
This part replaces 4363088. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Infinite Switch 786200
#11

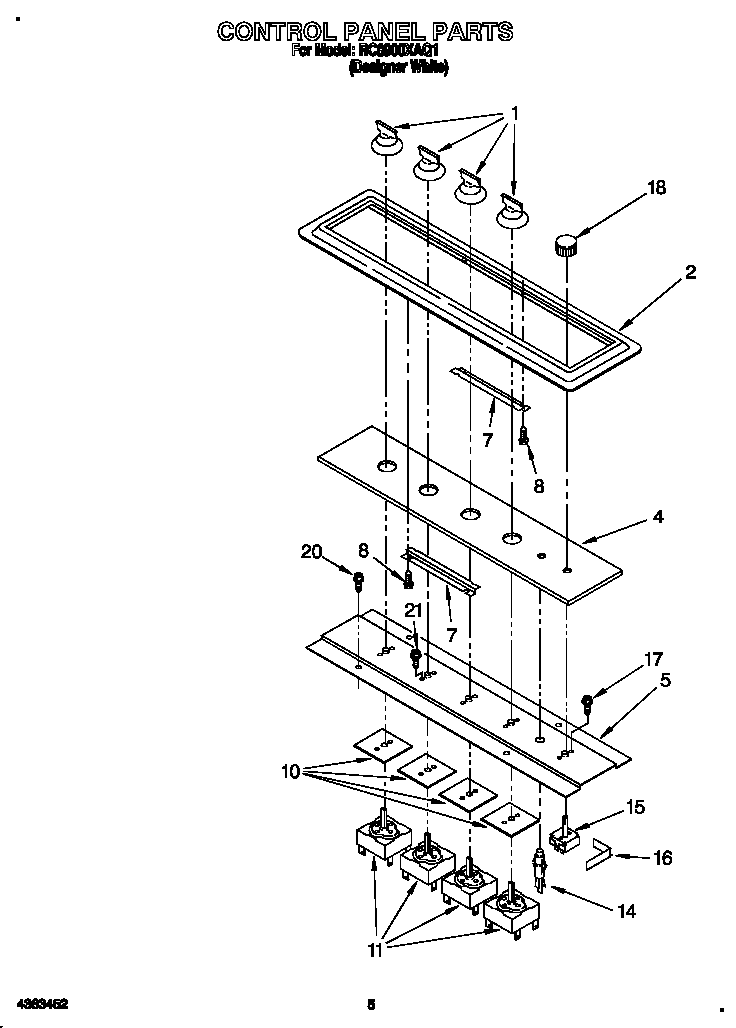

Control panel diagram

Infinite switch

Part #786200

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 786200. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Drip Bowl 4315101
#4C

Electric coil module (optional) diagram

Drip bowl

Part #4315101

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4315101. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Drip Bowl 4320860
#3C

Electric coil module (optional) diagram

Drip bowl

Part #4320860

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4320860. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Cooktop Downdraft Filter Kit 786235
#1

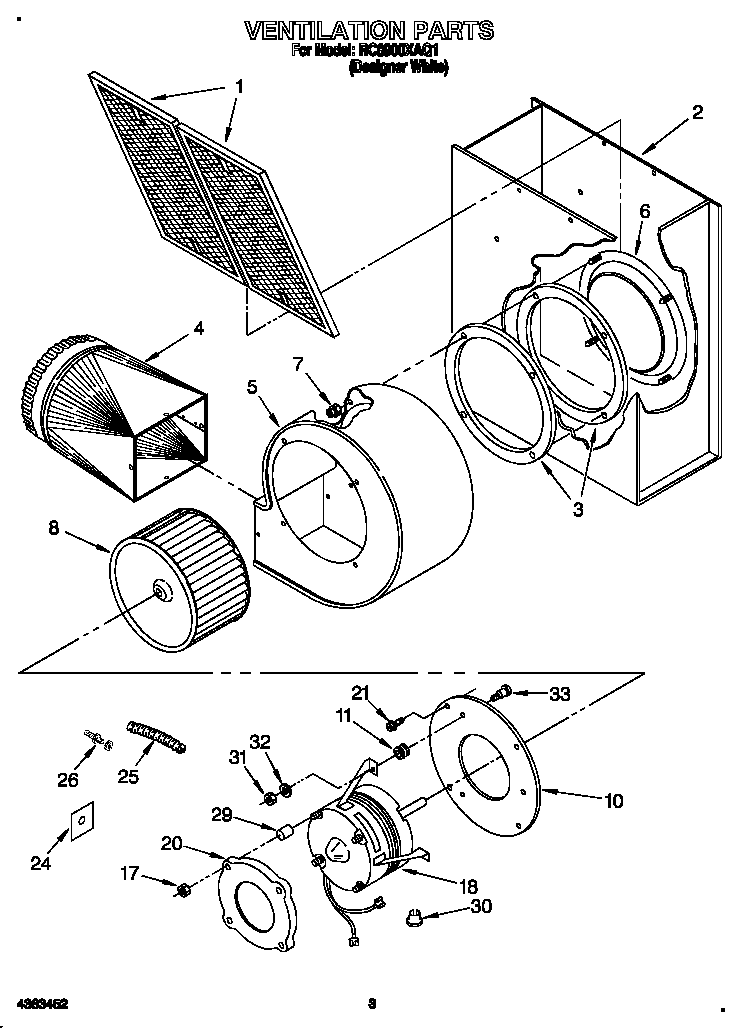

Ventilation diagram

Cooktop downdraft filter kit

Part #786235

$23.36
In Stock
Screw 786227
Screw

Part #786227

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 786227. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 786223
#15

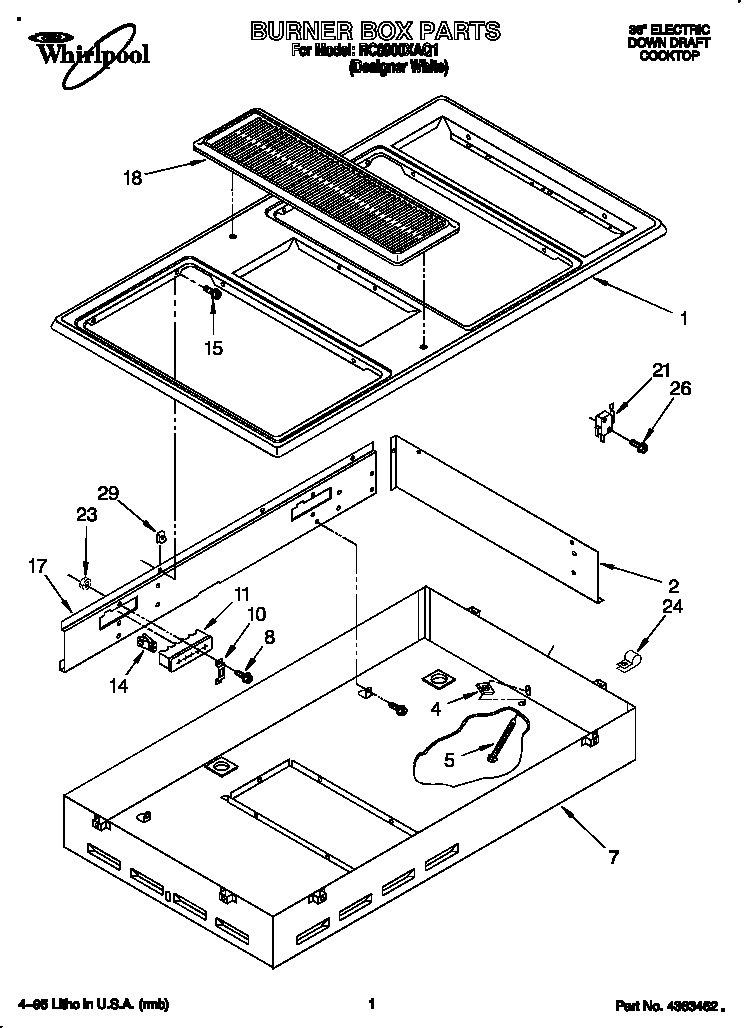

Burner box diagram

Screw

Part #786223

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 786223. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Surface Element 786186
#2

Electric coil module (optional) diagram

Surface element

Part #786186

The manufacturer no longer makes this part, and there's no substitute part

Drip Bowl 4363219
#3A

Electric coil module (optional) diagram

Drip bowl

Part #4363219

Replaced by #W10278125

?
Manufacturer substitution
This part replaces 4363219. Substitute parts can look different from the original.
$25.19 |
19% OFF Phone Price : $31.19
In Stock
Drip Bowl (black) 4320687
#4B

Electric coil module (optional) diagram

Drip bowl (black)

Part #4320687

Replaced by #W10278125

?
Manufacturer substitution
This part replaces 4320687. Substitute parts can look different from the original.
$25.19 |
19% OFF Phone Price : $31.19
In Stock
