Model # 919176110 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919176110 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 71 parts |

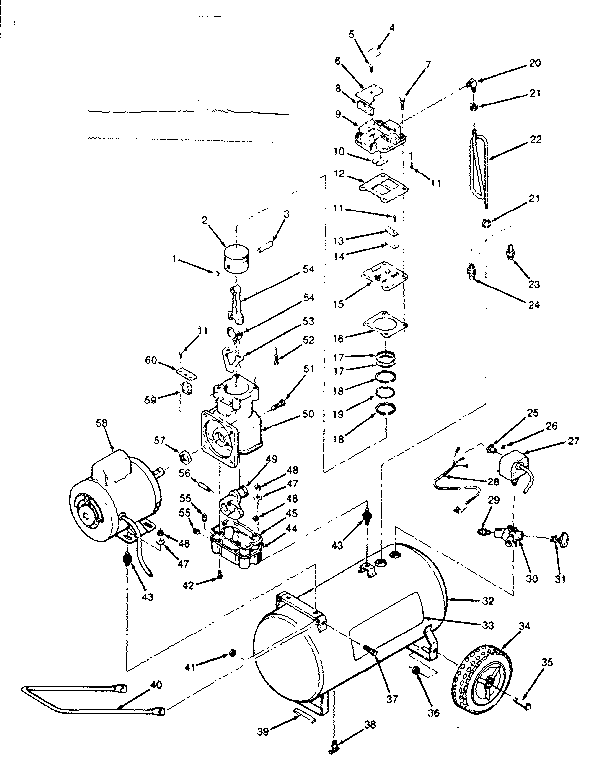

Replacement parts diagram

Porter cable air compressor cylinder head cover screw

Part #SSF-995

The manufacturer no longer makes this part, and there's no substitute part

#35

Replacement parts diagram

Air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

#20

Replacement parts diagram

Elbow

Part #SSP-6429

The manufacturer no longer makes this part, and there's no substitute part

#48

Replacement parts diagram

Hex nut

Part #SS-656-PO

The manufacturer no longer makes this part, and there's no substitute part

#11

Replacement parts diagram

Screw

Part #SSF-9821

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Piston pin

Part #265-19

The manufacturer no longer makes this part, and there's no substitute part

#52

Replacement parts diagram

Screw

Part #SSF-927

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Screw

Part #SSF-935

The manufacturer no longer makes this part, and there's no substitute part

#31

Replacement parts diagram

Pressur gaug

Part #C-GA-332

The manufacturer no longer makes this part, and there's no substitute part

#41

Replacement parts diagram

Hex nut

Part #SS-655-ZN

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your air compressors

Choose a symptom to see related air compressor repairs.

View all

Why does air leak from my air compressor?

Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…

Why won't my air compressor start with a full air tank?

Main cause: bad check valve…

Why won't my air compressor build tank pressure?

Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…

Why won't my air compressor tank hold air?

Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…

Why does my air compressor safety valve keep popping open?

Main causes: bad safety valve, pressure switch failure…

Why can't I adjust the output air pressure on my air compressor?

Main cause: faulty output air pressure regulator…

Why doesn't my air compressor's pressure gauge work?

Main cause: bad air tank pressure gauge…

Why is my air compressor not turning on?

Main causes: lack of electrical power, check valve failure, bad pressure switch…
