Heating & Cooling Combined Unit

Model # PGA180J2SA Official ICP commercial package combination gas/electric unit

Here are the diagrams and repair parts for Official ICP PGA180J2SA commercial package combination gas/electric unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

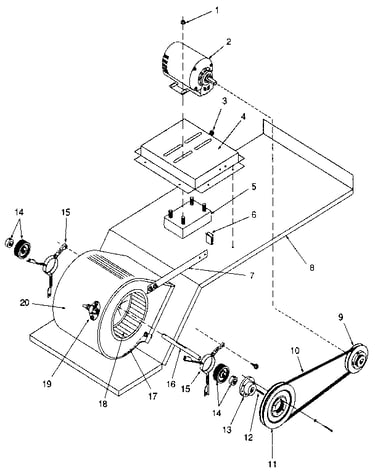

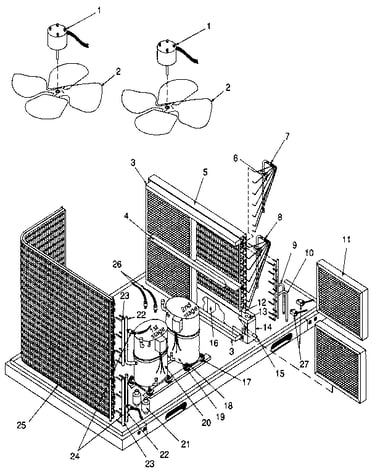

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

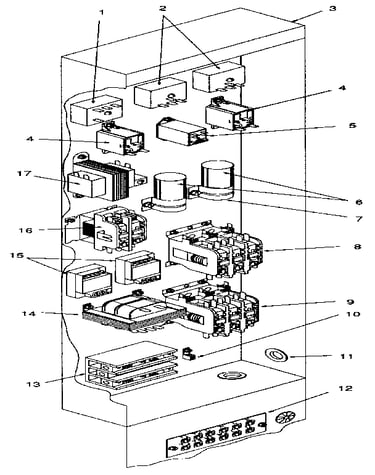

Contactor 1054735
#16

Functional replacement diagram

Contactor

Part #1054735

Replaced by #90-244

?
Manufacturer substitution
This part replaces 1054735. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Relay Spdt 1058148
#4

Functional replacement diagram

Relay spdt

Part #1058148

The manufacturer no longer makes this part, and there's no substitute part

Furnace Fan Control Relay 1000742
#5

Functional replacement diagram

Furnace fan control relay

Part #1000742

$35.62 |
14% OFF Phone Price : $41.62
In Stock
Instl Instr 1063640

#NI

All parts diagram

Instl instr

Part #1063640

$106.92
In Stock
Shield Heat 1070378
#15

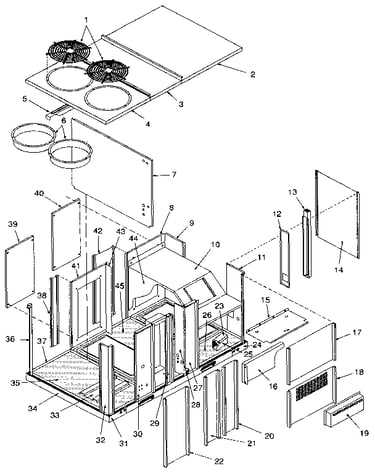

Nonfunctional replacement diagram

Shield heat

Part #1070378

$185.58
In Stock

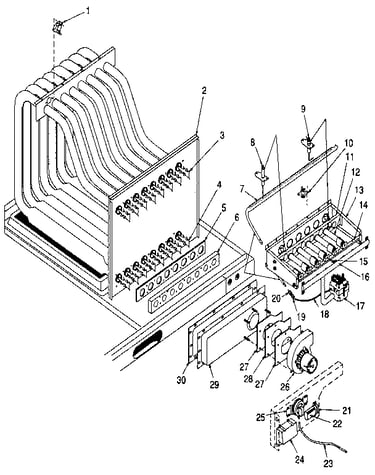

Switch Lmt - 1071246
#19

Functional replacement diagram

Switch lmt -

Part #1071246

$116.56
In Stock
Switch Lmt - 1071306
#1A

Functional replacement diagram

Switch lmt -

Part #1071306

$105.29
In Stock
Gasket Blowe 1070762
#27

Functional replacement diagram

Gasket blowe

Part #1070762

$26.20
In Stock
Heat Exchgr 1071598
#2

Functional replacement diagram

Heat exchgr

Part #1071598

$1694.22
In Stock
Timer Short 1071063
#1

Functional replacement diagram

Timer short

Part #1071063

$309.09
In Stock
