Model # CFEF257CS3 Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF257CS3 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

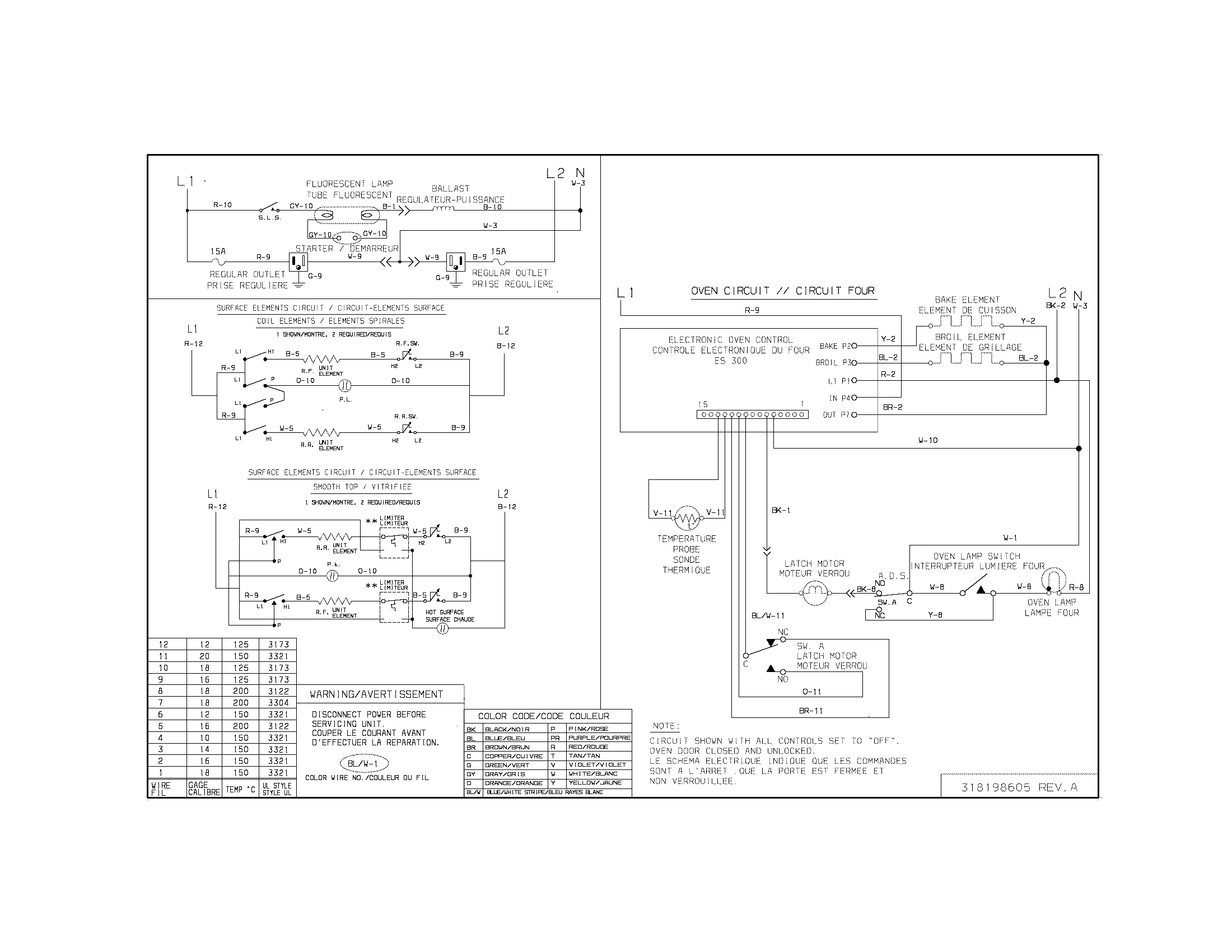

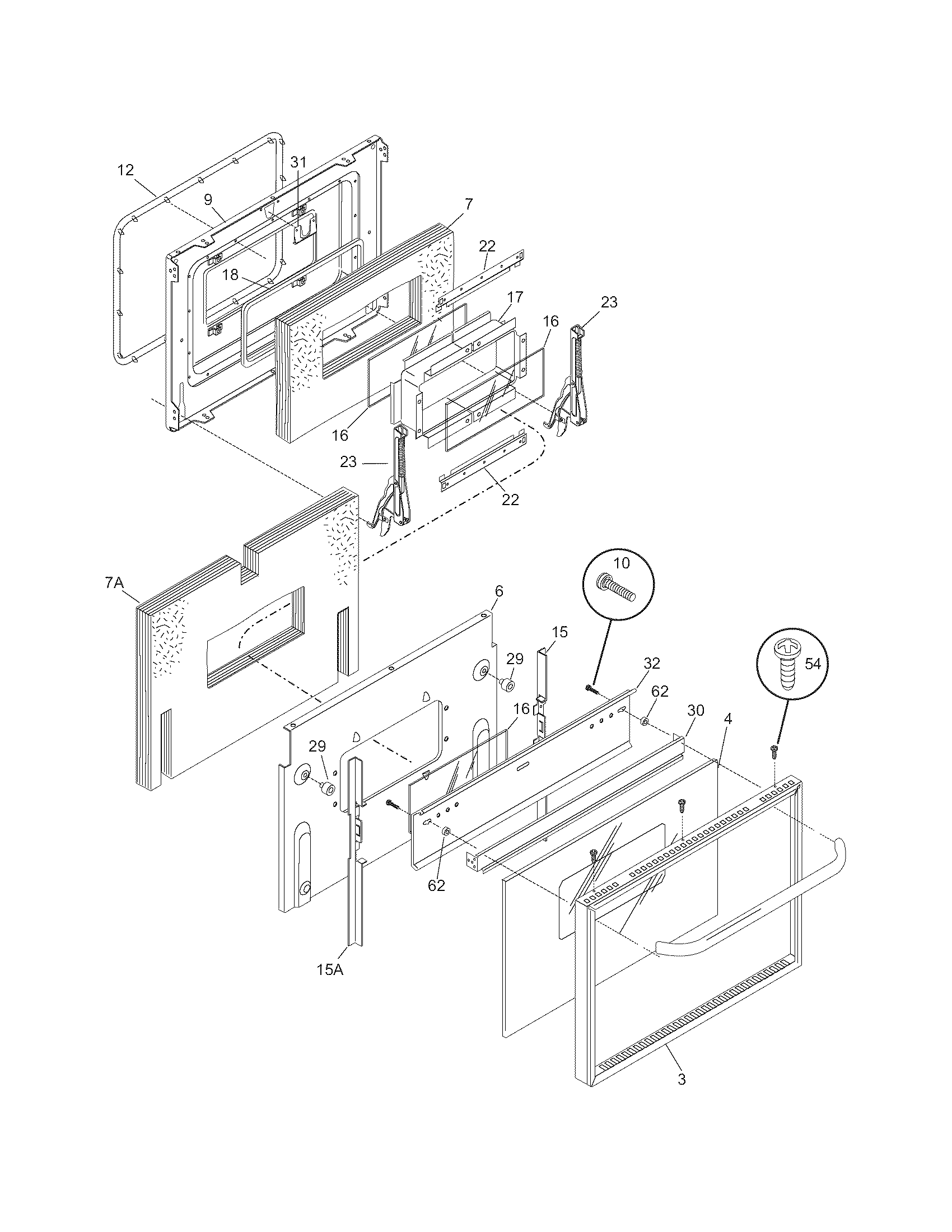

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Range Oven Light Bulb 5303013071
#15

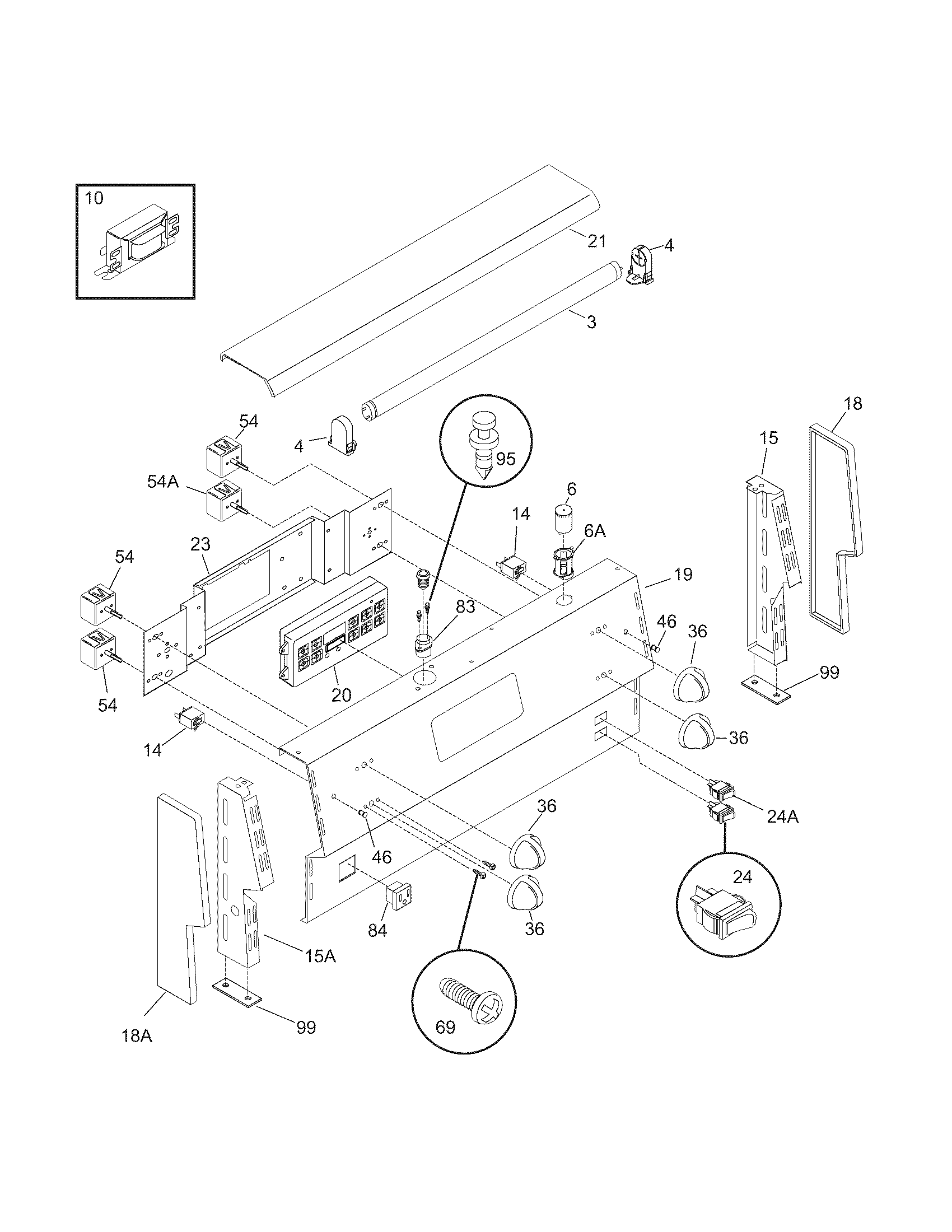

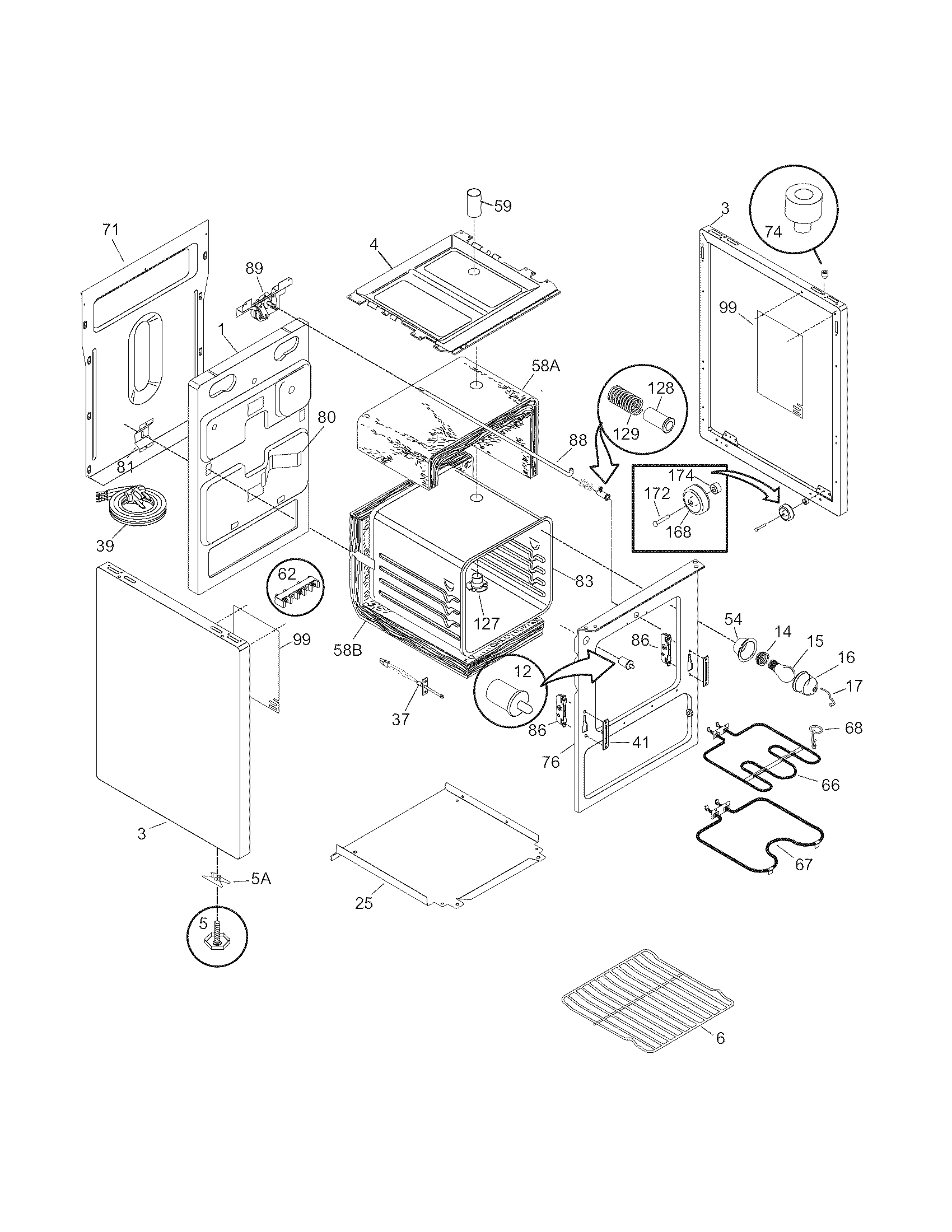

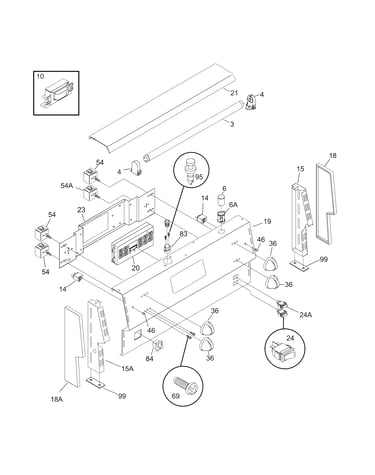

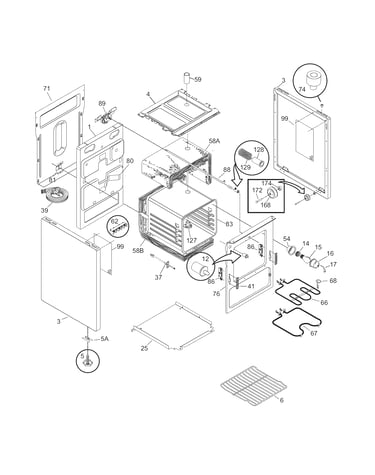

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Bracket 5303304731
#93

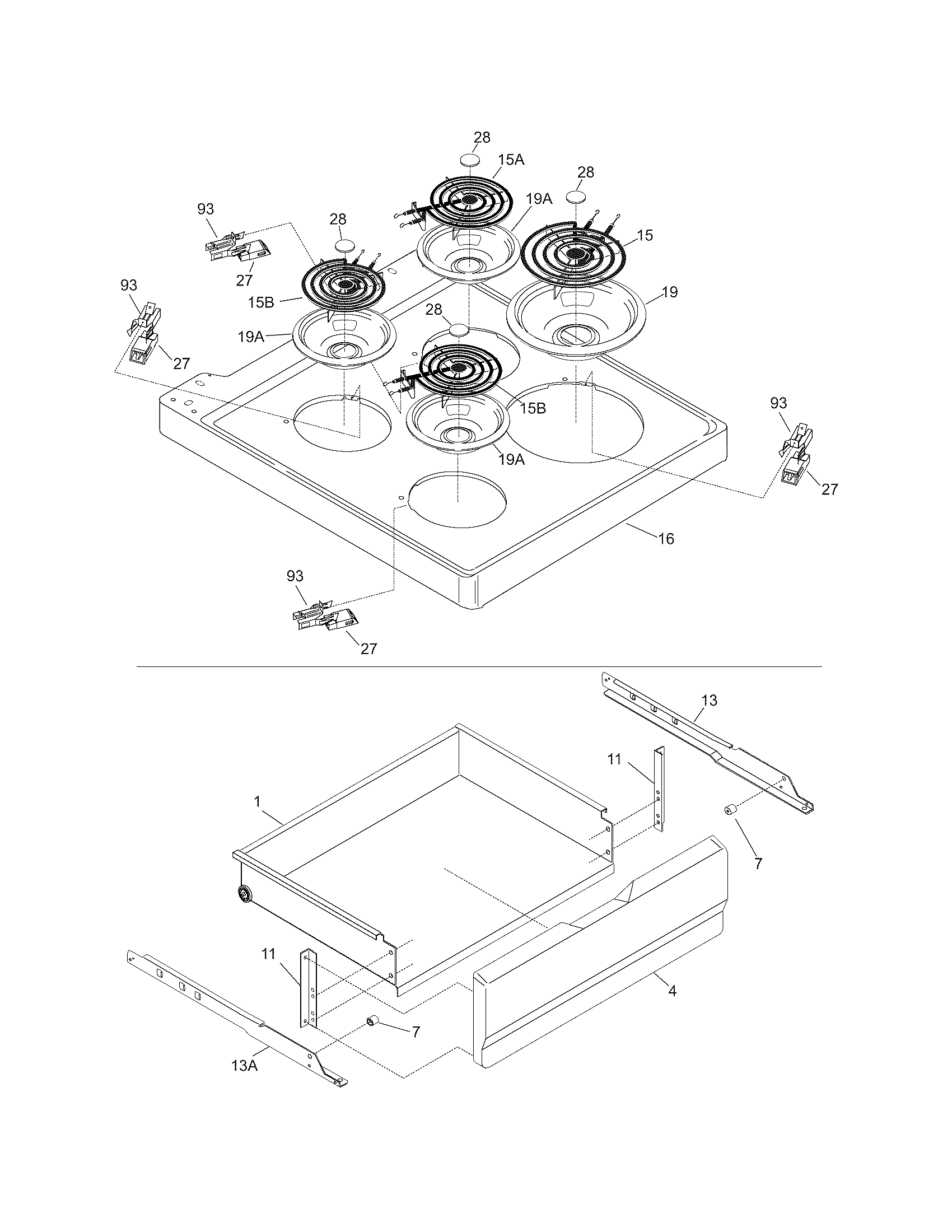

Top/drawer diagram

Bracket

Part #5303304731

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303304731. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Pan 318067040
#19A

Top/drawer diagram

Pan

Part #318067040

Replaced by #A316222201

?
Manufacturer substitution
This part replaces 318067040. Substitute parts can look different from the original.
BEST SELLER
$11.15 |
15% OFF Phone Price : $13.15
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Screw 5303323134
#69

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Oven Switch 318089913
#12

Body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
