Model # 867734941 Official Kenmore direct vent wall furnace for natural gas
Here are the diagrams and repair parts for Official Kenmore 867734941 direct vent wall furnace for natural gas, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

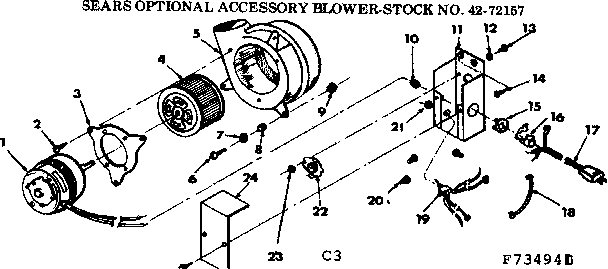

Browse Parts for867734941 Direct Vent Wall Furnace for Natural Gas
- #18B

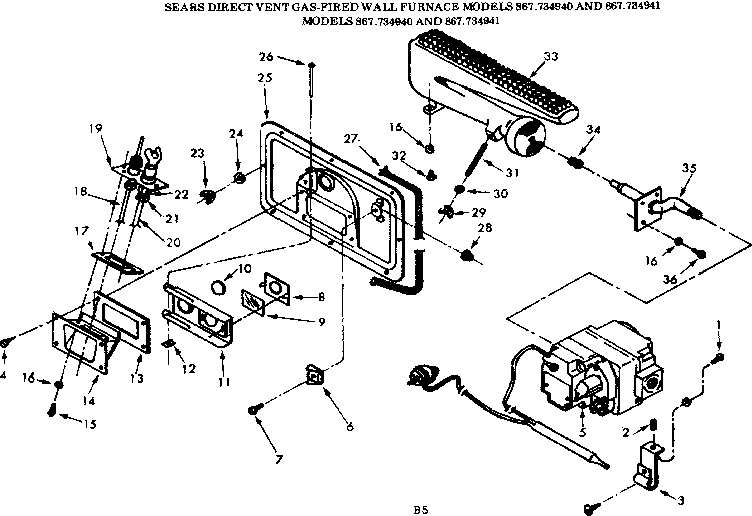

Gas burners and manifold diagram
ThermocouplePart #503344
Replaced by #H06E-36
?Manufacturer substitutionThis part replaces 503344. Substitute parts can look different from the original.$14.91 |12% OFF Phone Price : $16.91In Stock - #18A
Gas burners and manifold diagram
ThermocouplePart #503076
Replaced by #H06E-36
?Manufacturer substitutionThis part replaces 503076. Substitute parts can look different from the original.$14.91 |12% OFF Phone Price : $16.91In Stock - #20A
Gas burners and manifold diagram
Pilot tubingPart #506468
Replaced by #100108370
?Manufacturer substitutionThis part replaces 506468. Substitute parts can look different from the original.$64.56Back Order - #20B
Gas burners and manifold diagram
Pilot tubePart #85652
Replaced by #100108370
?Manufacturer substitutionThis part replaces 85652. Substitute parts can look different from the original.$64.56Back Order - #21
Gas burners and manifold diagram
Ferrule nutPart #29441
Replaced by #100108370
?Manufacturer substitutionThis part replaces 29441. Substitute parts can look different from the original.$64.56Back Order - #5B
Gas burners and manifold diagram
Gas valvePart #504936
The manufacturer no longer makes this part, and there's no substitute part
- #5A
Gas burners and manifold diagram
Gas valvePart #506463
The manufacturer no longer makes this part, and there's no substitute part
- #22B
Gas burners and manifold diagram
Natural orificePart #503211
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
GuaranteePart #F642-6276A
The manufacturer no longer makes this part, and there's no substitute part
- #8

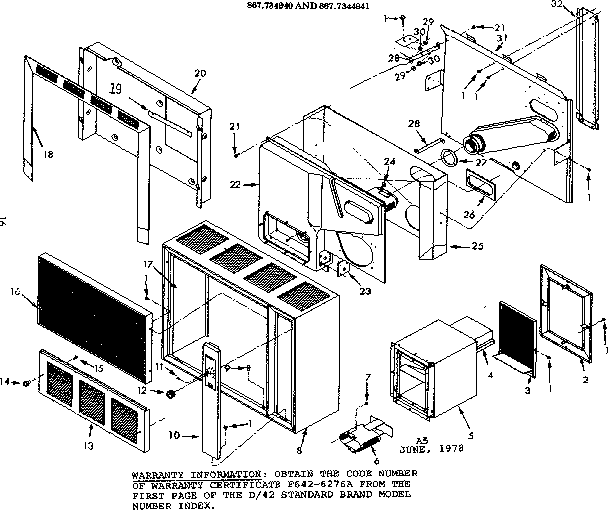

Cabinet diagram
CabinetPart #507165
The manufacturer no longer makes this part, and there's no substitute part
