Kenmore
Countertop Microwave

Model # 7218943580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218943580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

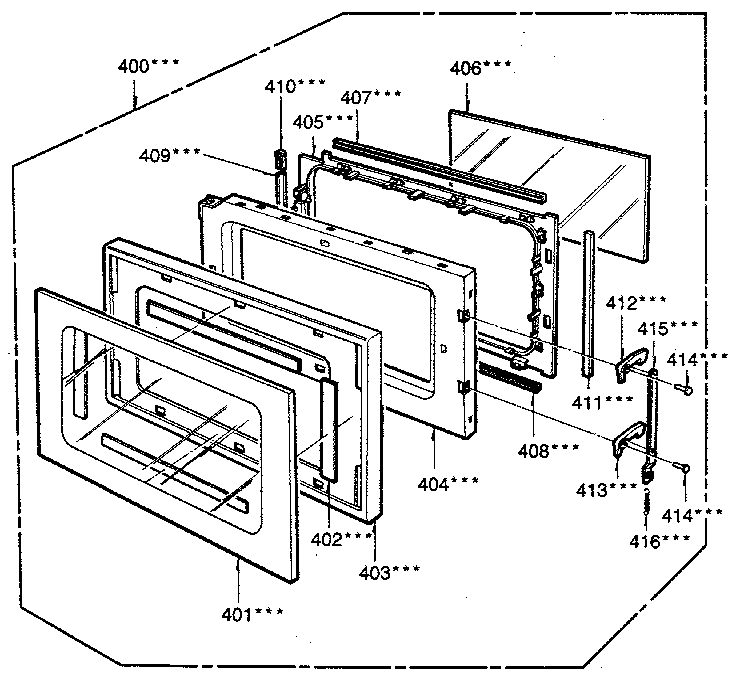

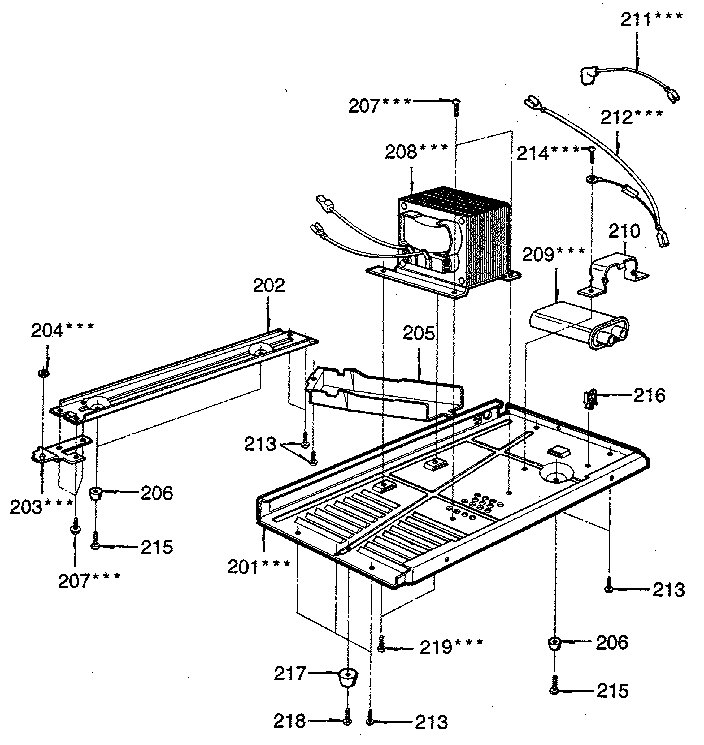

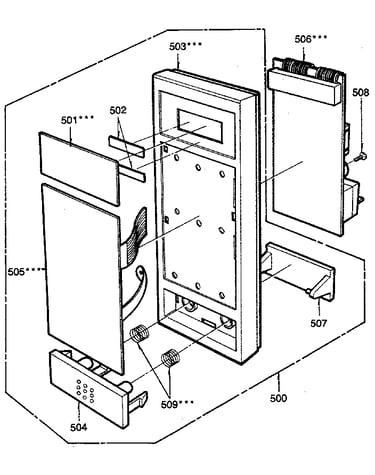

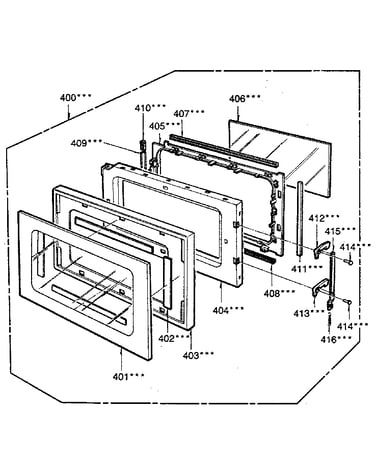

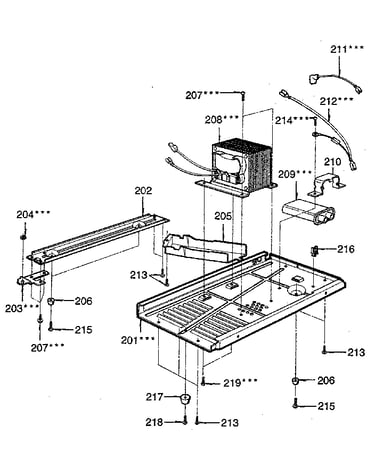

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Shaft 503315
#104

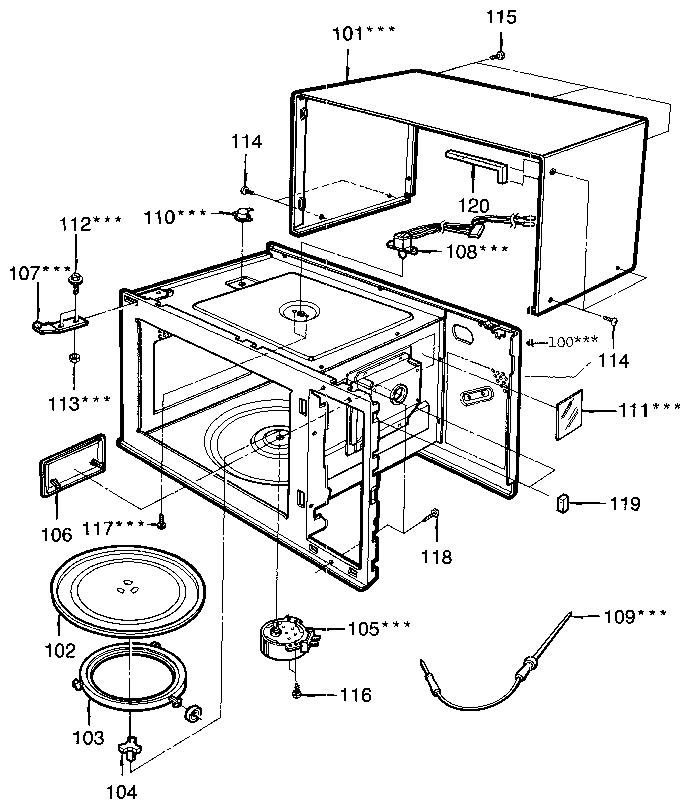

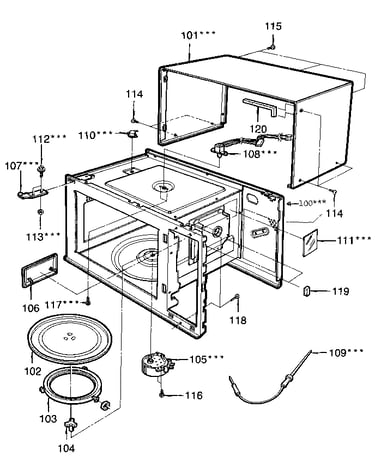

Cabinet diagram

Shaft

Part #503315

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 503315. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Screw 500218
Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 501388
#304

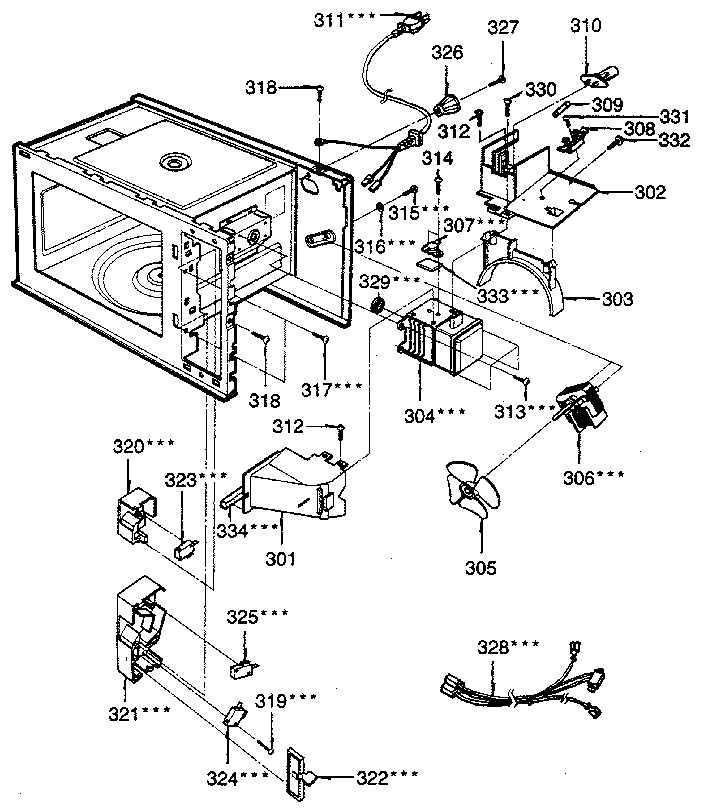

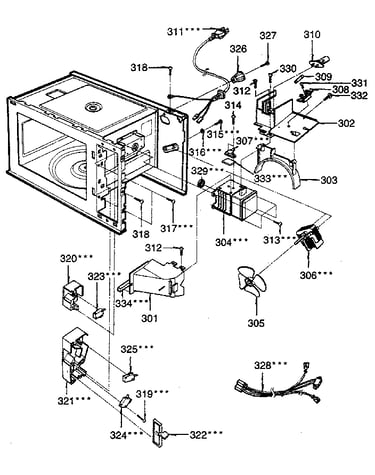

Switches and microwave diagram

Magnetron

Part #501388

The manufacturer no longer makes this part, and there's no substitute part

Screw 501098
Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Resistor 500586
#57

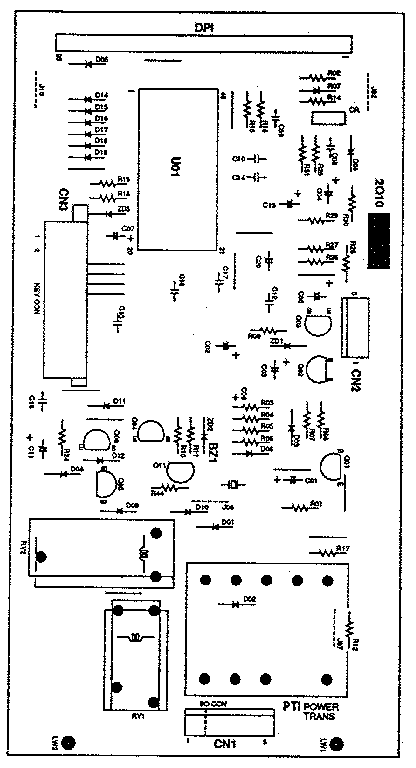

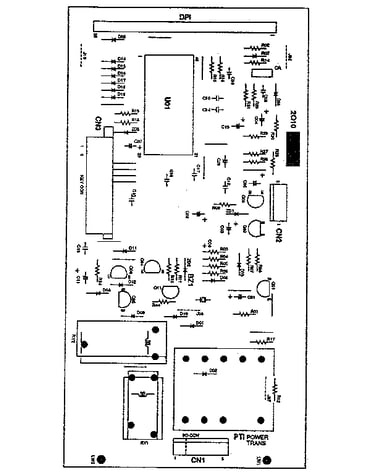

Power and control circuit board diagram

Resistor

Part #500586

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#309

Switches and microwave diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500588
#60

Power and control circuit board diagram

Resistor

Part #500588

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500023
#47

Power and control circuit board diagram

Resistor

Part #500023

Replaced by #2303342025

?
Manufacturer substitution
This part replaces 500023. Substitute parts can look different from the original.
This item is not returnable
$4.15
In Stock
Thermostat 502420
#307

Switches and microwave diagram

Thermostat

Part #502420

Replaced by #6930W1A003K

?
Manufacturer substitution
This part replaces 502420. Substitute parts can look different from the original.
$8.29
In Stock
Capacitor 500011
#1

Power and control circuit board diagram

Capacitor

Part #500011

The manufacturer no longer makes this part, and there's no substitute part
