Snapper
Front-Engine Lawn Tractor

Model # LT125G38DB Official Snapper tractor

Here are the diagrams and repair parts for Official Snapper LT125G38DB tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

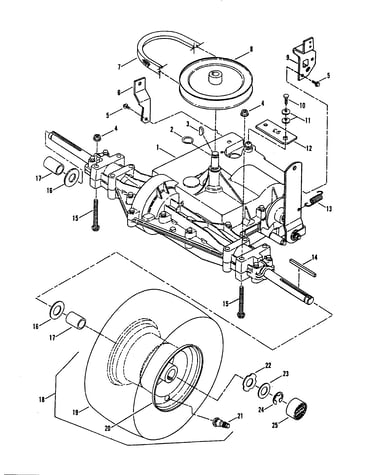

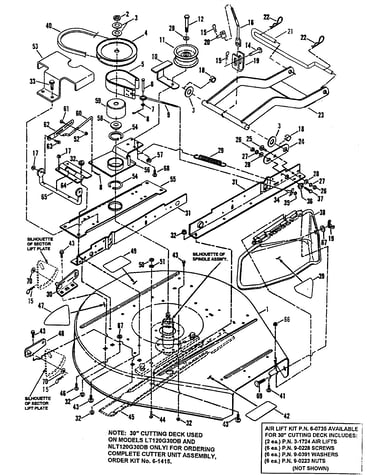

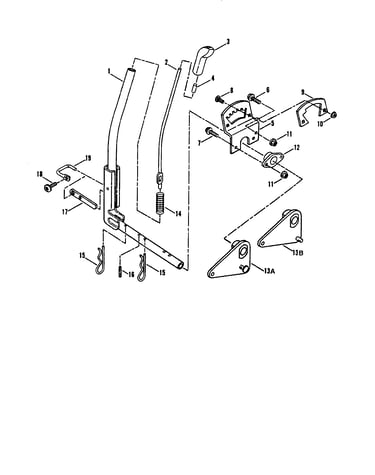

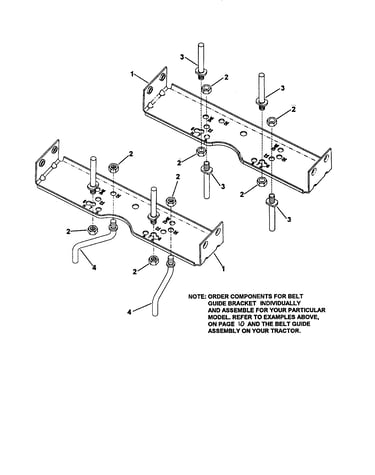

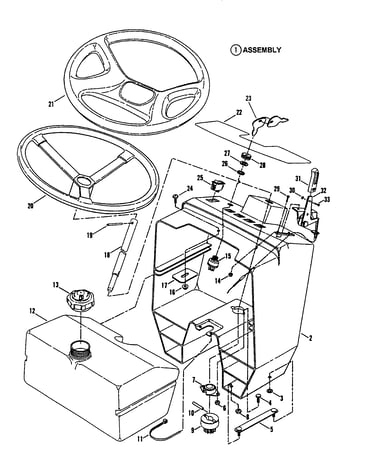

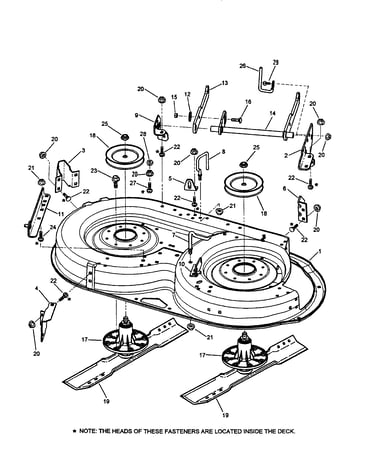

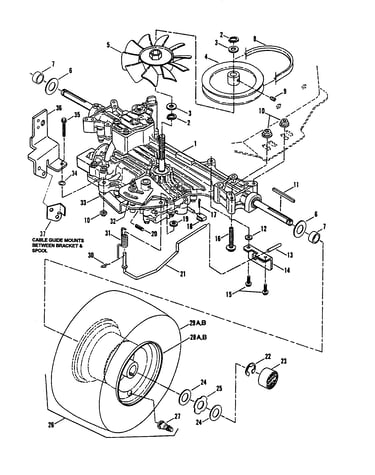

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 579 parts  |

Clamp 1-2222
#13

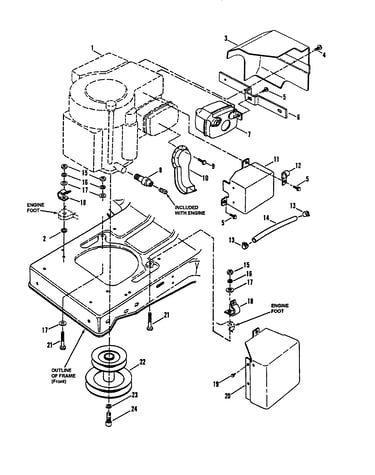

Engine components diagram

Clamp

Part #1-2222

Replaced by #791850

?
Manufacturer substitution
This part replaces 1-2222. Substitute parts can look different from the original.
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
Lube Fitting 1-3864
#9

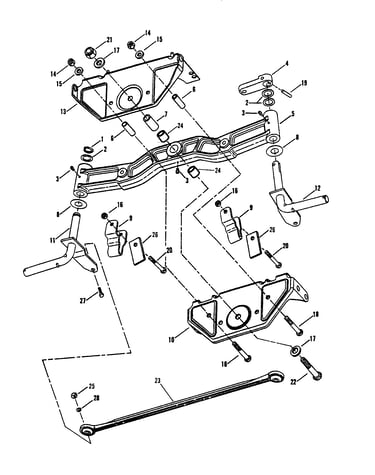

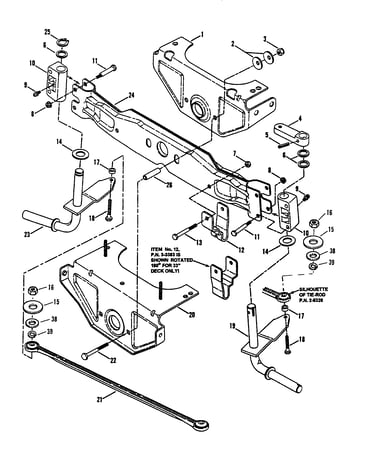

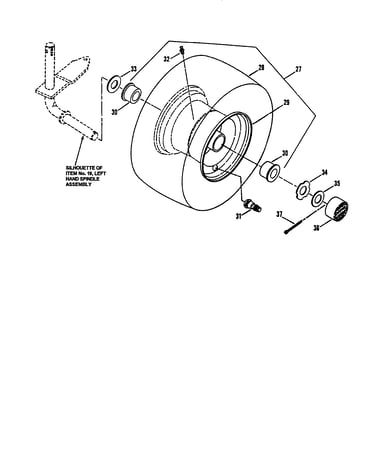

Front axle/front wheel diagram

Lube fitting

Part #1-3864

Replaced by #7013864SM

?
Manufacturer substitution
This part replaces 1-3864. Substitute parts can look different from the original.
This item is not returnable
In Stock
Fw, .28x.63x 90055
#39

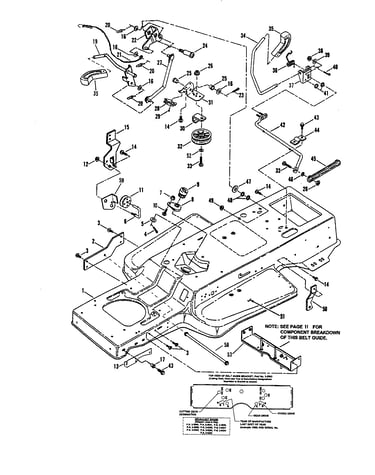

Blade engagement/transmission controls diagram

Fw, .28x.63x

Part #90055

Replaced by #703332

?
Manufacturer substitution
This part replaces 90055. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Detent, Shift (gear Drive Models) 3-4420
#18

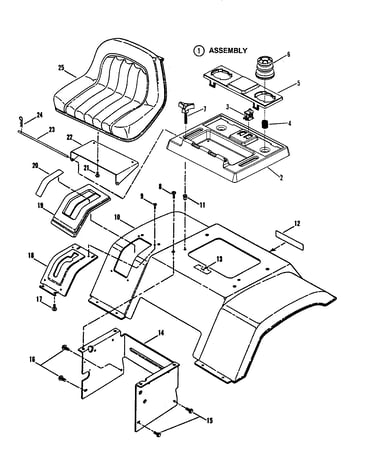

Seat/rear fender diagram

Detent, shift (gear drive models)

Part #3-4420

The manufacturer no longer makes this part, and there's no substitute part

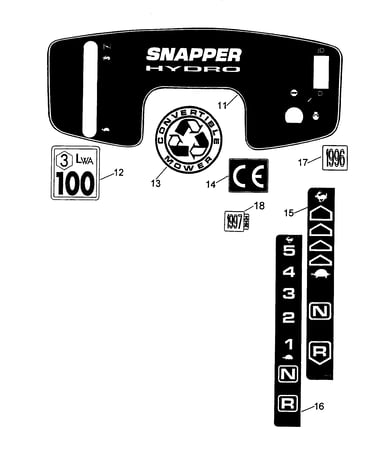

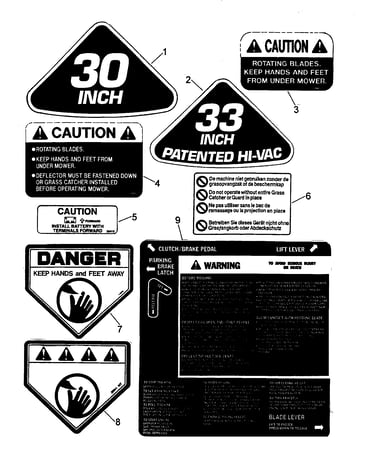

Decal, Hood (right Hand) (model Elt125g33db) (gear Drive) 2-7826
#10J

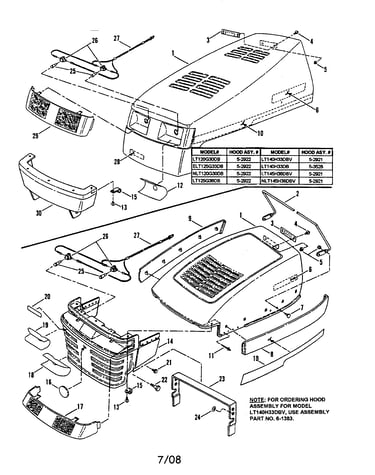

Hood/bumper/headlights diagram

Decal, hood (right hand) (model elt125g33db) (gear drive)

Part #2-7826

The manufacturer no longer makes this part, and there's no substitute part

Cover, Battery Cable 1-2444
#12

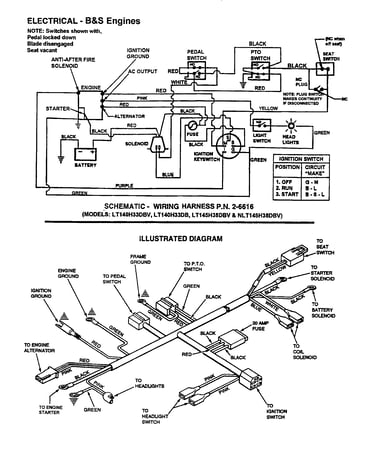

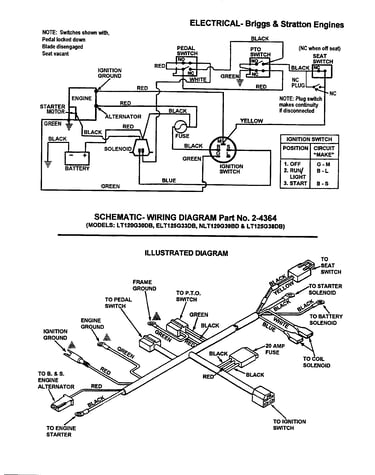

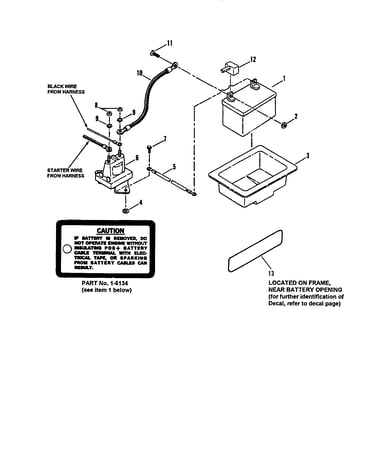

Electrical components diagram

Cover, battery cable

Part #1-2444

The manufacturer no longer makes this part, and there's no substitute part

Assembly Chute 28 And 33" Discharge 5-2555
#36A

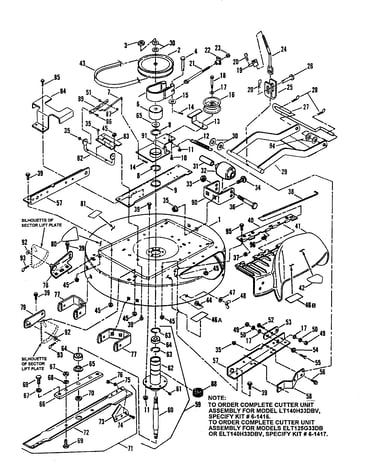

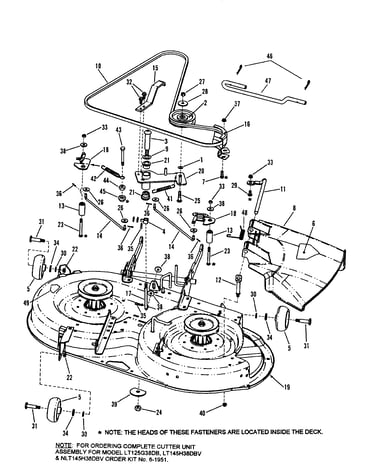

33" cutting deck/belts/brakes diagram

Assembly chute 28 and 33" discharge

Part #5-2555

The manufacturer no longer makes this part, and there's no substitute part

Bolt, 1/4-20 Eye 2-6677
#21

33" cutting deck/belts/brakes diagram

Bolt, 1/4-20 eye

Part #2-6677

The manufacturer no longer makes this part, and there's no substitute part

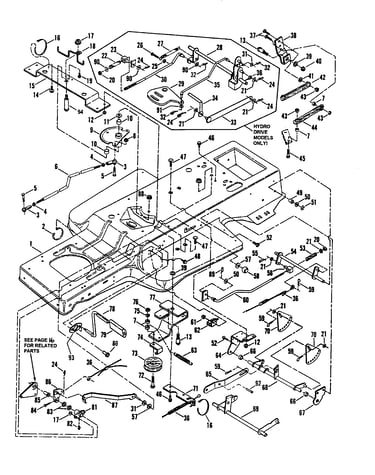

Bracket, Link, Clutch/brake 3-3586
Bracket, link, clutch/brake

Part #3-3586

The manufacturer no longer makes this part, and there's no substitute part

Solenoid (was 1-8604) 7-5622
#6

Electrical components diagram

Solenoid (was 1-8604)

Part #7-5622

The manufacturer no longer makes this part, and there's no substitute part
