Model # 11312640 Official Craftsman 1-hp ac motor

Here are the diagrams and repair parts for Official Craftsman 11312640 1-hp ac motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

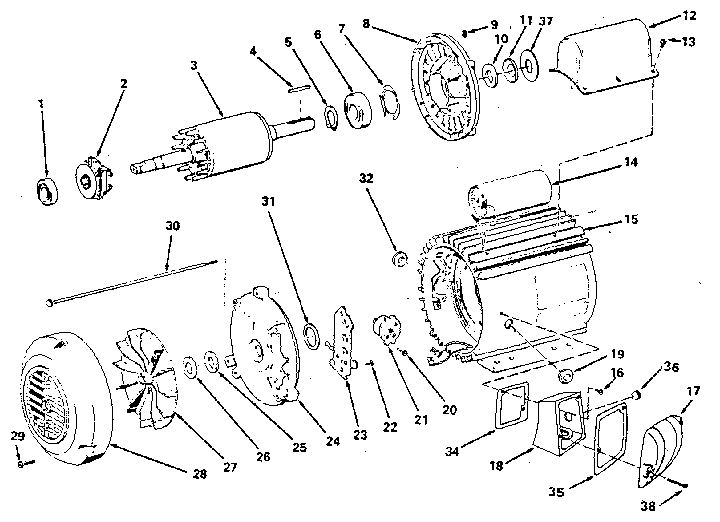

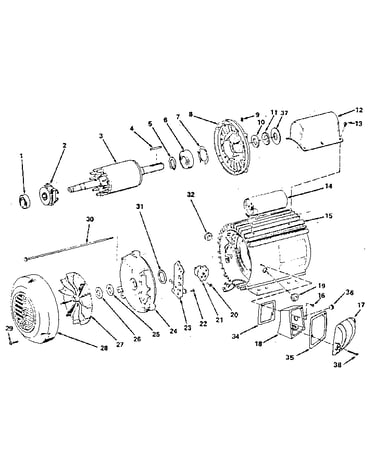

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Washer 37160
#31

Unit diagram

Washer

Part #37160

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 436529
#13

Unit diagram

Machine screw

Part #436529

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 64415
#33

Unit diagram

Owner's manual

Part #64415

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 64098
#7

Unit diagram

Spring washer

Part #64098

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 64268
#26

Unit diagram

Bearing cap

Part #64268

The manufacturer no longer makes this part, and there's no substitute part

Screw 448005
#20

Unit diagram

Screw

Part #448005

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 64419
#17

Unit diagram

Box cover

Part #64419

The manufacturer no longer makes this part, and there's no substitute part

Ed Shld Assy 37545
#24

Unit diagram

Ed shld assy

Part #37545

The manufacturer no longer makes this part, and there's no substitute part

Prtctr Bushg 37554
#32

Unit diagram

Prtctr bushg

Part #37554

The manufacturer no longer makes this part, and there's no substitute part

Rotor Asm. 65543
#3

Unit diagram

Rotor asm.

Part #65543

The manufacturer no longer makes this part, and there's no substitute part
