Model # A2B718DXASEA Official GE air conditioner

Here are the diagrams and repair parts for Official GE A2B718DXASEA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Screw WZ5X153
#983

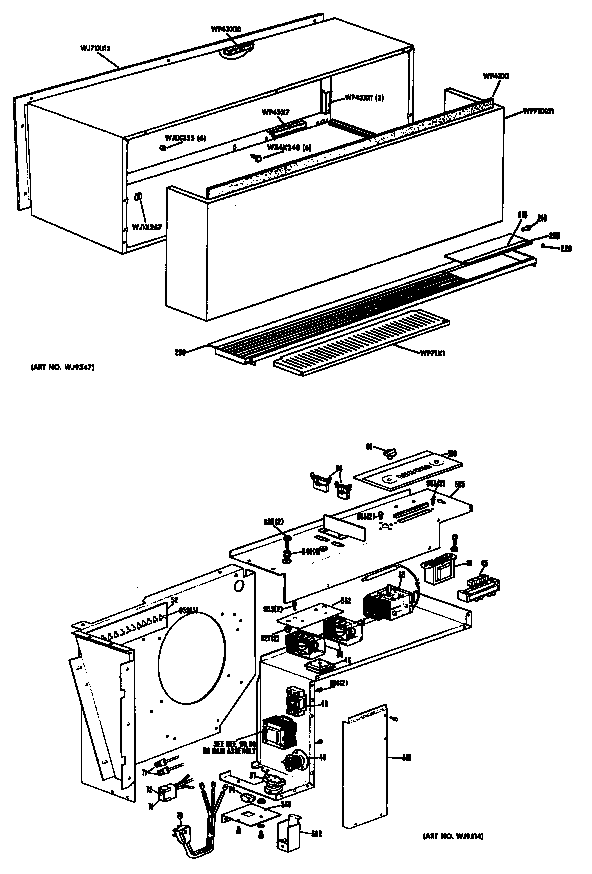

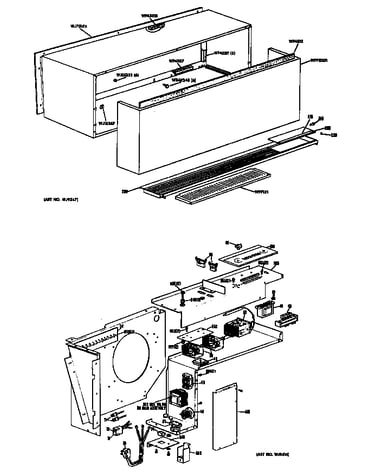

Cabinet diagram

Screw

Part #WZ5X153

This item is not returnable
$2.49
In Stock
Screw WZ4X288
#959

Cabinet diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Clip WJ3X87

#NI

All parts diagram

Clip

Part #WJ3X87

This item is not returnable
$2.16
In Stock
Spring Gr WJ2X258
#400B

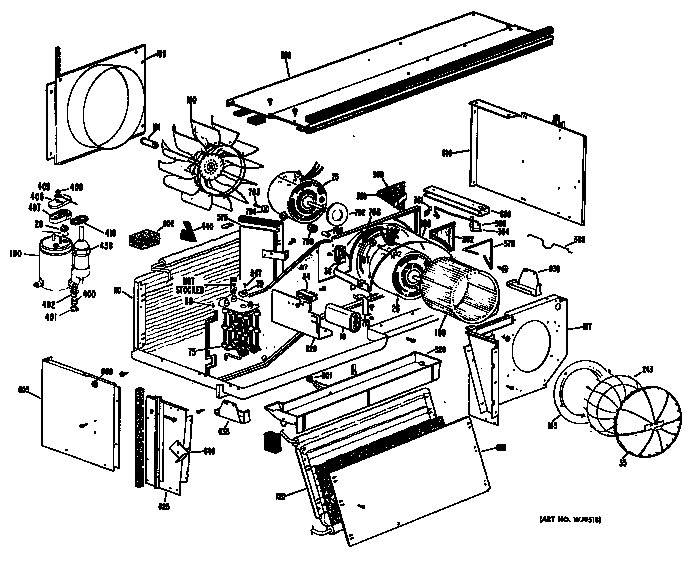

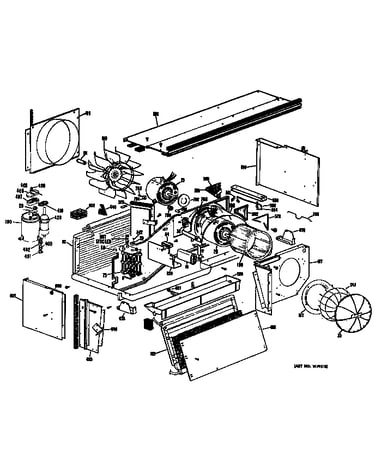

Chassis assembly diagram

Spring gr

Part #WJ2X258

$17.49
In Stock
Condenser WJ88X159
#110

Chassis assembly diagram

Condenser

Part #WJ88X159

$351.49
In Stock
Plate WP79X18
#560

Cabinet diagram

Plate

Part #WP79X18

The manufacturer no longer makes this part, and there's no substitute part

Covep Control WP79X04
#561

Cabinet diagram

Covep control

Part #WP79X04

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block WJ3X171
#54

Chassis assembly diagram

Terminal block

Part #WJ3X171

The manufacturer no longer makes this part, and there's no substitute part

Plate Relay Mounting WP79X09
#552

Cabinet diagram

Plate relay mounting

Part #WP79X09

The manufacturer no longer makes this part, and there's no substitute part
