Model # 5008 Official Porter Cable dovetail template

Here are the diagrams and repair parts for Official Porter Cable 5008 dovetail template, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Baffle Screw 802350
#3

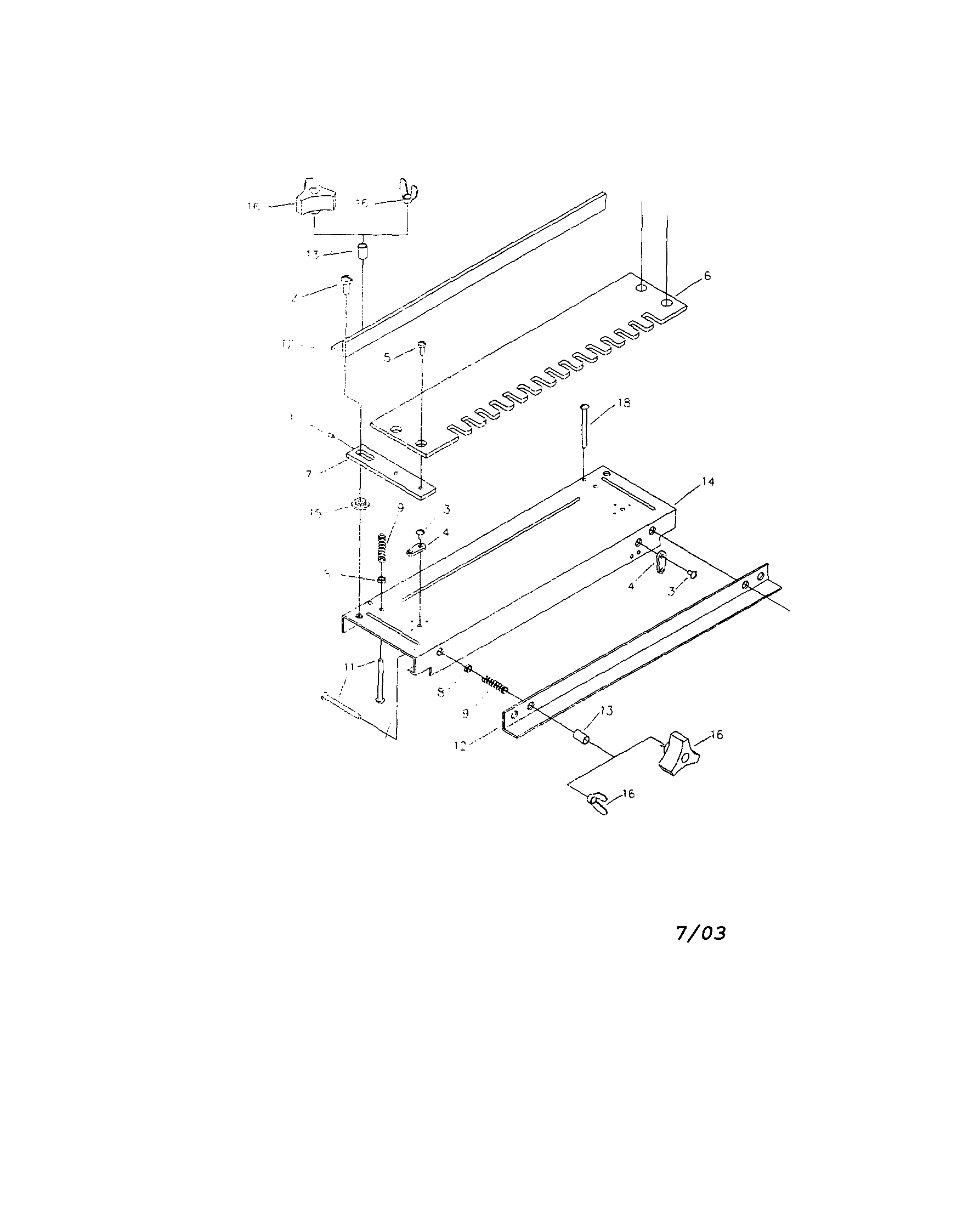

Dovetail templet diagram

Baffle screw

Part #802350

The manufacturer no longer makes this part, and there's no substitute part

Wrench 802102

#NI01

All parts diagram

Wrench

Part #802102

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 42237
Lock nut

Part #42237

The manufacturer no longer makes this part, and there's no substitute part

Temp Guide 42054

#NI08

All parts diagram

Temp guide

Part #42054

The manufacturer no longer makes this part, and there's no substitute part

Clamp Bar (use Ref 13 If Replacing Old "t" Type Clamp Bar With New "l" Type Clamp Bar 858127
#12

Dovetail templet diagram

Clamp bar (use ref 13 if replacing old "t" type clamp bar with new "l" type clamp bar

Part #858127

The manufacturer no longer makes this part, and there's no substitute part

Knob (late) 879727
#16

Dovetail templet diagram

Knob (late)

Part #879727

The manufacturer no longer makes this part, and there's no substitute part

Finger Templet, 1/2" 48016
Finger templet, 1/2"

Part #48016

The manufacturer no longer makes this part, and there's no substitute part

For 1/2" Rabbeted Dovetails Use: Finger Templet, 1/2" Rabeted 48029

#NI10

All parts diagram

For 1/2" rabbeted dovetails use: finger templet, 1/2" rabeted

Part #48029

The manufacturer no longer makes this part, and there's no substitute part

For 1/4" Dovetails Use: Finger Templet, 1/4" 48021

#NI06

All parts diagram

For 1/4" dovetails use: finger templet, 1/4"

Part #48021

The manufacturer no longer makes this part, and there's no substitute part

For 1/2" Dovetails Use: Templet Guide 42027
For 1/2" dovetails use: templet guide

Part #42027

The manufacturer no longer makes this part, and there's no substitute part
