Model # 167454700 Official Sears 6" ledge round swimming pool

Here are the diagrams and repair parts for Official Sears 167454700 6" ledge round swimming pool, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
167454700 6" Ledge Round Swimming Pool
Screw 0543859
#18

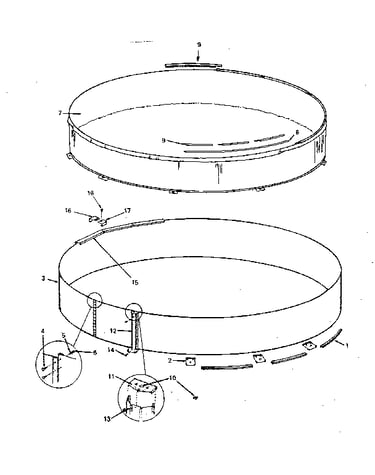

Replacement parts diagram

Screw

Part #0543859

The manufacturer no longer makes this part, and there's no substitute part

Nut 0513817
#10

Replacement parts diagram

Nut

Part #0513817

The manufacturer no longer makes this part, and there's no substitute part

Upright 7103501
#12

Replacement parts diagram

Upright

Part #7103501

The manufacturer no longer makes this part, and there's no substitute part

Screw 0543835
#14

Replacement parts diagram

Screw

Part #0543835

The manufacturer no longer makes this part, and there's no substitute part

Liner 24x4 7121600S
#7B

Replacement parts diagram

Liner 24x4

Part #7121600S

The manufacturer no longer makes this part, and there's no substitute part

Stabilizer 7052639G
#9A

Replacement parts diagram

Stabilizer

Part #7052639G

The manufacturer no longer makes this part, and there's no substitute part

Seat 7021921
#15

Replacement parts diagram

Seat

Part #7021921

The manufacturer no longer makes this part, and there's no substitute part

Liner 7121620S
#7A

Replacement parts diagram

Liner

Part #7121620S

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 7999244

#NI

All parts diagram

Owner's manual

Part #7999244

The manufacturer no longer makes this part, and there's no substitute part

"l" Bracket N/P
"l" bracket

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
