Model # 47856 Official Sears joyrider tri-wheel bicycle

Here are the diagrams and repair parts for Official Sears 47856 joyrider tri-wheel bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Wheel 18205
#27

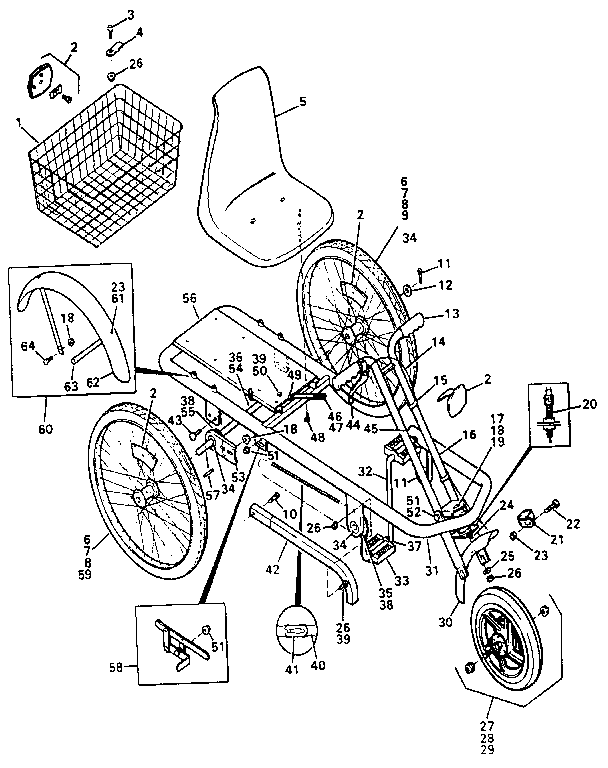

Joyrider diagram

Wheel

Part #18205

The manufacturer no longer makes this part, and there's no substitute part

Hand Brake Kit, Candy Apple Red 18262
#58

Joyrider diagram

Hand brake kit, candy apple red

Part #18262

The manufacturer no longer makes this part, and there's no substitute part

Grip, 7/8", Black 11801
#13

Joyrider diagram

Grip, 7/8", black

Part #11801

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 12244
#57

Joyrider diagram

Roll pin

Part #12244

The manufacturer no longer makes this part, and there's no substitute part

Bearing 11642
#34

Joyrider diagram

Bearing

Part #11642

The manufacturer no longer makes this part, and there's no substitute part

Seat, Joyrider Wd 140 18206
#5

Joyrider diagram

Seat, joyrider wd 140

Part #18206

The manufacturer no longer makes this part, and there's no substitute part

Fender 13994
#30

Joyrider diagram

Fender

Part #13994

The manufacturer no longer makes this part, and there's no substitute part

Grip Handle, 3/8 X 2.25 17160
#47

Joyrider diagram

Grip handle, 3/8 x 2.25

Part #17160

The manufacturer no longer makes this part, and there's no substitute part

Brace Fender, Candy Apple Red 18306
#63

Joyrider diagram

Brace fender, candy apple red

Part #18306

The manufacturer no longer makes this part, and there's no substitute part

Tire, 24" X 1.75" Bsw 11961
#6

Joyrider diagram

Tire, 24" x 1.75" bsw

Part #11961

The manufacturer no longer makes this part, and there's no substitute part
