Maytag
Electric Range

Model # PER5510ACW Official Maytag electric range

Here are the diagrams and repair parts for Official Maytag PER5510ACW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

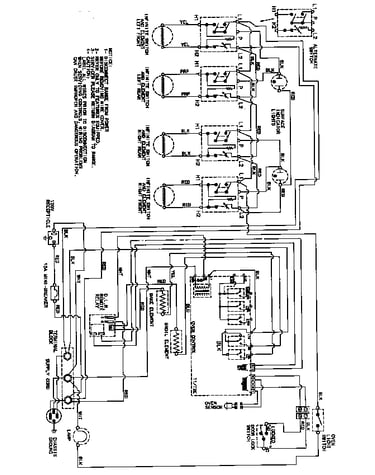

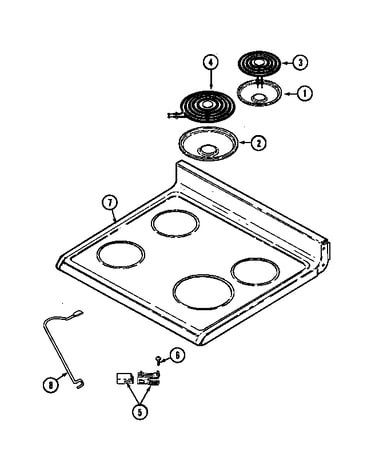

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Oven Bulb 7407P103-60
#16

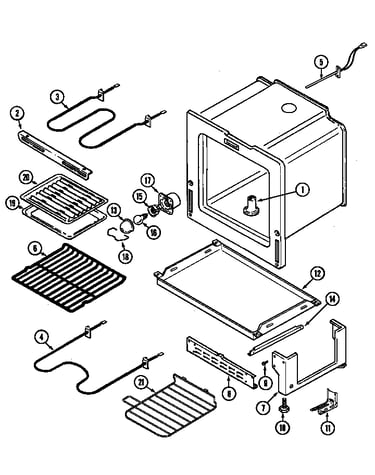

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Sensor 74004943
#5

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Range Surface Element Control Switch 7403P238-60
#4

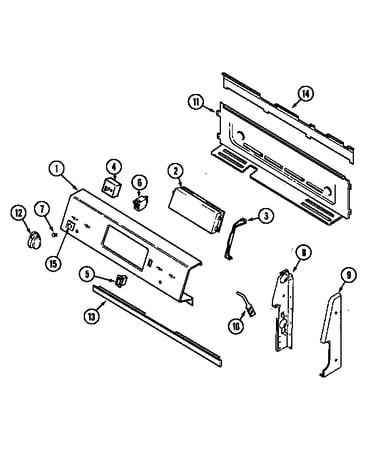

Control panel diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Surface Element Control Switch 7403P239-60
#4A

Control panel diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Bake Element 74003039
#4

Oven/base diagram

Bake element

Part #74003039

Replaced by #WP74010750

?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
BEST SELLER
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Screw 74002483
#4

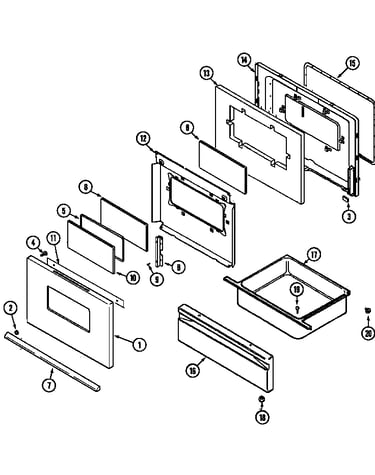

Door/drawer diagram

Screw

Part #74002483

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 74002483. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Gasket 7201P046-60
#15

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Oven Broiler Element 74003041
#3

Oven/base diagram

Oven broiler element

Part #74003041

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces 74003041. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Oven Screw 74003004
#16A

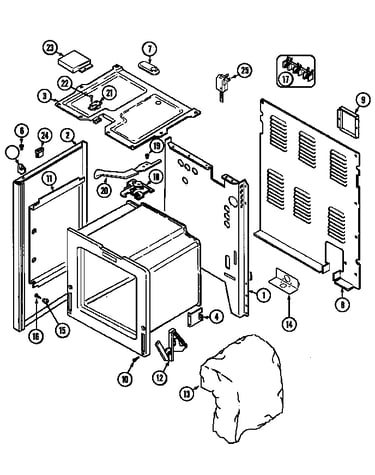

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Bracket, Ant 74002311
#11

Oven/base diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
