Gas Walk-Behind Mower

Model # 917371720 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371720 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Lock Nut 83923
#9

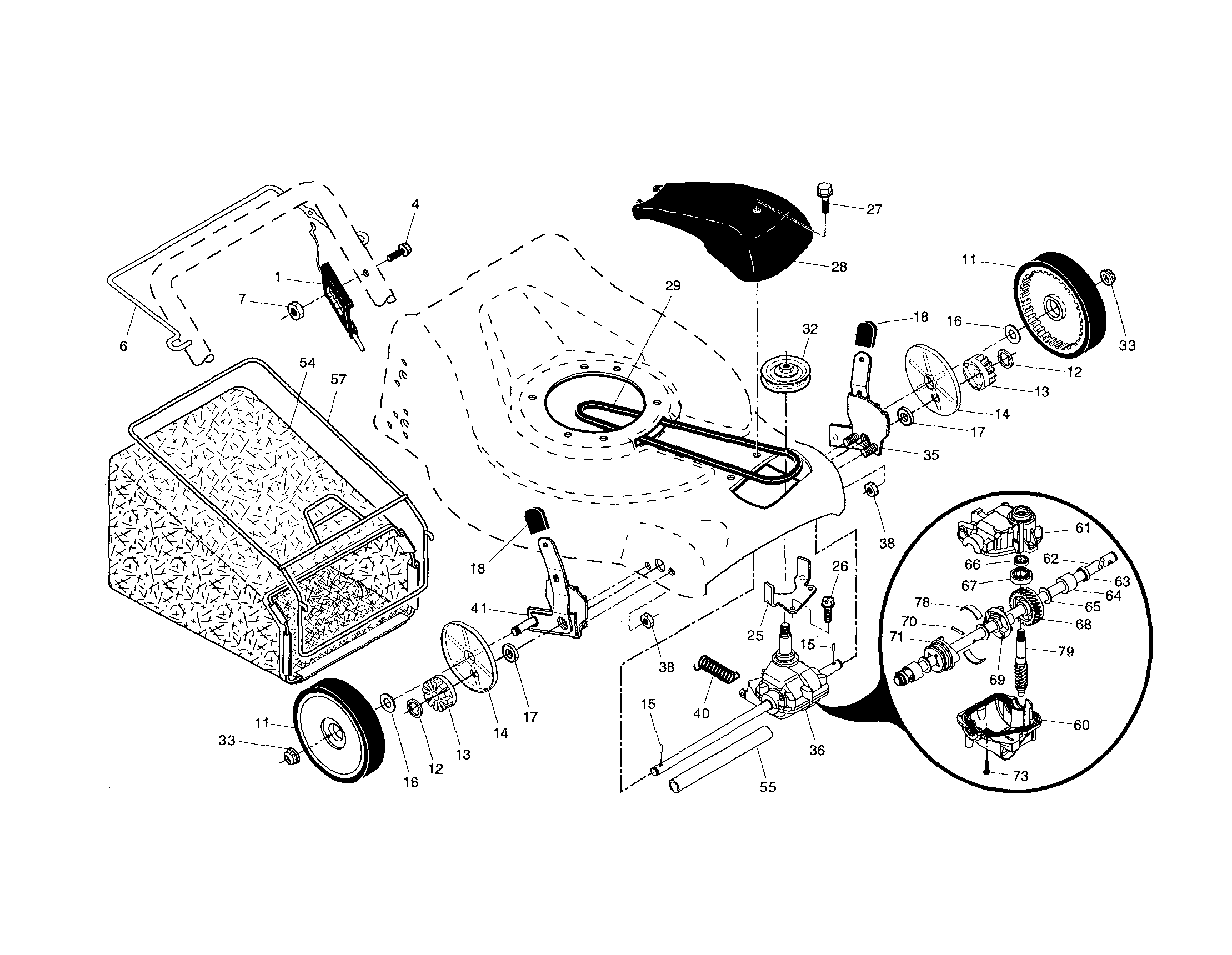

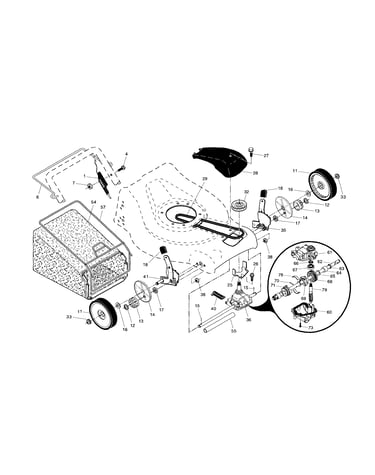

Drive control/gear case/wheels diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#26

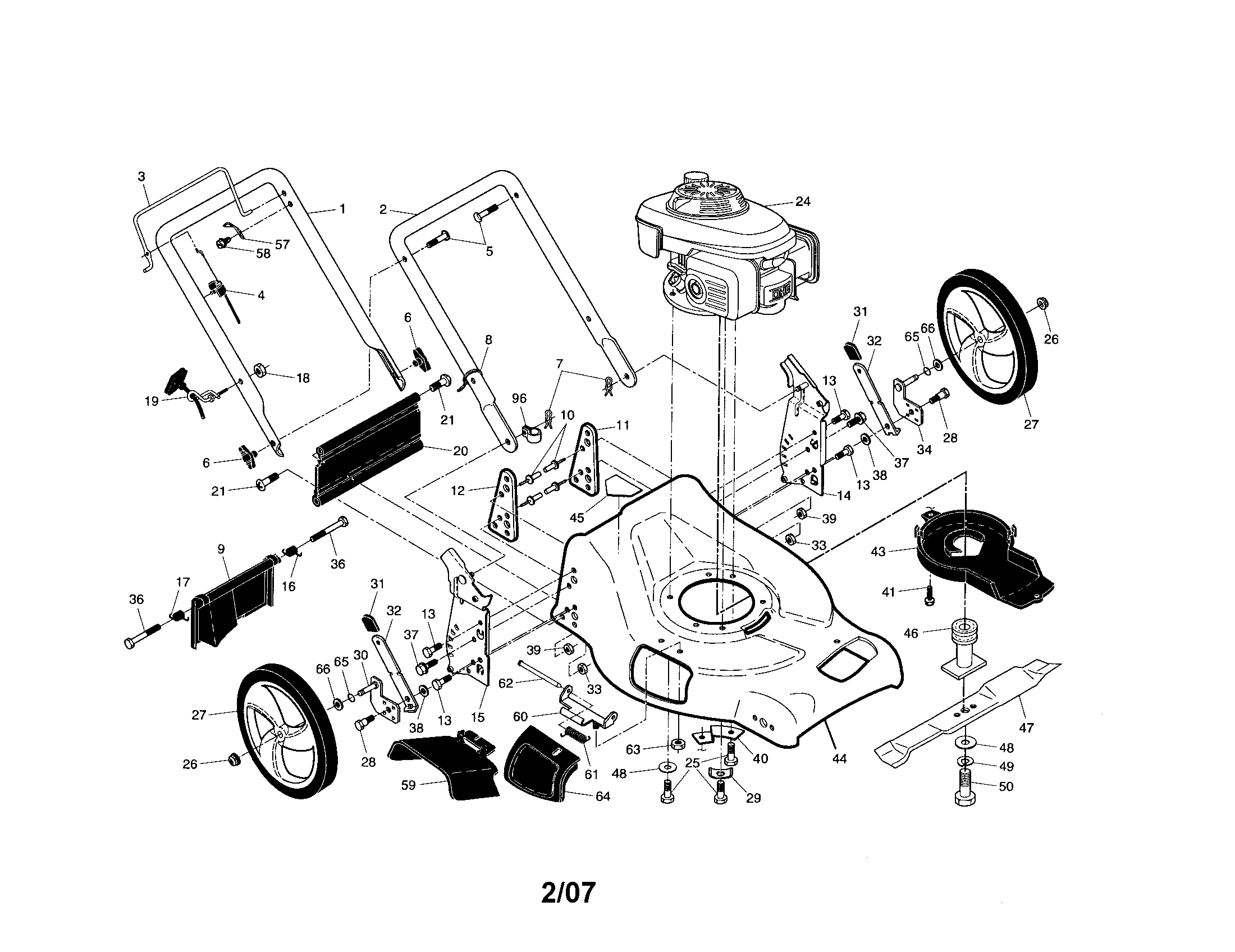

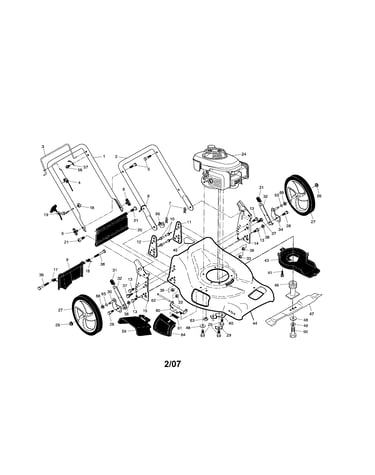

Engine/housing/handle diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#11

Drive control/gear case/wheels diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$33.31 |
15% OFF Phone Price : $39.31
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower 21-in Deck Mulching Blade 406706
#47

Engine/housing/handle diagram

Lawn mower 21-in deck mulching blade

Part #406706

Replaced by #532406706

?
Manufacturer substitution
This part replaces 406706. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.64 |
18% OFF Phone Price : $32.64
In Stock
Handle Bolt 191574
#5

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Drive Control Cable 407816
#1

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #407816

Replaced by #532407816

?
Manufacturer substitution
This part replaces 407816. Substitute parts can look different from the original.
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Grass Bag 410353
#54

Drive control/gear case/wheels diagram

Grass bag

Part #410353

Replaced by #410667

?
Manufacturer substitution
This part replaces 410353. Substitute parts can look different from the original.
BEST SELLER
$50.91 |
11% OFF Phone Price : $56.91
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Drive Pawl 191017
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #191017

Replaced by #532404845

?
Manufacturer substitution
This part replaces 191017. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
