Bosch
Washer

Model # WAS20160UC/01 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAS20160UC-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

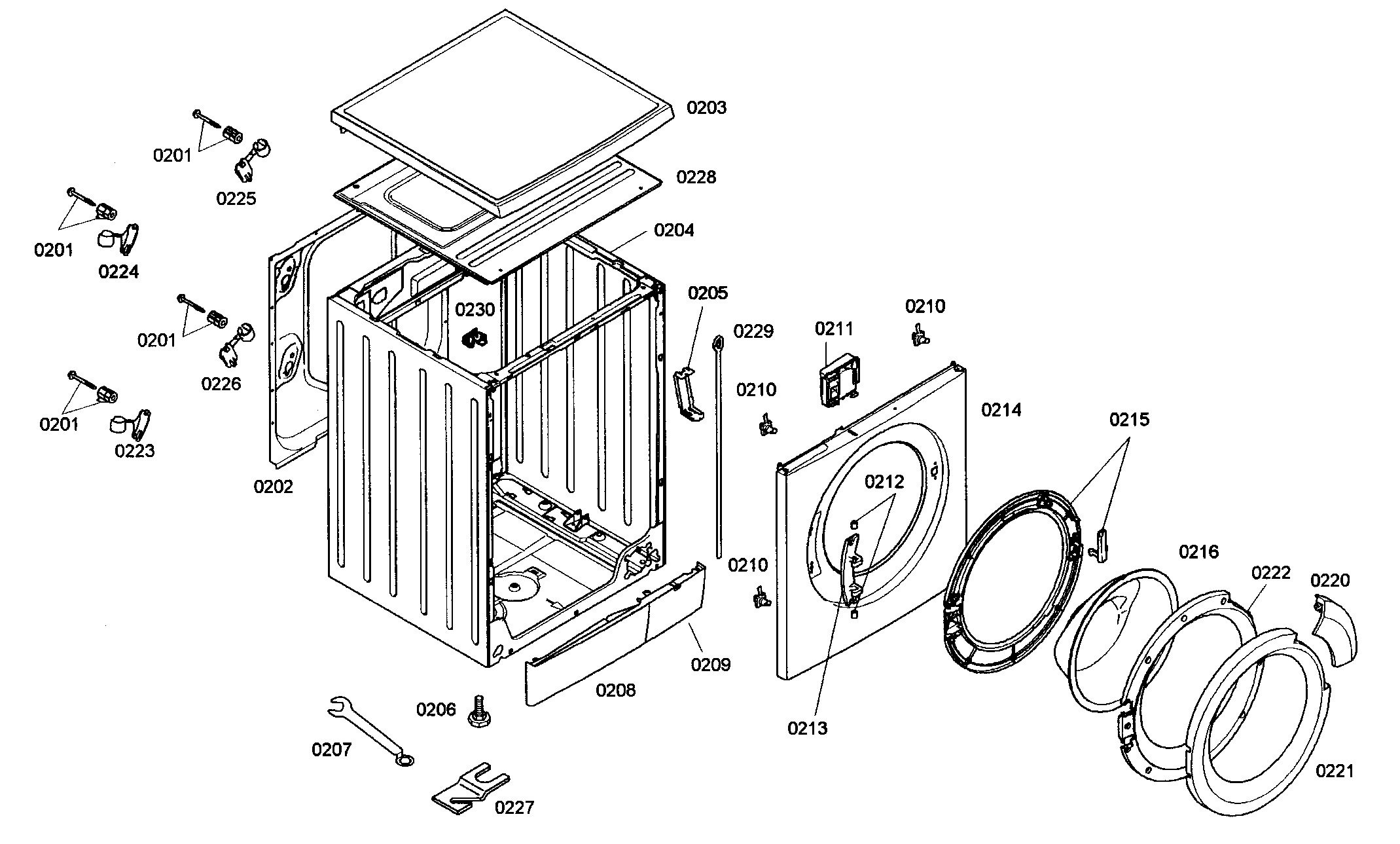

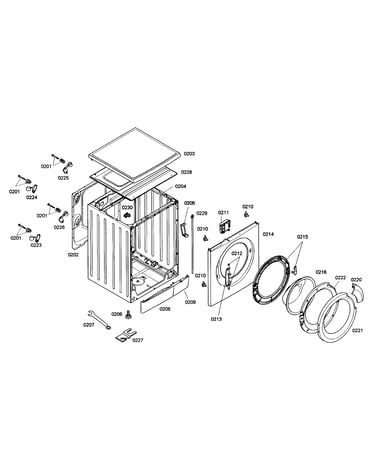

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Shock 660865
#310

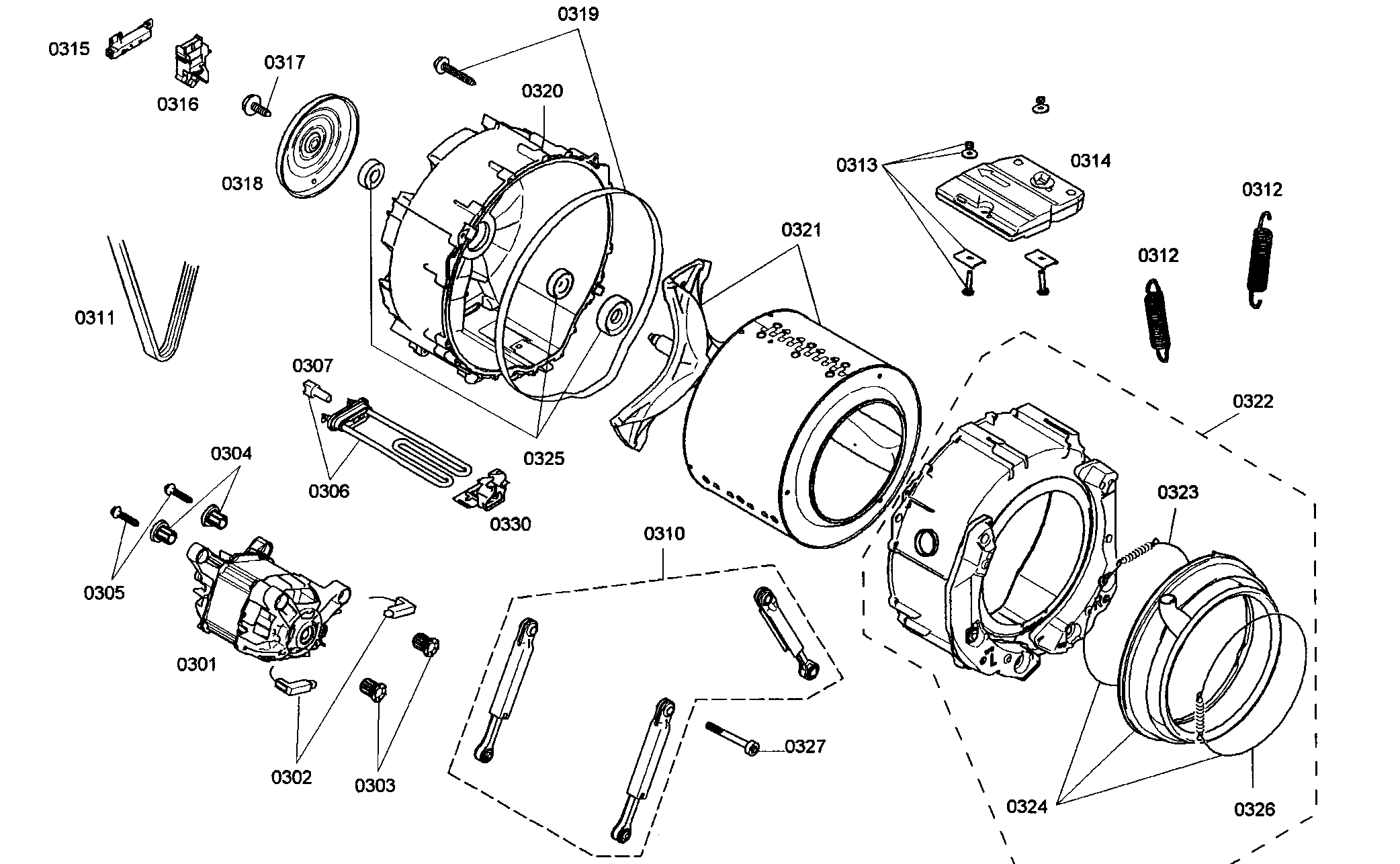

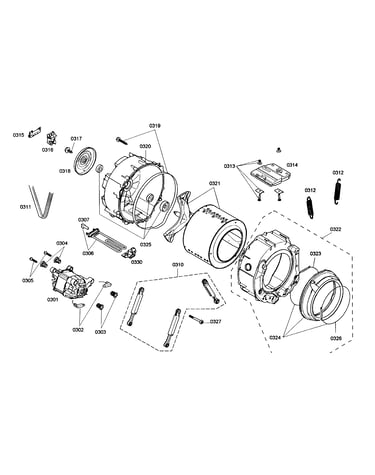

Drum assy diagram

Shock

Part #660865

Replaced by #00742719

?
Manufacturer substitution
This part replaces 660865. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Washer Water Inlet Valve 611703
#407

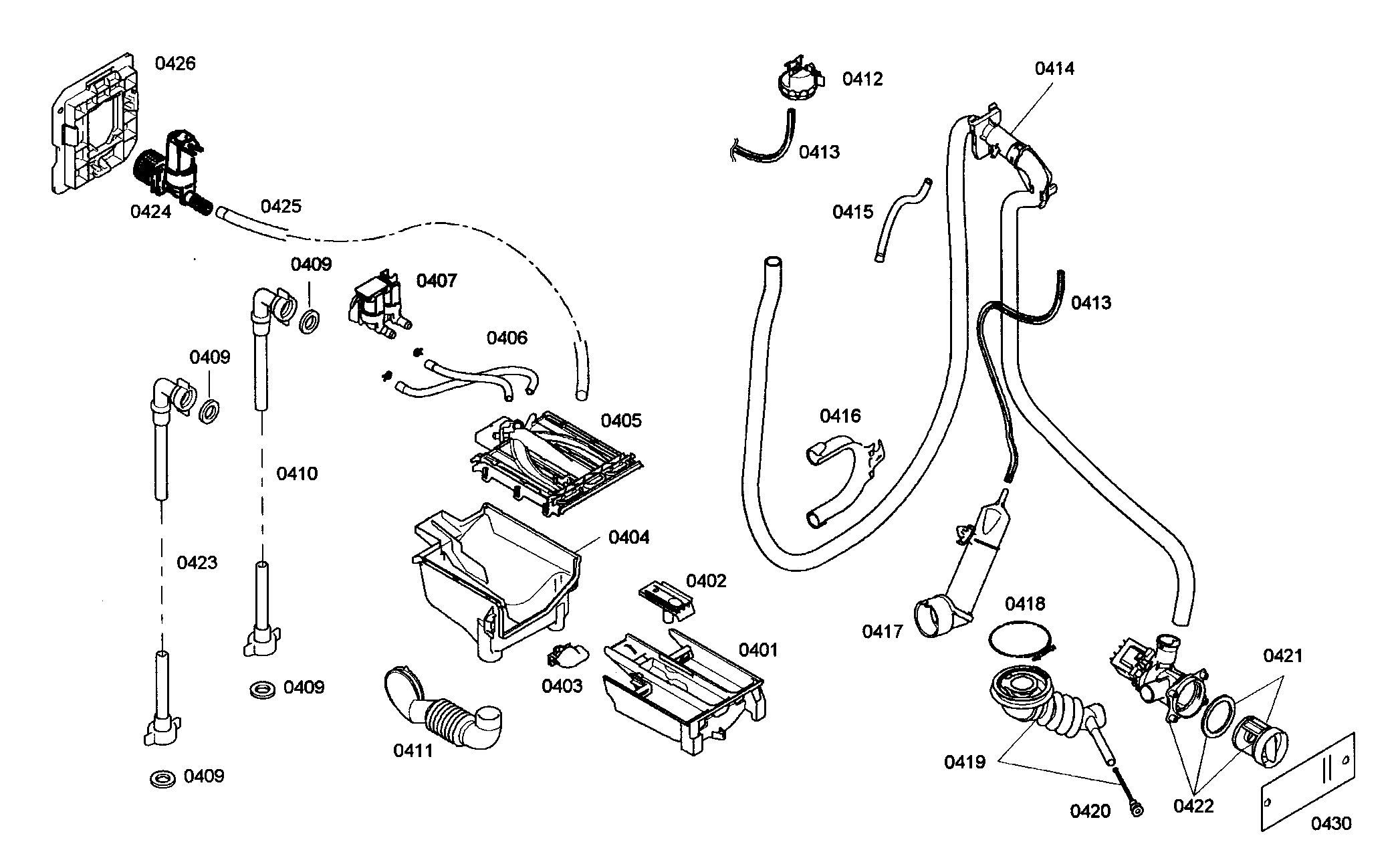

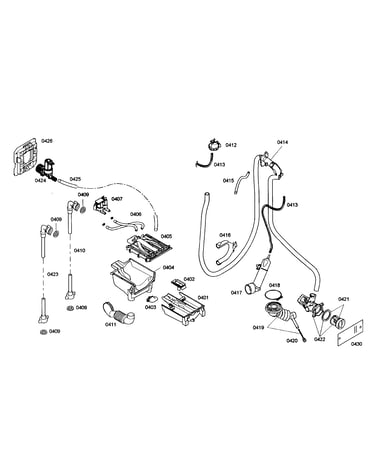

Water supply diagram

Washer water inlet valve

Part #611703

Replaced by #00611703

?
Manufacturer substitution
This part replaces 611703. Substitute parts can look different from the original.
$67.59 |
8% OFF Phone Price : $73.59
In Stock
Washer Water Inlet Valve 611702
#424

Water supply diagram

Washer water inlet valve

Part #611702

Replaced by #00611702

?
Manufacturer substitution
This part replaces 611702. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Washer Inlet Hose 493766
#410

Water supply diagram

Washer inlet hose

Part #493766

Replaced by #00493766

?
Manufacturer substitution
This part replaces 493766. Substitute parts can look different from the original.
$43.98
In Stock
Washer Noise Filter 429052
#136

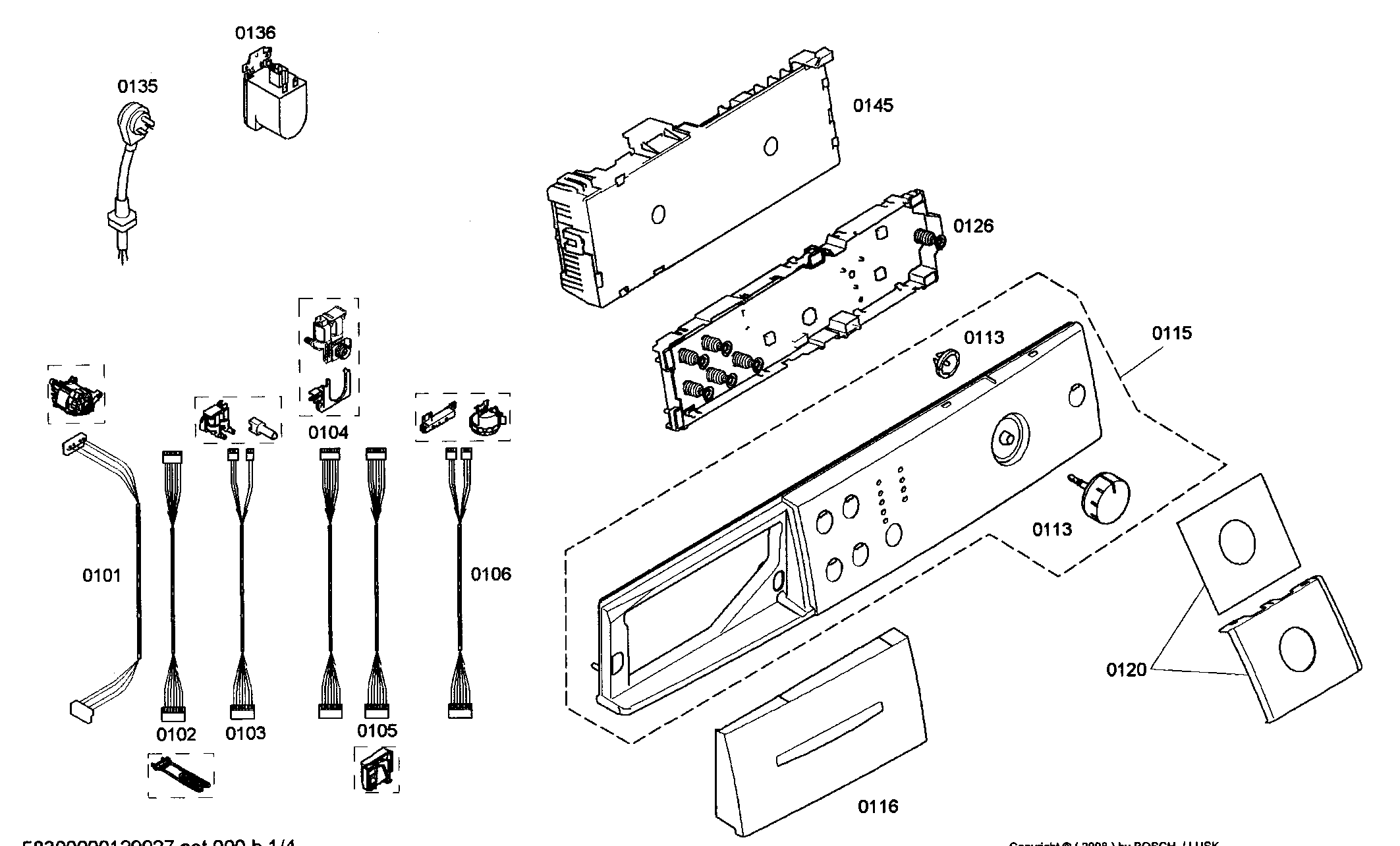

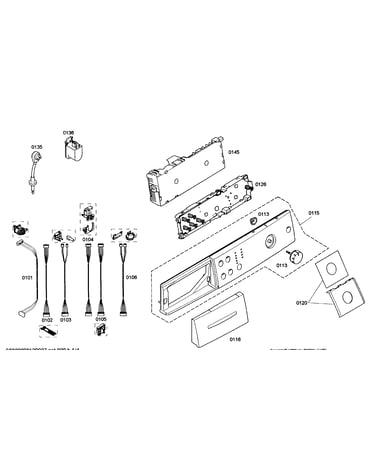

Control panel diagram

Washer noise filter

Part #429052

Replaced by #00429052

?
Manufacturer substitution
This part replaces 429052. Substitute parts can look different from the original.
$76.53
In Stock
Filter Flu 605010
#421

Water supply diagram

Filter flu

Part #605010

Replaced by #00647920

?
Manufacturer substitution
This part replaces 605010. Substitute parts can look different from the original.
This item is not returnable
$28.99 |
17% OFF Phone Price : $34.99
In Stock
Rear Tub 246562
#320

Drum assy diagram

Rear tub

Part #246562

Replaced by #00249533

?
Manufacturer substitution
This part replaces 246562. Substitute parts can look different from the original.
$395.42 |
$12.00 OFF Phone Price : $407.42
In Stock
Bearing 610131
#325

Drum assy diagram

Bearing

Part #610131

Replaced by #00619808

?
Manufacturer substitution
This part replaces 610131. Substitute parts can look different from the original.
$109.49 |
10% OFF Phone Price : $121.49
In Stock
Power Module 668401
#145

Control panel diagram

Power module

Part #668401

Replaced by #00705463

?
Manufacturer substitution
This part replaces 668401. Substitute parts can look different from the original.
$235.26 |
5% OFF Phone Price : $247.26
In Stock
Sensor 609240
#307

Drum assy diagram

Sensor

Part #609240

Replaced by #00609240

?
Manufacturer substitution
This part replaces 609240. Substitute parts can look different from the original.
$38.24
In Stock
