Model # KFIS25XVWH4 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KFIS25XVWH4 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

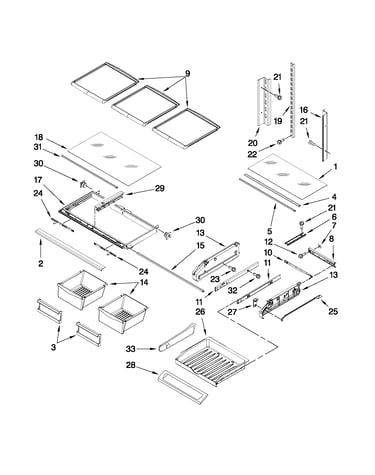

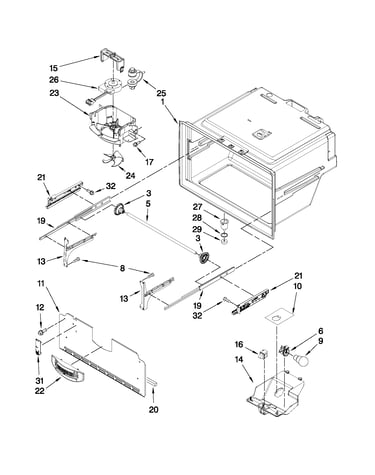

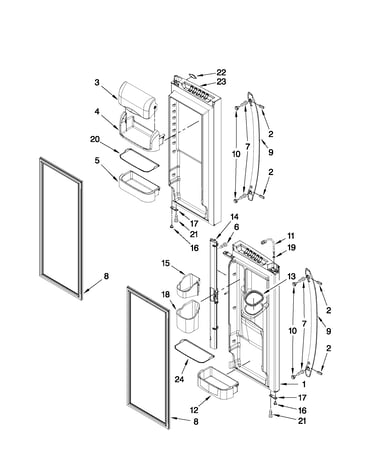

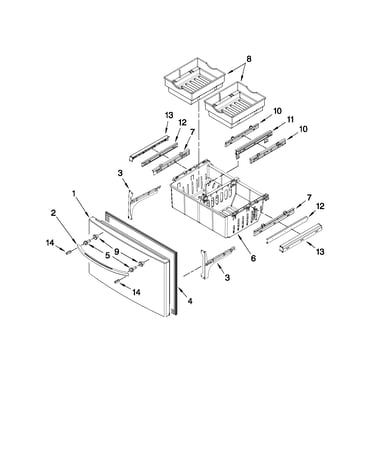

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |
Refrigerator Water Filter UKF8001AXX
#14

Refrigerator liner parts diagram

Refrigerator water filter

Part #UKF8001AXX

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Uv Filter Dryer W10143759
#27

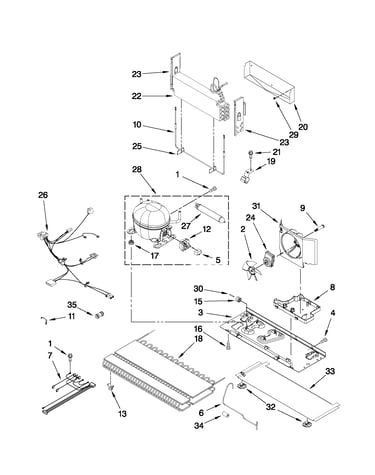

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Bulb-light 2255743N
Bulb-light

Part #2255743N

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Ice Maker Assembly W10300024
#100

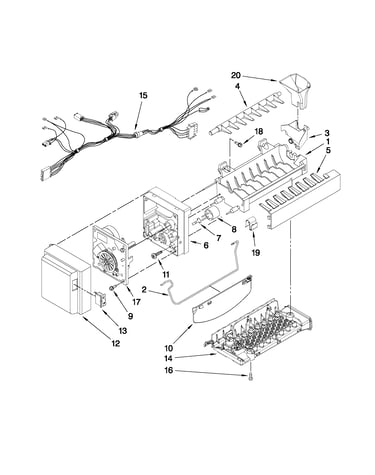

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10300024

Replaced by #WPW10300024

?
Manufacturer substitution
This part replaces W10300024. Substitute parts can look different from the original.
BEST SELLER
$172.28 |
7% OFF Phone Price : $184.28
In Stock
Refrigerator Run Capacitor 2264017
#5

Unit parts diagram

Refrigerator run capacitor

Part #2264017

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Light Switch 12466103
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Compressor W10134623
#28

Unit parts diagram

Refrigerator compressor

Part #W10134623

Replaced by #W10160407

?
Manufacturer substitution
This part replaces W10134623. Substitute parts can look different from the original.
BEST SELLER
$402.23 |
$12.00 OFF Phone Price : $414.23
In Stock
Refrigerator Water Tube 12961401
#2

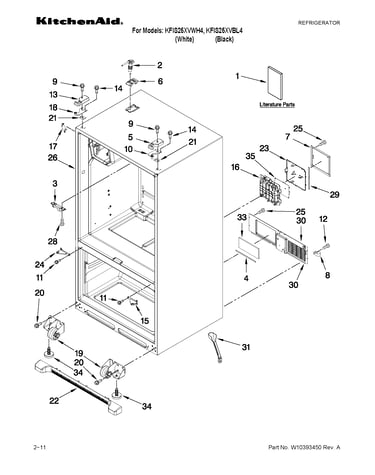

Cabinet parts diagram

Refrigerator water tube

Part #12961401

Replaced by #W11415785

?
Manufacturer substitution
This part replaces 12961401. Substitute parts can look different from the original.
BEST SELLER
$36.68 |
14% OFF Phone Price : $42.68
In Stock
Refrigerator Coupling 63052A001
#17

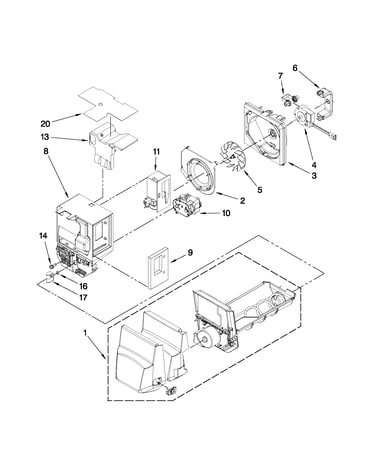

Motor and ice container parts diagram

Refrigerator coupling

Part #63052A001

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052A001. Substitute parts can look different from the original.
BEST SELLER
$33.77 |
15% OFF Phone Price : $39.77
In Stock
Refrigerator Water Inlet Valve W10312696
#20

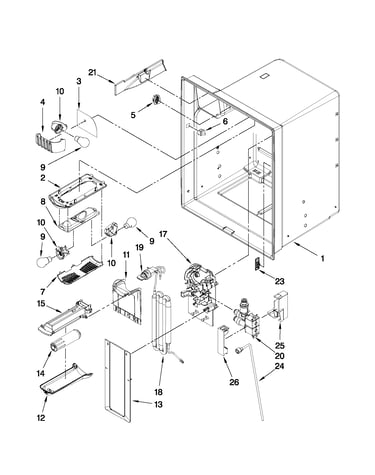

Refrigerator liner parts diagram

Refrigerator water inlet valve

Part #W10312696

Replaced by #WPW10312696

?
Manufacturer substitution
This part replaces W10312696. Substitute parts can look different from the original.
BEST SELLER
$102.85 |
10% OFF Phone Price : $114.85
In Stock
