Hitachi
Power Drill

Model # DS18DSAL Official Hitachi drill

Here are the diagrams and repair parts for Official Hitachi DS18DSAL drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Hitachi Gear Box 331087
#3

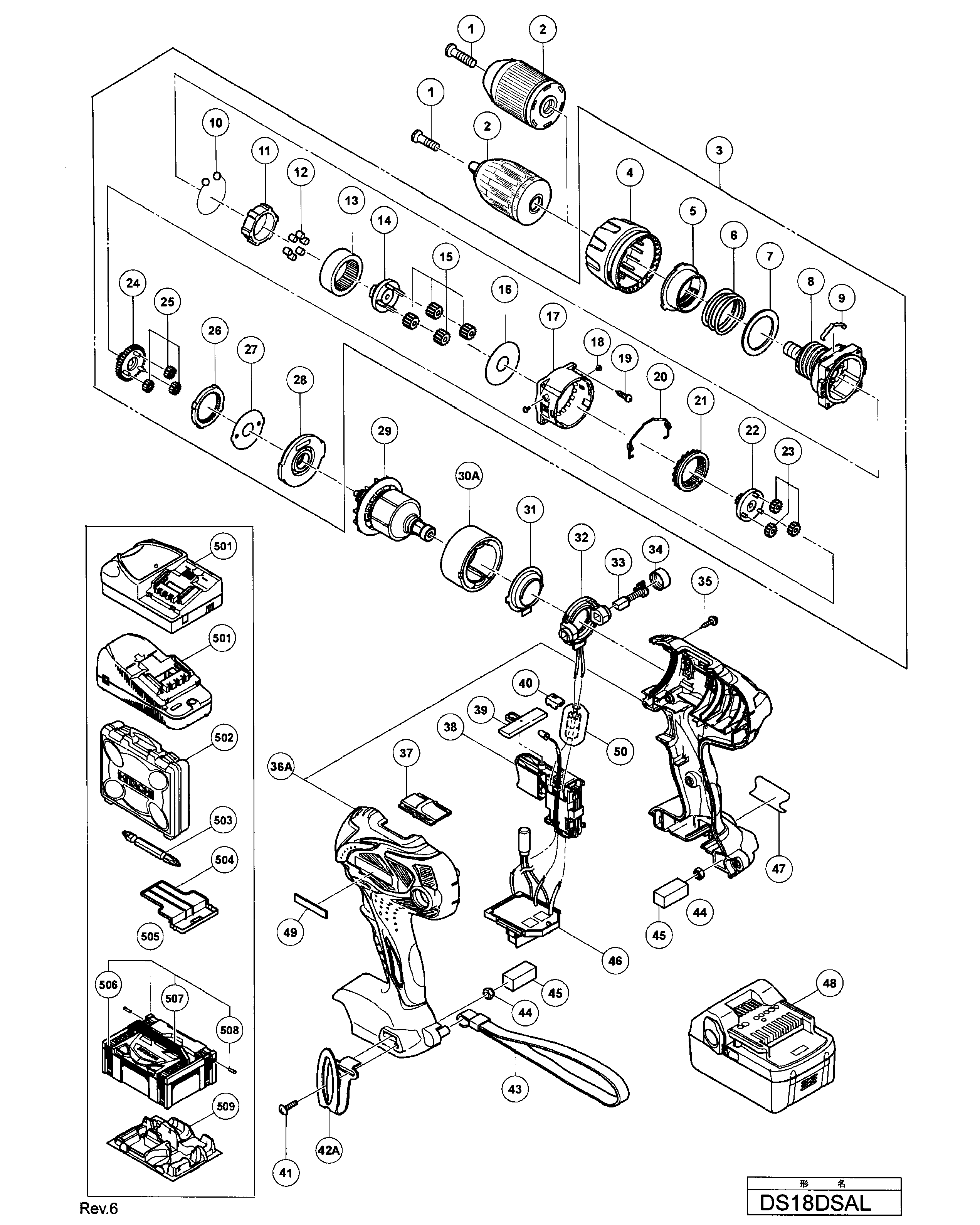

Drill diagram

Hitachi gear box

Part #331087

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Ring Gear 330567
#13

Drill diagram

Hitachi ring gear

Part #330567

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Terminal Set 330591
#46

Drill diagram

Hitachi terminal set

Part #330591

The manufacturer no longer makes this part, and there's no substitute part

Ball 306936
#10

Drill diagram

Ball

Part #306936

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 313687
#35

Drill diagram

Tap screw

Part #313687

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Dust Guard 322521
#31

Drill diagram

Hitachi dust guard

Part #322521

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Gear -a 330576
#25

Drill diagram

Hitachi gear -a

Part #330576

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Carrier 330566
#14

Drill diagram

Hitachi carrier

Part #330566

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Housing 2p 330594
#36A

Drill diagram

Hitachi housing 2p

Part #330594

The manufacturer no longer makes this part, and there's no substitute part

Hitachi Carbon Brush 999054
#33

Drill diagram

Hitachi carbon brush

Part #999054

The manufacturer no longer makes this part, and there's no substitute part
