Model # 486245332 Official Craftsman sprayer

Here are the diagrams and repair parts for Official Craftsman 486245332 sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Lawn Tractor Nut 47810
#40

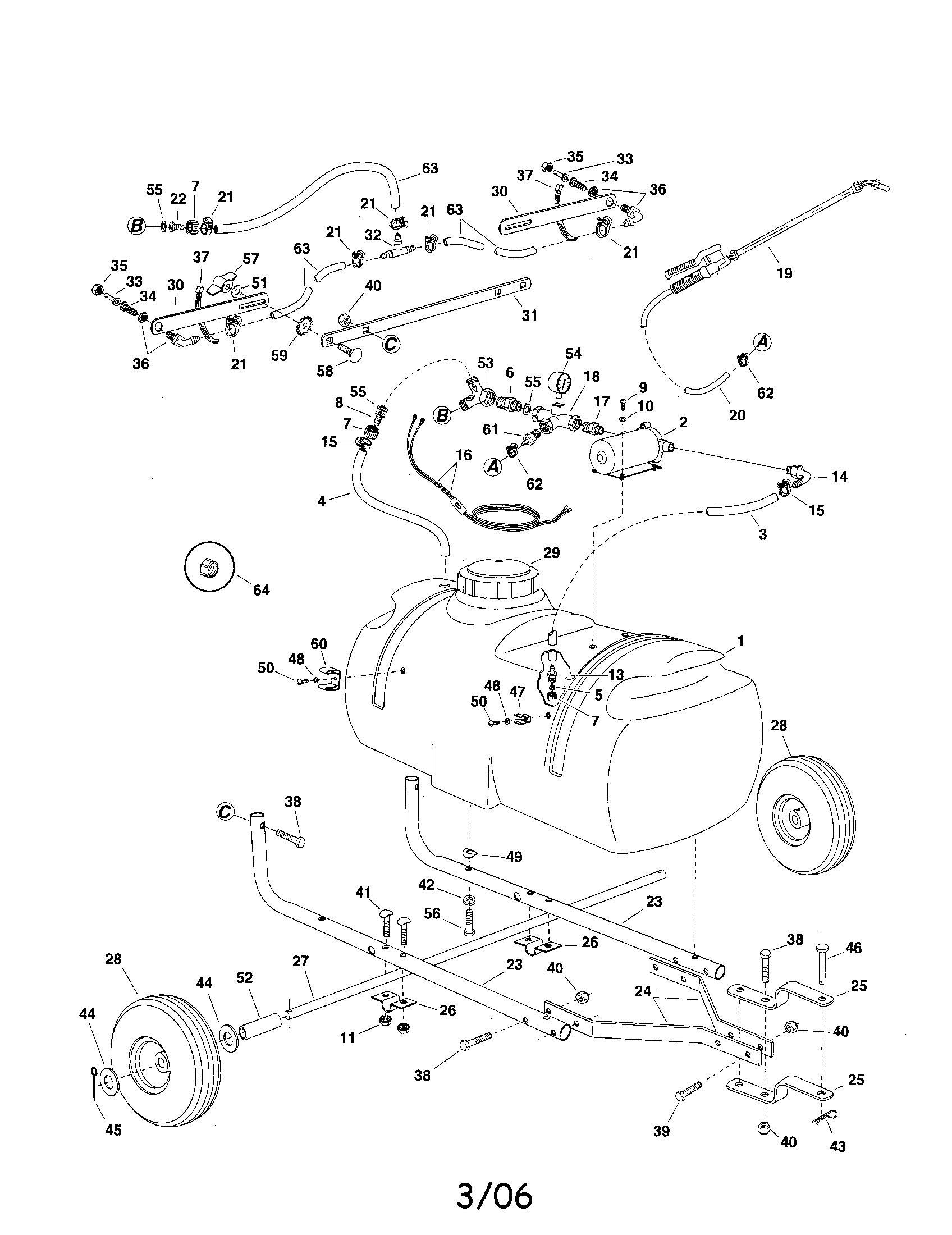

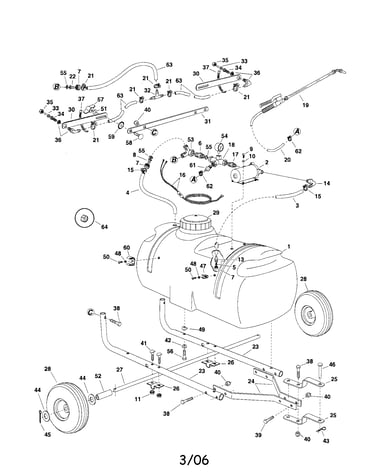

25 gallon 70 psi sprayer diagram

Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#51

25 gallon 70 psi sprayer diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#42

25 gallon 70 psi sprayer diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 44732
#59

25 gallon 70 psi sprayer diagram

Lawn & garden equipment washer

Part #44732

This item is not returnable
$2.16
In Stock
Lawn Tractor Cable Tie (replaces 725-0157, 926-0240, Gw-h212980) 726-0178
#37

25 gallon 70 psi sprayer diagram

Lawn tractor cable tie (replaces 725-0157, 926-0240, gw-h212980)

Part #726-0178

This item is not returnable
$2.16
In Stock
Hose 49761
#20

25 gallon 70 psi sprayer diagram

Hose

Part #49761

Replaced by #65310

?
Manufacturer substitution
This part replaces 49761. Substitute parts can look different from the original.
$39.89 |
13% OFF Phone Price : $45.89
In Stock
Lawn Tractor Sprayer Attachment Boom Bar Spray Nozzle 45028
#33

25 gallon 70 psi sprayer diagram

Lawn tractor sprayer attachment boom bar spray nozzle

Part #45028

This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Lawn Tractor Tow Bar Attachment Hitch Bracket 23014
#25

25 gallon 70 psi sprayer diagram

Lawn tractor tow bar attachment hitch bracket

Part #23014

Replaced by #23014BL1

?
Manufacturer substitution
This part replaces 23014. Substitute parts can look different from the original.
This item is not returnable
$15.80 |
11% OFF Phone Price : $17.80
Back Order
Lawn Tractor Attachment Hitch Pin 47623
#46

25 gallon 70 psi sprayer diagram

Lawn tractor attachment hitch pin

Part #47623

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Cotter Pin 43093
#45

25 gallon 70 psi sprayer diagram

Lawn tractor attachment cotter pin

Part #43093

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
