Gibson
Top-Mount Refrigerator

Model # RT17F6WT3B Official Gibson top-mount refrigerator - lg30587070

Here are the diagrams and repair parts for Official Gibson RT17F6WT3B top-mount refrigerator - lg30587070, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Filter Drier G186717
#1

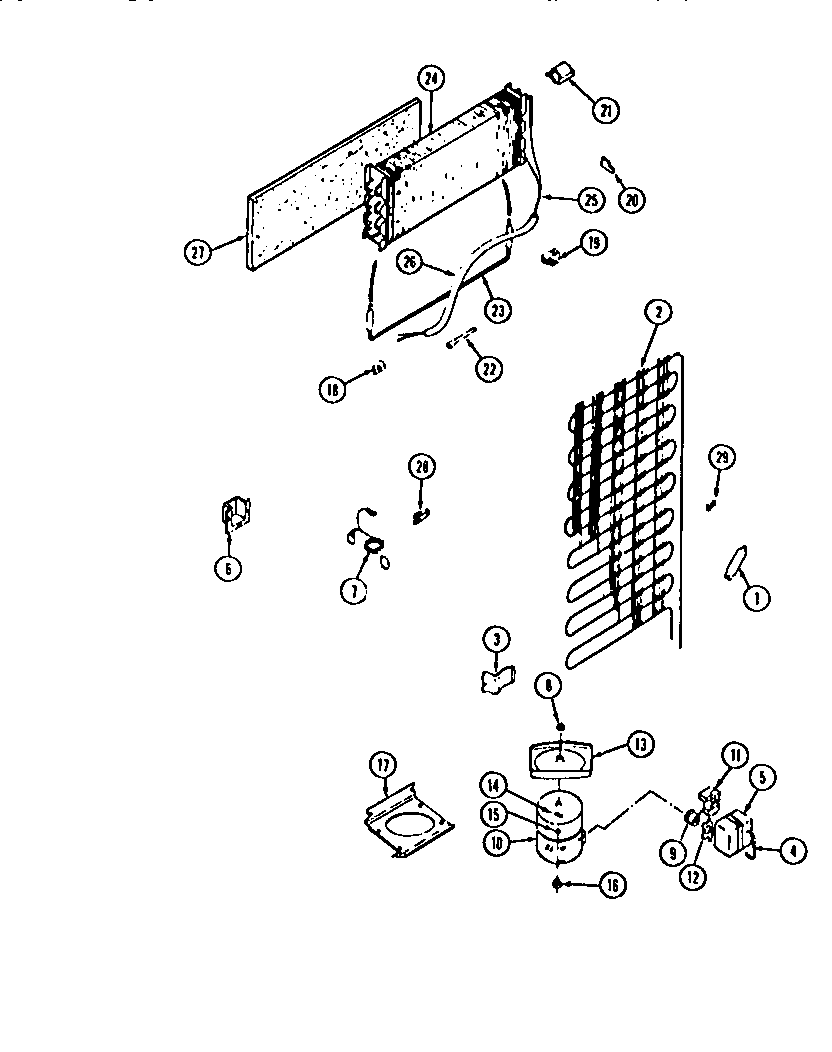

System diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Defrost Thermostat G162690-01
#21

System diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Tube G142176-11
#37

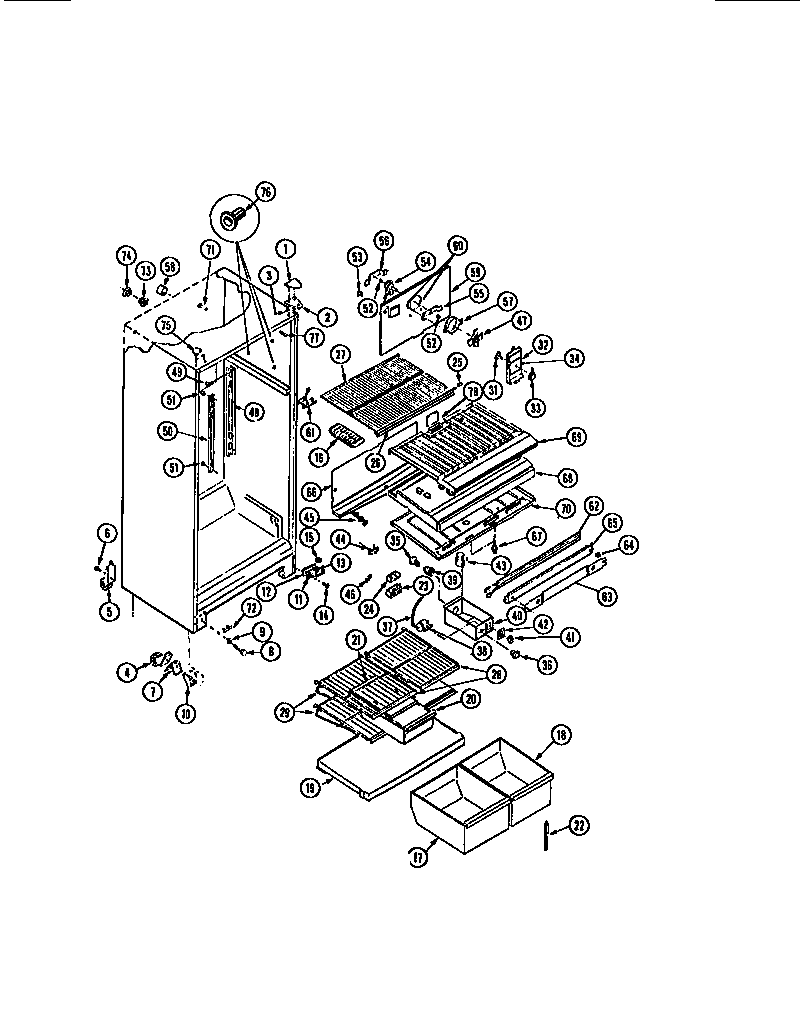

Cabinet diagram

Tube

Part #G142176-11

Replaced by #5303916855

?
Manufacturer substitution
This part replaces G142176-11. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Ice Tray G156376-13
#16

Cabinet diagram

Ice tray

Part #G156376-13

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-13. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Grommet G176993
#76A

Cabinet diagram

Refrigerator grommet

Part #G176993

Replaced by #5304500407

?
Manufacturer substitution
This part replaces G176993. Substitute parts can look different from the original.
This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Light Switch G162672
#67

Cabinet diagram

Light switch

Part #G162672

Replaced by #5309918806

?
Manufacturer substitution
This part replaces G162672. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Button Plug G162977-01
#9

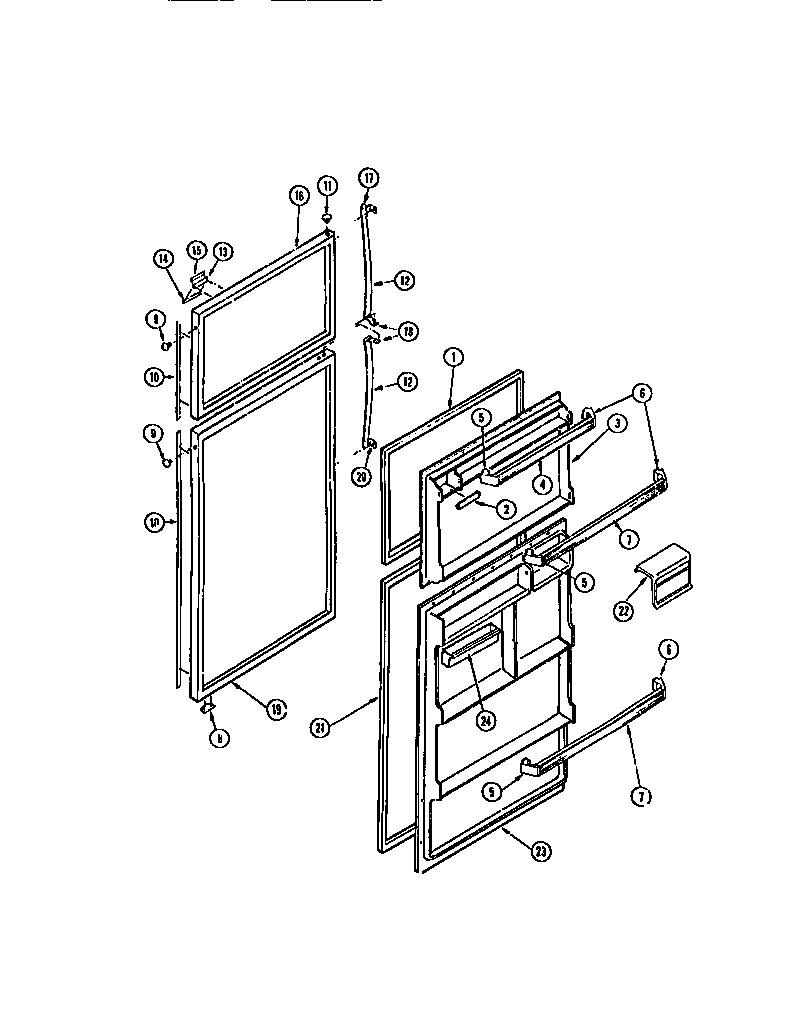

Door diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Refrigerator Screw G166567
#49

Cabinet diagram

Refrigerator screw

Part #G166567

Replaced by #5304455852

?
Manufacturer substitution
This part replaces G166567. Substitute parts can look different from the original.
$12.57
In Stock
Gasket G186932-11
#21

Door diagram

Gasket

Part #G186932-11

Replaced by #218730604

?
Manufacturer substitution
This part replaces G186932-11. Substitute parts can look different from the original.
$171.69 |
7% OFF Phone Price : $183.69
In Stock
Strap-evap/h G165546
#22

System diagram

Strap-evap/h

Part #G165546

Replaced by #5308000110

?
Manufacturer substitution
This part replaces G165546. Substitute parts can look different from the original.
$52.30 |
10% OFF Phone Price : $58.30
In Stock
