Whirlpool
Compact Refrigerator

Model # EL02PPXMQ00 Official Whirlpool compact refrigerator

Here are the diagrams and repair parts for Official Whirlpool EL02PPXMQ00 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Drier Tube 4312496
#5

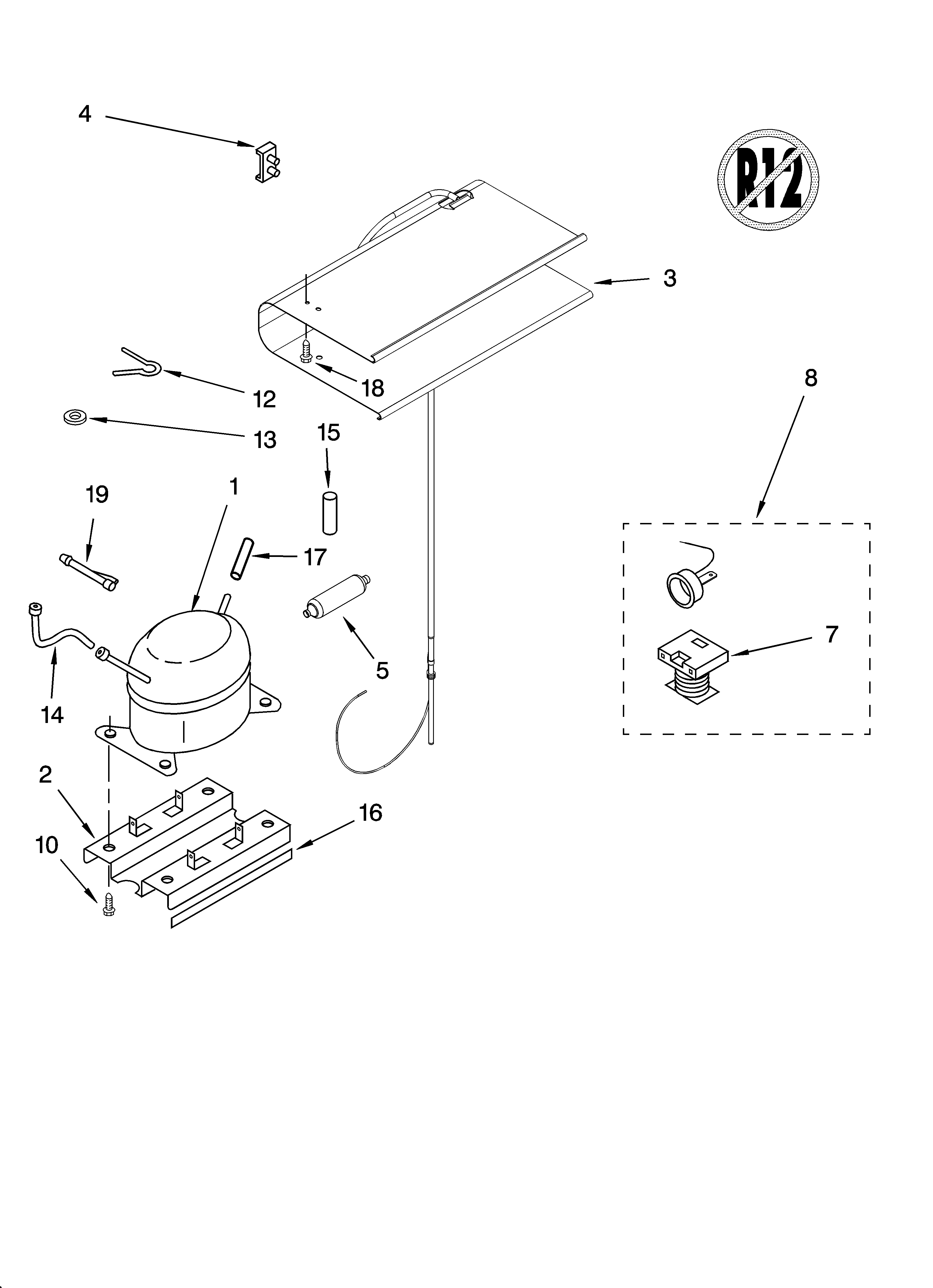

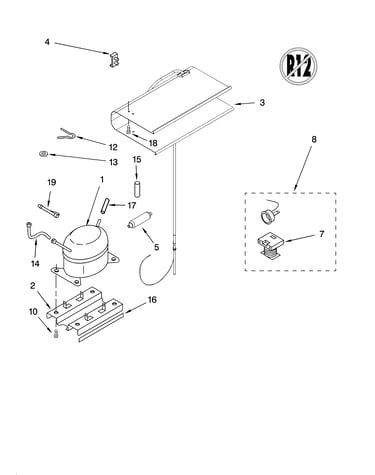

Unit parts diagram

Drier tube

Part #4312496

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4312496. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Screw 4312772
#18

Unit parts diagram

Refrigerator screw

Part #4312772

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 4312772. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Leveler 4312445
#12

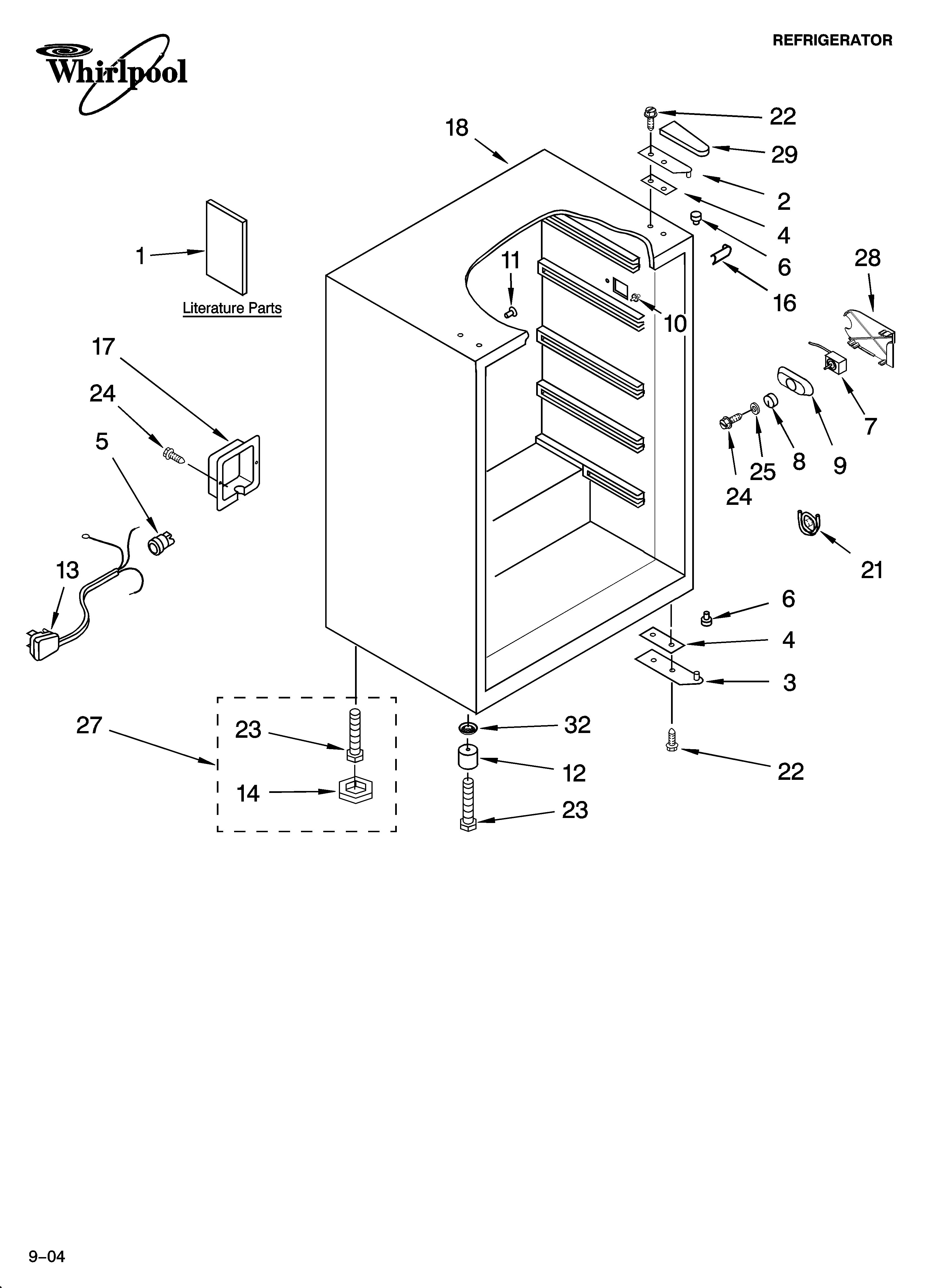

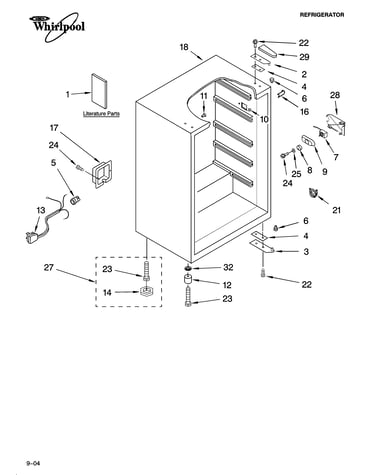

Cabinet parts diagram

Leveler

Part #4312445

$27.64
In Stock
Screw 4312464
#10

Unit parts diagram

Screw

Part #4312464

Replaced by #WP4312464

?
Manufacturer substitution
This part replaces 4312464. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Refrigerator Door Rack 8209154
#2

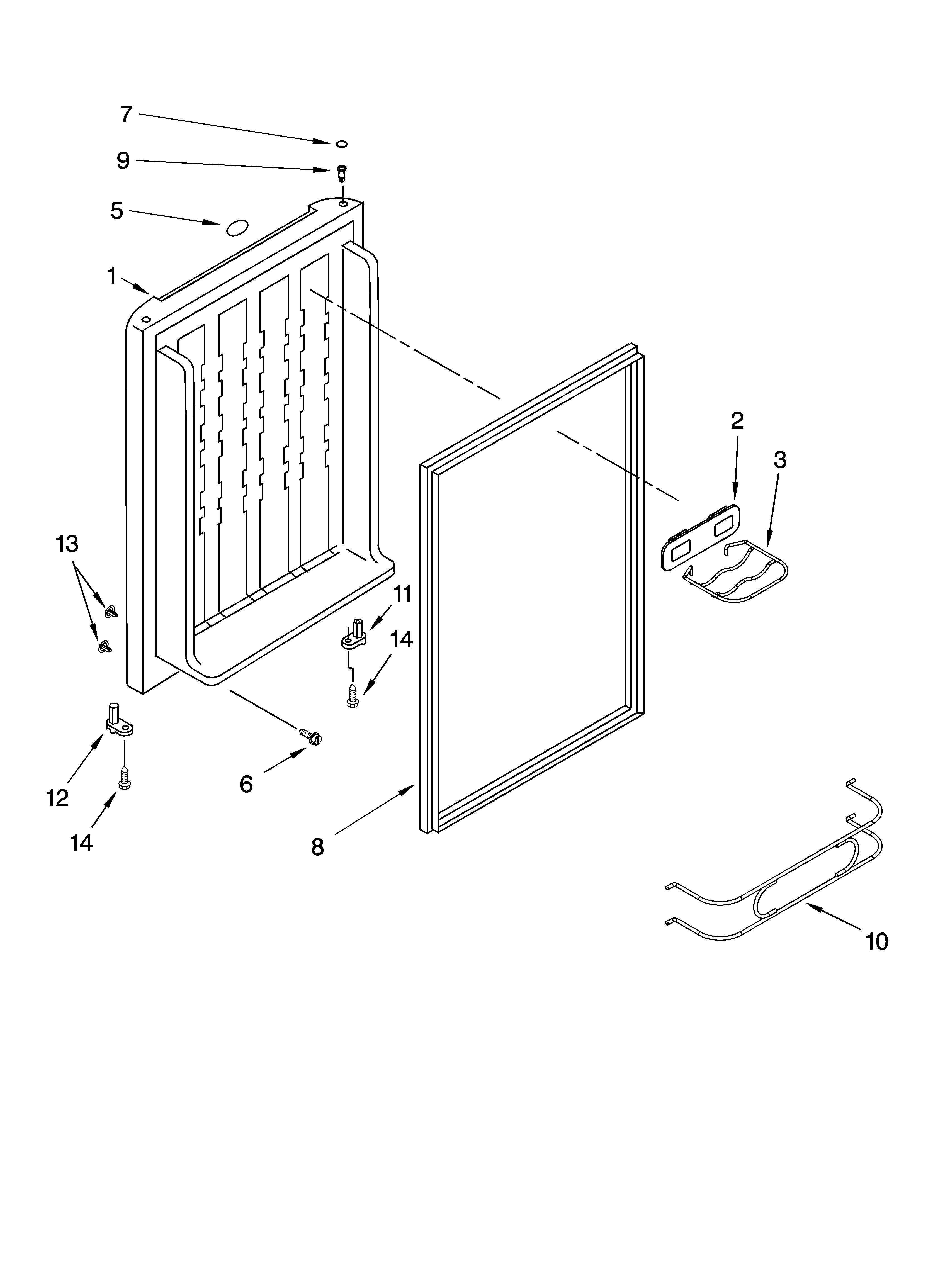

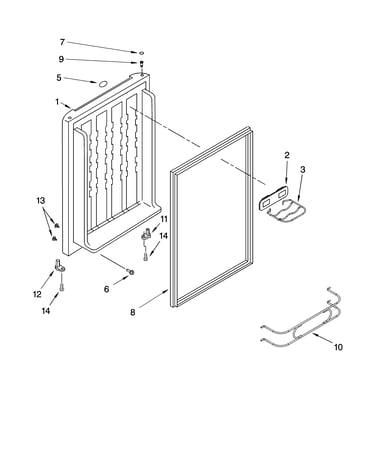

Door parts diagram

Refrigerator door rack

Part #8209154

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Owner's Manual 8209155
#1

Cabinet parts diagram

Refrigerator owner's manual

Part #8209155

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Assembly (white) 4312781
#1

Door parts diagram

Refrigerator door assembly (white)

Part #4312781

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Chiller Tray 4312498
#2

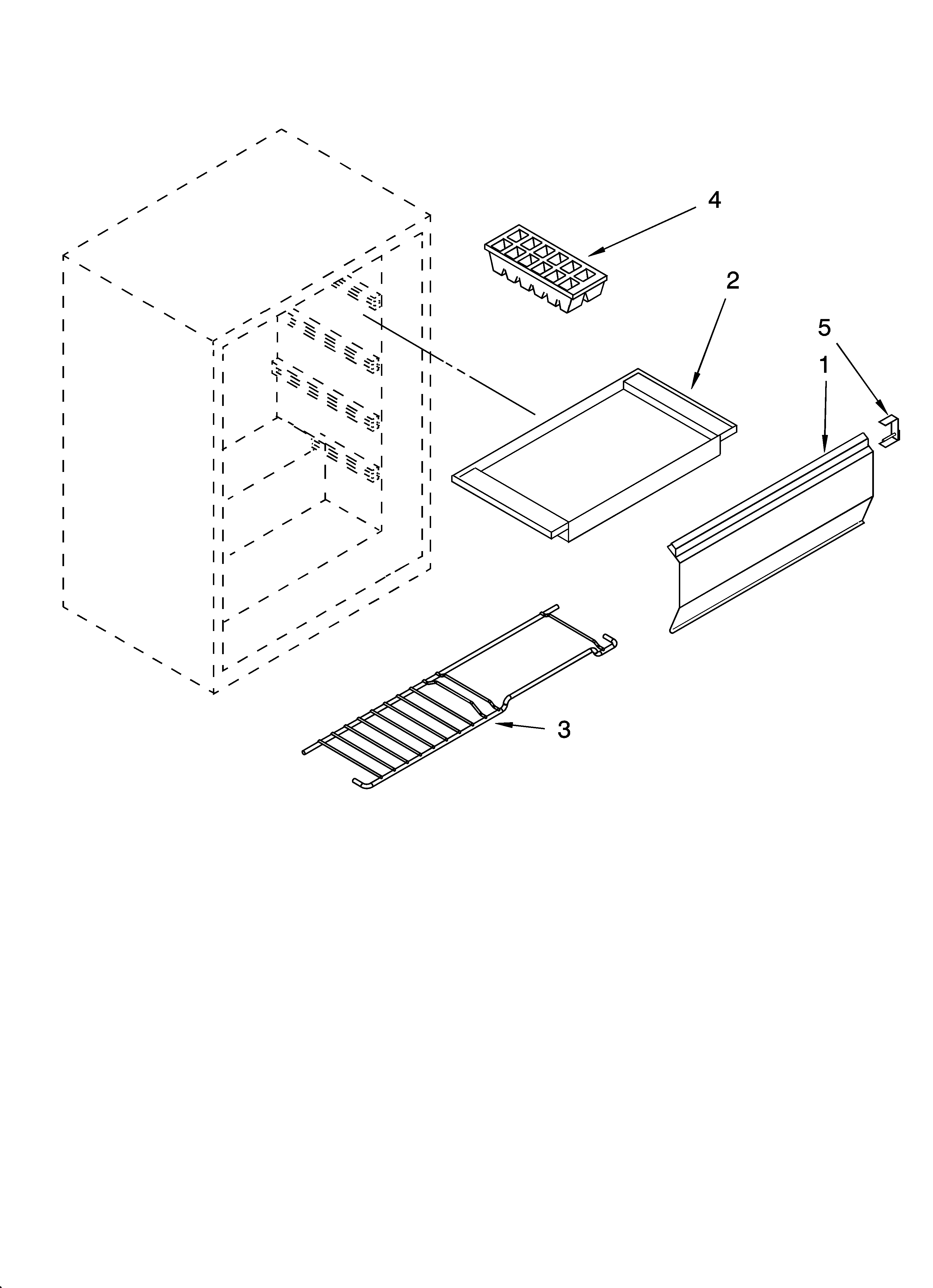

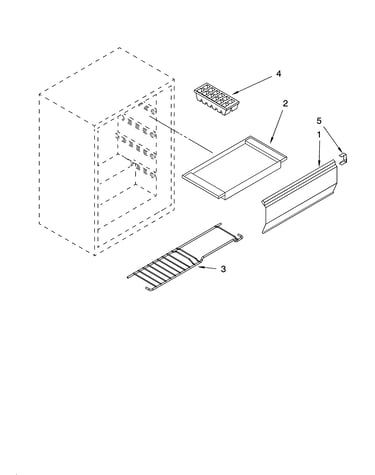

Shelf parts diagram

Refrigerator chiller tray

Part #4312498

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tube 4312577
#19

Unit parts diagram

Refrigerator tube

Part #4312577

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cover 4312759
#21

Cabinet parts diagram

Refrigerator cover

Part #4312759

The manufacturer no longer makes this part, and there's no substitute part
