Model # GLEF389HSA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire GLEF389HSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

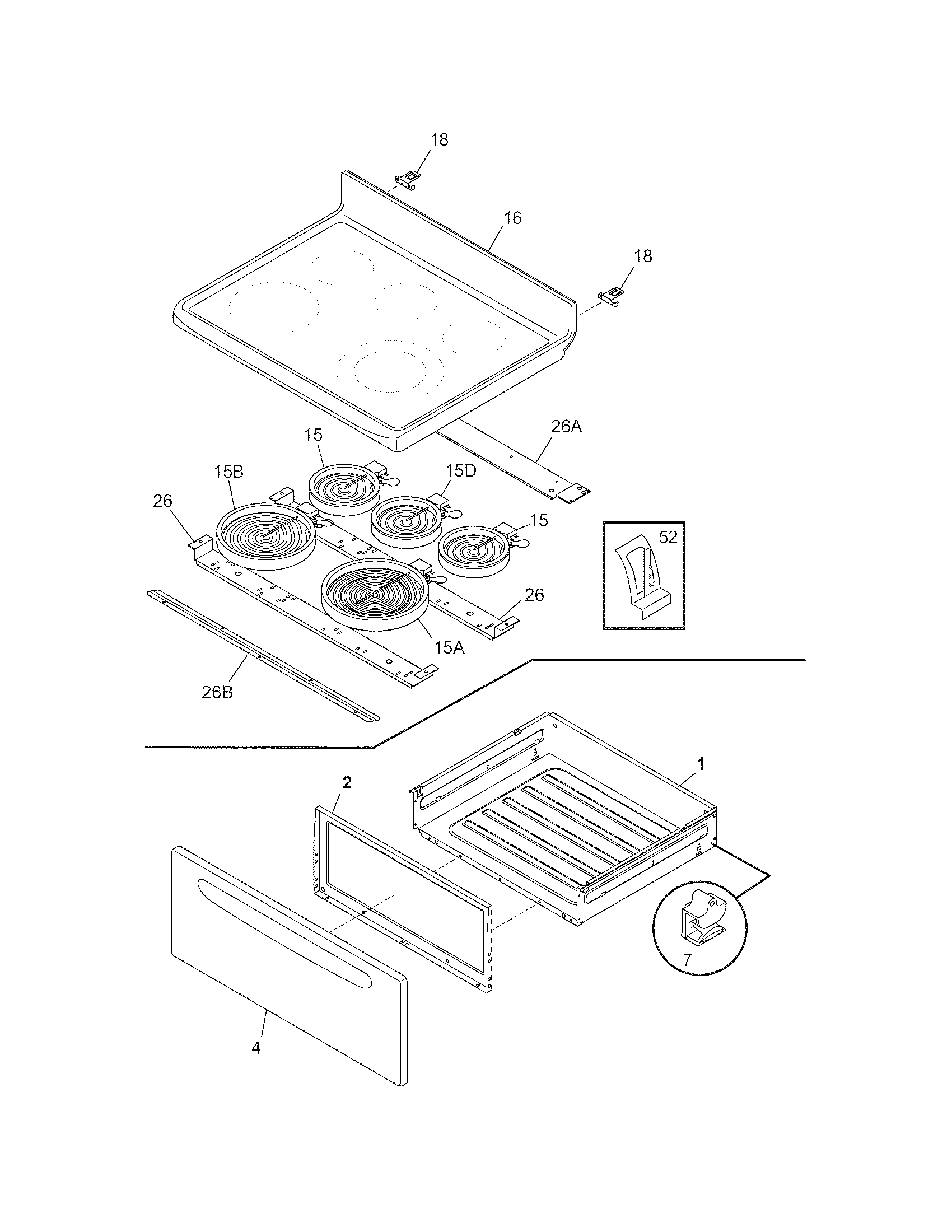

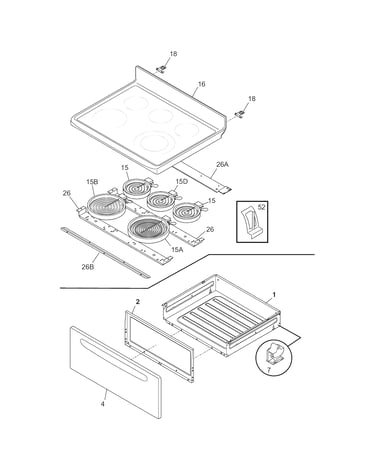

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Range Surface Element Control Switch 316021501
#54A

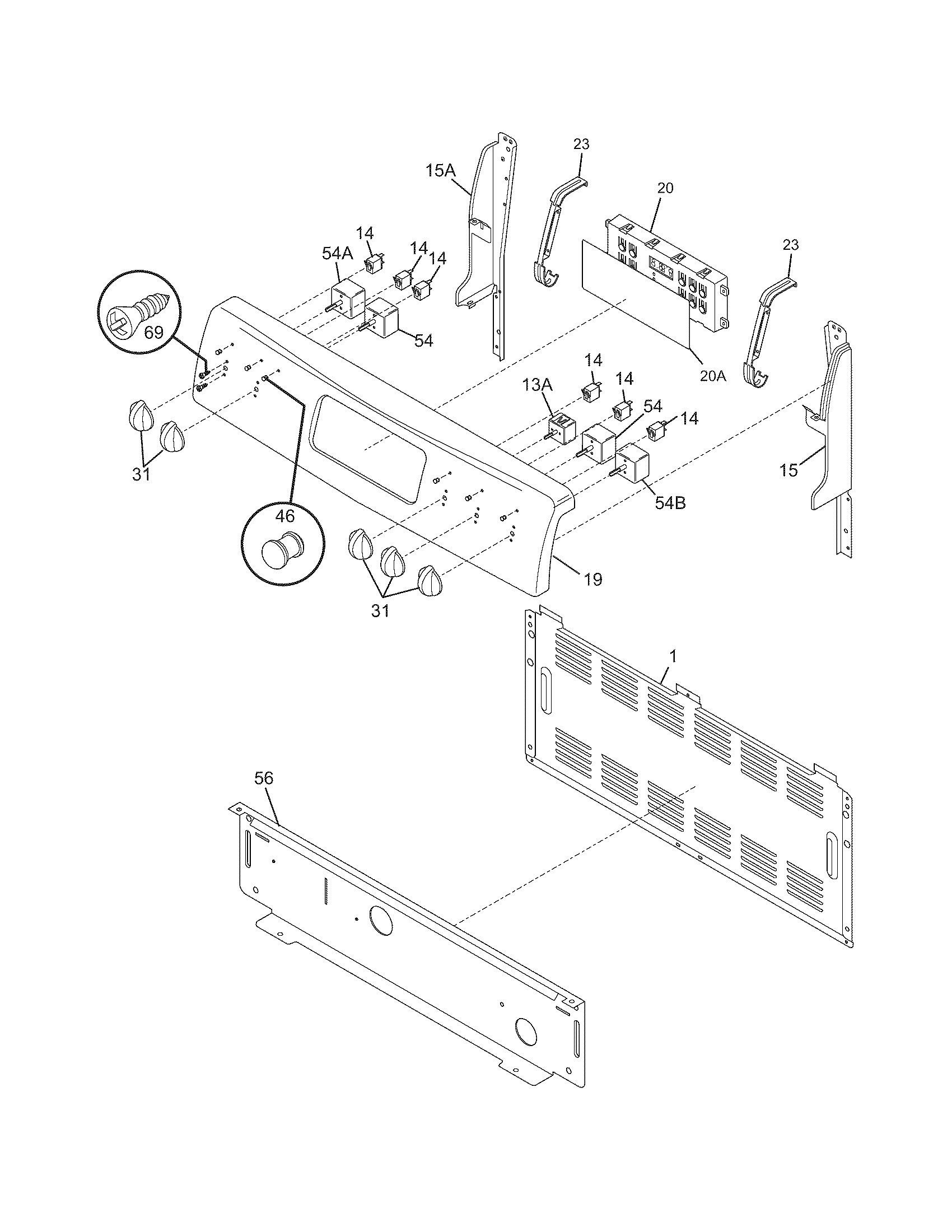

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

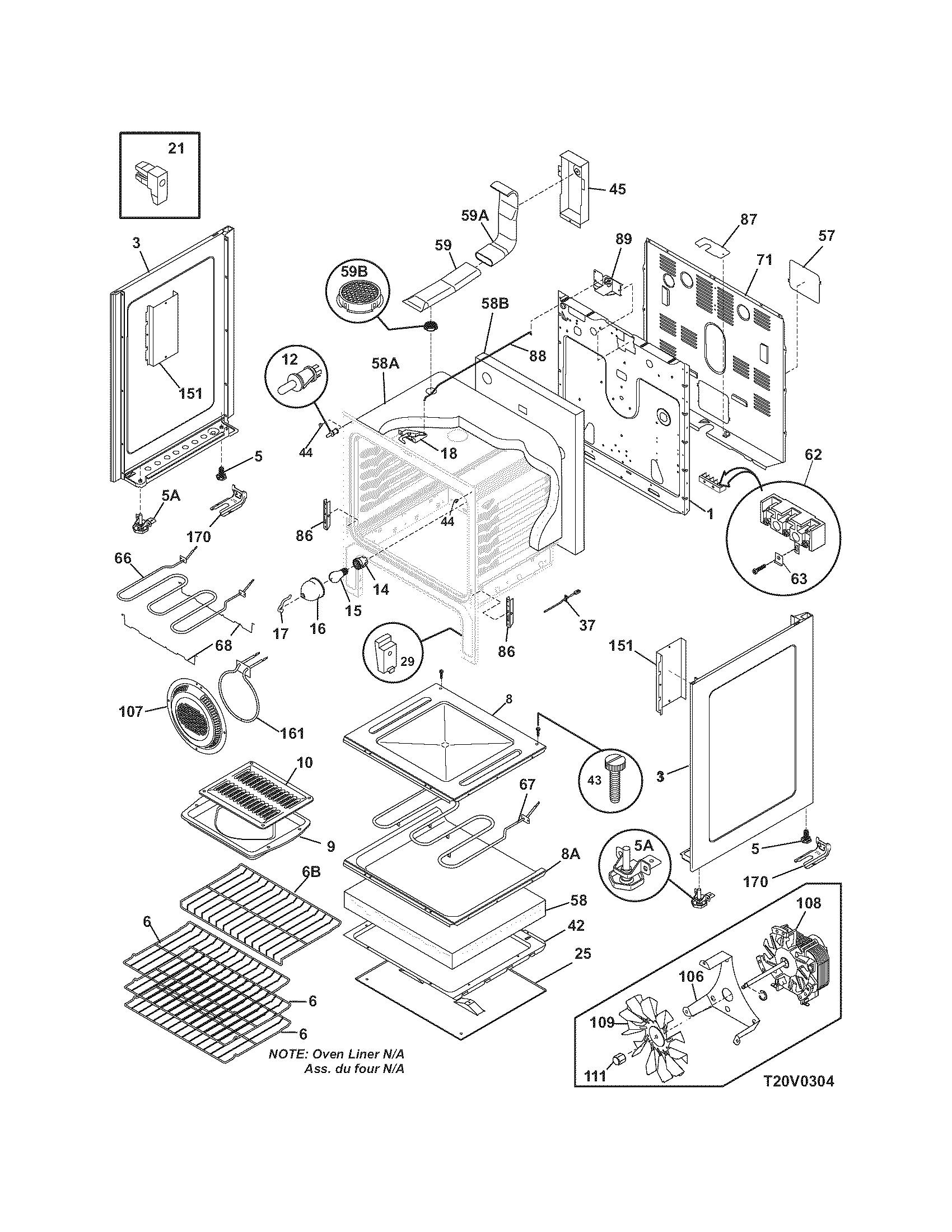

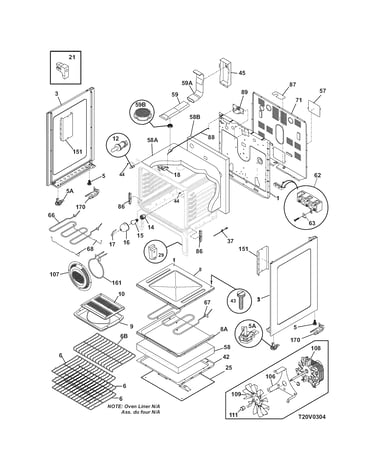

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cooktop Surface Element Control Switch 316238200
#54B

Backguard diagram

Cooktop surface element control switch

Part #316238200

Replaced by #316238201

?
Manufacturer substitution
This part replaces 316238200. Substitute parts can look different from the original.
BEST SELLER
$75.89 |
7% OFF Phone Price : $81.89
In Stock
Range Broil Element (replaces 316200600) 316203301
#66

Body diagram

Range broil element (replaces 316200600)

Part #316203301

BEST SELLER
$127.11 |
9% OFF Phone Price : $139.11
In Stock
Range Oven Door Inner Glass 316117500
#8

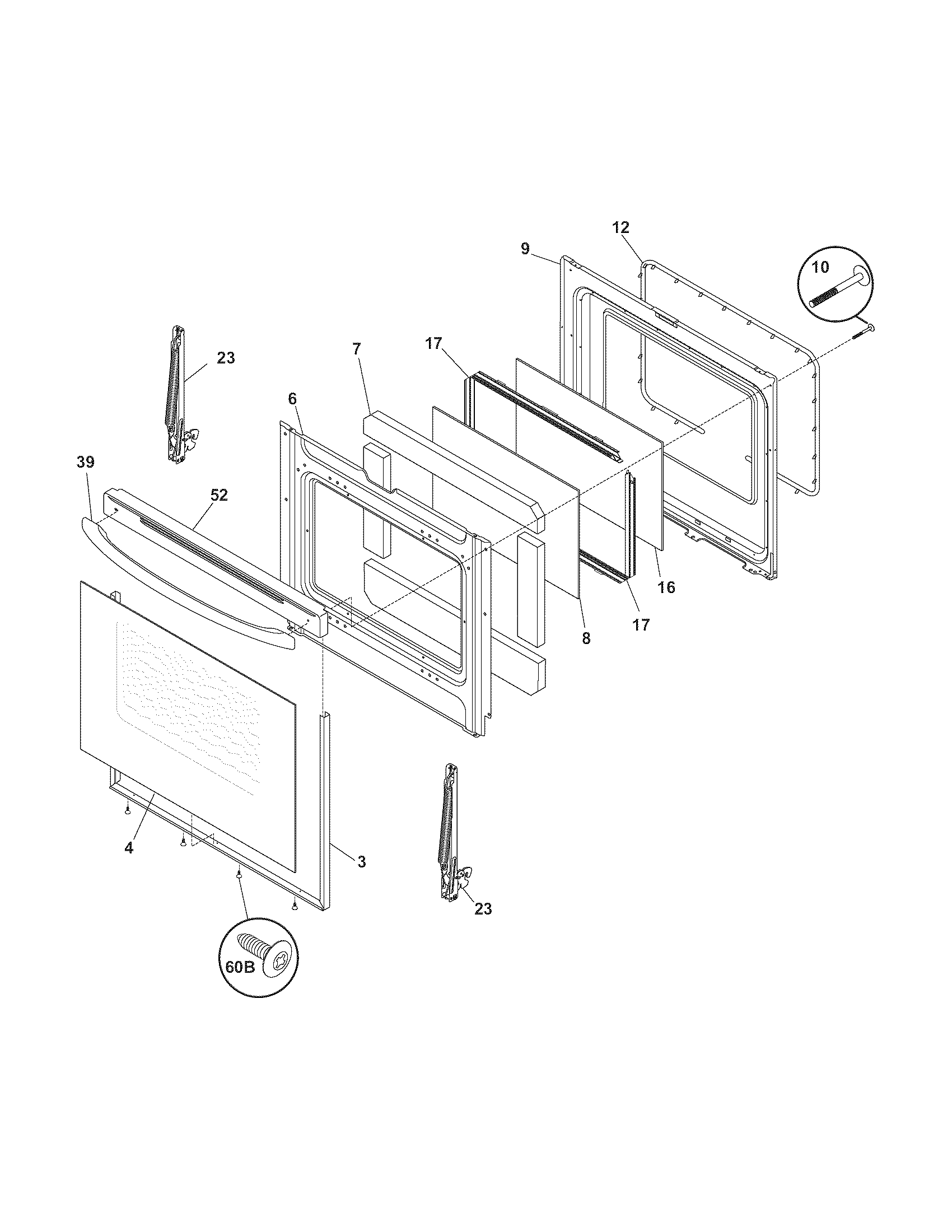

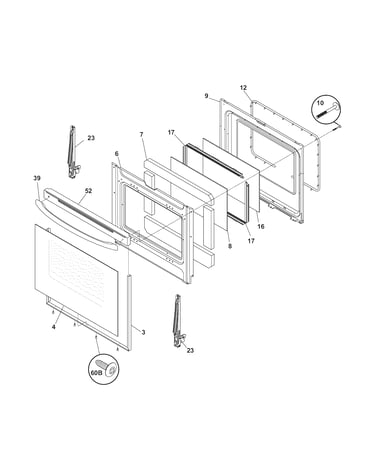

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Kelvinator Range Terminal Block 5304409888
#62

Body diagram

Kelvinator range terminal block

Part #5304409888

BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
