Model # 10121400 Official Craftsman 6" metal turning lathe

Here are the diagrams and repair parts for Official Craftsman 10121400 6" metal turning lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Machine Screw 981-101
#137

Gear assembly diagram

Machine screw

Part #981-101

The manufacturer no longer makes this part, and there's no substitute part

Carriage Slide Screw M6-36A
#69

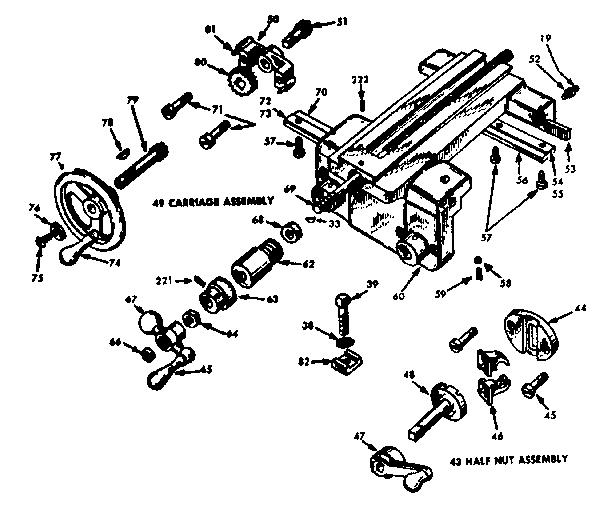

Carriage and half nut assembly diagram

Carriage slide screw

Part #M6-36A

The manufacturer no longer makes this part, and there's no substitute part

Lathe Pulley M6-80
#185

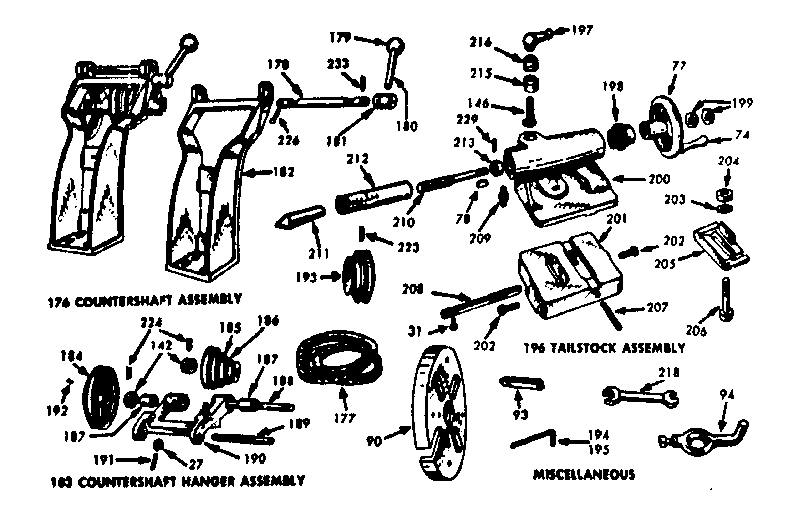

Countershaft and tailstock assembly diagram

Lathe pulley

Part #M6-80

The manufacturer no longer makes this part, and there's no substitute part

Bushing M6-33
#107

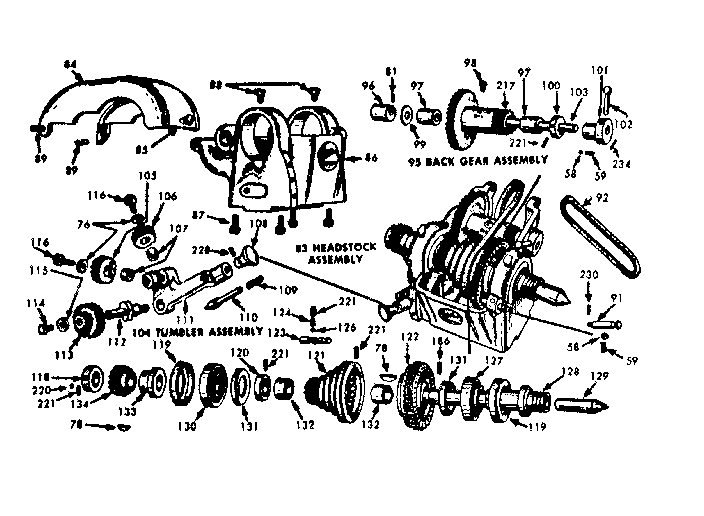

Headstock and back gear assembly diagram

Bushing

Part #M6-33

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly M6-101X
#154

Gear assembly diagram

Gear assembly

Part #M6-101X

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Screw 10D-60
#202

Countershaft and tailstock assembly diagram

Adjusting screw

Part #10D-60

The manufacturer no longer makes this part, and there's no substitute part

Washer M6-255
#99

Headstock and back gear assembly diagram

Washer

Part #M6-255

The manufacturer no longer makes this part, and there's no substitute part

Lathe Tailstock Ram Lock M6-44
#215

Countershaft and tailstock assembly diagram

Lathe tailstock ram lock

Part #M6-44

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin M6-256
#123

Headstock and back gear assembly diagram

Lock pin

Part #M6-256

The manufacturer no longer makes this part, and there's no substitute part

Collar M6-311
#32

Tool post and compound rest assembly diagram

Collar

Part #M6-311

The manufacturer no longer makes this part, and there's no substitute part
