Model # ZET2PH2SS Official GE electric wall oven

Here are the diagrams and repair parts for Official GE ZET2PH2SS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

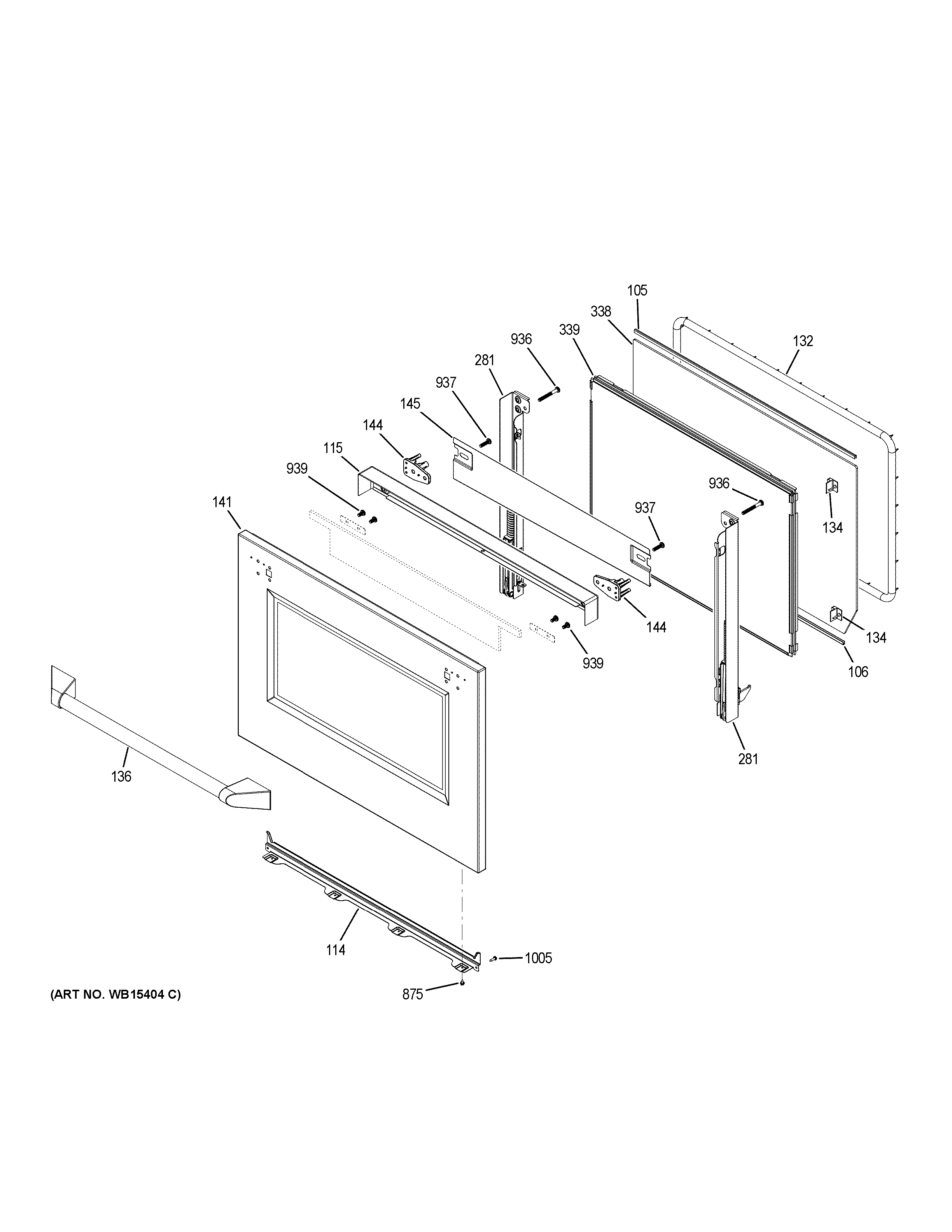

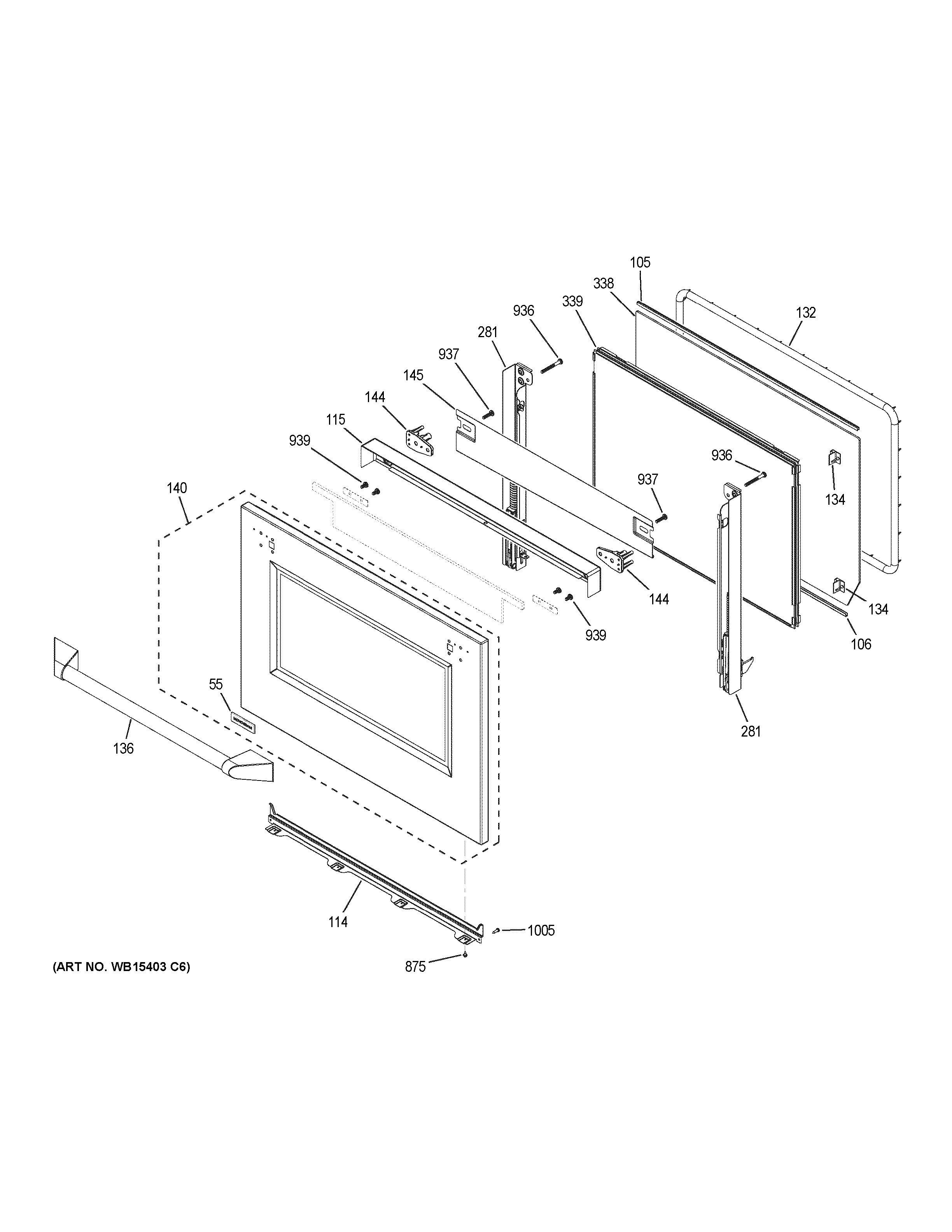

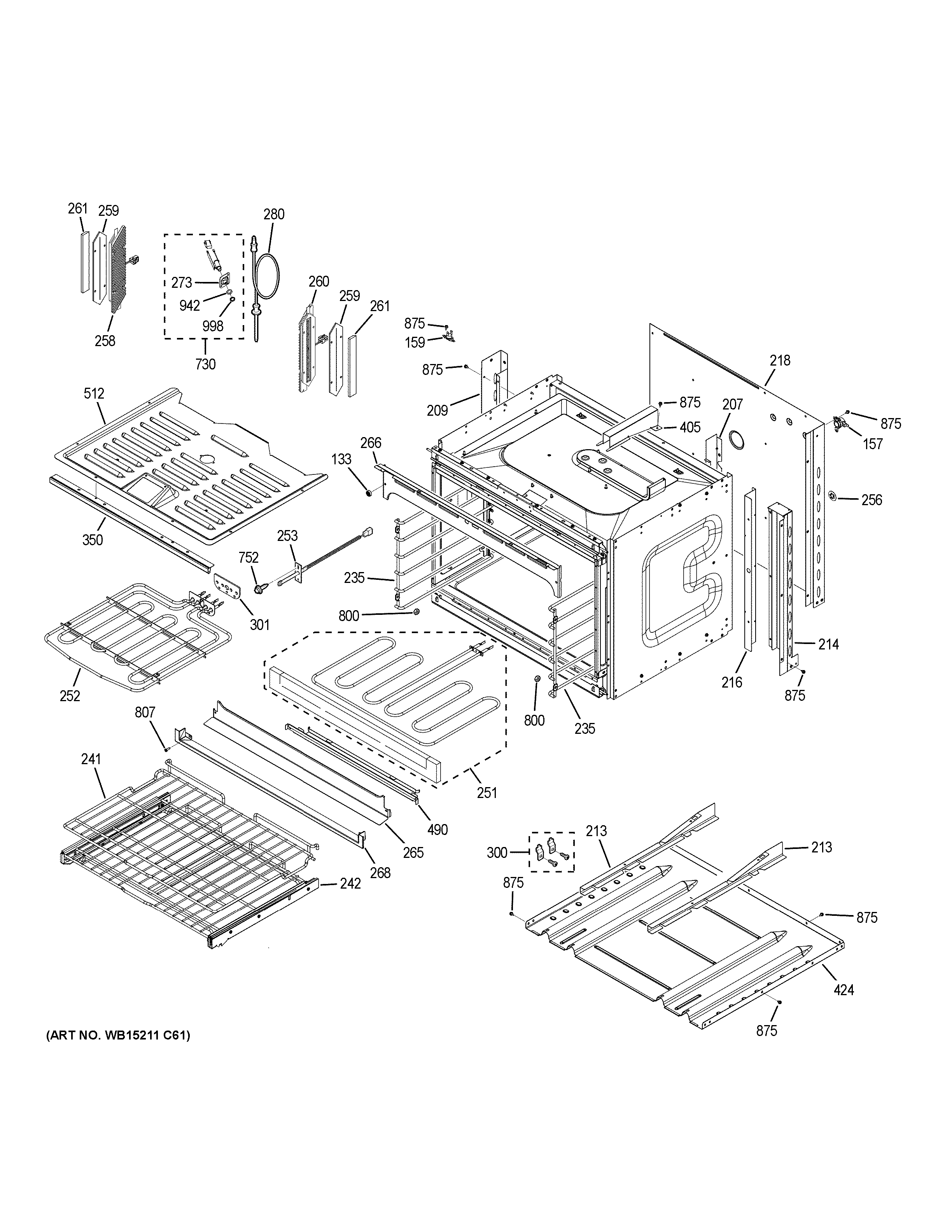

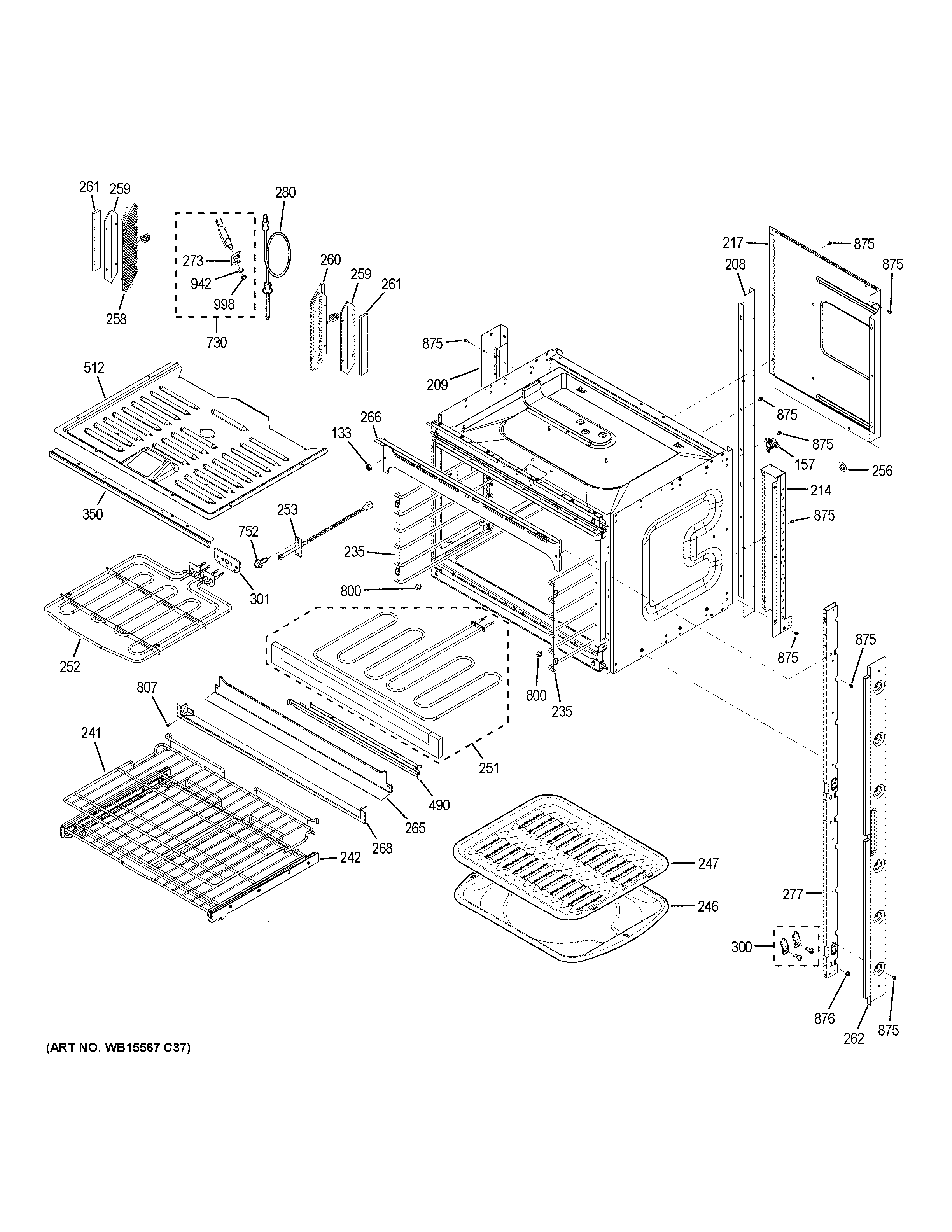

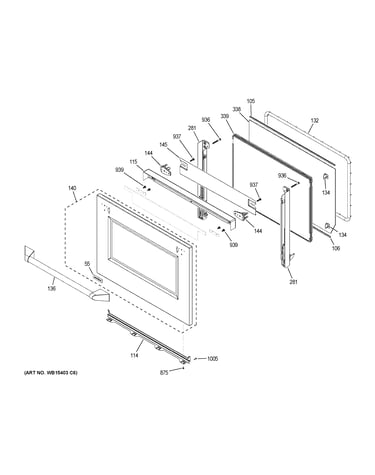

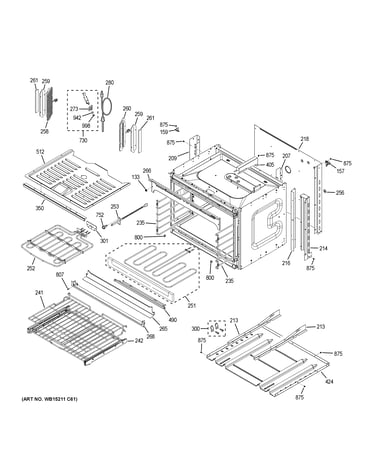

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

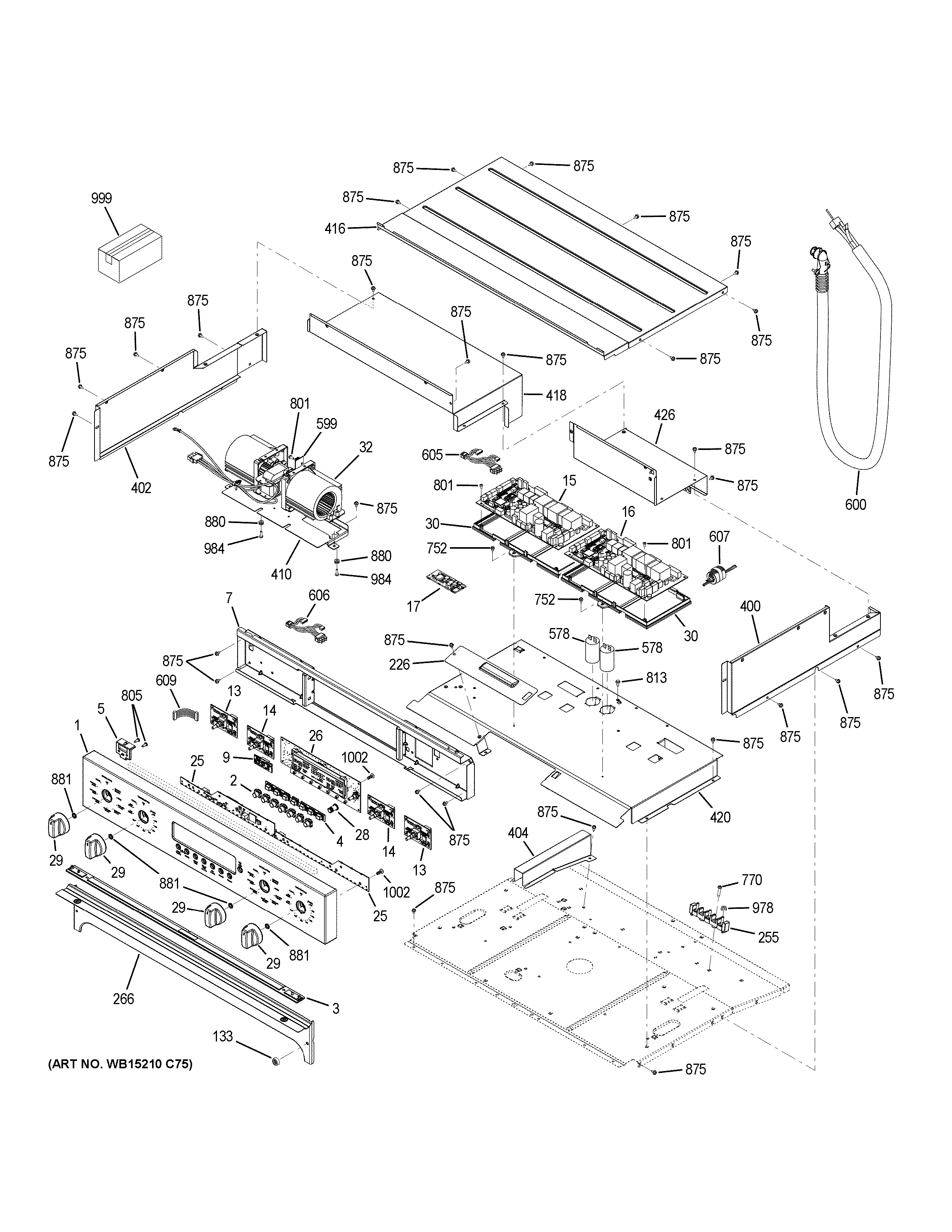

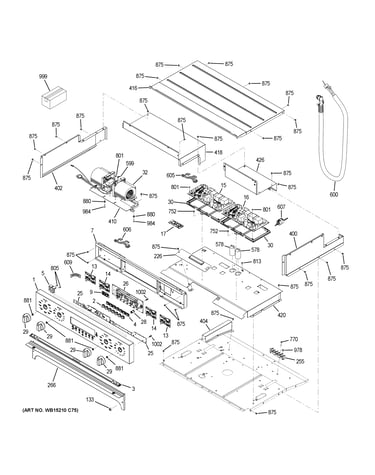

Control panel diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$50.23 |
11% OFF Phone Price : $56.23
In Stock
Board Sensor WB27X23614
#598

Center spacer diagram

Board sensor

Part #WB27X23614

Replaced by #WB27X28659

?
Manufacturer substitution
This part replaces WB27X23614. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Wall Oven Cooling Fan WB26X23613
#31

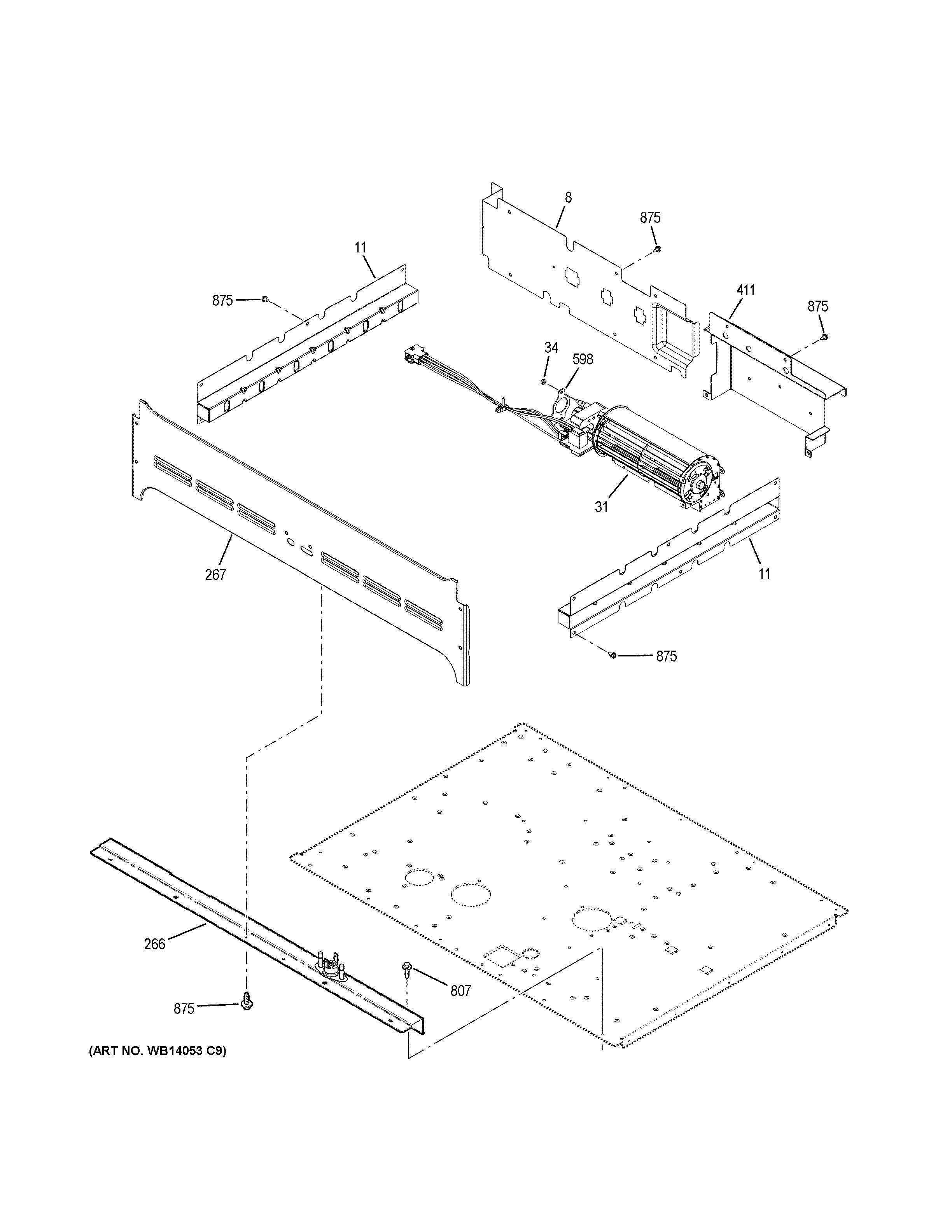

Center spacer diagram

Wall oven cooling fan

Part #WB26X23613

Replaced by #WB26X35089

?
Manufacturer substitution
This part replaces WB26X23613. Substitute parts can look different from the original.
BEST SELLER
$88.16 |
6% OFF Phone Price : $94.16
In Stock
Wall Oven Cooling Fan Assembly (replaces Wb26x23477) WB26X31060
#32

Control panel diagram

Wall oven cooling fan assembly (replaces wb26x23477)

Part #WB26X31060

BEST SELLER
$70.44 |
8% OFF Phone Price : $76.44
In Stock
Wall Oven Door Lock Assembly (replaces Wb10x23475) WB10X28391
#150

Door lock diagram

Wall oven door lock assembly (replaces wb10x23475)

Part #WB10X28391

BEST SELLER
$54.50 |
10% OFF Phone Price : $60.50
In Stock
Range High-limit Thermostat WB24T10164
Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Cooking Appliance Oven Rack Lubricant WB02T10303
#999

Control panel diagram

Cooking appliance oven rack lubricant

Part #WB02T10303

BEST SELLER
$35.29 |
15% OFF Phone Price : $41.29
In Stock
Wall Oven Bake Element WB44X21667
Wall oven bake element

Part #WB44X21667

BEST SELLER
$77.05 |
7% OFF Phone Price : $83.05
In Stock
Gasket WB35X26196
Gasket

Part #WB35X26196

Replaced by #WB35X32825

?
Manufacturer substitution
This part replaces WB35X26196. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven bake?
