Frigidaire
Washer

Model # LAFW7000LW0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire LAFW7000LW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

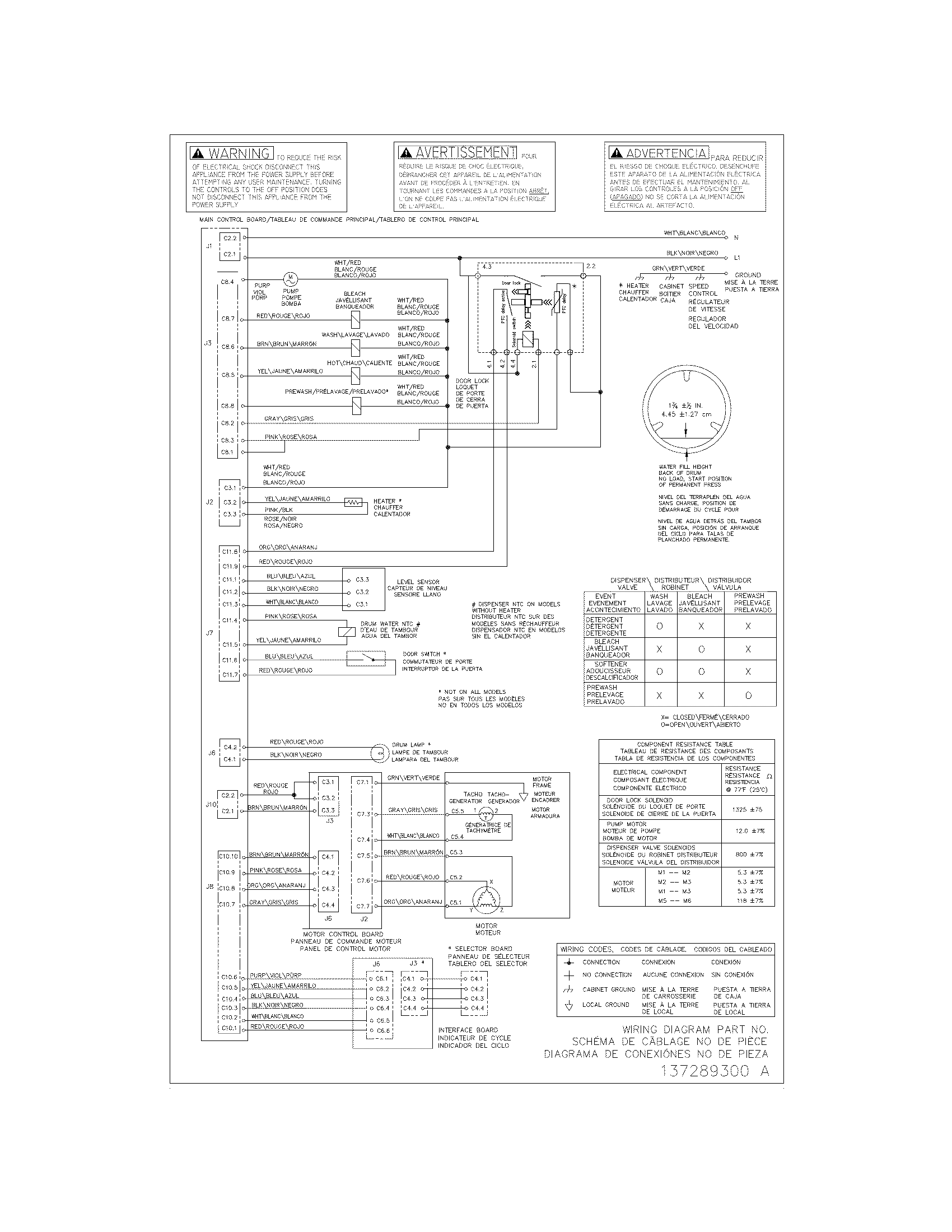

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Washer Water Inlet Valve (replaces 134637800, 7134637800, 7134637810) 134637810
#36

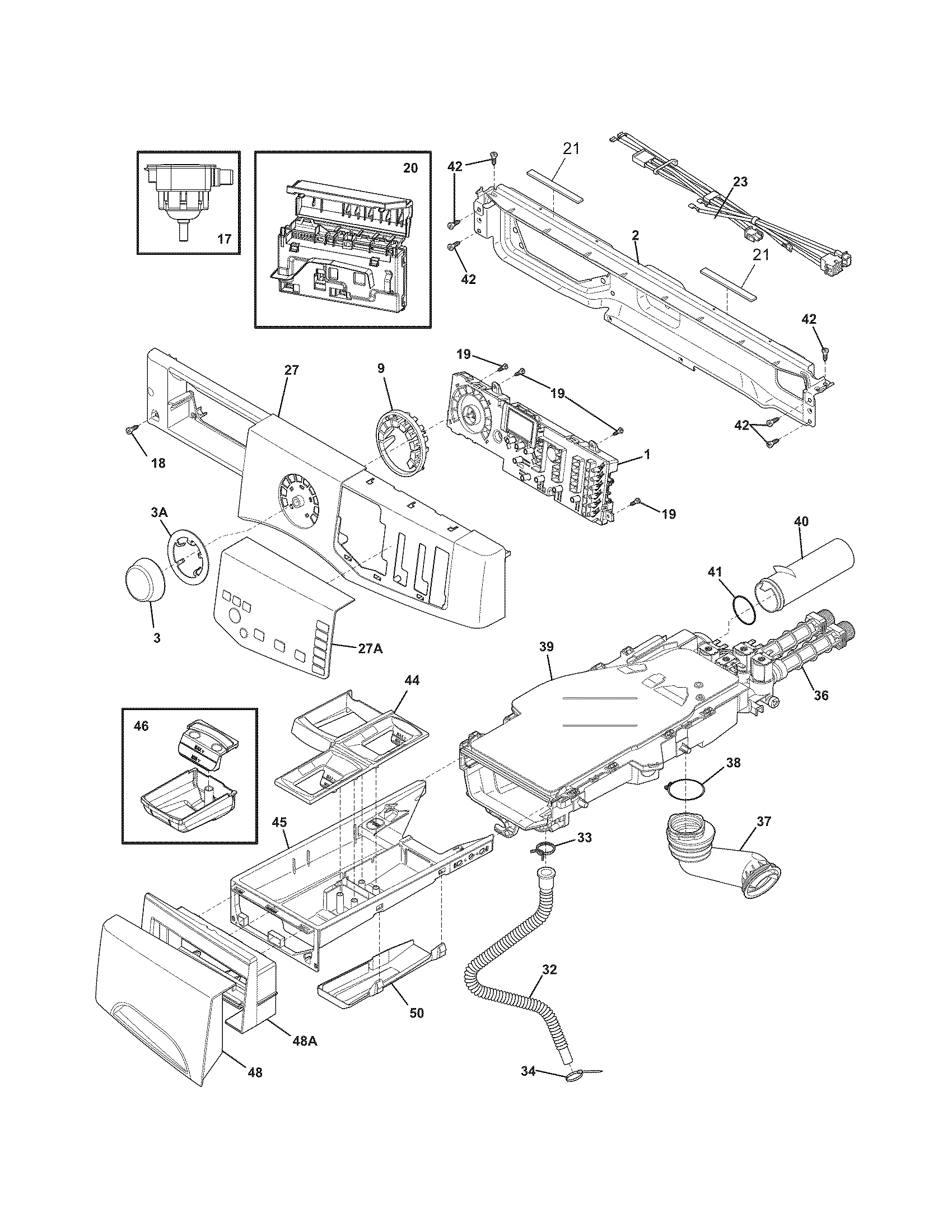

Control panel diagram

Washer water inlet valve (replaces 134637800, 7134637800, 7134637810)

Part #134637810

BEST SELLER
$108.21 |
10% OFF Phone Price : $120.21
In Stock
Washer Drain Pump 137240800
#35

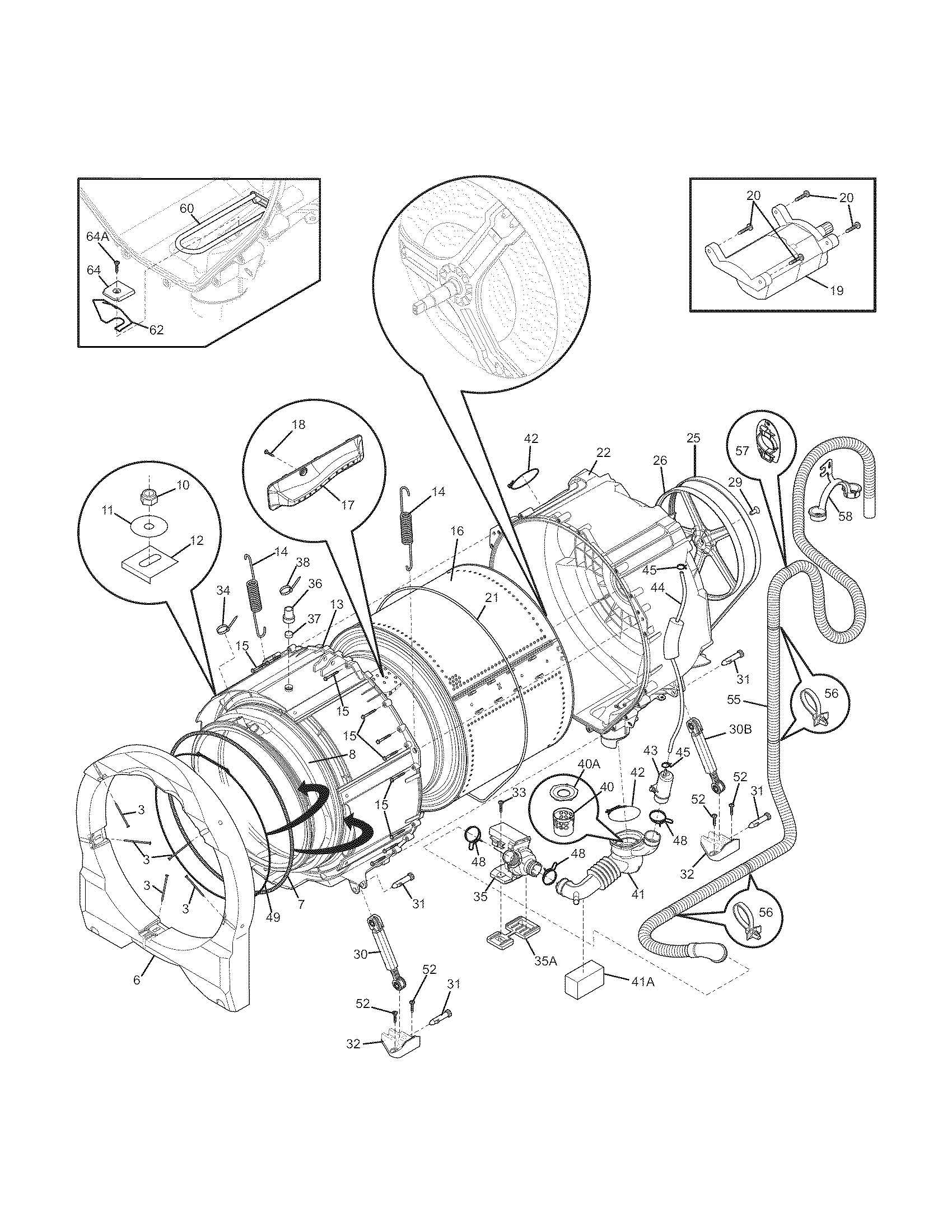

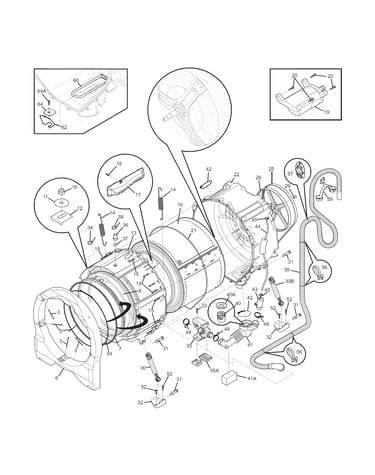

Motor/tub diagram

Washer drain pump

Part #137240800

BEST SELLER
$167.77 |
7% OFF Phone Price : $179.77
In Stock
Washer Door Boot Spring Clamp (replaces 134365400) 134527100
#49

Motor/tub diagram

Washer door boot spring clamp (replaces 134365400)

Part #134527100

BEST SELLER
$34.85 |
15% OFF Phone Price : $40.85
In Stock
Bellows 134740900
#8

Motor/tub diagram

Bellows

Part #134740900

Replaced by #134515300

?
Manufacturer substitution
This part replaces 134740900. Substitute parts can look different from the original.
BEST SELLER
$245.52 |
5% OFF Phone Price : $257.52
In Stock
Control Board 134618210
#4

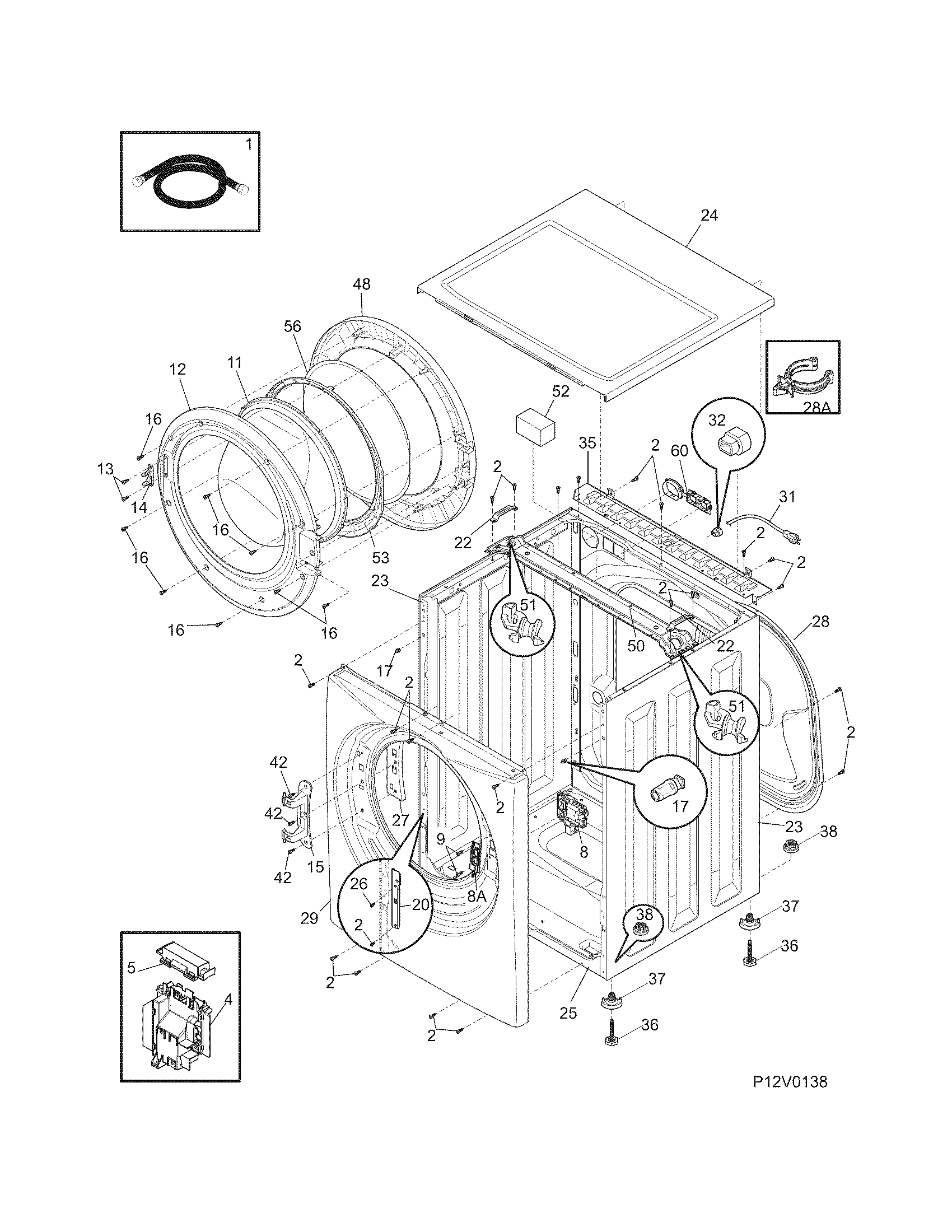

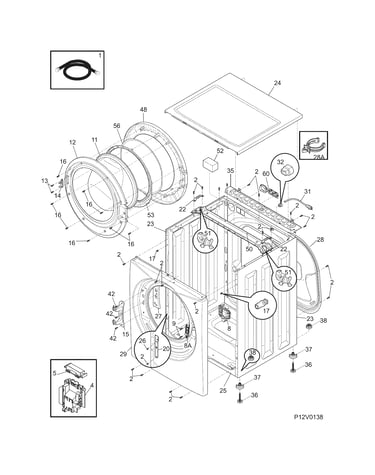

Cabinet/top diagram

Control board

Part #134618210

Replaced by #134618213

?
Manufacturer substitution
This part replaces 134618210. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$238.27 |
5% OFF Phone Price : $250.27
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Siphon Screw 131303300
#9

Cabinet/top diagram

Siphon screw

Part #131303300

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131303300. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

Motor/tub diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99 |
10% OFF Phone Price : $19.99
In Stock
Washer Dispenser Inlet Gasket (replaces 7134371300) 134371300
#NI

Control panel diagram

Washer dispenser inlet gasket (replaces 7134371300)

Part #134371300

BEST SELLER
This item is not returnable
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Shock Absorber 137040900
#30

Motor/tub diagram

Shock absorber

Part #137040900

Replaced by #5304491701

?
Manufacturer substitution
This part replaces 137040900. Substitute parts can look different from the original.
$136.05 |
8% OFF Phone Price : $148.05
In Stock
