Ryobi
Drill/Driver

Model # CTH1802K2 Official Ryobi 18-v handle drill

Here are the diagrams and repair parts for Official Ryobi CTH1802K2 18-v handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Housing Lever 4360008
#15

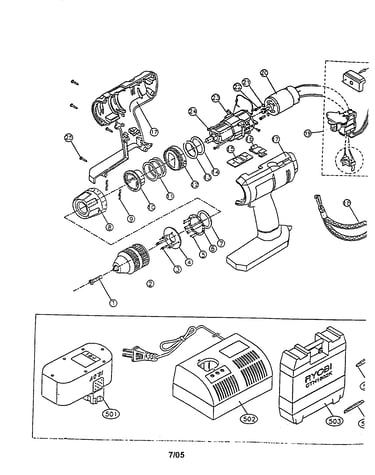

18v ctr handle drill diagram

Housing lever

Part #4360008

The manufacturer no longer makes this part, and there's no substitute part

Charger Fo 1400667B
#502

18v ctr handle drill diagram

Charger fo

Part #1400667B

The manufacturer no longer makes this part, and there's no substitute part

Housing 4800036
#17

18v ctr handle drill diagram

Housing

Part #4800036

The manufacturer no longer makes this part, and there's no substitute part

Operator's Manual 1980014

#NI

All parts diagram

Operator's manual

Part #1980014

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate (2) 4180026
#9

18v ctr handle drill diagram

Spring plate (2)

Part #4180026

The manufacturer no longer makes this part, and there's no substitute part

Rating Label 4910036
#17-2

18v ctr handle drill diagram

Rating label

Part #4910036

The manufacturer no longer makes this part, and there's no substitute part

Torque Spring 4180027
#11

18v ctr handle drill diagram

Torque spring

Part #4180027

The manufacturer no longer makes this part, and there's no substitute part

Clutch Washer 4900099
#13

18v ctr handle drill diagram

Clutch washer

Part #4900099

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130047
#22

18v ctr handle drill diagram

Screw

Part #1130047

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900149
#14

18v ctr handle drill diagram

Washer

Part #1900149

The manufacturer no longer makes this part, and there's no substitute part
